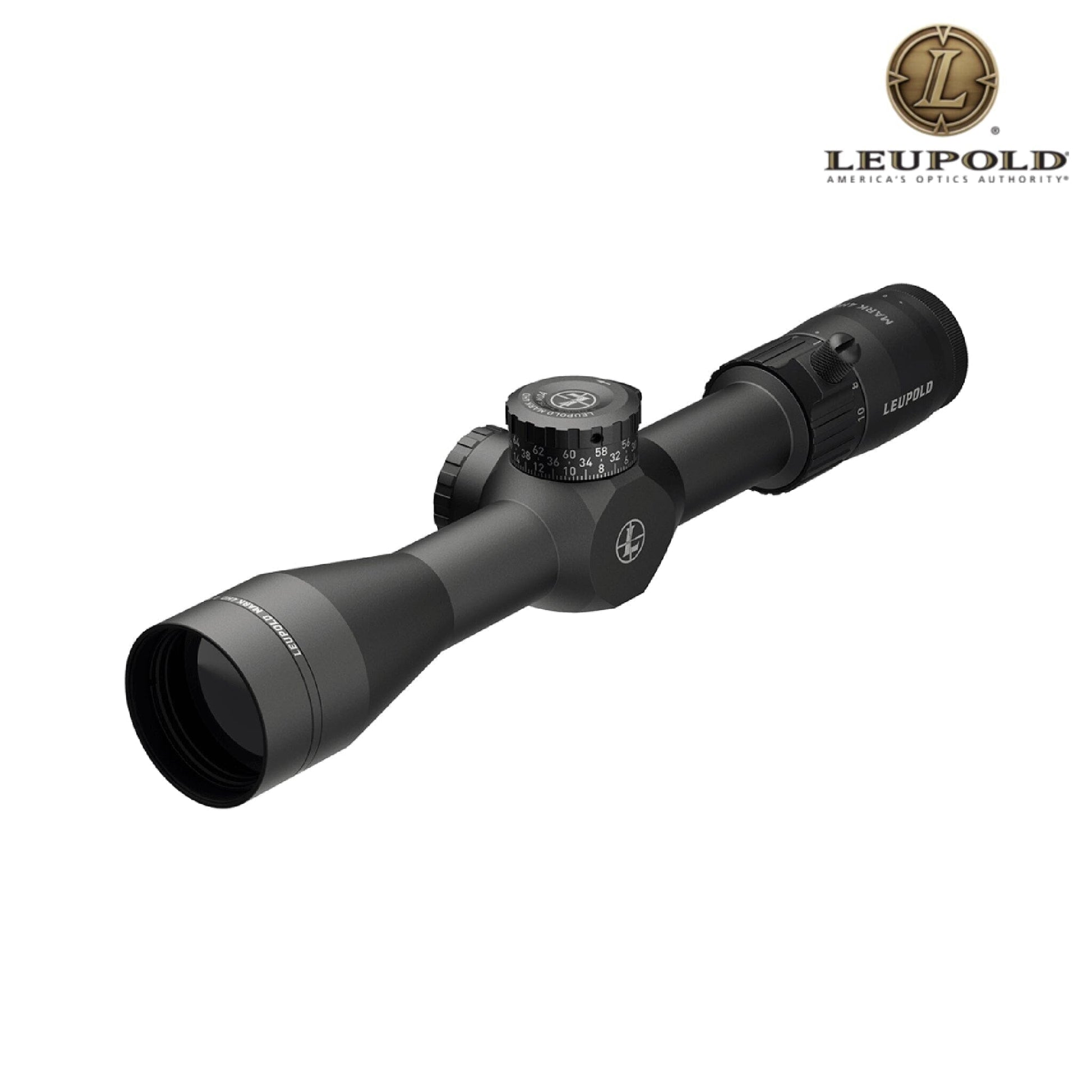

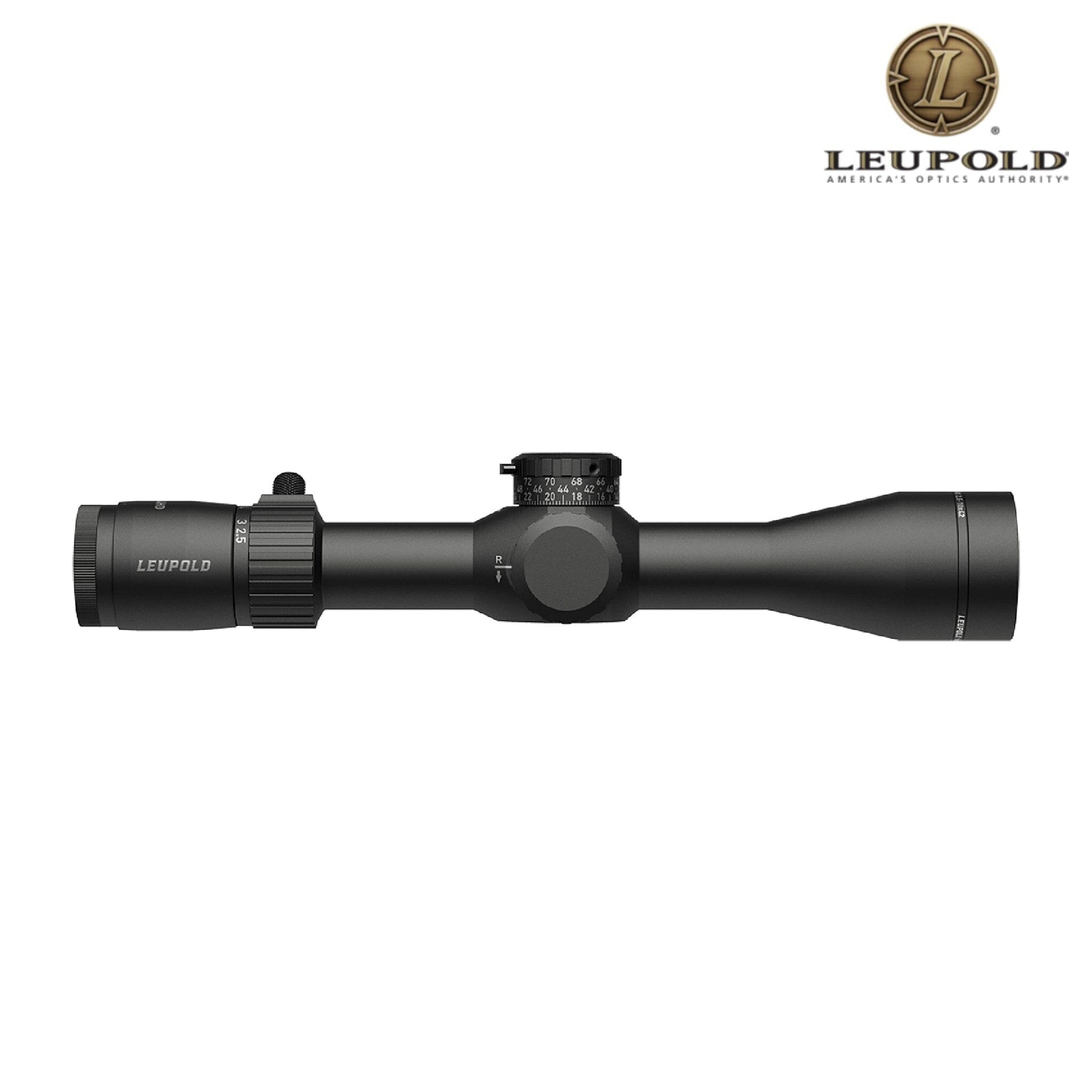

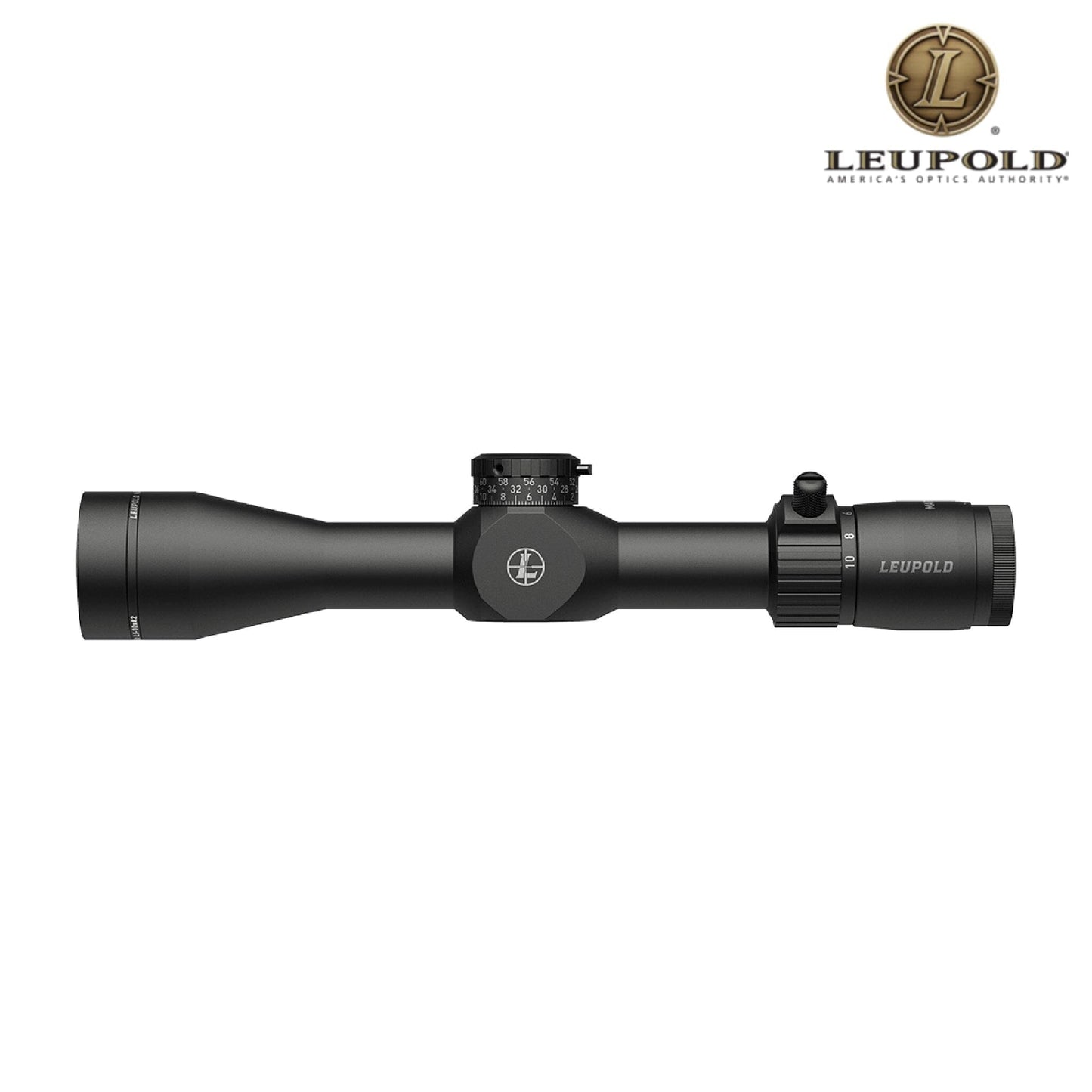

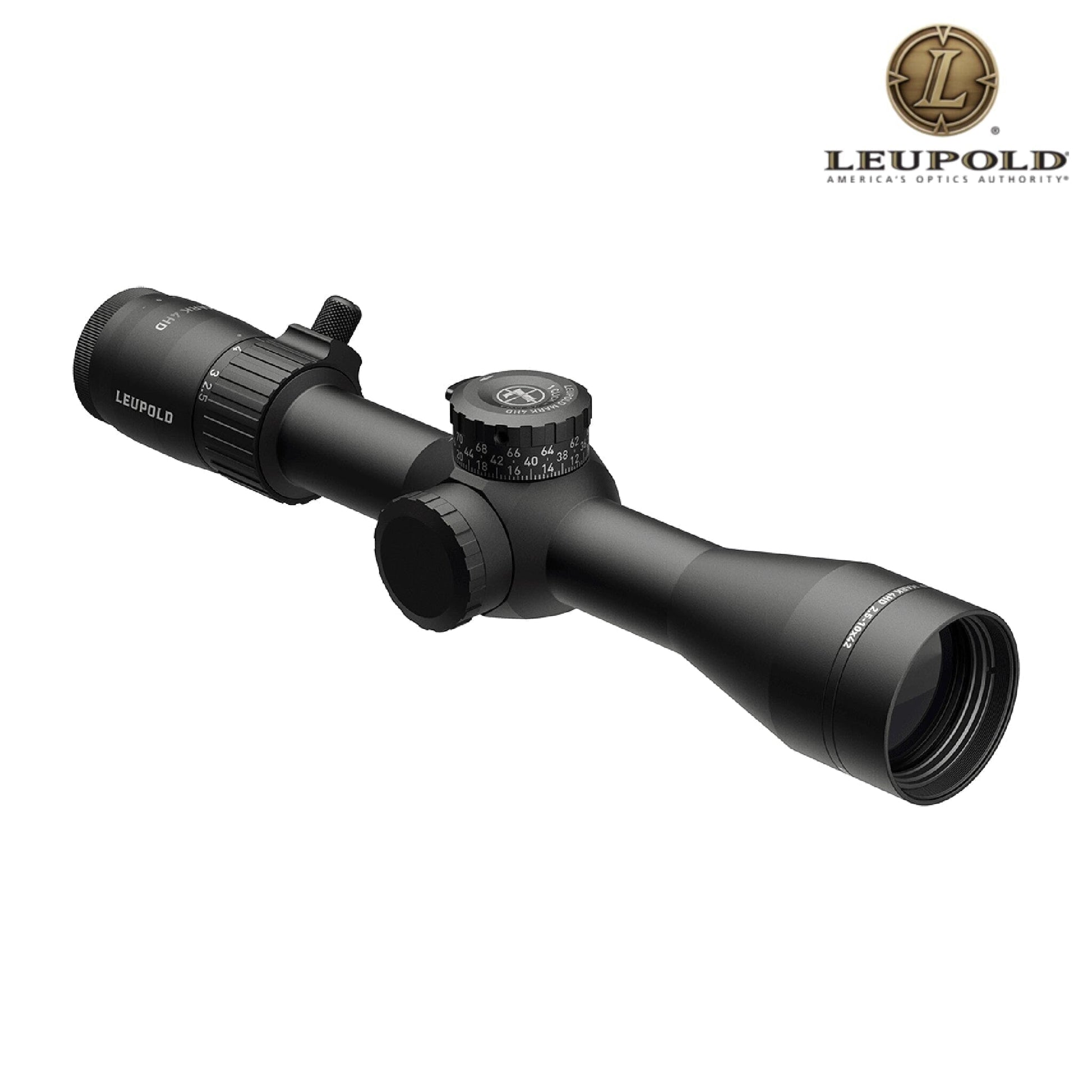

Leupold Mark 4HD 2.5–10×42 Rifle Scope M1C3 FFP PR1-MOA Reticle
Features
- 30mm Main Tube: CNC-machined 6061-T6 aluminum chassis with matte-black hard-coat anodize—waterproof, fog-proof (IPX7), and rated to .50 BMG recoil.
- Wide-Zoom Range: 2.5 × ⇄ 10 × via integrated throw-lever for rapid magnification changes between CQB and mid-range engagements.

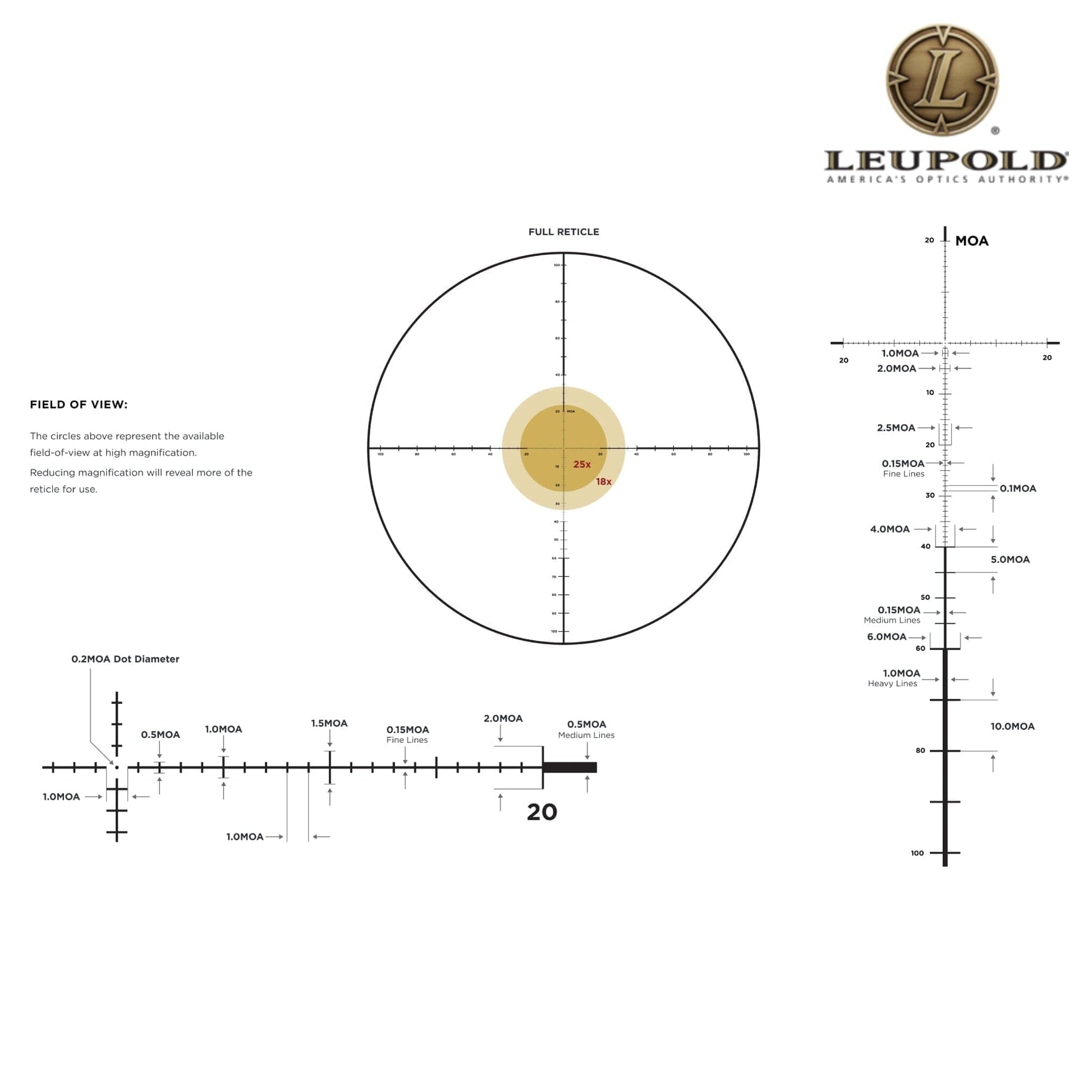

- FFP PR1-MOA Reticle: Glass-etched, first-focal-plane pattern calibrated in MOA for hold-over/hold-off at any magnification; non-illuminated for zero power draw.
- M1C3 Turrets: Exposed elevation dial—0.1 MOA per click, one full revolution (25 MOA) + 3 MOA over-travel; windage under low-profile ZeroLock® cap—0.1 MOA clicks.
- Fixed Parallax: Set at 150 yds for optimal image and reticle alignment without adjustment knobs.
- Exceptional Eye Relief & Field of View: 3.6″ – 3.9″ of constant eye relief; 42.2 ft @ 100 yd (low) ⇄ 11 ft @ 100 yd (high).
Technical Specifications for Leupold Mark 4HD 2.5–10×42 Rifle Scope M1C3 FFP PR1-MOA Reticle
Specification |
Details |
Model / MPN |
183741 |
SKU |
183741 |
UPC |
030317036737 |
Magnification |
2.5 × ⇄ 10 × |
Objective Lens Diameter |
42 mm |
Main Tube Diameter |
30mm |
Reticle |
PR1-MOA (First Focal Plane, glass-etched) |
Elevation Adjustment |
M1C3 turret; 0.1 MOA/click; 25 MOA per rev + 3 MOA over-travel |
Windage Adjustment |
0.1 MOA/click under ZeroLock® cap; ±25 MOA |
Parallax |
Fixed at 150 yd |
Eye Relief |
3.6″ – 3.9″ (94 – 99 mm) |
Field of View @ 100 yd |
42.2 ft (low) ⇄ 11 ft (high) |
Length |
17.15″ (435 mm) |
Weight |
21 oz (595 g) |
Finish / Housing Material |
Matte-black hard-coat anodize; 6061-T6 aluminum |
Included Accessories
- Integrated magnification throw-lever
- ZeroLock® windage cap
- Flip-up lens covers
- User manual
