Leupold Mark 4HD 6–24×52 Rifle Scope M5C3 Side Focus FFP PR2-MOA Reticle
Leupold Mark 4HD 6–24×52 Rifle Scope M5C3 Side Focus FFP PR2-MOA Reticle
Couldn't load pickup availability
Leupold Mark 4HD 6–24×52 Rifle Scope M5C3 Side Focus FFP PR2-MOA Reticle
(Model 183822)
Features
- 4:1 Zoom Ratio: High-speed throw lever for rapid transitions between 6× (wide field) and 24× (precision).

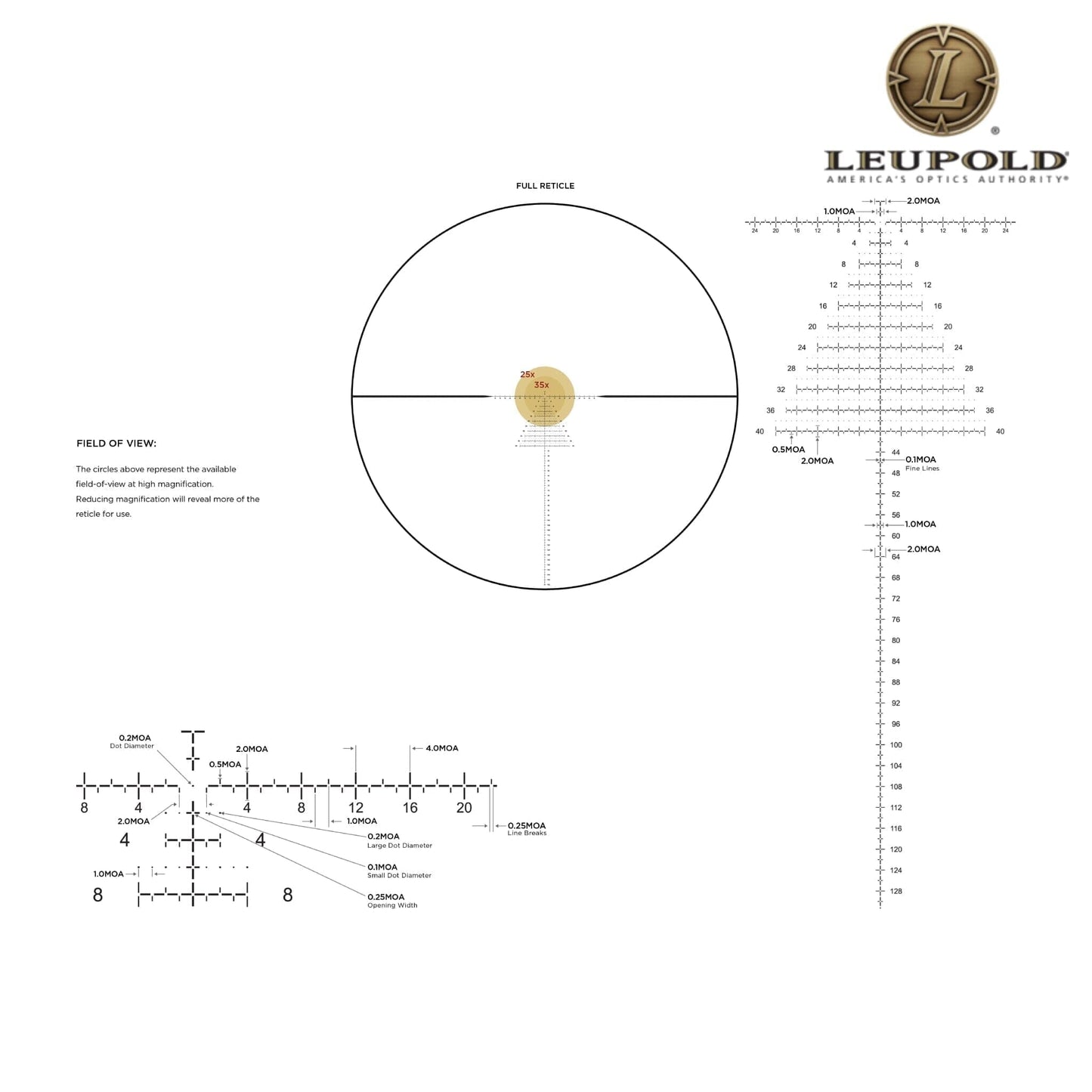

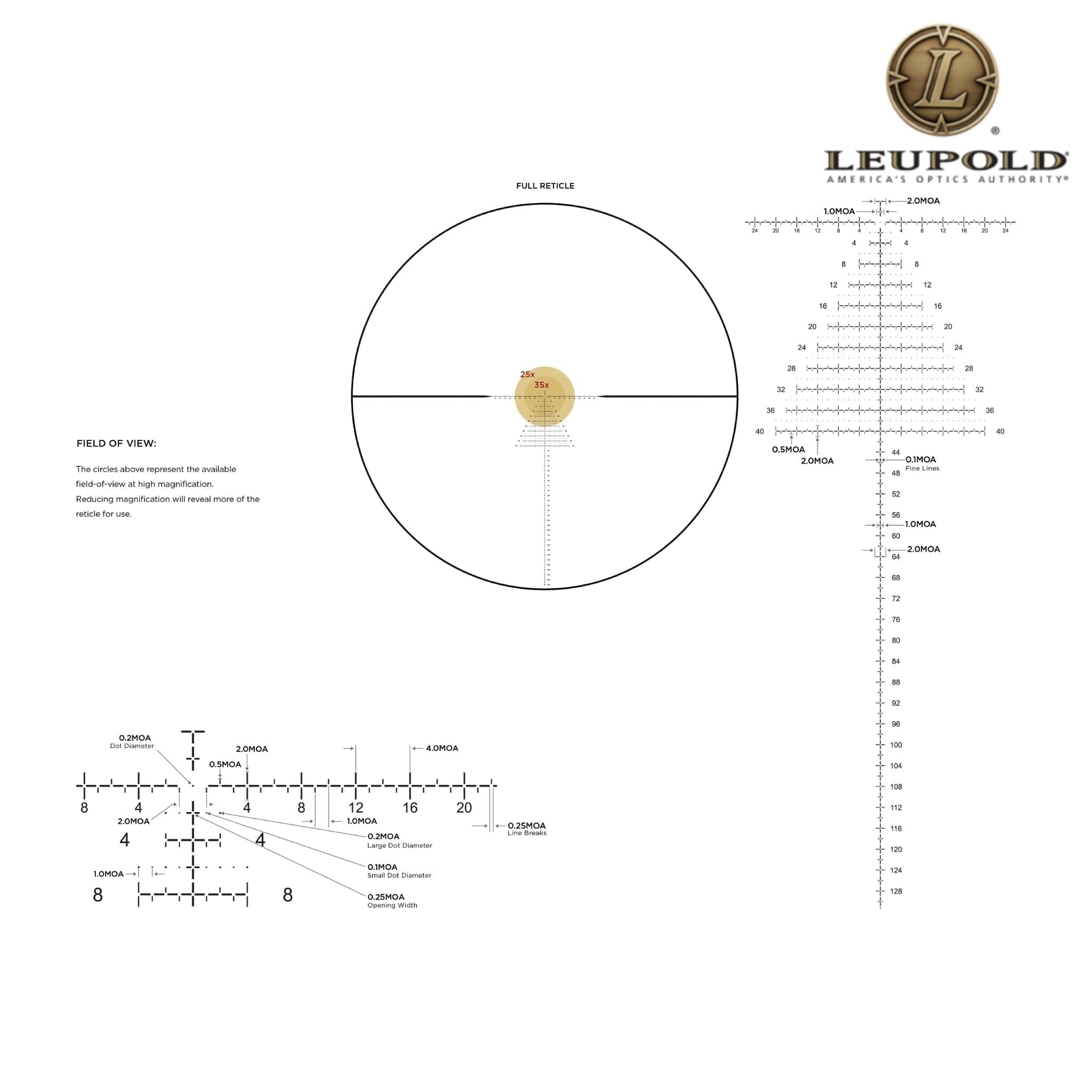

- First-Focal-Plane PR2-MOA Reticle: Glass-etched Precision Rifle™ pattern calibrated in MOA for true hold-over/hold-off at any magnification (non-illuminated).
- M5C3 Turret System:
- Elevation: Exposed ZeroLock® turret; 0.25 MOA per click; 25 MOA per revolution; 100 MOA total travel; positive ZeroStop® feature.
- Windage: Low-profile capped turret; 0.25 MOA per click; 24 MOA per revolution under lockable cap.
- 25-Yard Side Focus: Quick-set parallax dial adjusts from 25 yd to infinity for razor-sharp reticle alignment.
- Elite Optics: Fully multi-coated lenses and prisms (Xtended Twilight® system) deliver exceptional light transmission, contrast, and edge-to-edge clarity.
- Rugged Construction: CNC-machined 34 mm main tube of 6061-T6 aluminum with matte-black hard-coat anodize; IPX7 waterproof, nitrogen-purged, and rated to withstand .50 BMG recoil.
- Made in USA & Lifetime Guarantee
Technical Specifications for Leupold Mark 4HD 6–24×52 Rifle Scope M5C3 Side Focus FFP PR2-MOA Reticle
Specification |
Details |
Model / MPN |
183822 |
SKU |
183822 |
UPC |
030317036799 |
Country of Origin |
USA |
Magnification Range |
6 × ⇄ 24 × |
Objective Lens Diameter |
52 mm |
Main Tube Diameter |
34 mm |
Reticle |
PR2-MOA (FFP, glass-etched; non-illuminated) |
Elevation Adjustment |
M5C3 ZeroLock®; 0.25 MOA/click; 25 MOA/rev; 100 MOA total |
Windage Adjustment |
0.25 MOA/click under lockable cap; 24 MOA/rev |
Parallax Focus |
Side focus, 25 yd → ∞ |
Eye Relief |
4.0″ (102 mm) constant |
Field of View @ 100 yd |
17.3 ft (low) ⇄ 4.7 ft (high) |
Overall Length |
14.6″ (371 mm) |
Weight |
27 oz (766 g) |
Housing Material / Finish |
6061-T6 aluminum; matte-black hard-coat anodize |
Waterproof / Fog-Proof |
IPX7 (submersible to 1 m for 30 min) |
Shock Resistance |
Rated to withstand .50 BMG recoil |
Included Accessories
- High-speed throw lever
- ZeroLock® windage cap
- Flip-up protective lens covers
- User manual
