Leupold MARK 5HD 3.6–18×44 Rifle Scope M5C3 FFP Illuminated PR1-MIL Reticle
Leupold MARK 5HD 3.6–18×44 Rifle Scope M5C3 FFP Illuminated PR1-MIL Reticle
Couldn't load pickup availability
Leupold MARK 5HD 3.6–18×44 Rifle Scope M5C3 FFP Illuminated PR1-MIL Reticle
(Model 180725)
Features
- 5:1 Zoom Ratio: Low-profile throw-lever for rapid transitions between 3.6× (wide-field) and 18× (precision).

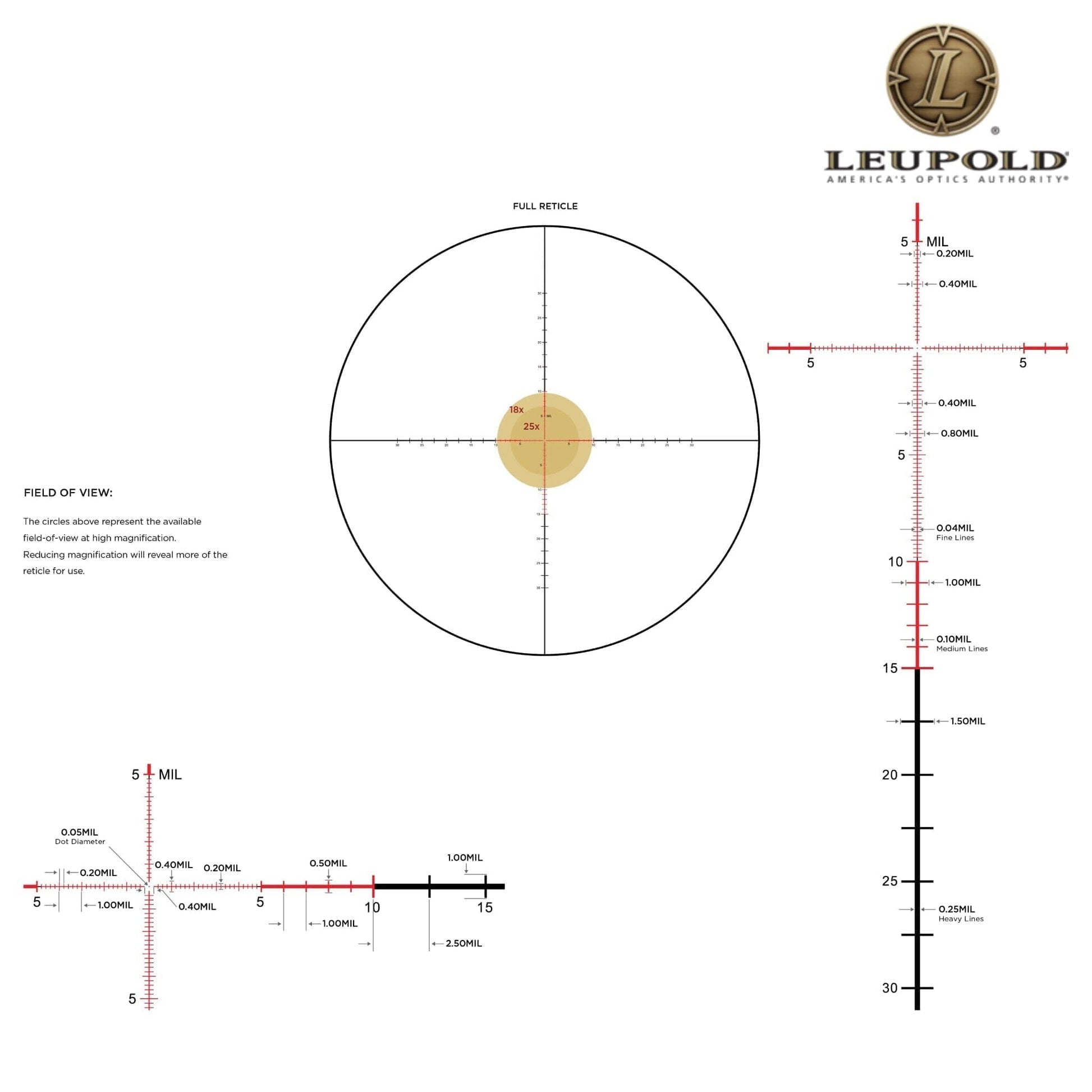

- First-Focal-Plane Illuminated PR1-MIL™ Reticle: Glass-etched MIL-based grid with 1 MIL subtensions and ranging tree; true hold-over/hold-off at any magnification; red-LED illumination with seven daylight-bright and four NV-compatible settings; Motion Sensor Technology™ powers down after inactivity and instantly reactivates on movement.

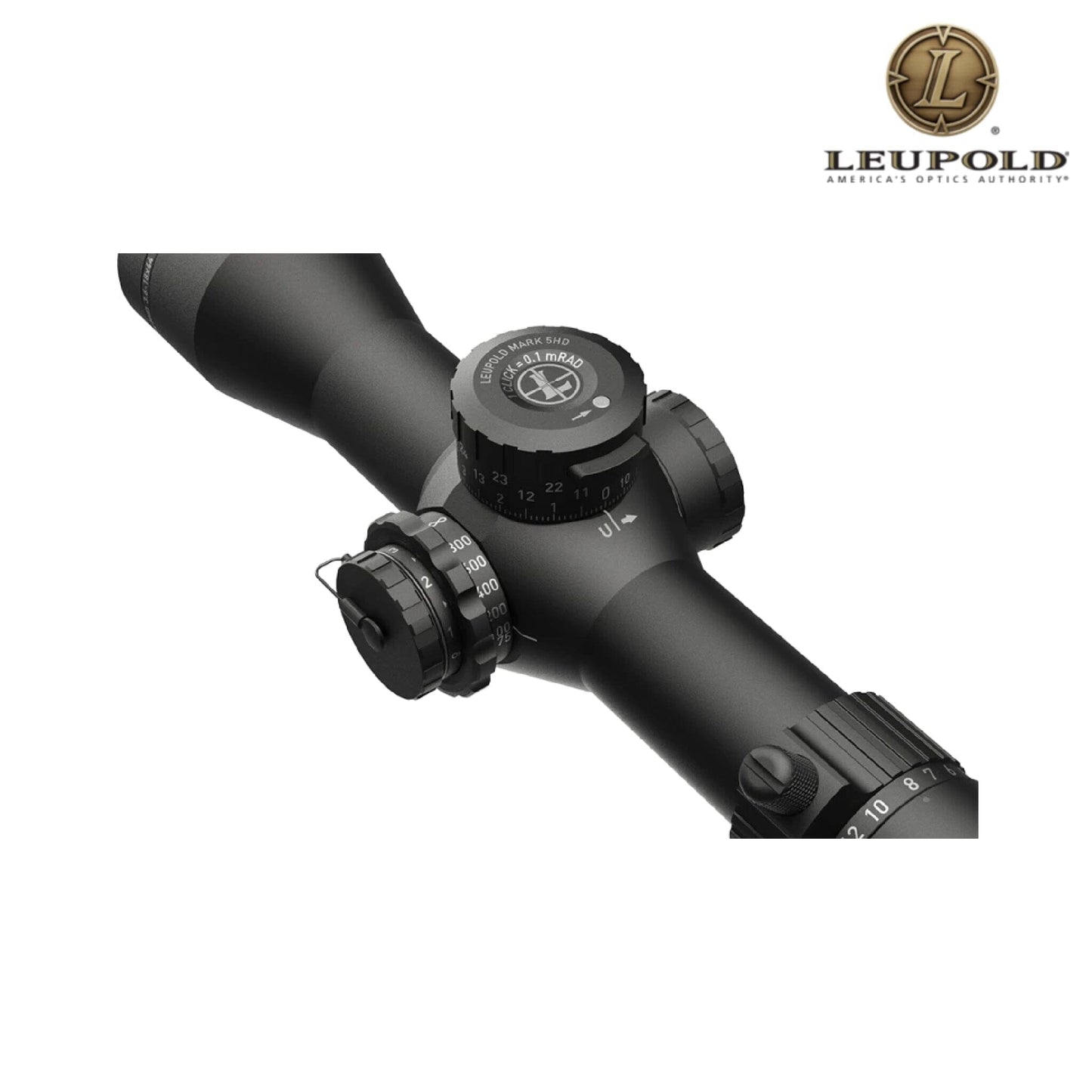

- M5C3 Turret System:
- Elevation: Exposed ZeroLock® turret; 0.1 MIL per click; 10 MIL per revolution; 30 MIL total travel; positive ZeroStop™ for instant, repeatable return to zero.
- Windage: Low-profile capped turret under ZeroLock® cap; 0.1 MIL per click; 24 MIL per revolution.
- Side Focus Parallax: Quick-set from 50 yd to ∞ for tack-sharp reticle alignment.
- Professional-Grade Optics: Xtended Twilight® fully multi-coated lenses with extra-low dispersion glass for exceptional resolution, contrast, and edge-to-edge clarity.
- Rugged Construction: CNC-machined 35 mm main tube of 6061-T6 aluminum with matte-black hard-coat anodize; IPX7 waterproof; nitrogen-purged; rated to withstand .50 BMG recoil.
- Extended Eye Relief: 3.5″ (90 mm) at low magnification → 3.8″ (97 mm) at high magnification for comfortable head positioning.
- Made in USA & Lifetime Guarantee
Technical Specifications for Leupold MARK 5HD 3.6–18×44 Rifle Scope M5C3 FFP Illuminated PR1-MIL Reticle
Specification |
Details |
Model / MPN |
180725 |
SKU |
LEU-180725 |
UPC |
030317028787 |
Country of Origin |
USA |
Magnification Range |
3.6 × ⇄ 18 × |
Objective Lens Diameter |
44 mm |
Main Tube Diameter |
35 mm |
Reticle |
Illuminated PR1-MIL™ (FFP, glass-etched) |
Illumination Settings |
7 daylight-bright + 4 NV-compatible |
Battery Type & Life |
CR2032; ~1,800 hr (low) / ~96 hr (high) |
Elevation Adjustment |
M5C3; 0.1 MIL/click; 10 MIL/rev; 30 MIL total; ZeroStop™ |
Windage Adjustment |
0.1 MIL/click; 24 MIL/rev; capped turret |
Parallax Focus |
Side focus, 50 yd → ∞ |
Eye Relief |
3.5″ (90 mm) ⇄ 3.8″ (97 mm) |
Field of View @ 100 yd |
28.3 ft (low) ⇄ 5.8 ft (high) |
Overall Length |
12.06″ (306 mm) |
Weight |
26 oz (737 g) |
Housing Material / Finish |
6061-T6 aluminum; matte-black hard-coat anodize |
Waterproof / Fog-Proof |
Yes (IPX7) |
Shock Resistance |
Rated to withstand .50 BMG recoil |
Included Accessories
- Removable throw-lever
- ZeroLock® windage cap
- Flip-up lens covers
- User manual
