Leupold

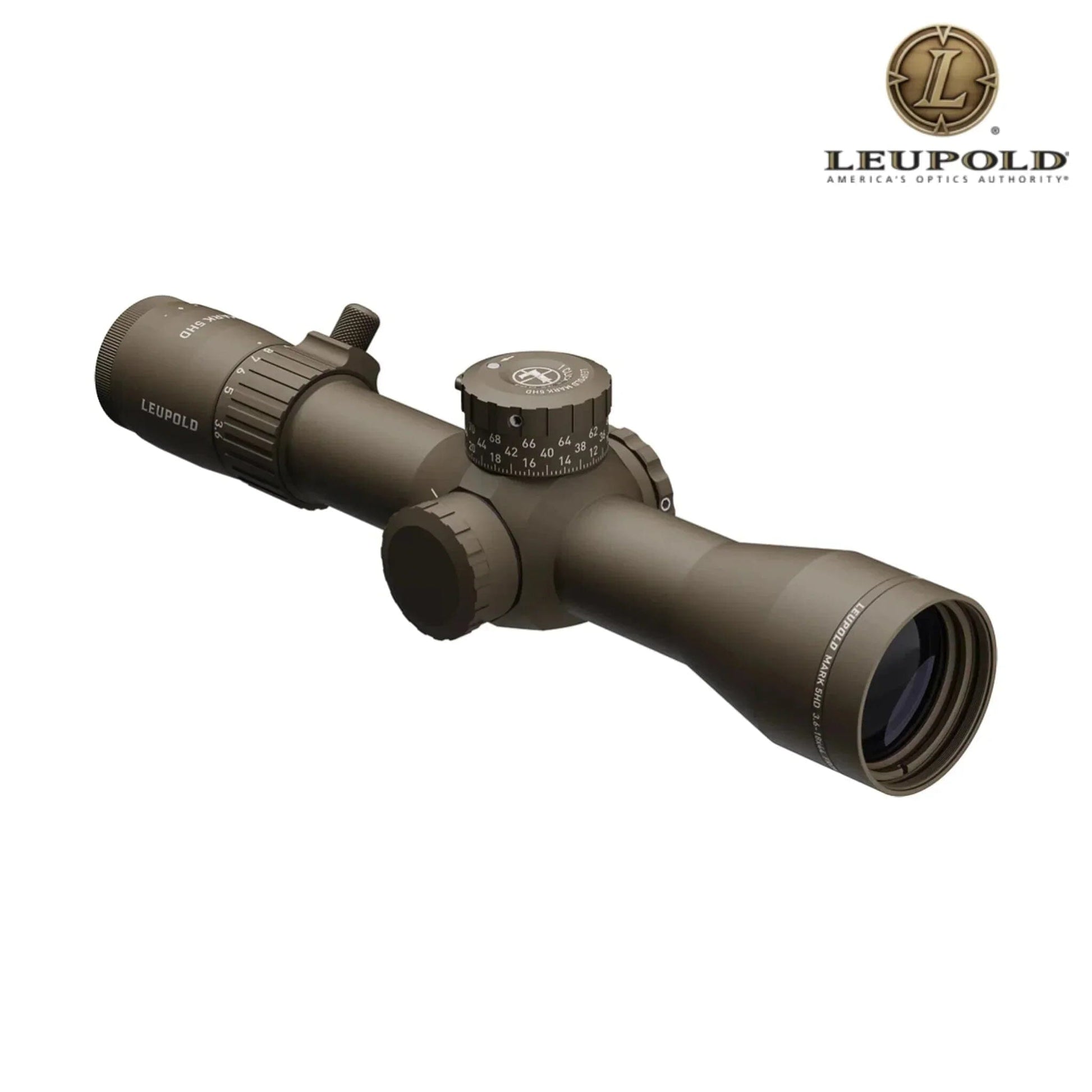

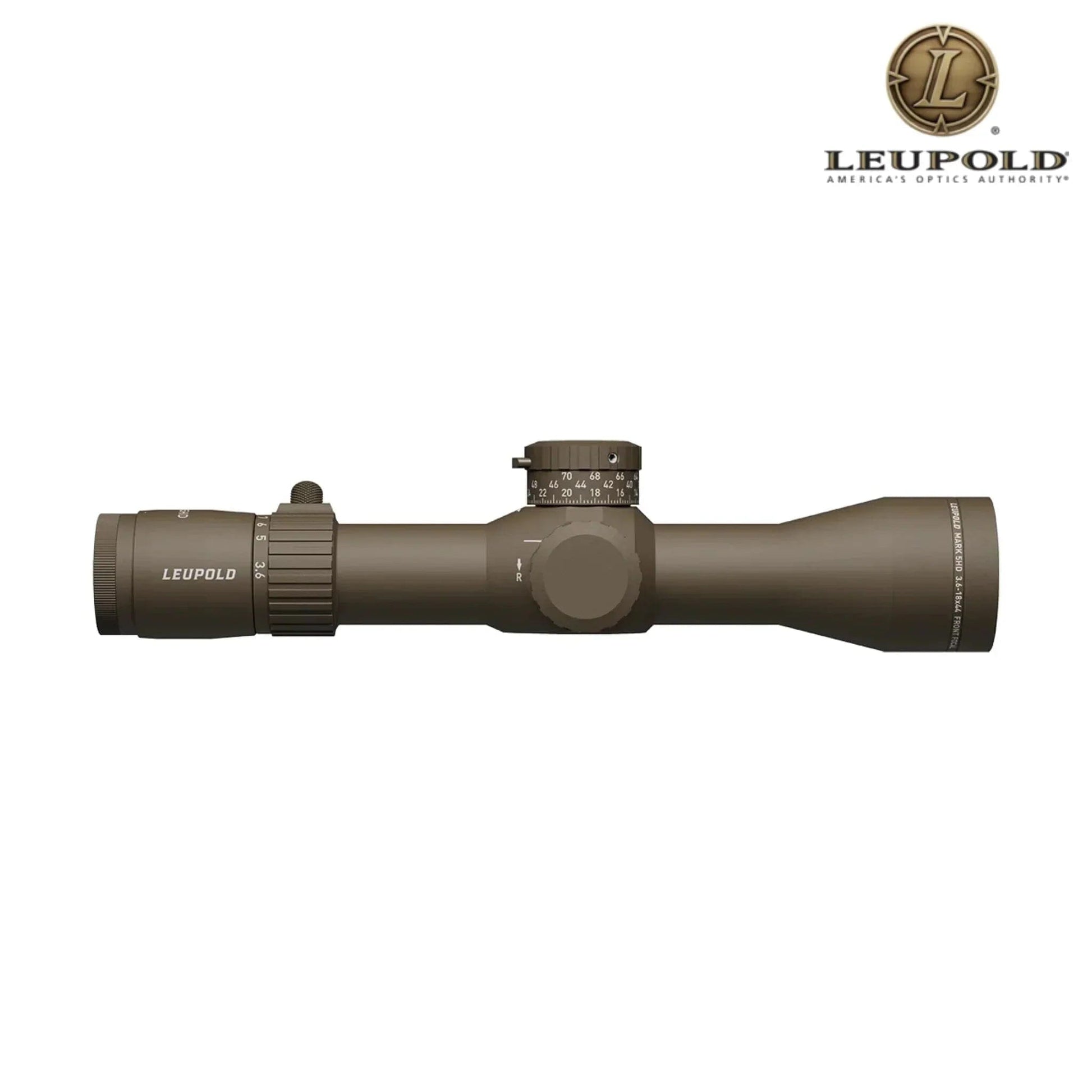

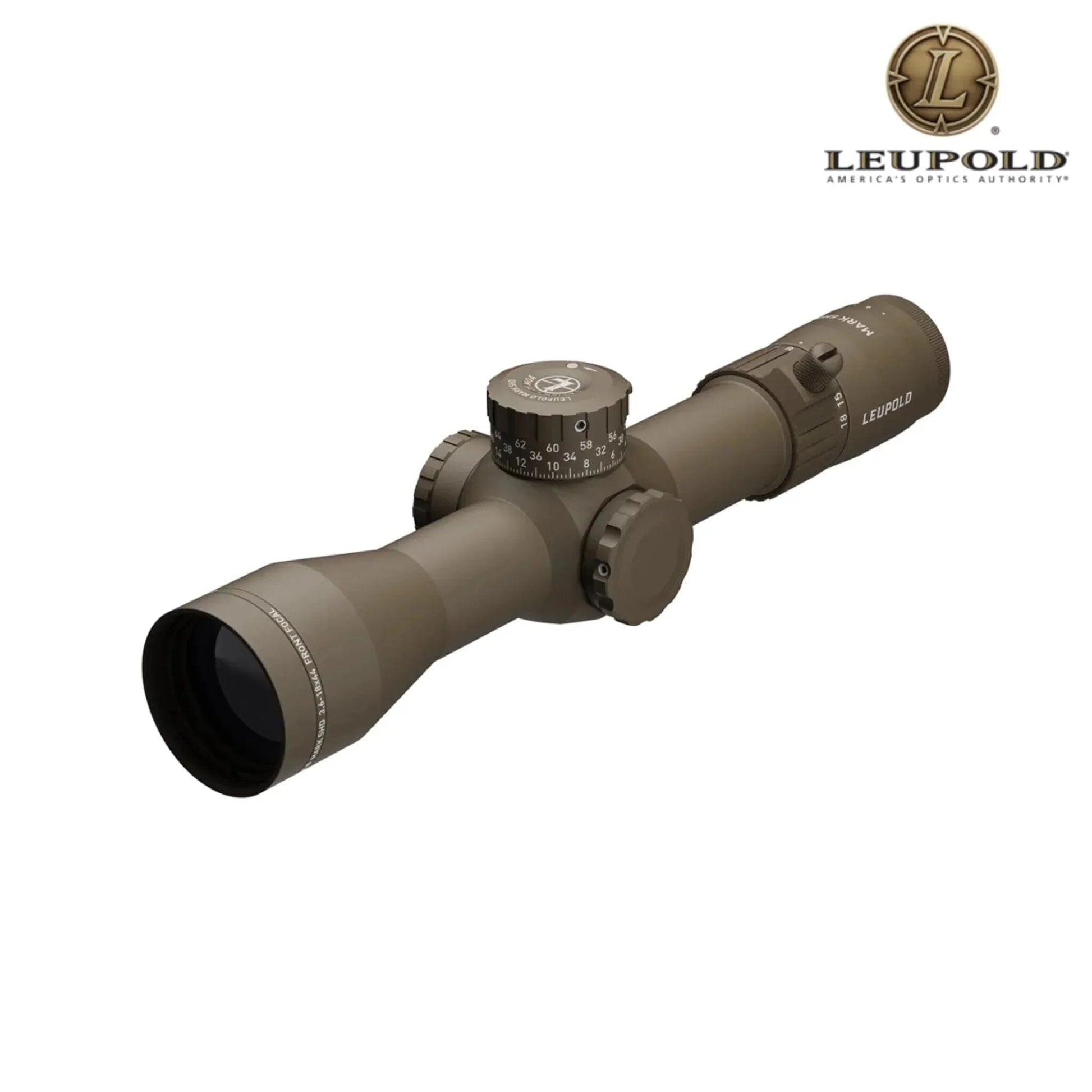

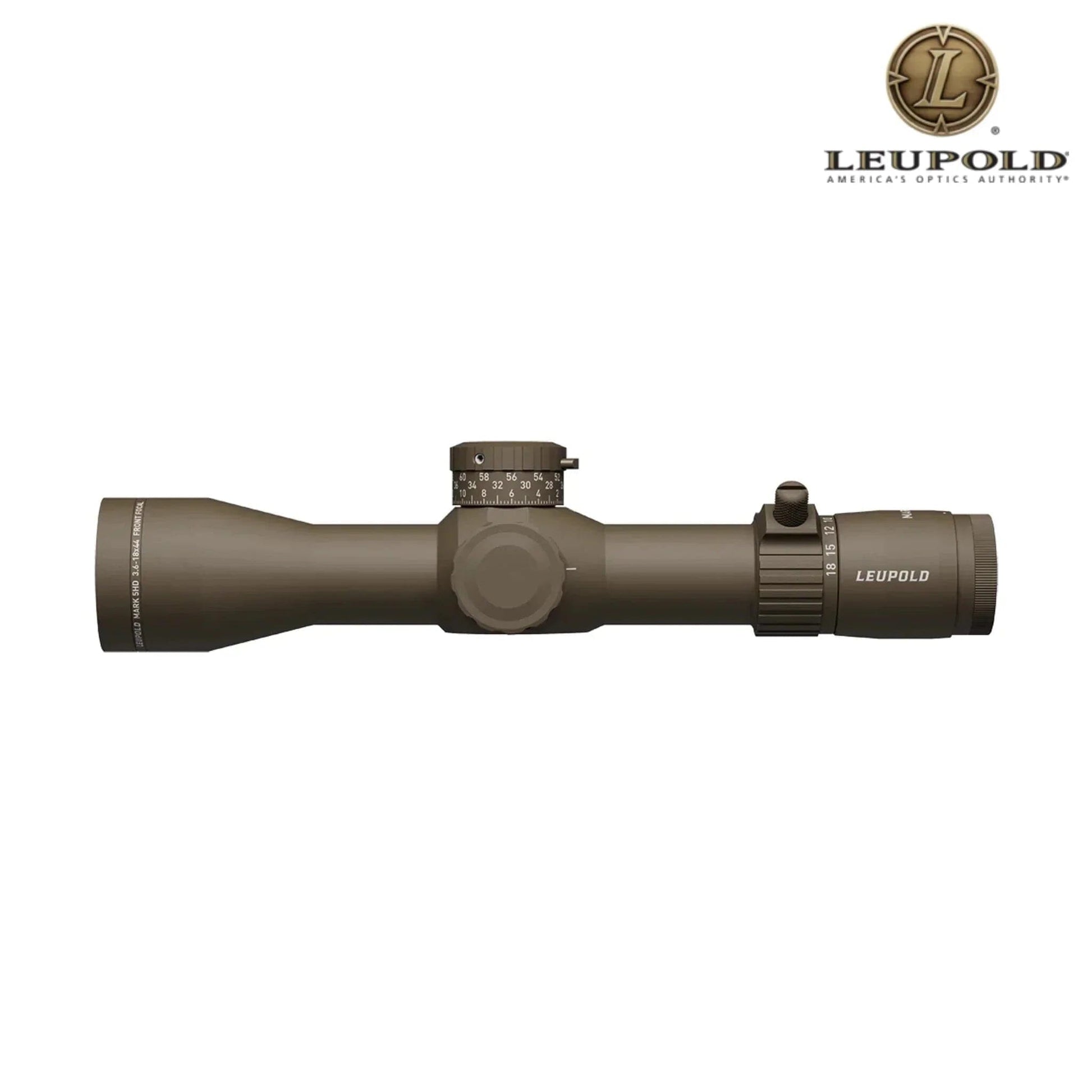

Leupold Mark 5HD 3.6-18x44 Rifle Scope M1C3 FFP PR-1 MOA Reticle Dark Earth

Leupold Mark 5HD 3.6-18x44 Rifle Scope M1C3 FFP PR-1 MOA Reticle Dark Earth

Regular price $2,099.99 USD
Regular price Sale price $2,099.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Leupold Mark 5HD 3.6–18×44 Rifle Scope M1C3 FFP PR-1 MOA Reticle Flat Dark Earth

(Model 185066)

Features

  • 5:1 Zoom Ratio: Low-profile throw-lever for rapid transitions between 3.6× (wide-field) and 18× (precision).

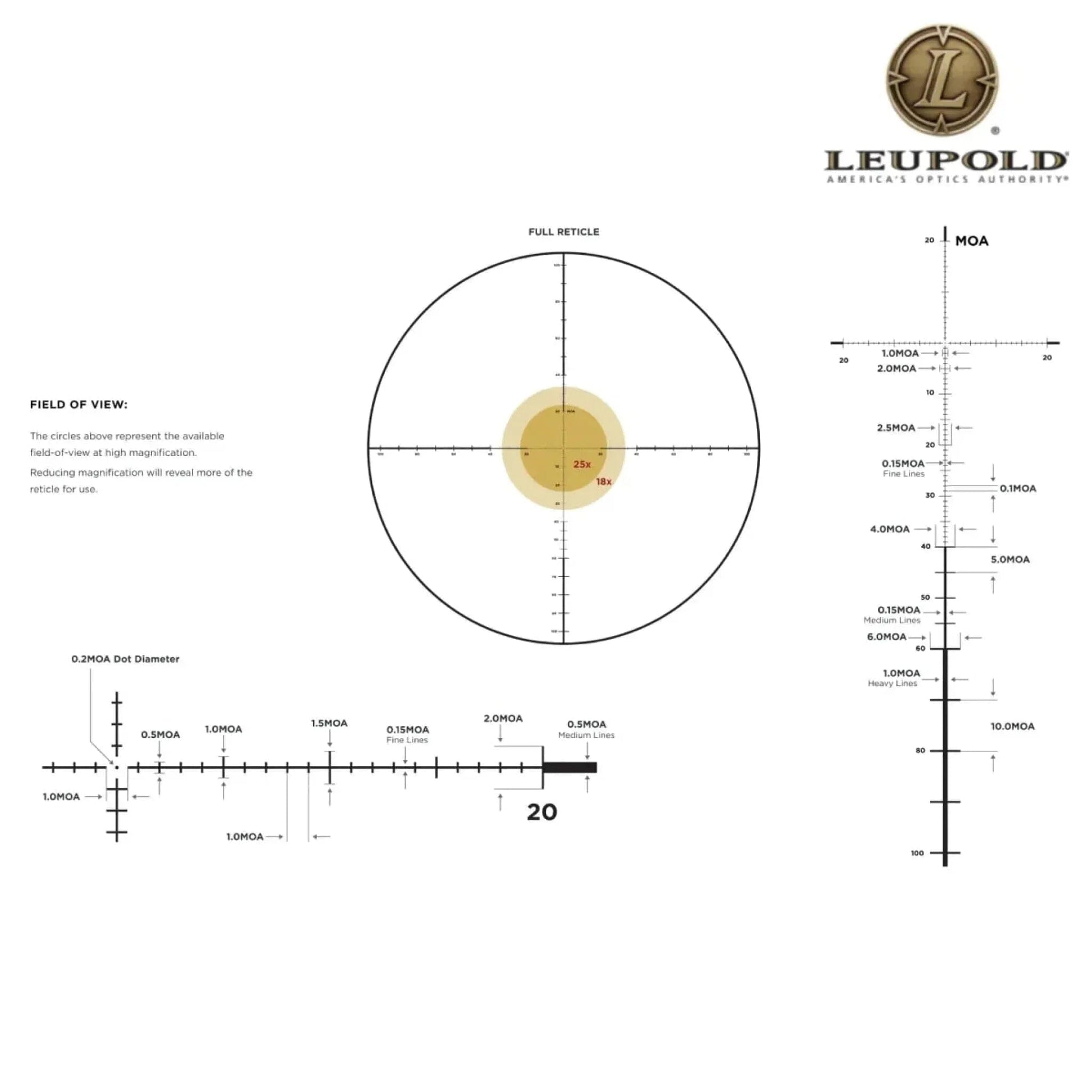

  • First-Focal-Plane PR-1 MOA Reticle: Glass-etched MOA-based grid with 1 MOA increments and 40 MOA of subtension in each direction for true hold-over/hold-off at any magnification; non-illuminated for an uncluttered sight picture.
  • M1C3 ZeroLock® Turret System:
    • Elevation: Exposed, lockable turret; ¼ MOA per click; 25 MOA per revolution; 100 MOA total travel; positive ZeroStop™ for instant, repeatable return to zero.
    • Windage: Low-profile capped turret; ¼ MOA per click; 80 MOA total travel; visual and tactile revolution indicator under cap.
  • Side Focus Parallax: Quick-set adjustment from 50 yd to ∞ for tack-sharp reticle alignment.
  • Professional-Grade Optics: Xtended Twilight® fully multi-coated lenses and extra-low dispersion glass for exceptional resolution, contrast, and edge-to-edge clarity.
  • Rugged Construction: CNC-machined 35 mm main tube of 6061-T6 aluminum with Flat Dark Earth hard-coat anodize; IPX7 waterproof; nitrogen-purged; rated to withstand .50 BMG recoil.
  • Extended Eye Relief: 3.54″–3.82″ (90–97 mm) constant across zoom range for comfortable head positioning.
  • Made in USA & Lifetime Guarantee

Technical Specifications for Leupold Mark 5HD 3.6–18×44 Rifle Scope M1C3 FFP PR-1 MOA Reticle Flat Dark Earth

Specification

Details

Model / MPN

185066

SKU

185066

UPC

030317040314

Country of Origin

USA

Magnification Range

3.6 × 18 ×

Objective Lens Diameter

44 mm

Main Tube Diameter

35 mm

Reticle

PR-1 MOA (FFP, glass-etched)

Illumination Settings

None

Elevation Adjustment

M1C3; ¼ MOA/click; 25 MOA/rev; 100 MOA total; ZeroStop™

Windage Adjustment

¼ MOA/click; 80 MOA total; capped turret

Parallax Focus

Side focus, 50 yd → ∞

Eye Relief

3.54″ (90 mm) 3.82″ (97 mm)

Field of View @ 100 yd

28.4 ft (low) 5.8 ft (high)

Overall Length

12.06″ (306 mm)

Weight

26 oz (737 g)

Housing Material / Finish

6061-T6 aluminum; Flat Dark Earth hard-coat anodize

Waterproof / Fog-Proof

Yes (IPX7)

Shock Resistance

Rated to withstand .50 BMG recoil

Included Accessories

  • Removable throw-lever
  • ZeroLock® windage cap
  • Flip-up lens covers
  • User manual
