Leupold
Leupold Mark 5HD 3.6-18x44 Rifle Scope M5C3 FFP TMR Reticle
Leupold Mark 5HD 3.6-18x44 Rifle Scope M5C3 FFP TMR Reticle
Couldn't load pickup availability

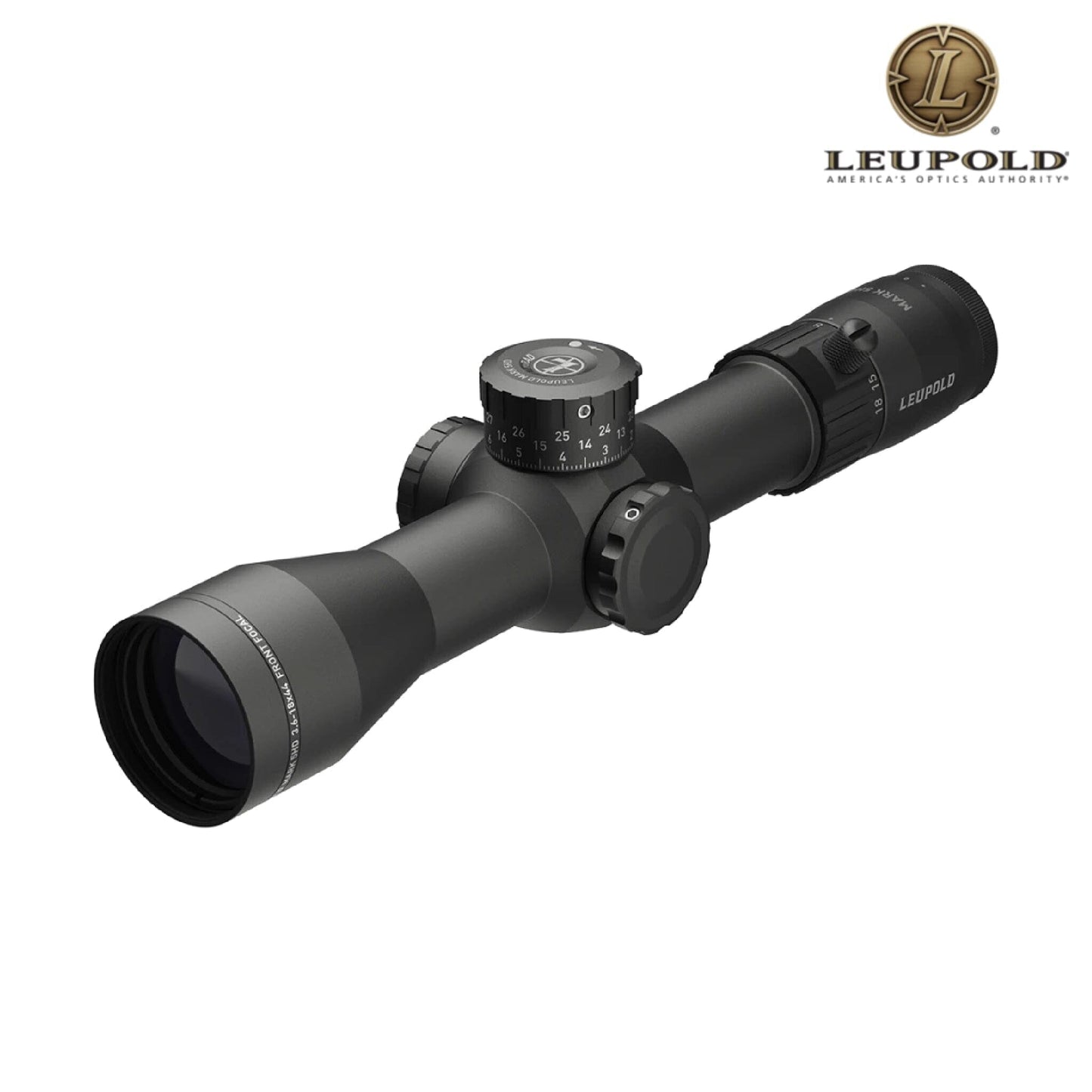

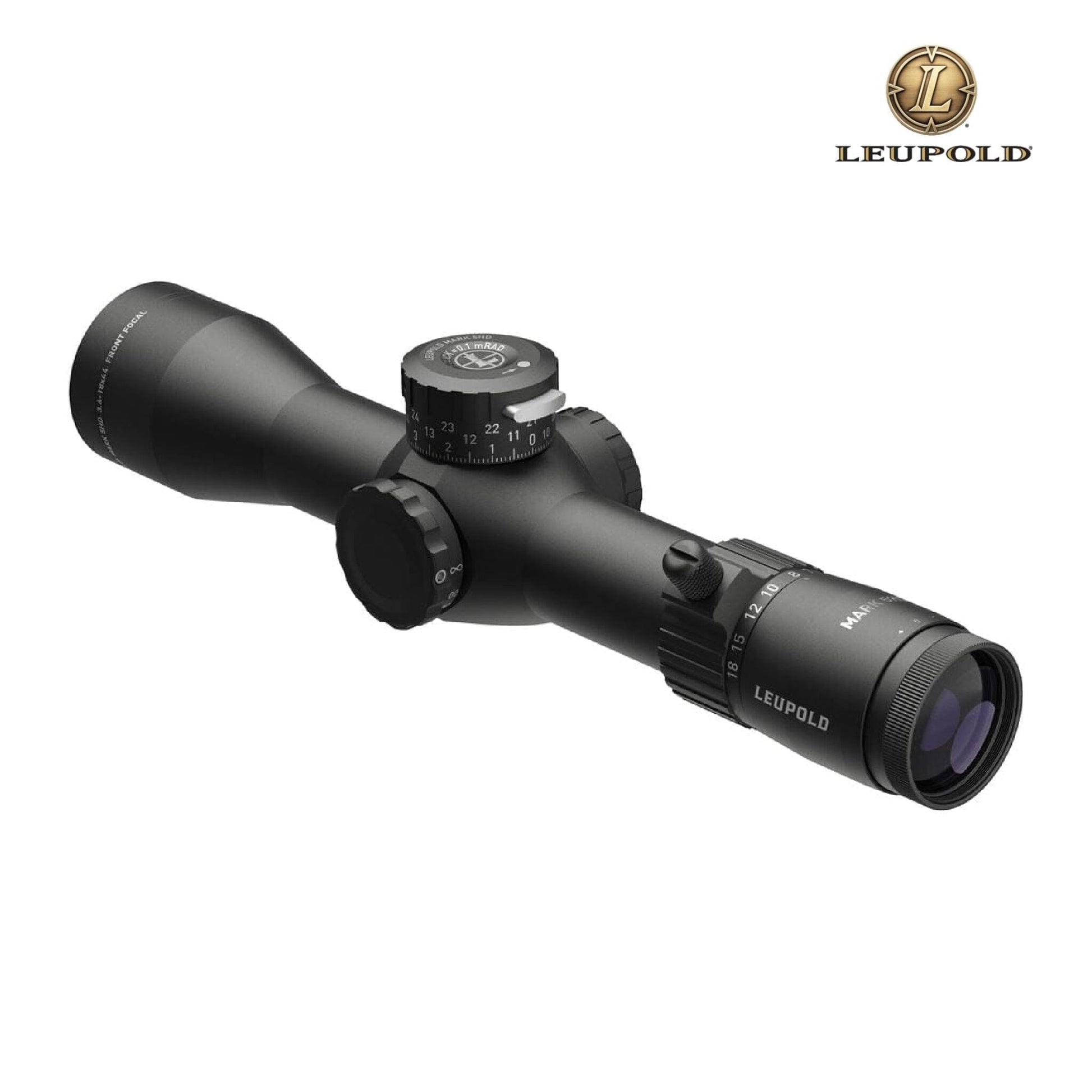

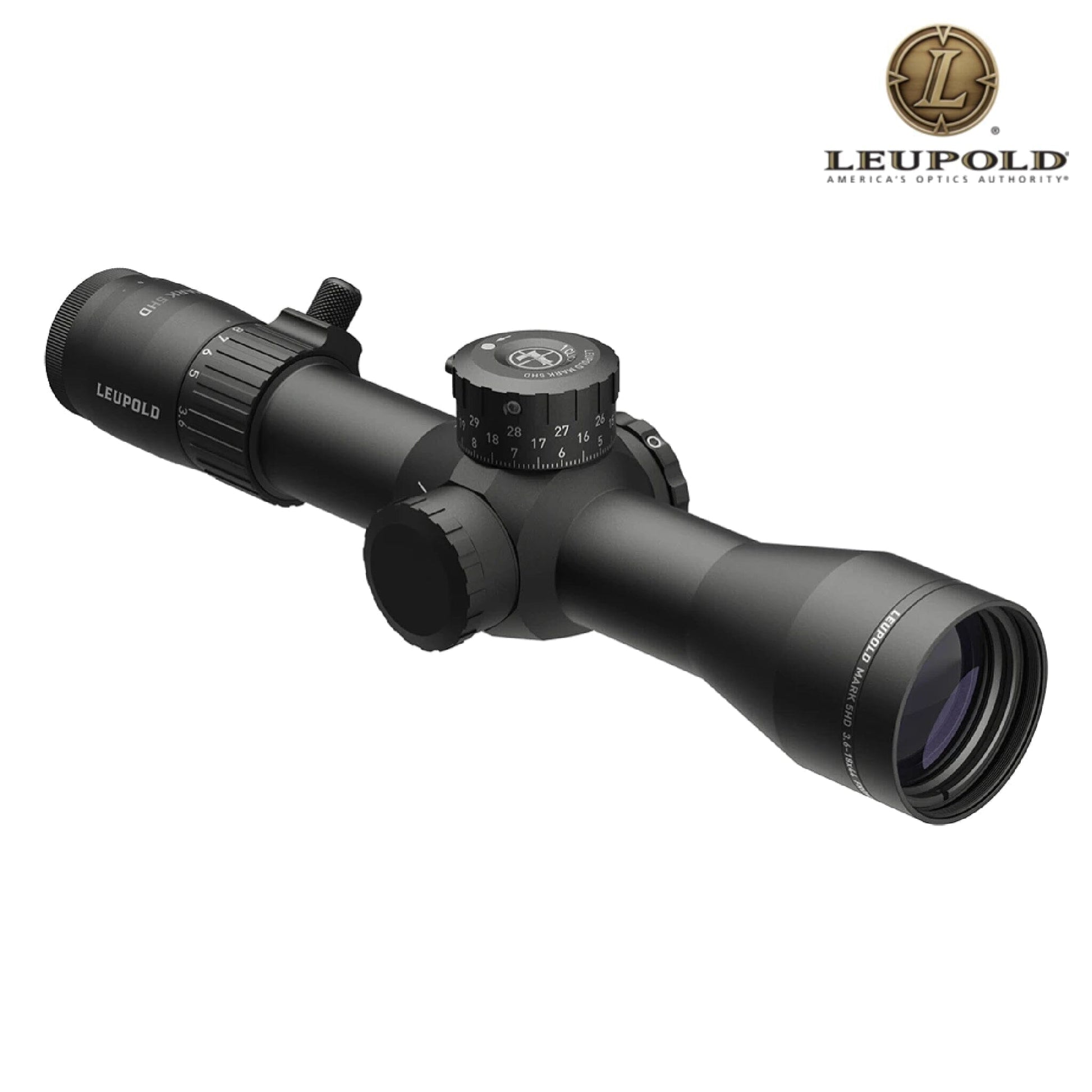

Leupold MARK 5HD 3.6–18×44 Rifle Scope M5C3 FFP TMR Reticle
(Model 173296)
Features
- 5:1 Zoom Ratio: Low-profile throw-lever for fast transitions between 3.6× (wide-field) and 18× (precision).

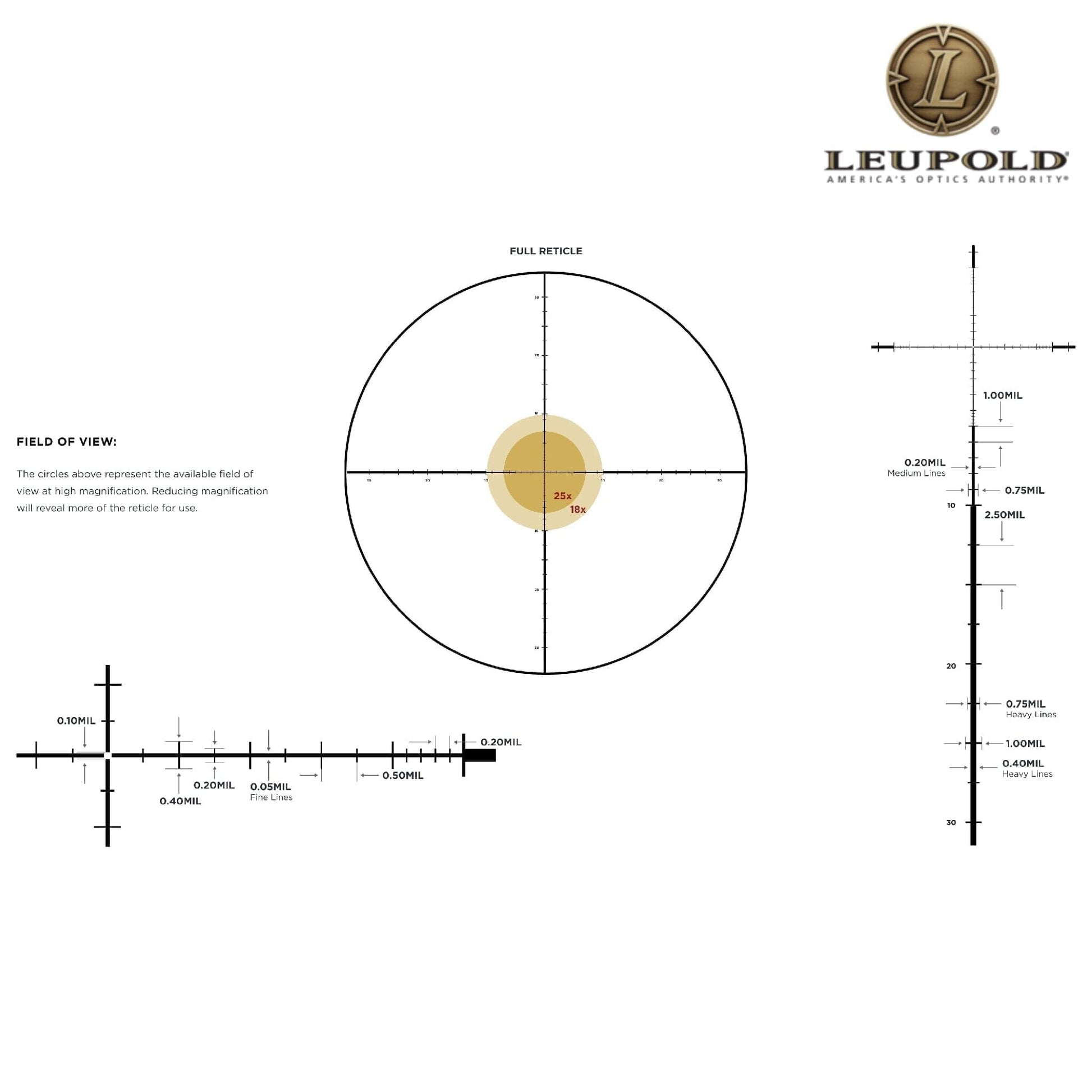

- First-Focal-Plane TMR™ Reticle: Glass-etched Tactical Milling Reticle in milliradians providing true hold-over/hold-off at any magnification; non-illuminated for an uncluttered sight picture and maximal daylight clarity.

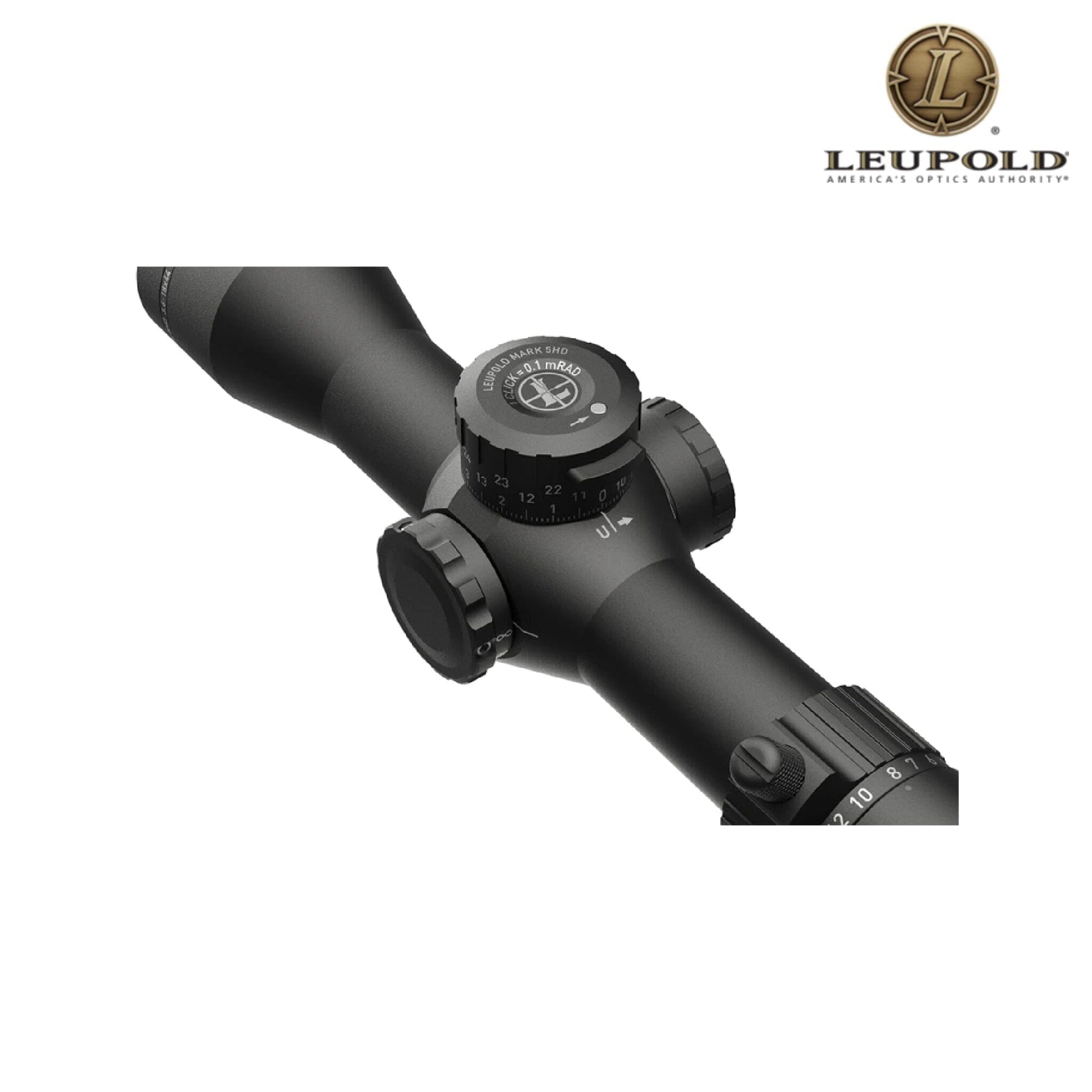

- M5C3 ZeroLock® Turret System:
- Elevation: Exposed turret; 0.1 mrad per click; 10 mrad per revolution; 30 mrad total travel; positive ZeroStop™ for instant return to your zero.
- Windage: Low-profile capped turret; 0.1 mrad per click; 24 mrad per revolution; visual/tactile revolution indicator under cap.
- Side Focus Parallax: Quick-set from 50 yd to ∞ for tack-sharp reticle alignment.
- Professional-Grade Optics: Xtended Twilight® fully multi-coated, extra-low dispersion lenses and prisms for exceptional resolution, contrast, and edge-to-edge clarity.
- Rugged Construction: CNC-machined 35 mm main tube of 6061-T6 aluminum; matte-black hard-coat anodize; IPX7 waterproof; nitrogen-purged; rated to withstand .50 BMG recoil.
- Extended Eye Relief: 3.5″ (89 mm) low → 3.8″ (97 mm) high for comfortable, repeatable head positioning.
- Lightweight & Compact: 26 oz (737 g)—up to 20 oz lighter than many rivals.
- Made in USA & Lifetime Guarantee
Technical Specifications for Leupold MARK 5HD 3.6–18×44 Rifle Scope M5C3 FFP TMR Reticle
Specification |
Details |
Model / MPN |
173296 |
SKU |
LEU-173296 |
UPC |
030317016357 |
Country of Origin |
USA |
Magnification Range |
3.6 × ⇄ 18 × |
Objective Lens Diameter |
44 mm |
Main Tube Diameter |
35 mm |
Reticle |
TMR™ (FFP, glass-etched) |
Illumination Settings |
None |
Elevation Adjustment |
M5C3; 0.1 mrad/click; 10 mrad/rev; 30 mrad total; ZeroStop™ |
Windage Adjustment |
0.1 mrad/click; 24 mrad/rev; capped turret |
Parallax Focus |
Side focus, 50 yd → ∞ |
Eye Relief |
3.5″ (low) ⇄ 3.8″ (high) |
Field of View @ 100 yd |
28.3 ft (low) ⇄ 5.8 ft (high) |
Overall Length |
12.06″ (306 mm) |
Weight |
26 oz (737 g) |
Housing Material / Finish |
6061-T6 aluminum; matte-black hard-coat anodize |
Waterproof / Fog-Proof |
Yes (IPX7) |
Shock Resistance |
Rated to withstand .50 BMG recoil |
Included Accessories
- Removable throw-lever
- ZeroLock® windage cap
- Flip-up lens covers
- User manual
