Leupold

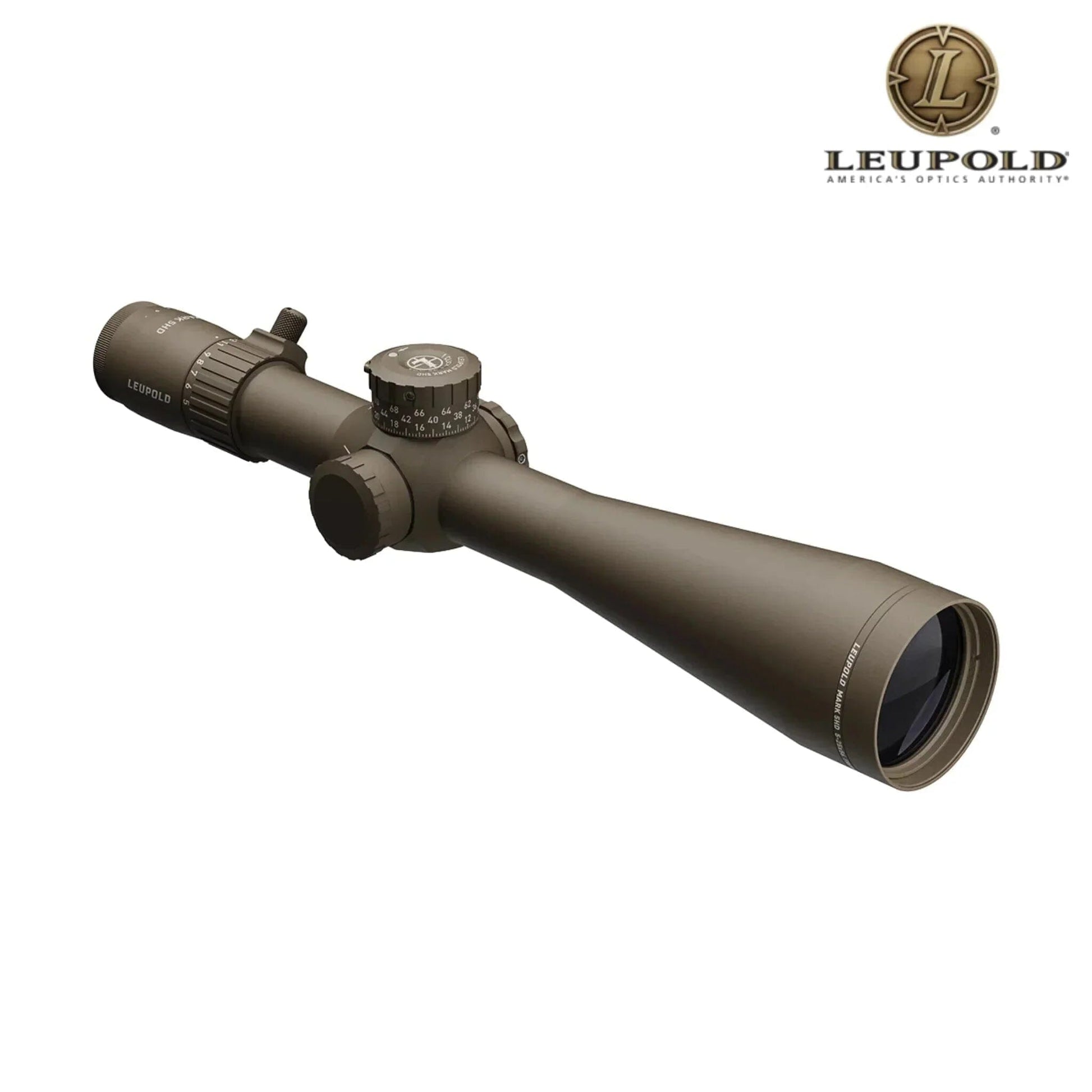

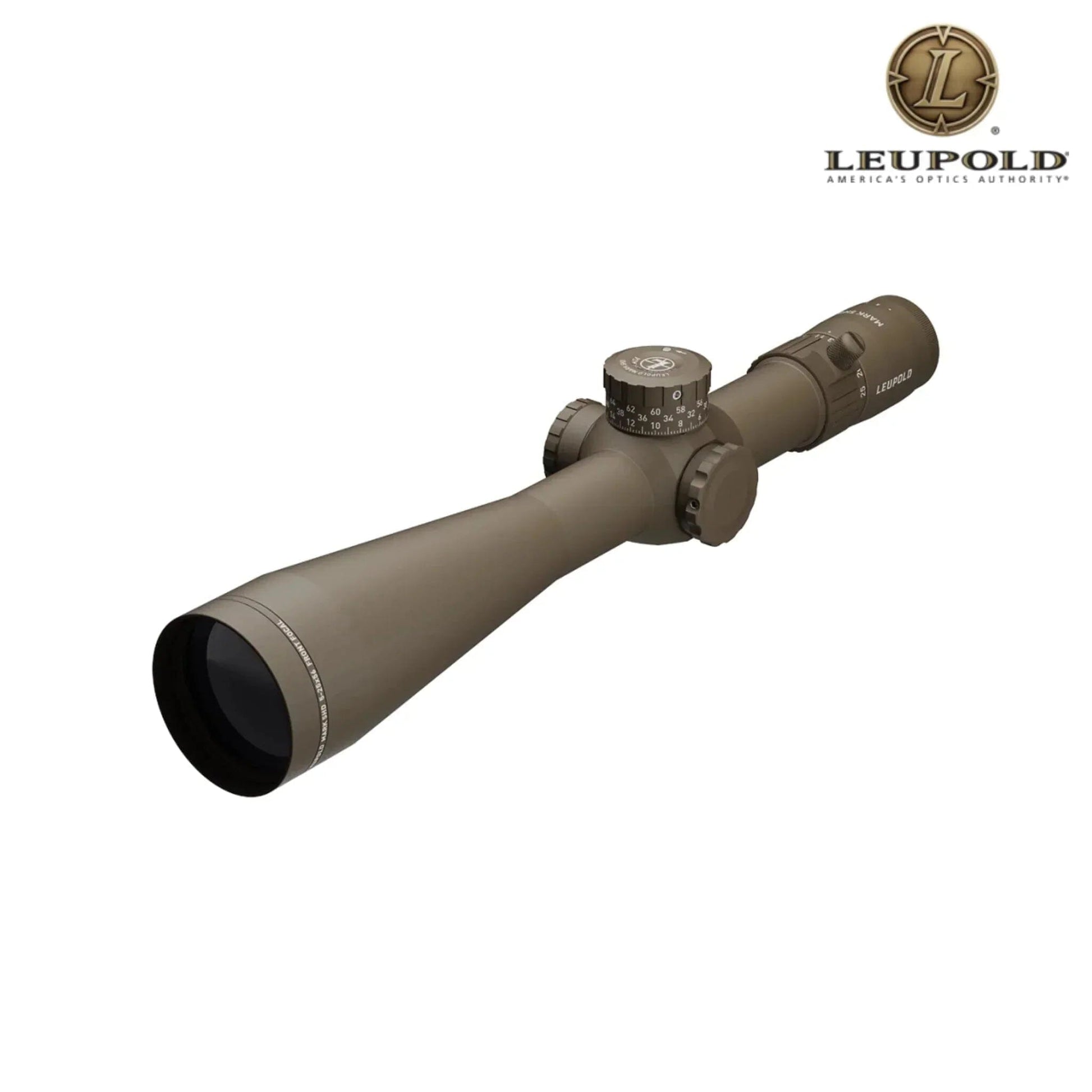

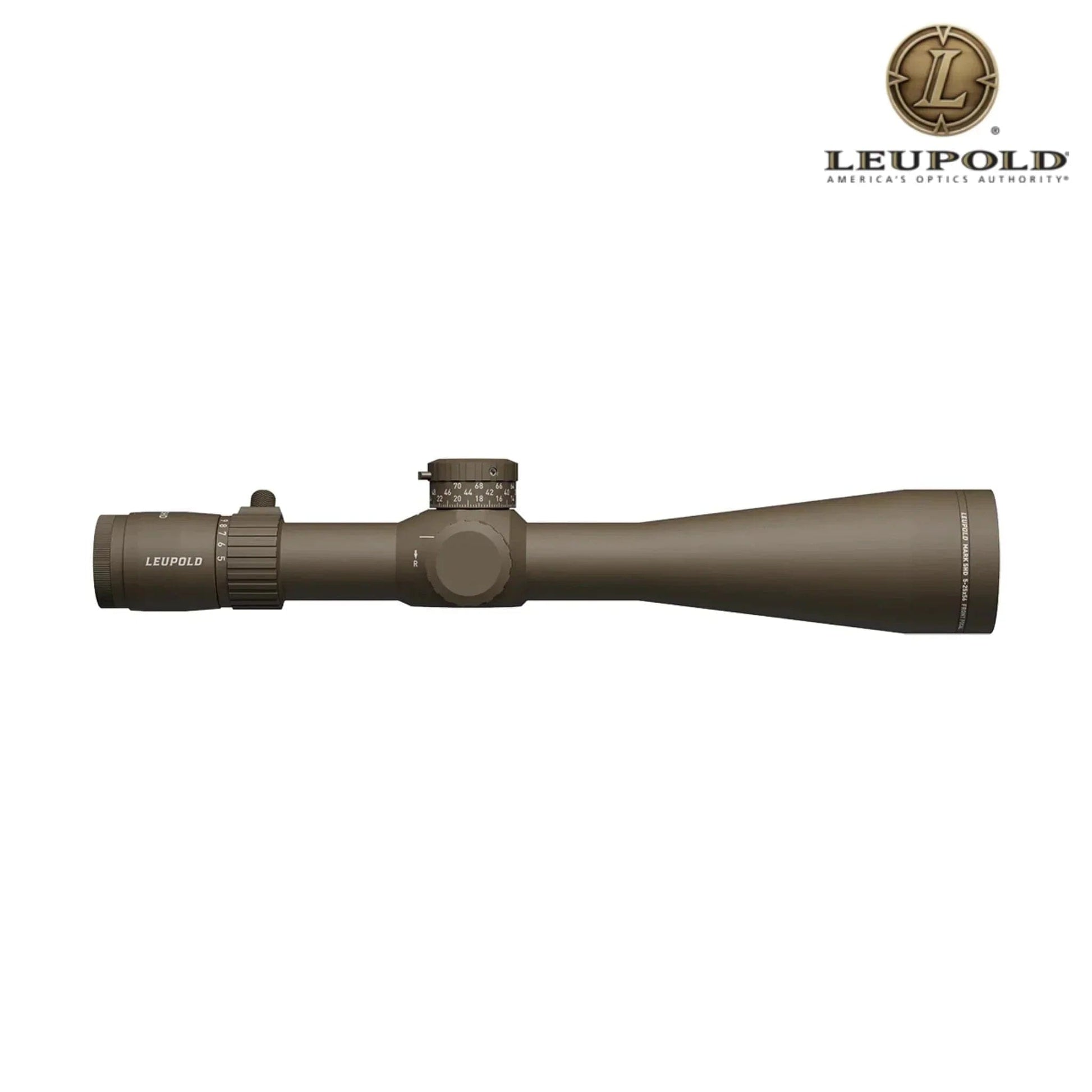

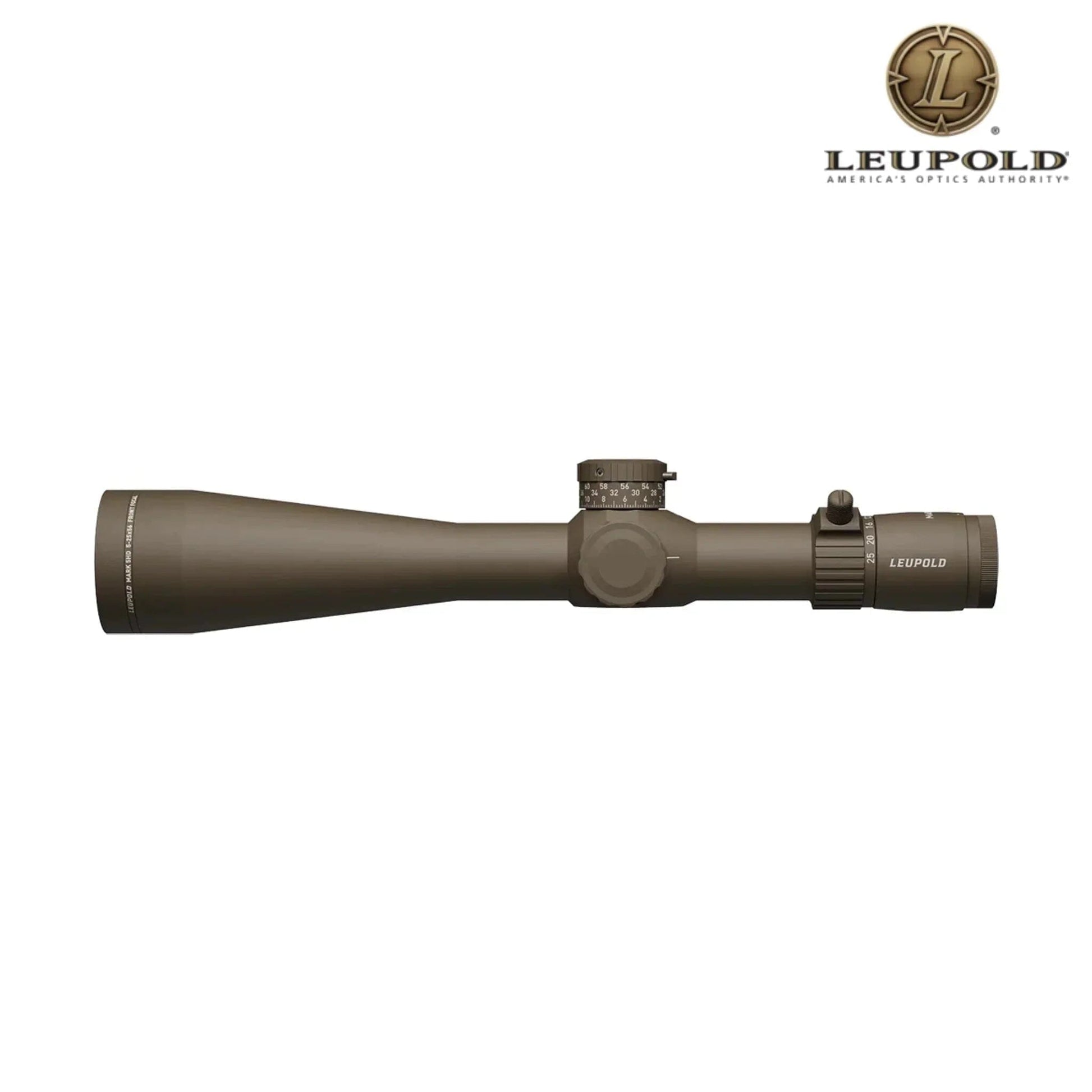

Leupold MARK 5HD 5–25×56 Rifle Scope M1C3 FFP PR-1 MOA Reticle Dark Earth
Leupold MARK 5HD 5–25×56 Rifle Scope M1C3 FFP PR-1 MOA Reticle Dark Earth
Couldn't load pickup availability
Leupold MARK 5HD 5–25×56 Rifle Scope M1C3 FFP PR-1 MOA Reticle Dark Earth
(Model 185070)
Features
- 5:1 Zoom Ratio: High-speed throw-lever enables rapid transitions between 5× (wide-field) and 25× (long-range precision).

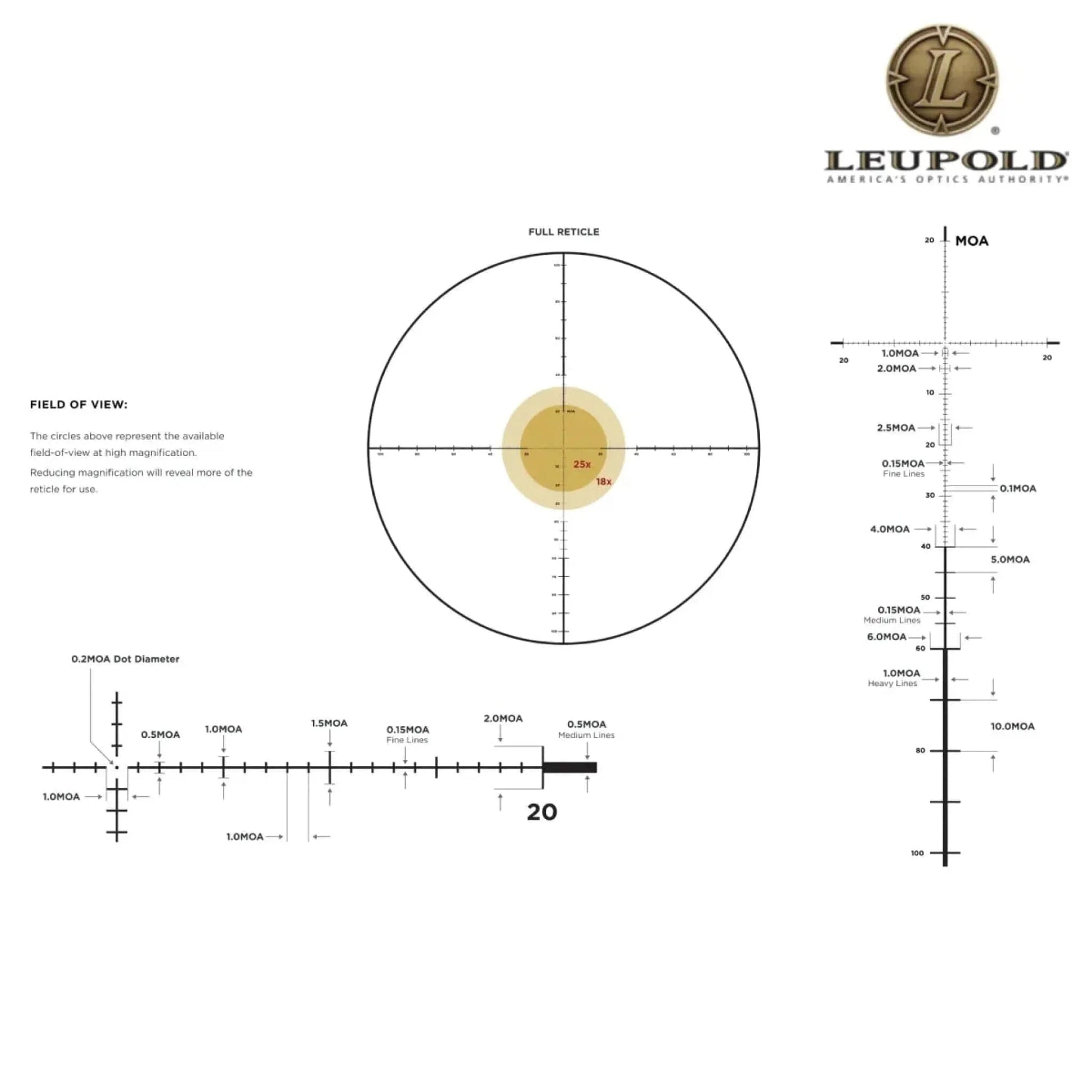

- First-Focal-Plane PR-1 MOA Reticle: Glass-etched MOA-based grid with true subtensions at all magnifications; non-illuminated for a clean sight picture.
- M1C3 ZeroLock® Turret System:
- Elevation: Exposed, lockable turret; ¼ MOA per click; 40 MOA per revolution; 120 MOA total travel over three revolutions; push-button ZeroLock™ prevents accidental dial movement and guarantees instant return to zero.
- Windage: Low-profile capped turret; ¼ MOA per click; 80 MOA total travel; visual and tactile revolution indicator under cap.
- Precision Side Focus Parallax: Quick-set from 50 yd to ∞ for tack-sharp reticle alignment.
- Professional-Grade Optics: Xtended Twilight® fully multi-coated, extra-low dispersion lenses/prisms for exceptional resolution, contrast, and minimal chromatic aberration.
- Rugged Construction: CNC-machined 35 mm main tube of 6061-T6 aluminum with Flat Dark Earth hard-coat anodize; IPX7 waterproof; nitrogen-purged; rated to withstand .50 BMG recoil.
- Extended Eye Relief: 3.6″ (91 mm) at low magnification → 3.8″ (97 mm) at high for comfortable, repeatable head positioning.
- Lightweight Design: 30 oz (850 g) – up to 20 oz lighter than many scopes in this class.
- Made in USA & Lifetime Guarantee
Technical Specifications for Leupold MARK 5HD 5–25×56 Rifle Scope M1C3 FFP PR-1 MOA Reticle Dark Earth
Specification |
Details |
Model / MPN |
185070 |
SKU |
LEU-185070 |
UPC |
030317040291 |
Country of Origin |
USA |
Magnification Range |
5 × ⇄ 25 × |
Objective Lens Diameter |
56 mm |
Main Tube Diameter |
35 mm |
Reticle |
PR-1 MOA (FFP, glass-etched) |
Illumination Settings |
None |
Elevation Adjustment |
¼ MOA/click; 40 MOA/rev; 120 MOA total; ZeroLock™ |
Windage Adjustment |
¼ MOA/click; 80 MOA total; capped turret |
Parallax Focus |
Side focus, 50 yd → ∞ |
Eye Relief |
3.6″ (low) ⇄ 3.8″ (high) |
Field of View @ 100 yd |
20.4 ft (low) ⇄ 4.2 ft (high) |
Overall Length |
15.67″ (398 mm) |
Weight |
30 oz (850 g) |
Housing Material / Finish |
6061-T6 aluminum; Flat Dark Earth hard-coat anodize |
Waterproof / Fog-Proof |
Yes (IPX7) |
Shock Resistance |
Rated to withstand .50 BMG recoil |
Included Accessories
- Removable high-speed throw-lever
- Fast-focus eyepiece
- Flip-up lens covers
- Lens shade
- Lens cloth & adjustment wrench
- User manual
