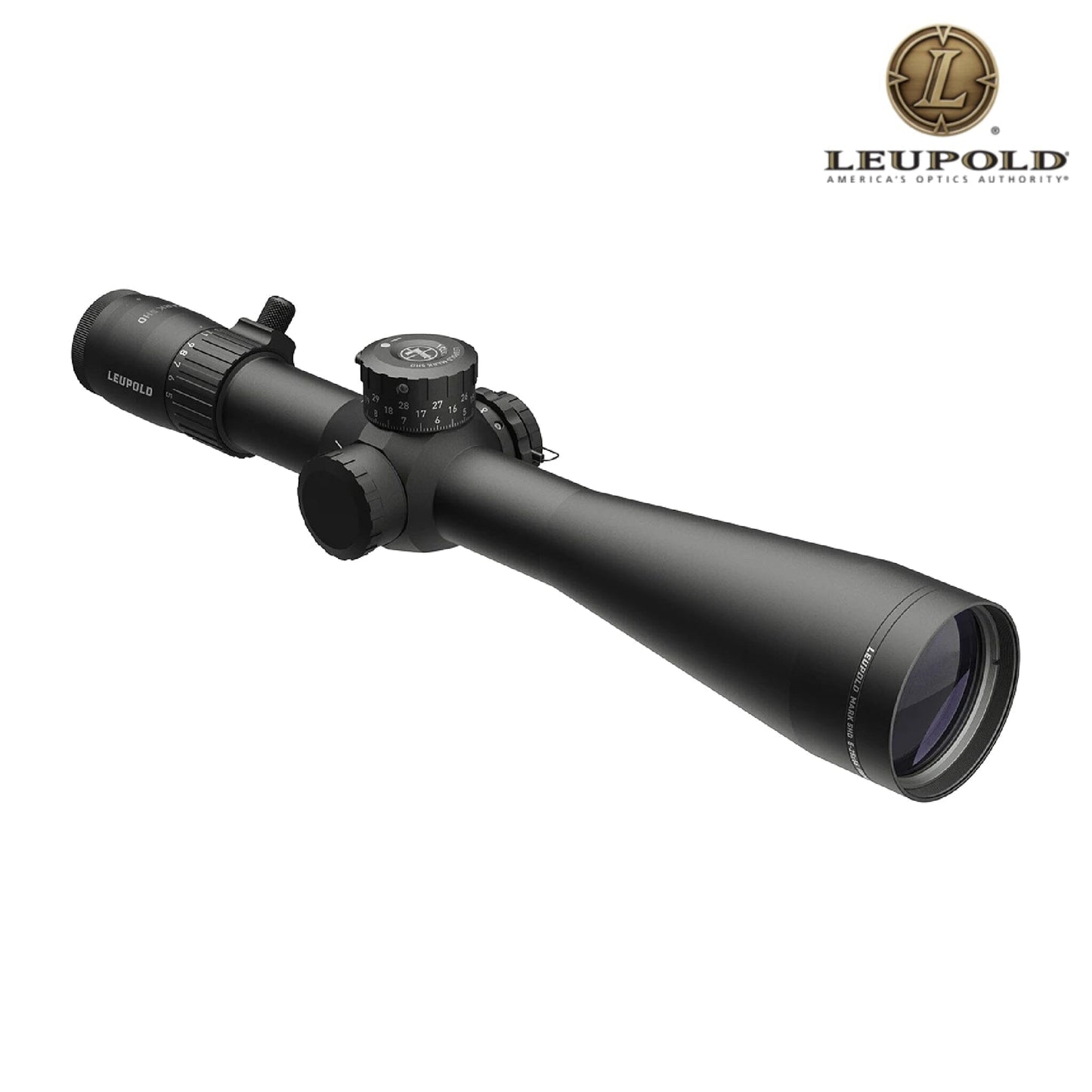

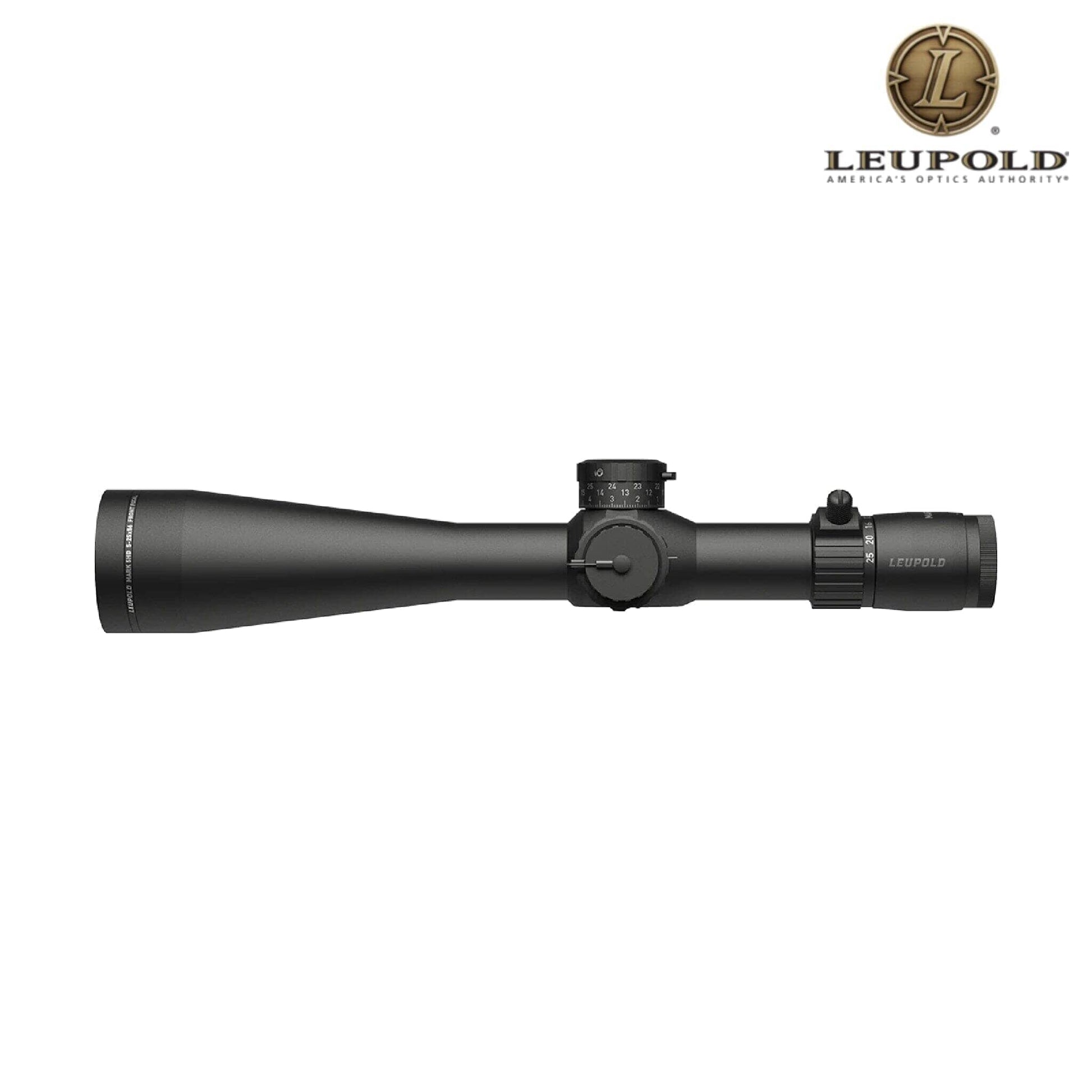

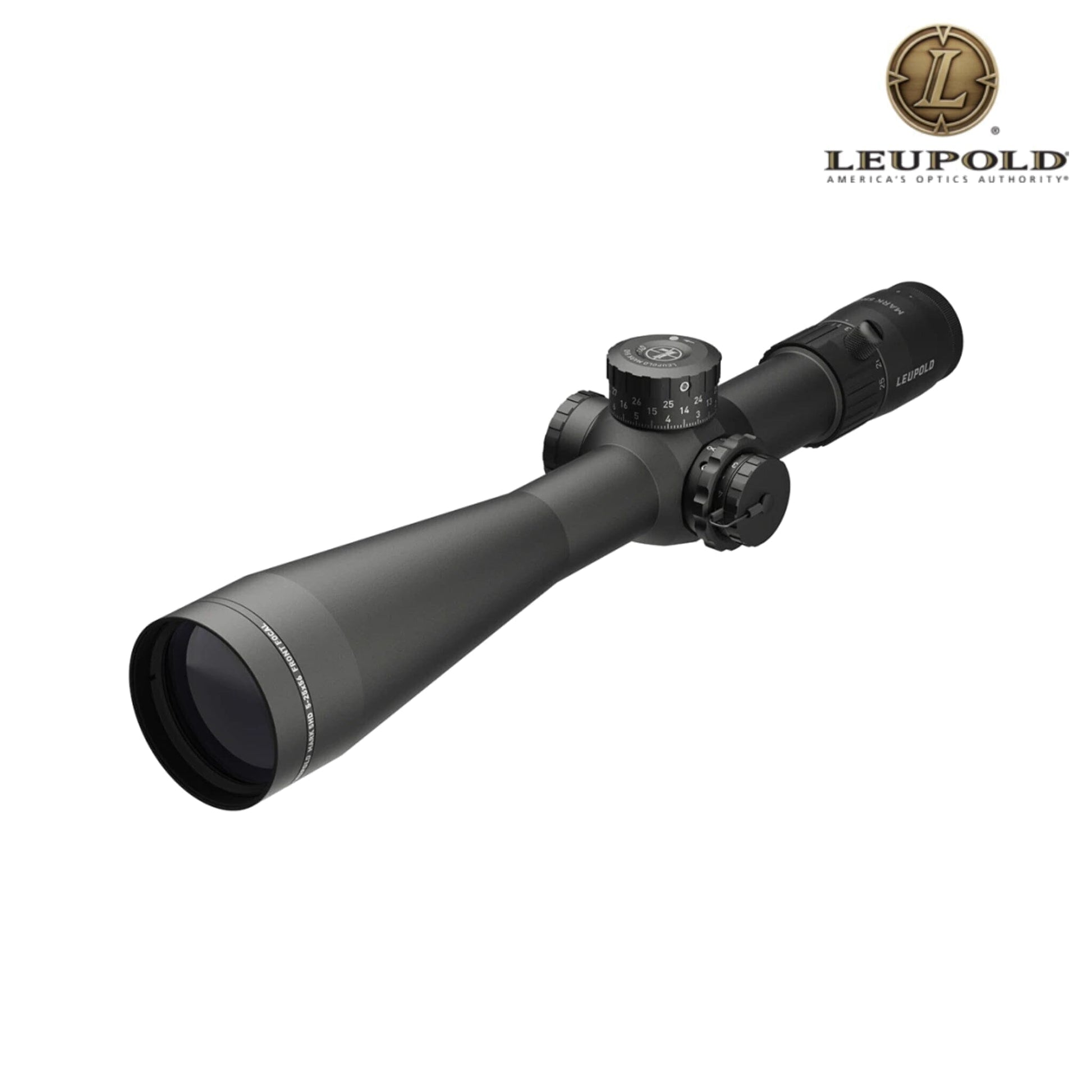

Leupold MARK 5HD 5–25×56 Rifle Scope M5C3 FFP Illuminated TMR Reticle

Leupold MARK 5HD 5–25×56 Rifle Scope M5C3 FFP Illuminated TMR Reticle

$2,699.99 USD
$2,699.99 USD
Sale Sold out
Shipping calculated at checkout.

Leupold MARK 5HD 5–25×56 Rifle Scope M5C3 FFP Illuminated TMR Reticle

(Model 171776)

Features

  • 5:1 Zoom Ratio: Versatile 5–25× magnification range for mid-range precision and long-range engagements.

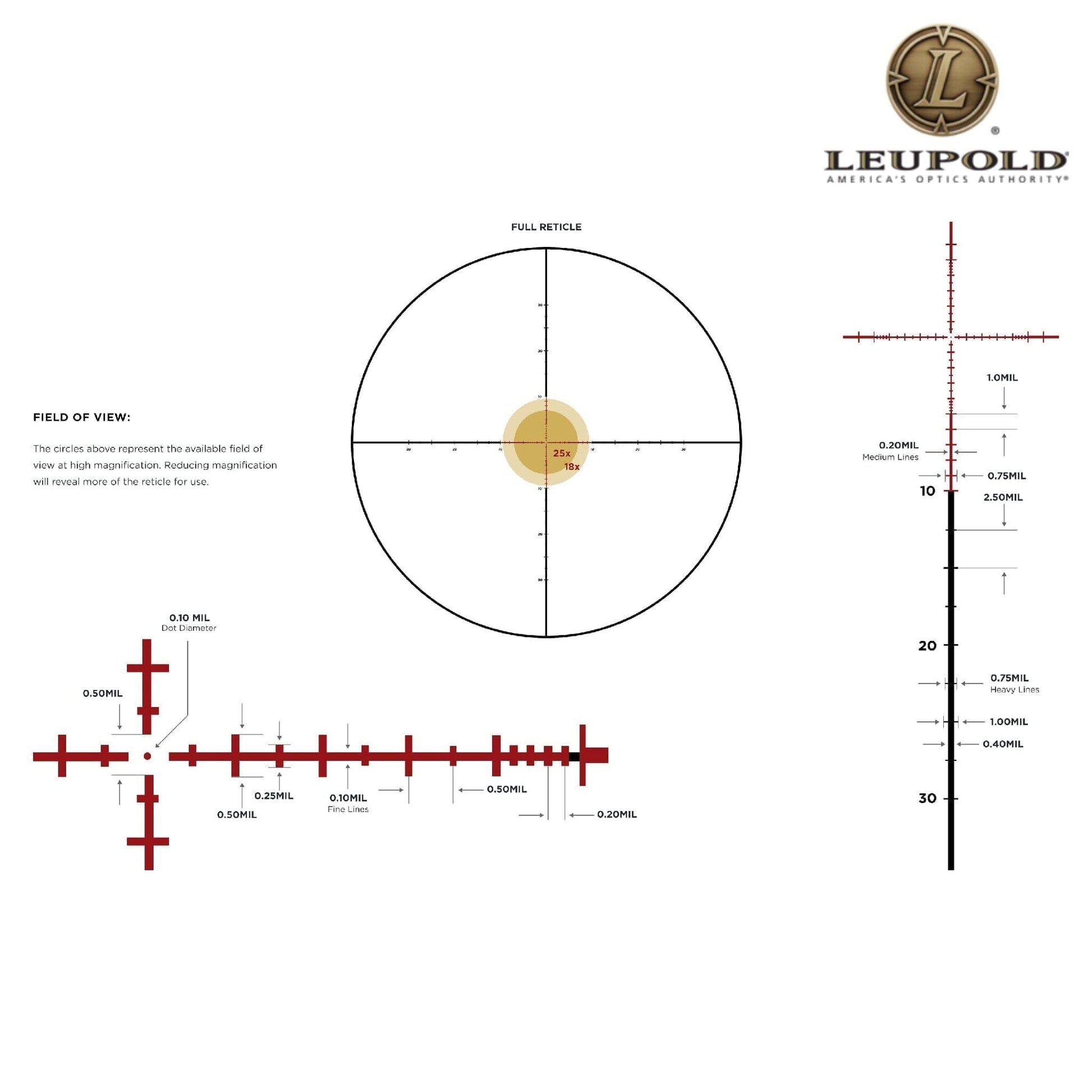

  • First-Focal-Plane Illuminated TMR™ Reticle: Glass-etched Tactical Milling Reticle in milliradians provides true hold-over/hold-off at any magnification; red-LED illumination with seven daylight-bright and four night-vision-compatible settings; Motion Sensor Technology™ powers down after five minutes of inactivity and instantly reactivates on movement.
  • M5C3 ZeroLock® Turret System:
    • Elevation: Exposed turret; 0.1 mrad per click; 10.5 mrad per revolution; 35 mrad total travel; positive ZeroStop™ for instant, repeatable return to zero.
    • Windage: Low-profile capped turret; 0.1 mrad per click; 10 mrad per revolution; 17 mrad total travel.
  • Precision Side Focus Parallax: Quick-set adjustment from 50 yd to ∞ for tack-sharp reticle alignment.
  • Professional-Grade Optics: Xtended Twilight® fully multi-coated, extra-low dispersion lenses and prisms for exceptional resolution, contrast, and edge-to-edge clarity.
  • Rugged Construction: CNC-machined 35 mm main tube of 6061-T6 aluminum; matte-black hard-coat anodize; IPX7 waterproof, fog-proof, and nitrogen-purged; rated to withstand .50 BMG recoil.
  • Extended Eye Relief: 3.6″ (91 mm) at low magnification → 3.8″ (97 mm) at high magnification for comfortable, repeatable head positioning.
  • Lightweight Design: 30 oz (850 g) — up to 20 oz lighter than many comparable scopes.
  • Made in USA & Lifetime Guarantee

Technical Specifications for Leupold MARK 5HD 5–25×56 Rifle Scope M5C3 FFP Illuminated TMR Reticle

Specification

Details

Model / MPN

171776

SKU

LEU-171776

UPC

030317016395

Country of Origin

USA

Magnification Range

5 × ⇄ 25 ×

Objective Lens Diameter

56 mm

Main Tube Diameter

35 mm

Reticle

Illuminated TMR™ (FFP, glass-etched)

Illumination Settings

7 daylight-bright + 4 NV-compatible

Battery Type & Life

CR2032; ~1,800 hr (low) / ~96 hr (high)

Elevation Adjustment

0.1 mrad/click; 10.5 mrad/rev; 35 mrad total; ZeroStop™

Windage Adjustment

0.1 mrad/click; 10 mrad/rev; 17 mrad total

Parallax Focus

Side focus, 50 yd → ∞

Field of View @ 100 yd

20.4 ft (low) ⇄ 4.2 ft (high)

Eye Relief

3.6″ (low) ⇄ 3.8″ (high)

Overall Length

15.7″ (398 mm)

Weight

30 oz (850 g)

Housing Material / Finish

6061-T6 aluminum; matte-black hard-coat anodize

Waterproof / Fog-Proof

Yes (IPX7)

Shock Resistance

Rated to withstand .50 BMG recoil

Included Accessories

  • High-speed reversible throw-lever
  • Fast-focus eyepiece
  • Flip-up lens covers
  • Lens shade
  • Lens cloth & adjustment wrench
  • CR2032 battery
  • User manual

SEO Keywords
Leupold Mark 5HD 171776, 5–25×56 FFP Illuminated TMR scope, M5C3 ZeroLock riflescope, long-range MIL reticle optic.
