Leupold Mark 5HD 7-35x56 Rifle Scope M5C3 FFP TREMOR 3 Reticle
Leupold Mark 5HD 7-35x56 Rifle Scope M5C3 FFP TREMOR 3 Reticle
Couldn't load pickup availability

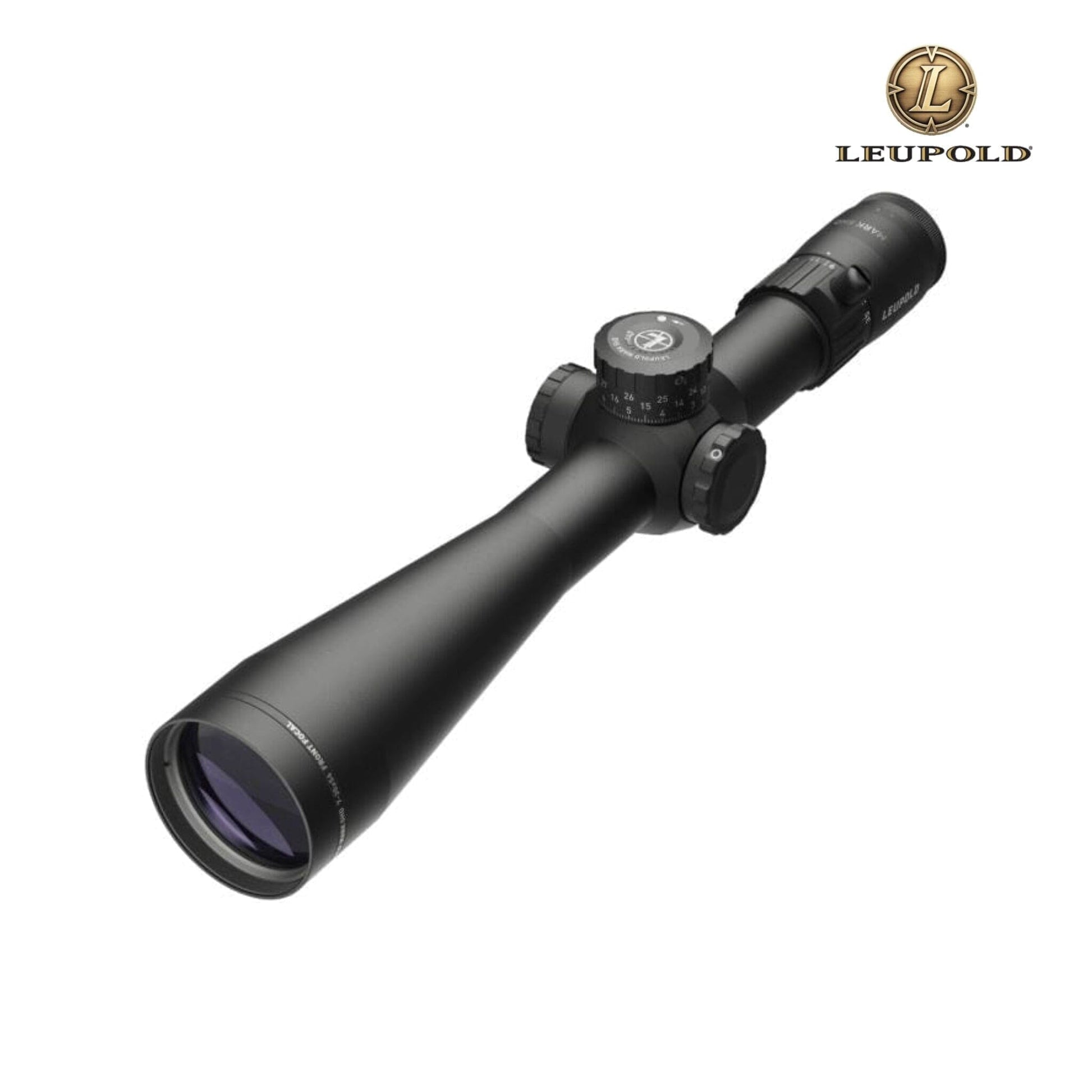

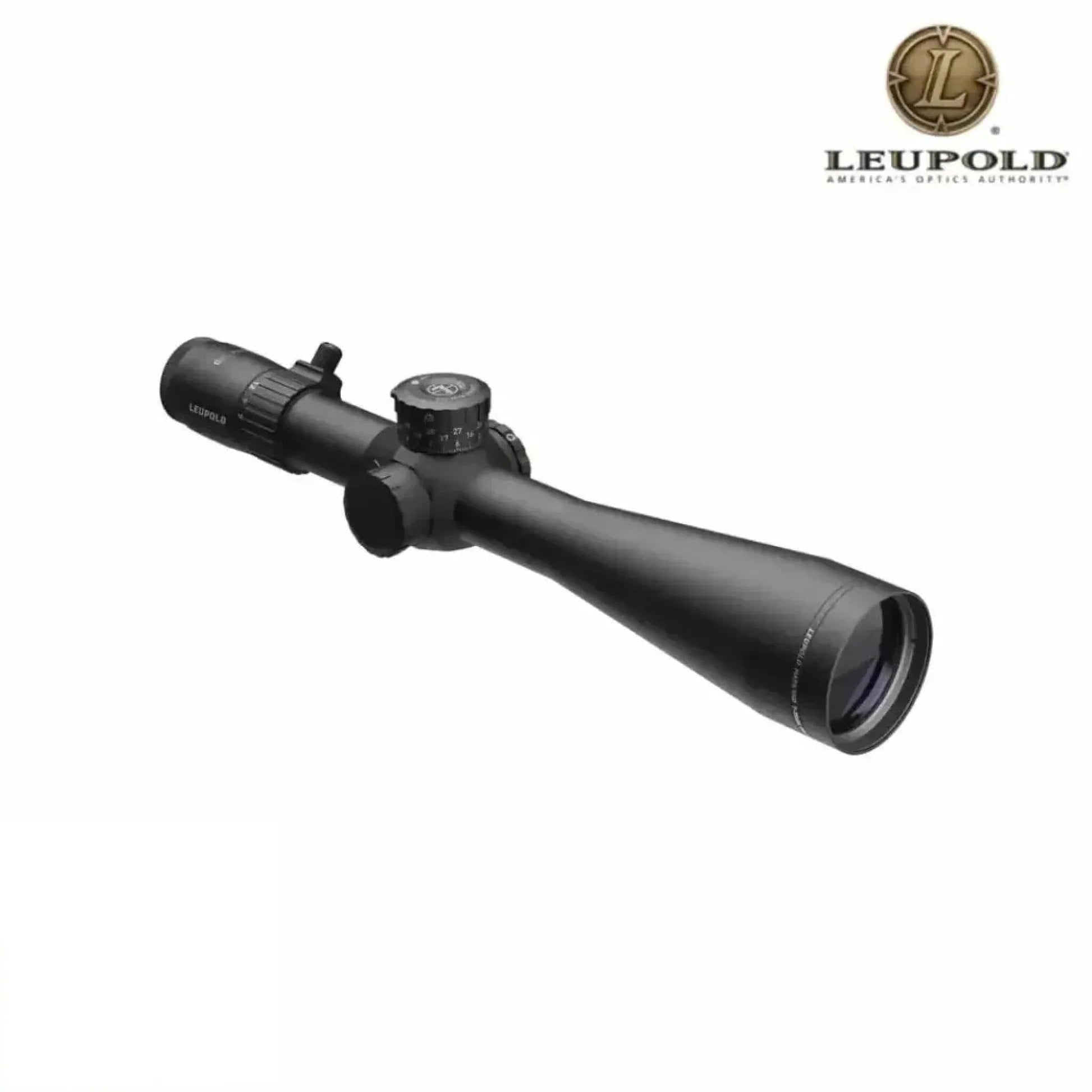

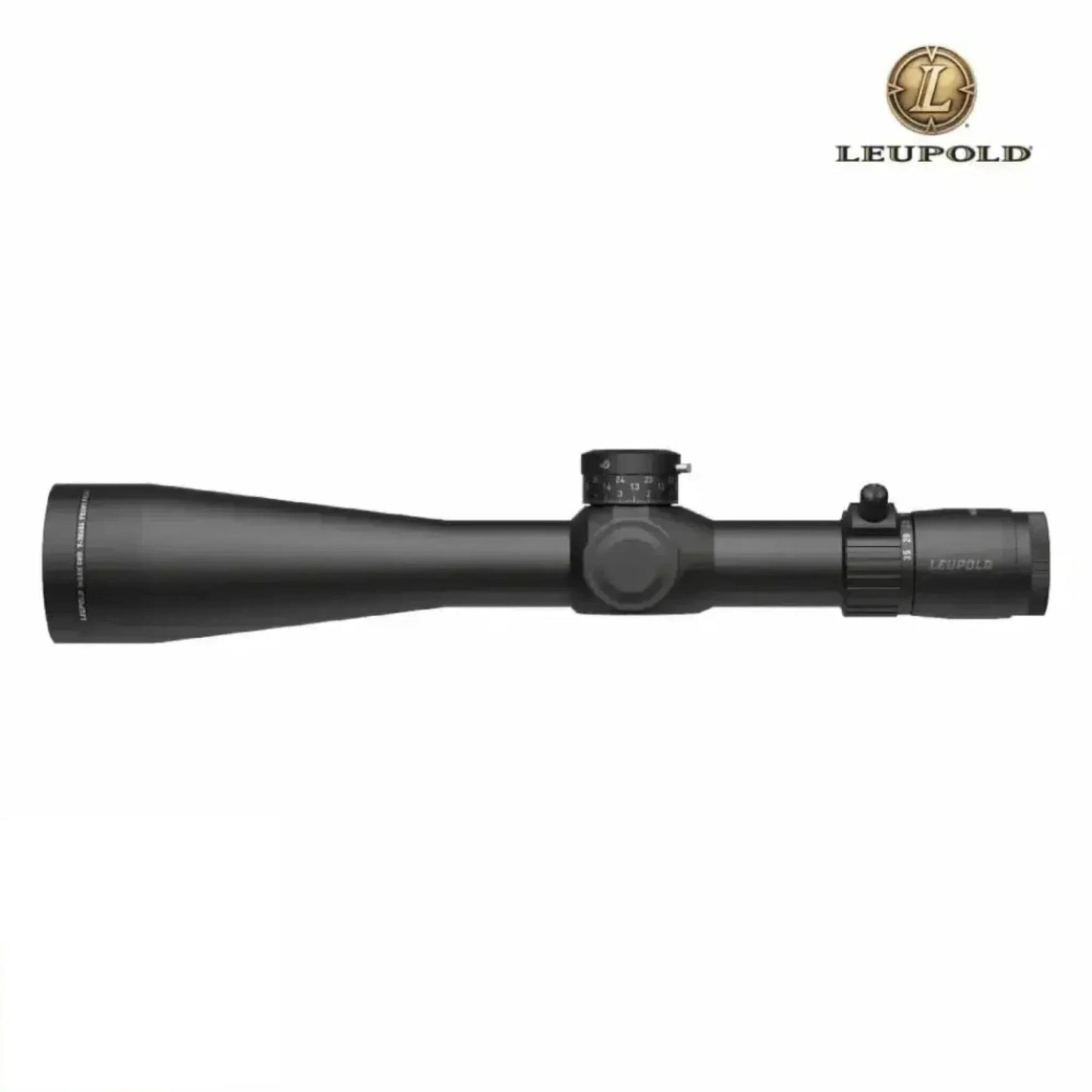

Leupold MARK 5HD 7–35×56 Rifle Scope M5C3 FFP TMR Reticle
(Model 177332)
Features
- 5:1 Zoom Ratio: Low-profile reversible throw-lever for swift transitions between 7× (wide-field) and 35× (long-range precision).

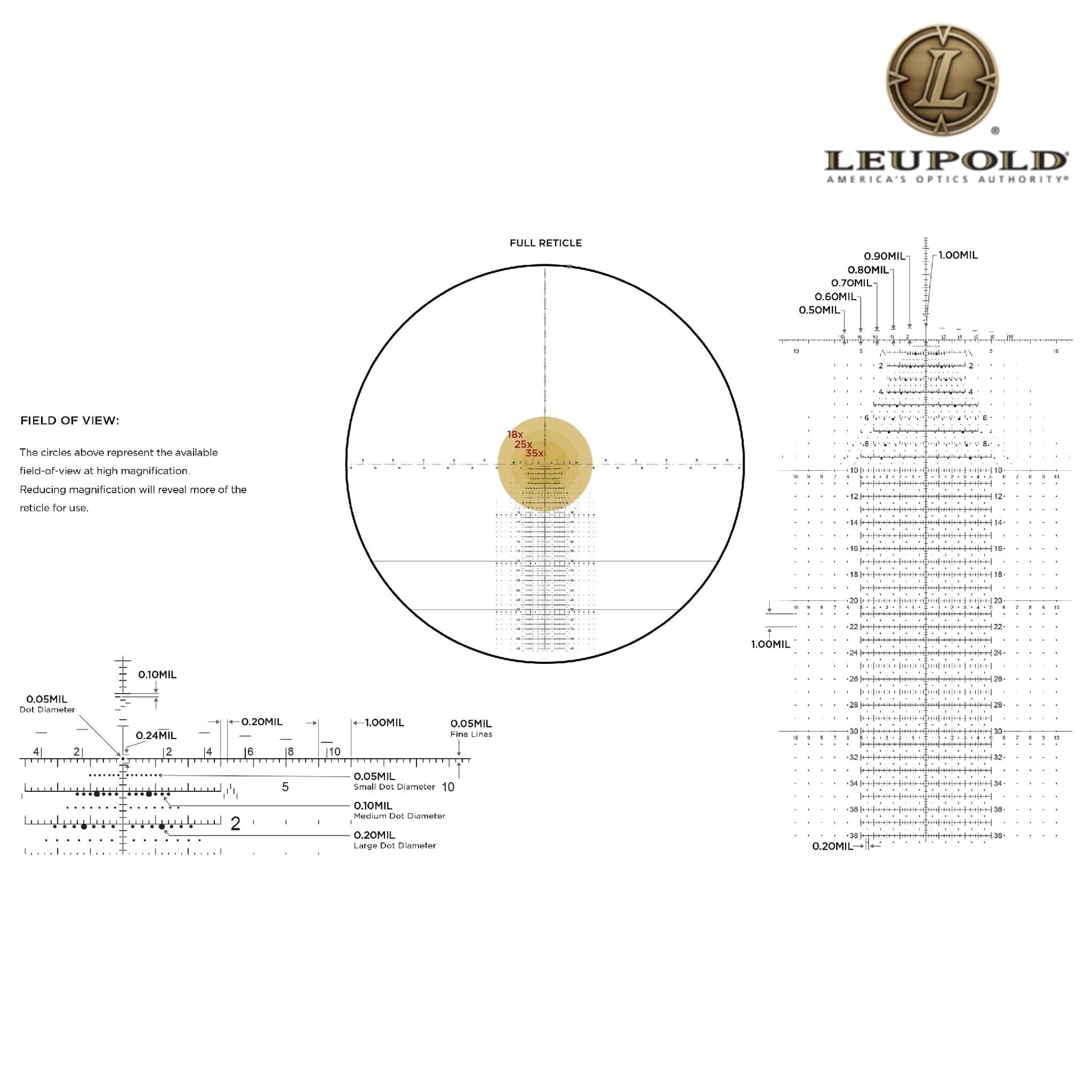

- First-Focal-Plane TMR™ Reticle: Glass-etched Tactical Milling Reticle in milliradians—true hold-over/hold-off at any magnification; non-illuminated for a clean sight picture and maximal daylight clarity.
- M5C3 ZeroLock® Turret System:
- Elevation: Exposed turret; 0.1 mrad per click; 10 mrad per revolution; 29 mrad total travel; positive ZeroStop™ for instant, repeatable return to zero.
- Windage: Low-profile capped turret; 0.1 mrad per click; 24 mrad total travel; visual and tactile revolution indicator under cap.
- Side-Focus Parallax: Quick-set adjustment from 50 yd to ∞ for tack-sharp reticle alignment.
- Professional-Grade Optics: Xtended Twilight® fully multi-coated, extra-low dispersion lenses and prisms for exceptional resolution, contrast, and edge-to-edge clarity.
- Rugged Construction: CNC-machined 35 mm main tube of 6061-T6 aluminum; matte-black hard-coat anodize; IPX7 waterproof/fog-proof; nitrogen-purged; rated to withstand .50 BMG recoil.
- Extended Eye Relief: 3.6″ (91 mm) constant across the entire zoom range for comfortable, repeatable head positioning.
- Compact & Balanced: 33 oz (936 g)—only 3 oz more than its 5–25×56 counterpart, avoiding a weight penalty for extra magnification.
- Made in USA & Lifetime Guarantee
Technical Specifications for Leupold MARK 5HD 7–35×56 Rifle Scope M5C3 FFP TMR Reticle
Specification |
Details |
Model / MPN |
177332 |
SKU |
LEU-177332 |
UPC |
030317022648 |
Country of Origin |
USA |
Magnification Range |
7 × ⇄ 35 × |
Objective Lens Diameter |
56 mm |
Main Tube Diameter |
35 mm |
Reticle |
TMR™ (FFP, glass-etched) |
Illumination Settings |
None |
Elevation Adjustment |
M5C3; 0.1 mrad/click; 10 mrad/rev; 29 mrad total; ZeroStop™ |
Windage Adjustment |
0.1 mrad/click; 24 mrad total; capped turret |
Parallax Focus |
Side focus, 50 yd → ∞ |
Field of View @ 100 yd |
14.7 ft (low) ⇄ 3.0 ft (high) |
Eye Relief |
3.6″ (91 mm) constant |
Overall Length |
15.7″ (398 mm) |
Weight |
33 oz (936 g) |
Housing Material/Finish |
6061-T6 aluminum; matte-black hard-coat anodize |
Waterproof/Fog-Proof |
Yes (IPX7) |
Shock Resistance |
Rated to withstand .50 BMG recoil |
Included Accessories
- Reversible throw-lever
- Flip-up lens covers
- Fast-focus eyepiece
- Lens shade
- Lens cloth & turret adjustment wrench
- User manual
