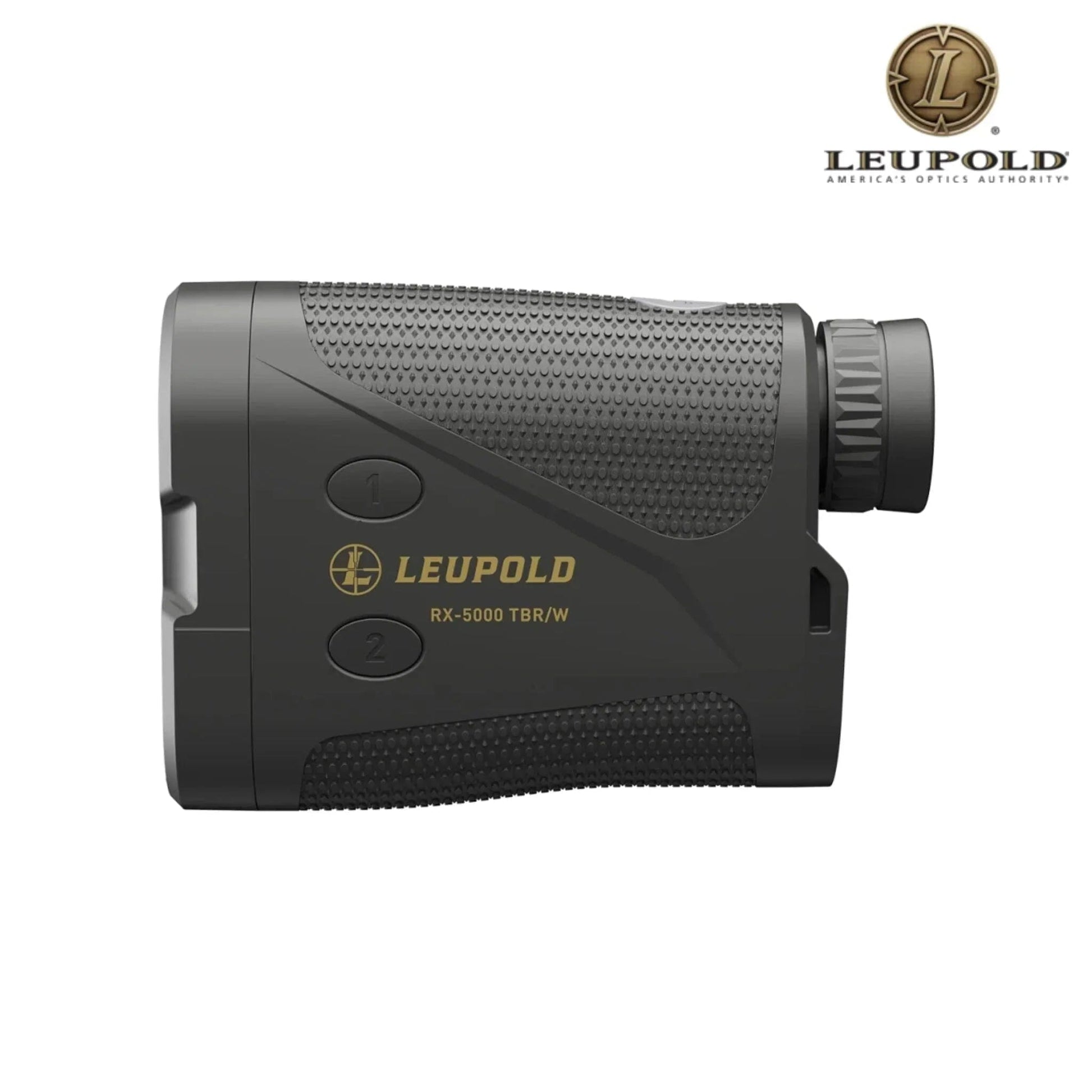

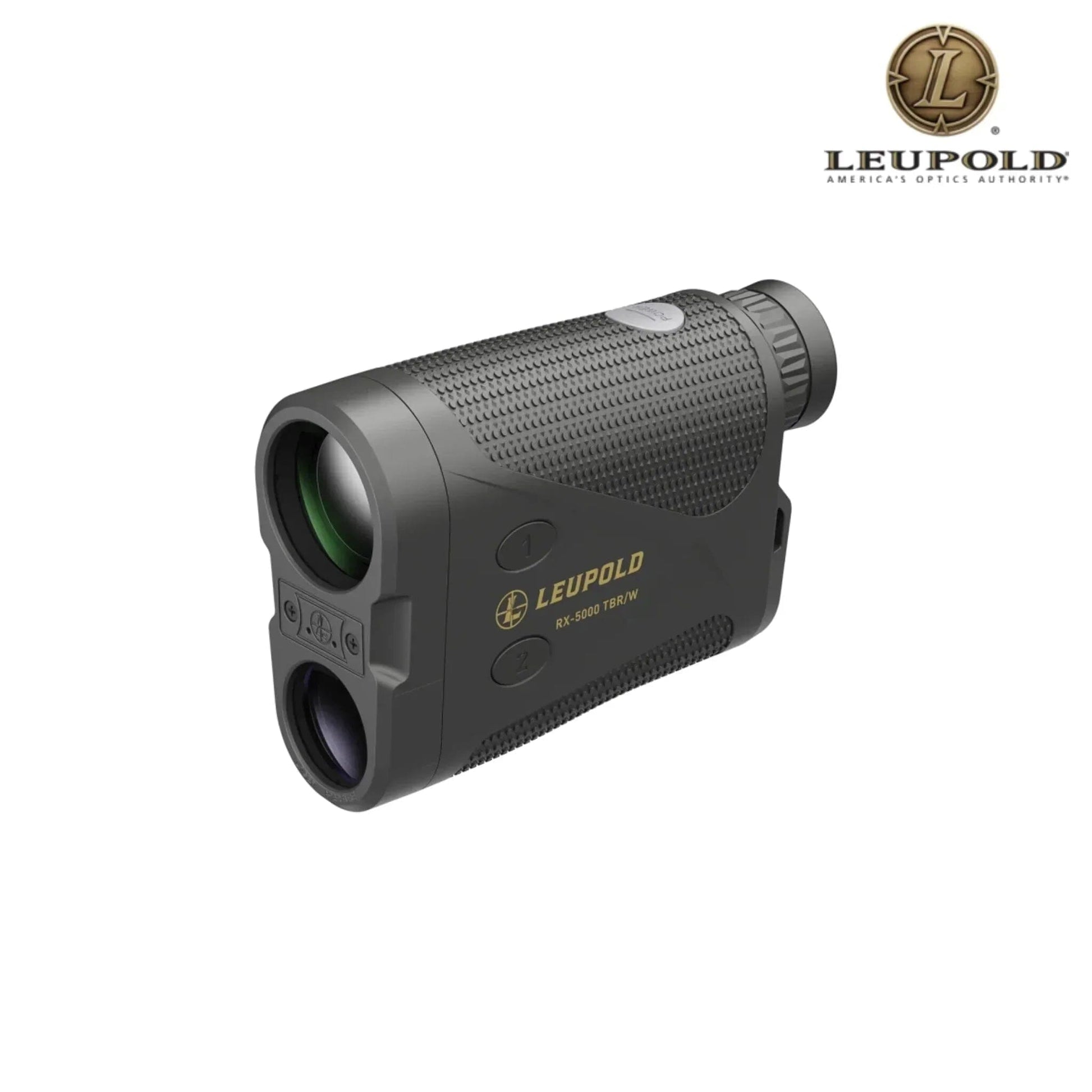

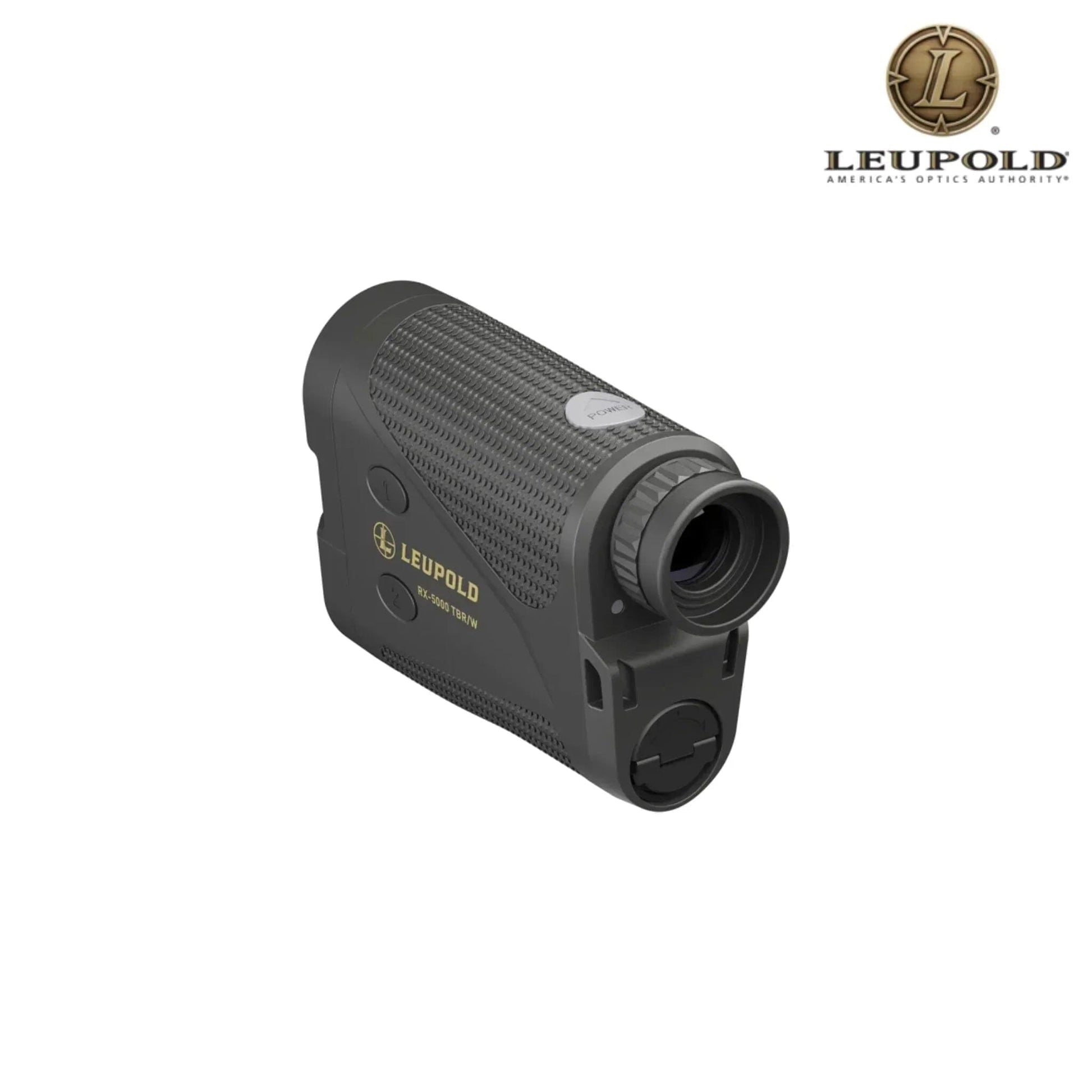

Leupold RX-5000 TBR/W Laser Rangefinder with DNA
Leupold RX-5000 TBR/W Laser Rangefinder with DNA
Couldn't load pickup availability
Leupold RX-5000 TBR/W Laser Rangefinder with DNA
(Model 184681)
Features
- True Ballistic Range/Wind (TBR/W): Provides ballistically calculated ranges that compensate for angle and wind—includes hold-point generation for a 10 mph crosswind at 90° out to 800 yds.
- DNA® (Digitally eNhanced Accuracy™): Proprietary ranging engine delivers rapid readings with ±½ yd accuracy.
- Pinning & Bluetooth® Connectivity: When paired with the Leupold Control™ app, remotely drop GPS waypoints onto digital maps (e.g. onX Hunt) to mark boundaries, navigate terrain, or track game.
- Long-Range & Last Target Modes:
- Long Range: Improves performance on distant, non-reflective targets (up to 2,000 yds on game, 3,100 yds on trees).
- Last Target: Prioritizes the farthest object in the laser’s path, minimizing interference from brush or twigs.
- 8× Magnification & Red-OLED Display: Clear, high-contrast readout with selectable reticle styles for fast target acquisition in any light.
- Bow Mode with Archer’s Advantage®: Optimized for archery out to 175 yds with unrestricted angle compensation.
- Rugged, Armor-Coated Housing: Lightweight polymer body with aggressive UV-resistant armor; waterproof, fog-proof, and shock-resistant.
Technical Specifications for Leupold RX-5000 TBR/W Laser Rangefinder with DNA
Specification |
Details |
Model / MPN |
RX-5000 TBR/W with DNA® (184681) |
SKU |
184681-Leupold |
UPC |
030317039318 |
Magnification |
8× |
Objective Lens Diameter |
30 mm |
Range (Reflective) |
6 → 5,000 yds |
Range (Tree) |
Up to 3,100 yds |
Range (Deer) |
Up to 2,000 yds |
Accuracy |
± 0.5 yd |
Field of View @ 1,000 yds |
289 ft (linear) / 5.5° (angular) |
Eye Relief |
17.3 mm |
Display |
Red-OLED, multiple reticle options |
Battery |
CR123 lithium; up to 8 hr runtime |
Dimensions |
4.4″ L × 1.6″ W × 3.1″ H |
Weight |
9.7 oz (275 g) |
Housing |
Armor-coated polymer; waterproof/fog-proof |
Temperature Range |
–20 °F → +140 °F |

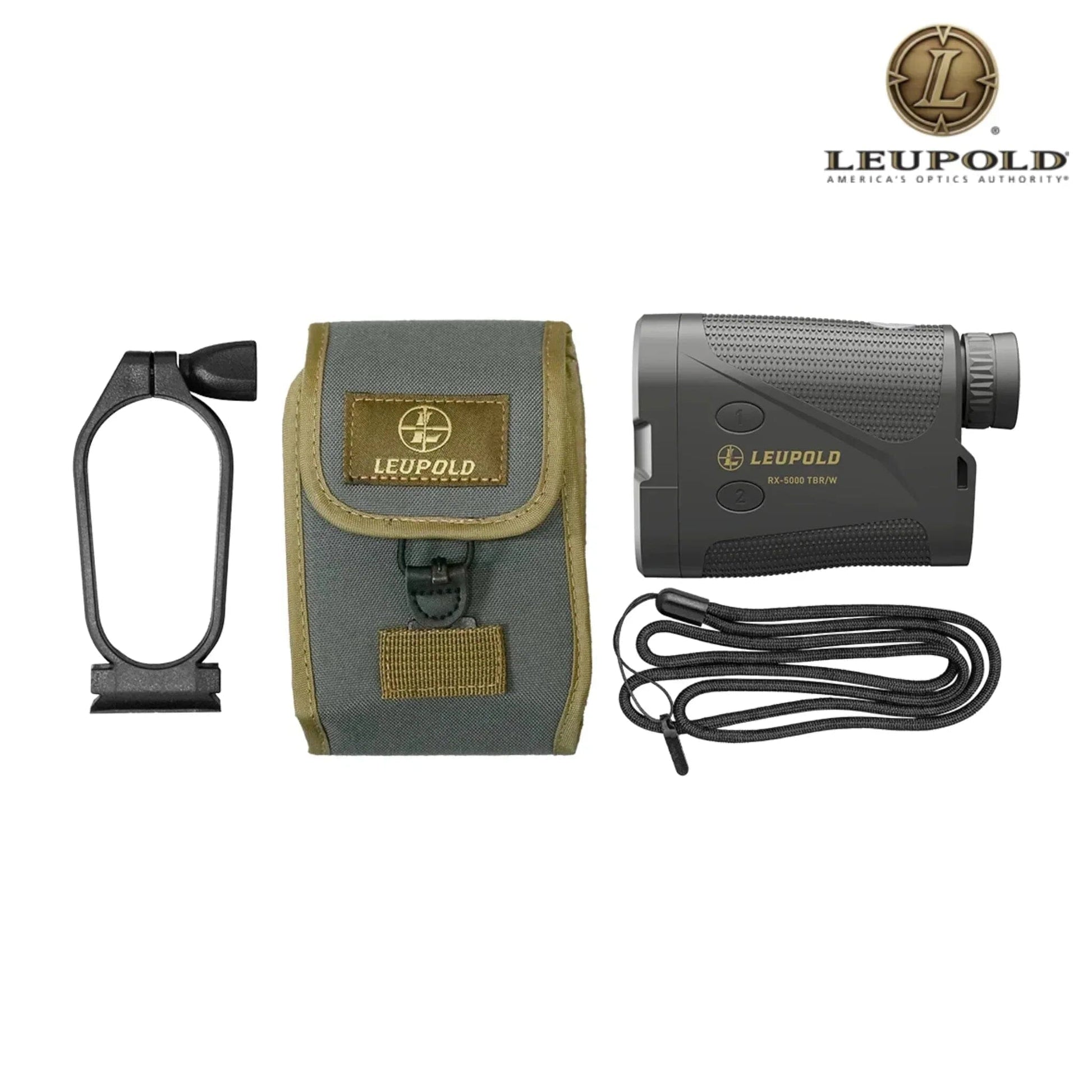

Included Accessories
- CR123 battery
- Protective carry case
- Wrist strap
- Lens cleaning cloth
- User manual
