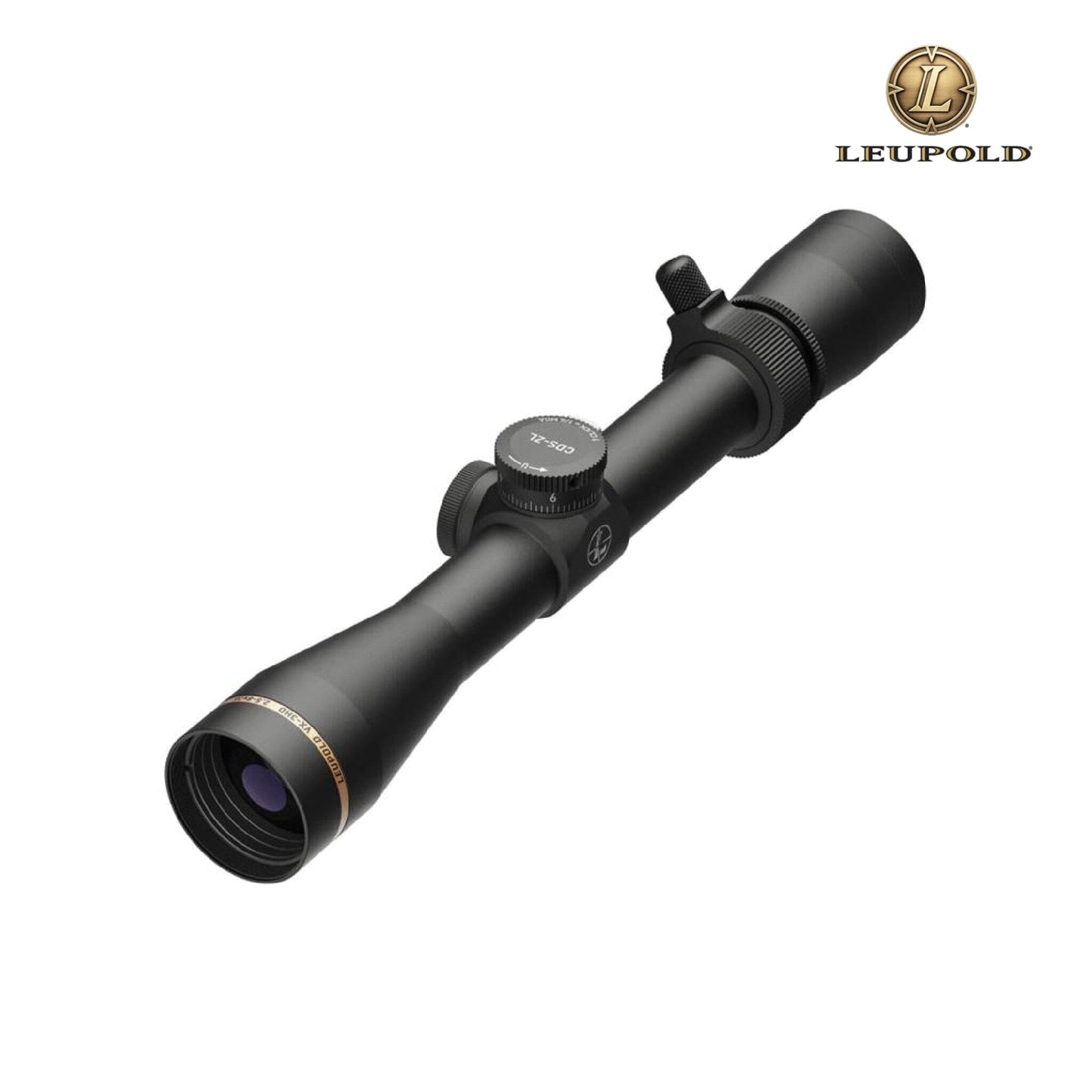

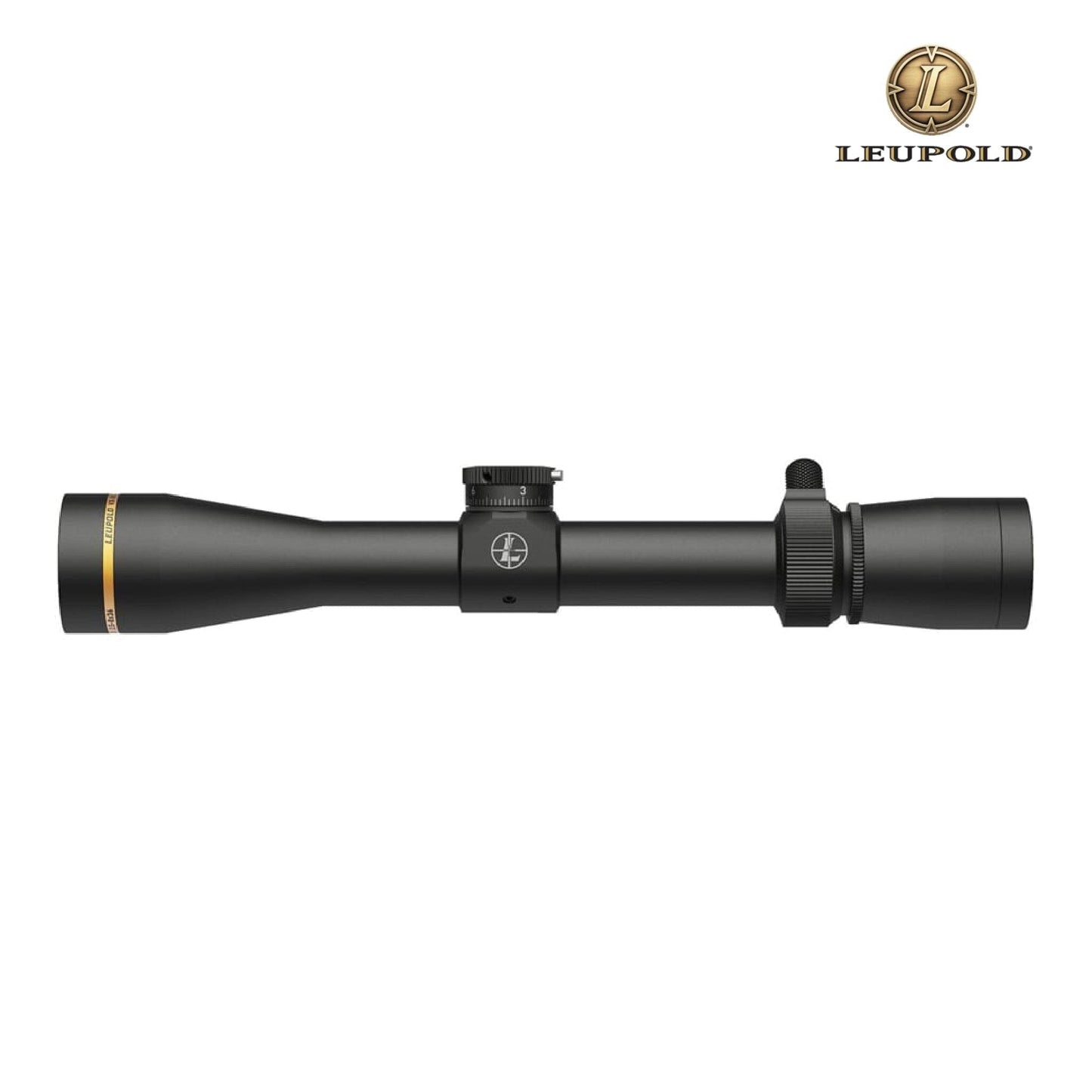

Leupold VX-3HD 2.5–8×36 CDS-ZL Rifle Scope Duplex Reticle
Leupold VX-3HD 2.5–8×36 CDS-ZL Rifle Scope Duplex Reticle
Couldn't load pickup availability
Leupold VX-3HD 2.5–8×36 CDS-ZL Rifle Scope Duplex Reticle
(Model 180616)
Features
- Elite Optical System: Fully multi-coated lenses, extra-low dispersion glass, glare-reduction coatings, and Xtended Twilight® system deliver exceptional brightness and clarity.
- 3.2:1 Zoom Ratio: Fast throw lever for rapid transitions between 2.5× (wide field) and 8× (precision).
- CDS-ZL® ZeroLock® Elevation Dial: Push-button, lockable elevation turret with one-revolution stop for quick, repeatable return to zero.

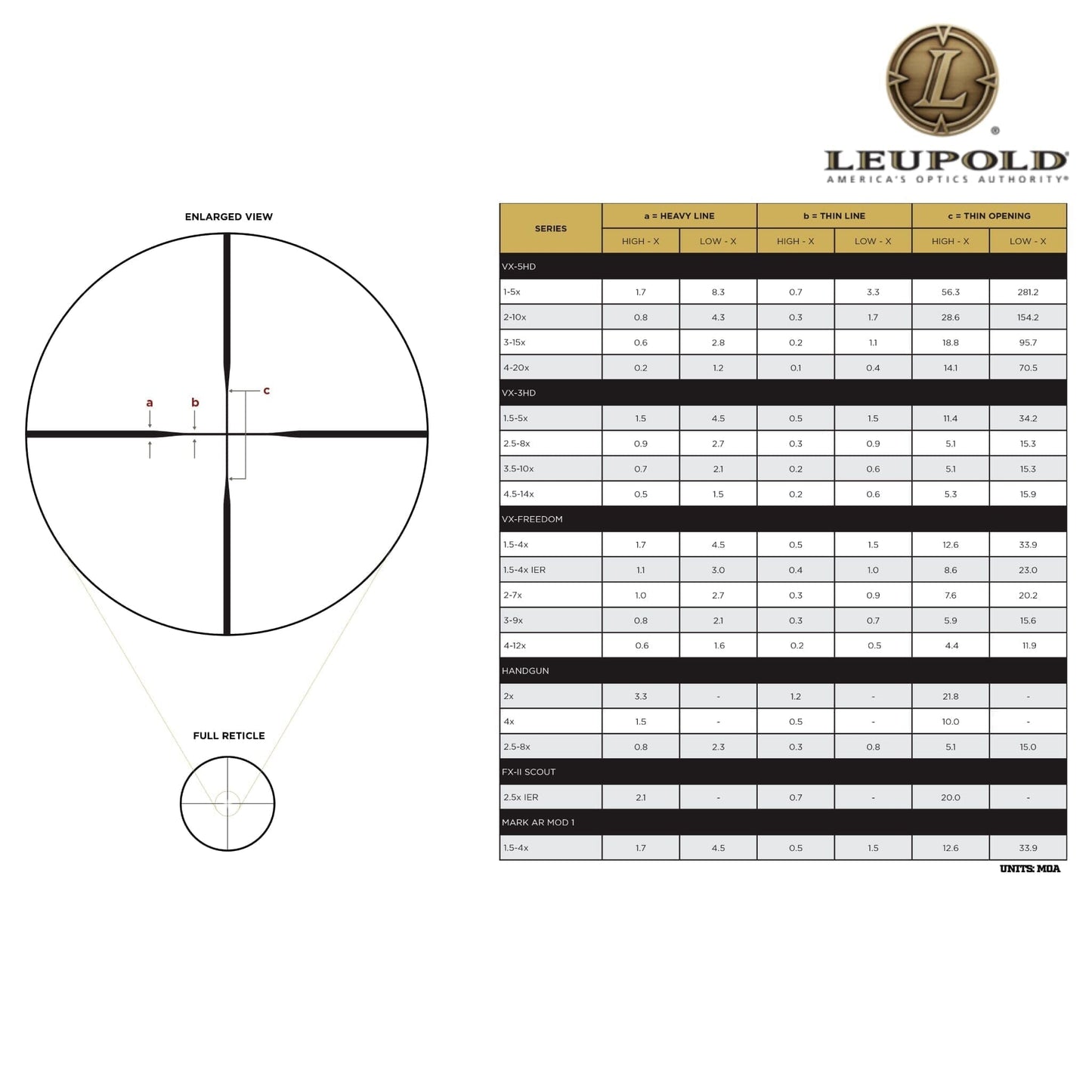

- Duplex® Reticle (Second Focal Plane): Glass-etched, non-illuminated reticle for a clean sight picture and simple hold-over.
- Integrated Throw Lever: Removable lever for lightning-fast magnification changes.
- Ergonomic Controls: Low-profile windage turret and fast-focus eyepiece designed for gloved operation.
- Rugged Construction: CNC-machined 1″ main tube; fully waterproof, fog-proof, and shock-proof; rated to withstand heavy recoil.
Technical Specifications for Leupold VX-3HD 2.5–8×36 CDS-ZL Rifle Scope Duplex Reticle
Specification |
Details |
Model / MPN |
180616 |
SKU |
180616 |
UPC |
030317028541 |
Tube Diameter |
1″ (25.4 mm) |
Magnification Range |
2.5 × ⇄ 8 × |
Objective Lens Diameter |
36 mm |
Reticle |
Duplex® (SFP, non-illuminated) |
Eye Relief |
4.5″ (114 mm) @ 2.5× ⇄ 3.6″ (91 mm) @ 8× |
Field of View @ 100 yd |
37.5 ft @ 2.5× ⇄ 13.7 ft @ 8× |
Parallax Adjustment |
Fixed at 100 yd |
Elevation/Windage Click |
¼ MOA per click; 67 MOA total travel each axis |
Length |
10.4″ (264 mm) |
Weight |
14.9 oz (422 g) |
Finish |
Matte-black hard-coat anodize |
Waterproof/Fog-Proof |
Yes |
Shock-Proof |
Yes |
Included Accessories
- Removable throw lever
- Flip-up lens covers
- User manual
