Leupold

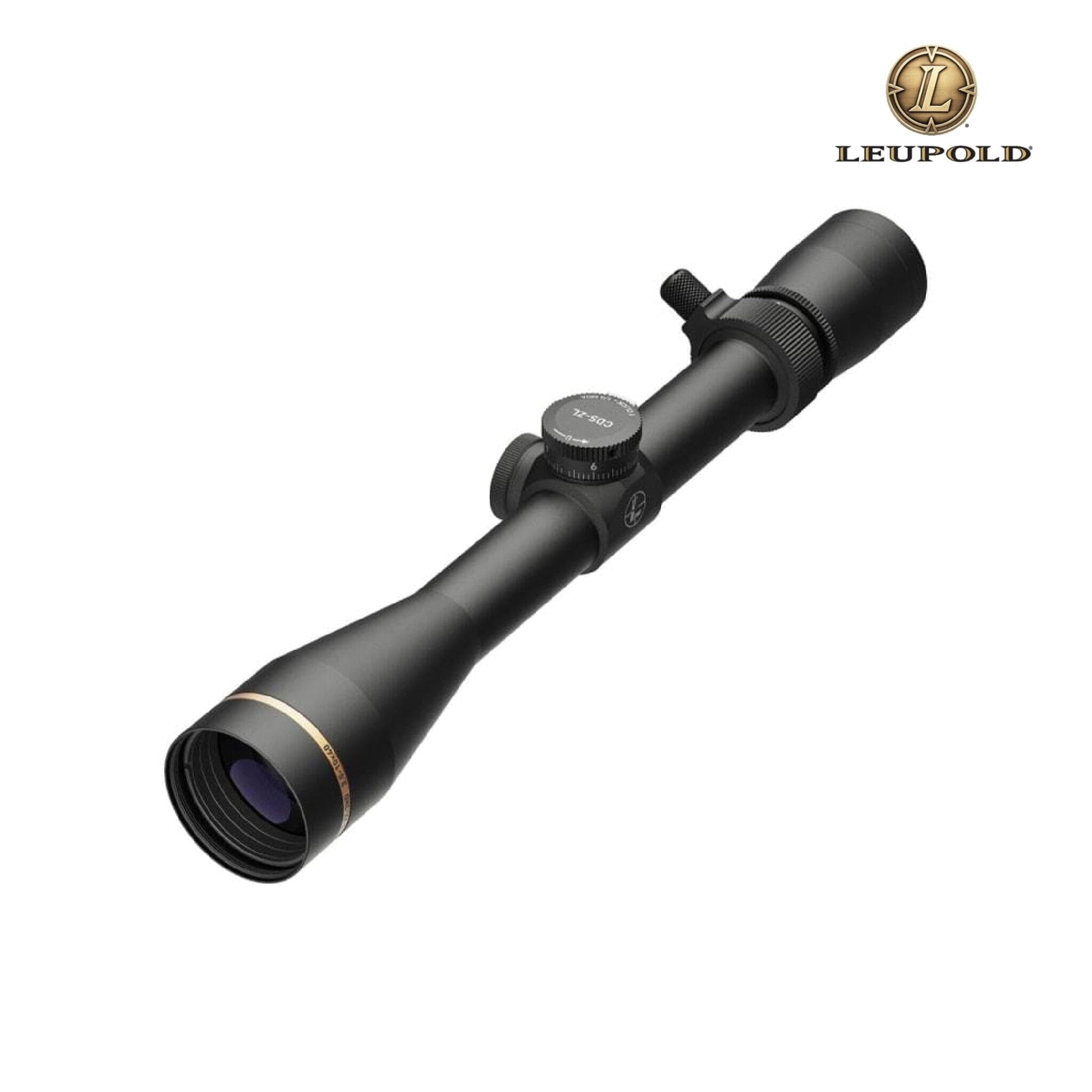

Leupold VX-3HD 3.5-10x40 CDS-ZL Rifle Scope Duplex Reticle
Leupold VX-3HD 3.5-10x40 CDS-ZL Rifle Scope Duplex Reticle
Couldn't load pickup availability
Leupold VX-3HD 3.5-10×40 CDS-ZL Rifle Scope Duplex Reticle
(Model 180617)
Features
- Elite Optical System: Fully multi-coated lenses, extra-low dispersion glass, glare-reduction coatings, and Xtended Twilight® system deliver outstanding brightness and clarity in all light conditions.
- Zoom Ratio & Throw Lever: 3.5× → 10× magnification with integrated, removable throw lever for rapid changes between wide-field and precision views.
- CDS-ZL® ZeroLock® Elevation Dial: Push-button, lockable elevation turret with one-revolution stop ensures quick, repeatable return to zero.

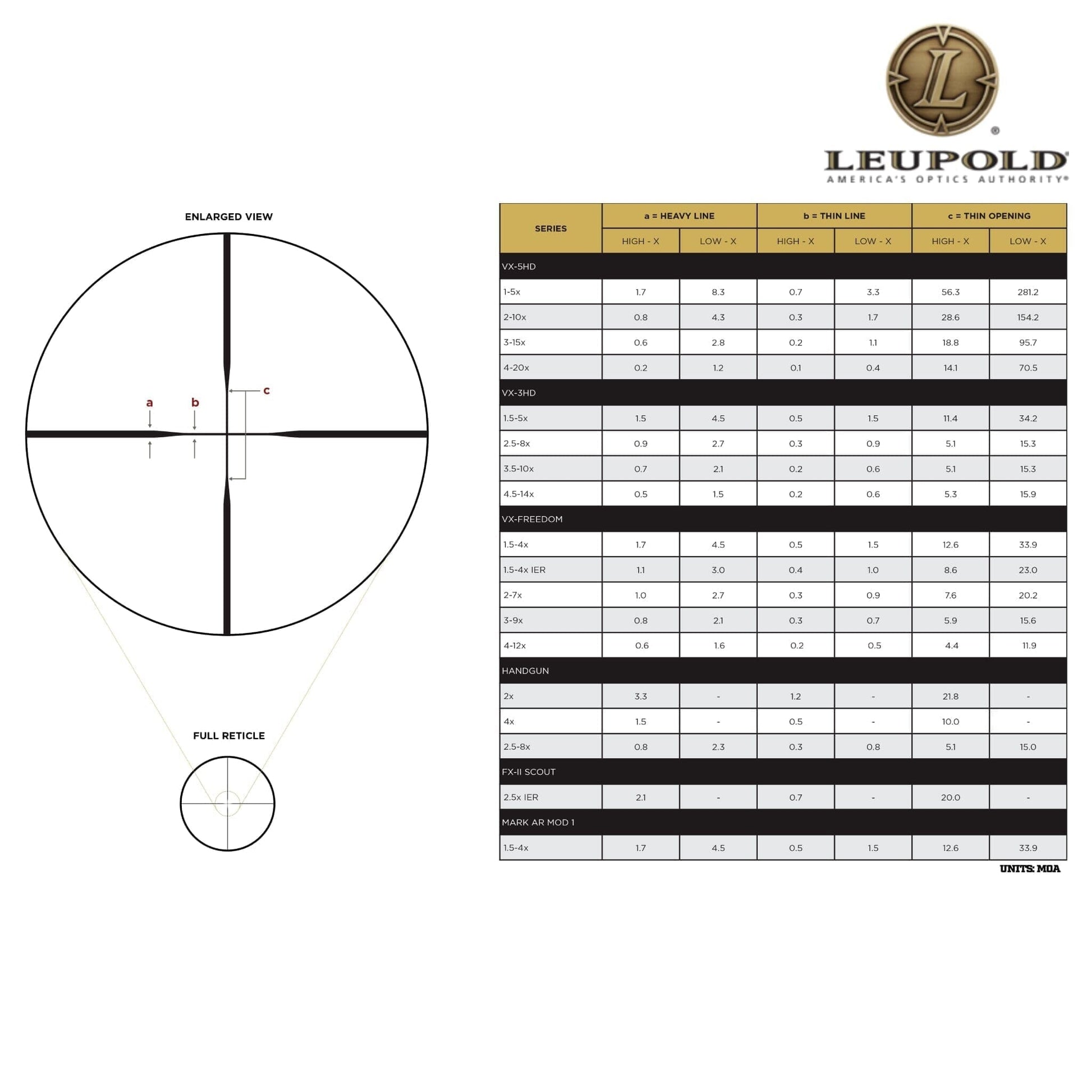

- Duplex® Reticle (Second Focal Plane): Glass-etched, non-illuminated Duplex reticle provides a clean sight picture and simple hold-over reference.
- Ergonomic Controls: Low-profile windage turret and fast-focus eyepiece designed for operation with or without gloves.
- Rugged Construction: CNC-machined 1″ main tube; fully waterproof, fog-proof, and shock-proof; rated to withstand heavy recoil.
Technical Specifications for Leupold VX-3HD 3.5-10×40 CDS-ZL Rifle Scope Duplex Reticle
Specification |
Details |
Model / MPN |
180617 |
SKU |
LEU-180617 |
UPC |
030317028350 |
Tube Diameter |
1″ (25.4 mm) |
Magnification Range |
3.5 × ⇄ 10 × |
Objective Lens Diameter |
40 mm |
Reticle |
Duplex® (SFP, non-illuminated) |
Eye Relief |
4.4″ (112 mm) @ 3.5× ⇄ 3.6″ (91 mm) @ 10× |
Field of View @ 100 yd |
29 ft @ 3.5× ⇄ 11.7 ft @ 10× |
Parallax |
Fixed at 100 yd |
Elevation/Windage Click |
¼ MOA per click; 67 MOA total travel each axis |
Length |
10.4″ (264 mm) |
Weight |
14.9 oz (422 g) |
Finish |
Matte-black hard-coat anodize |
Waterproof/Fog-Proof |
Yes |
Shock-Proof |
Yes |
Included Accessories
- Removable throw lever
- Flip-up lens covers
- User manual
