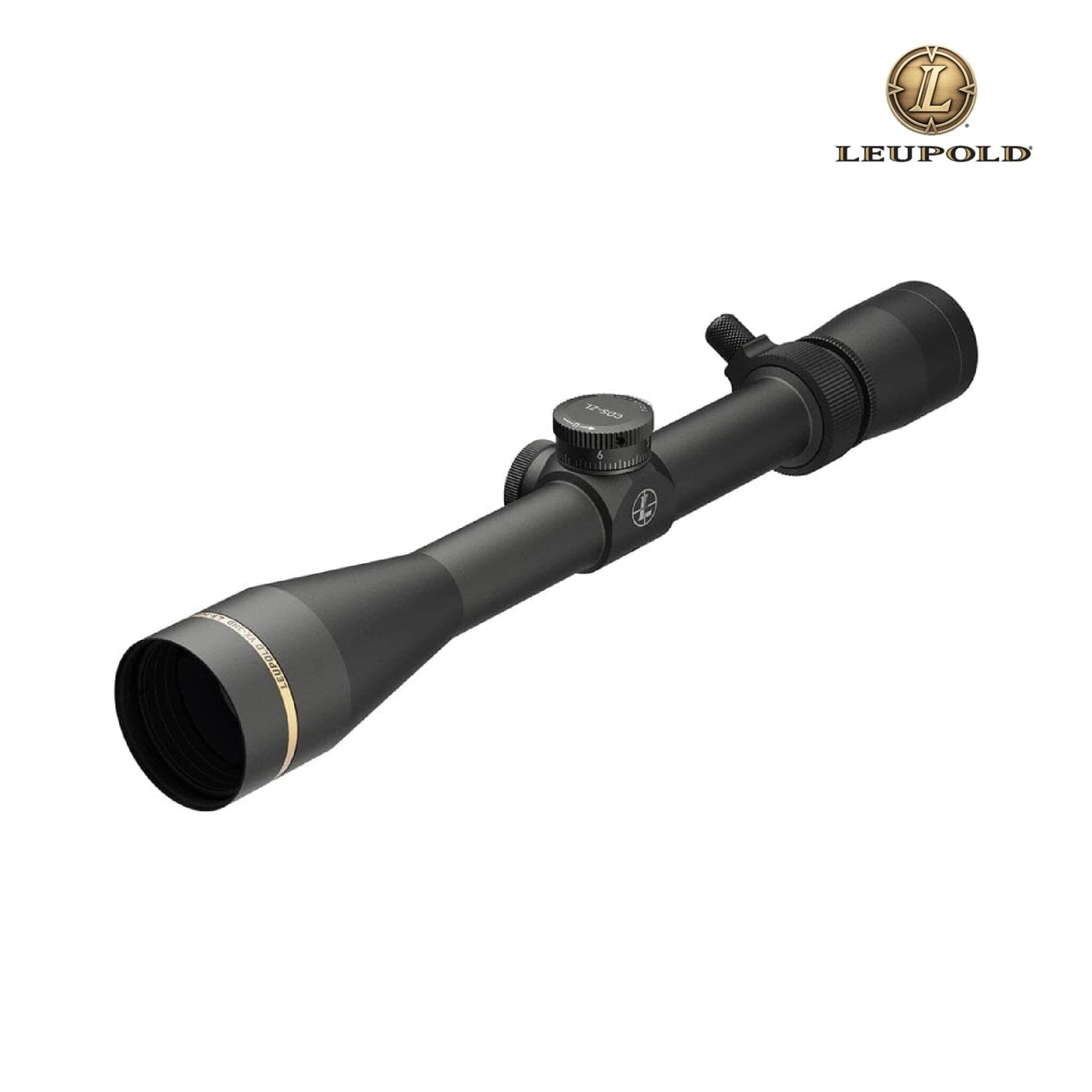

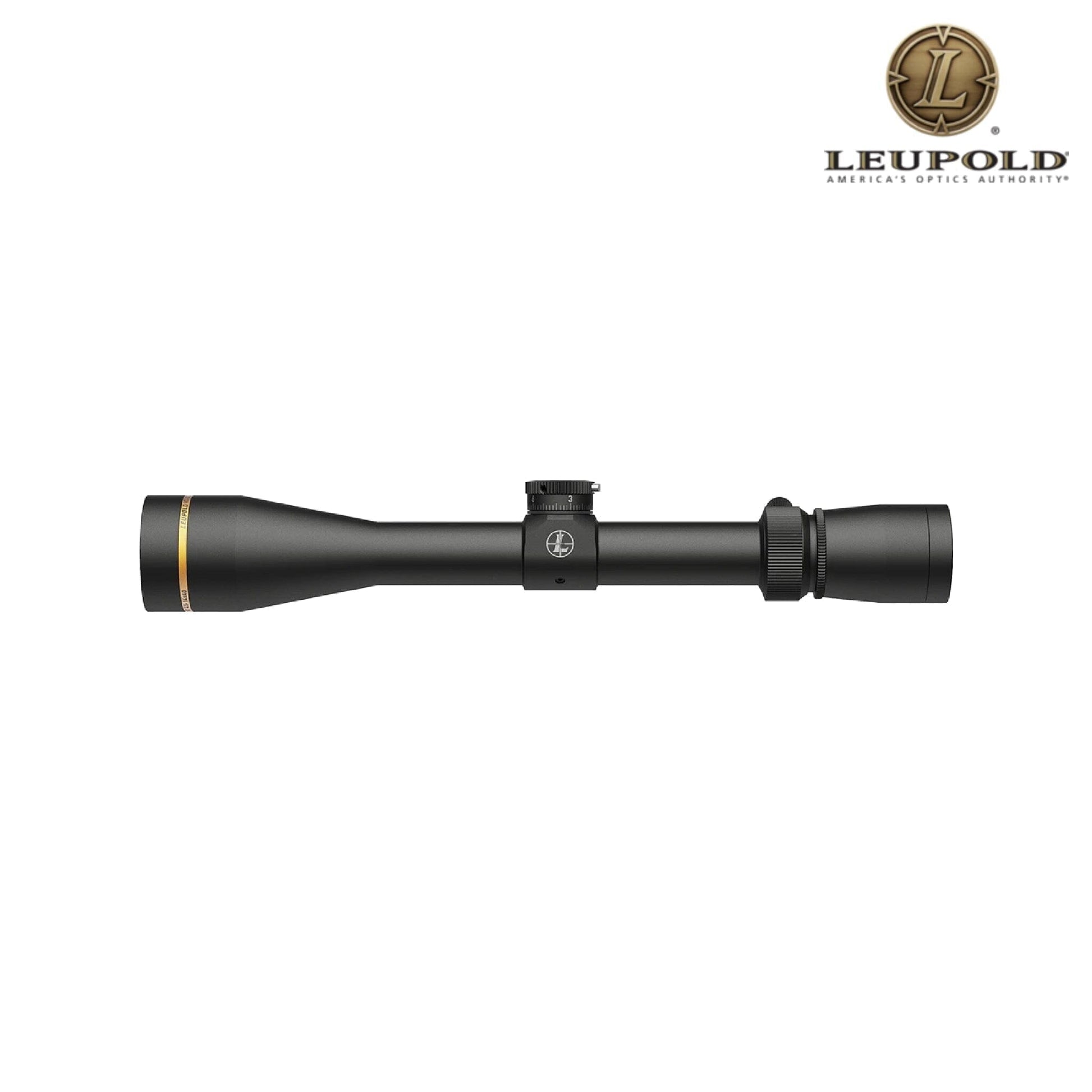

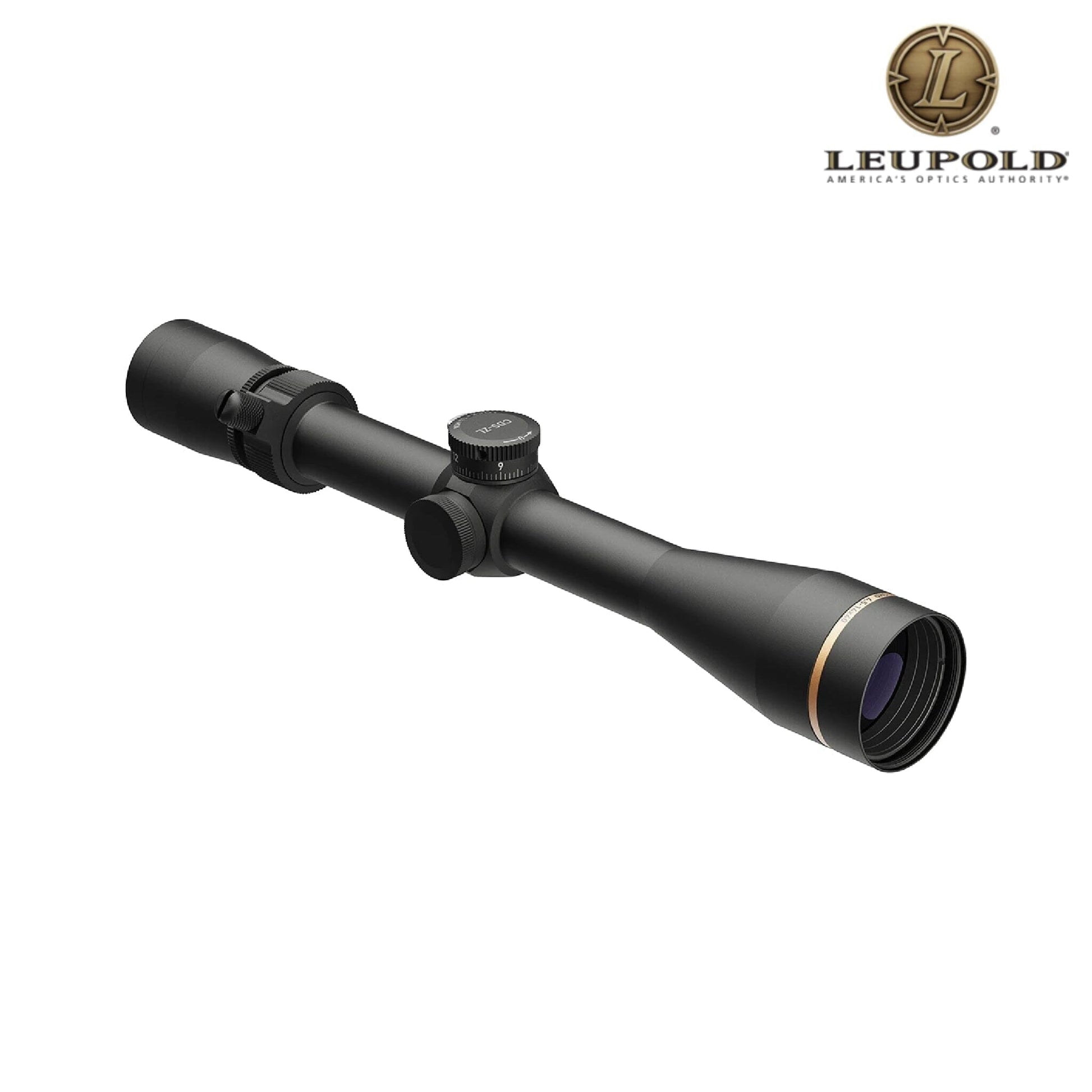

Leupold VX-3HD 4.5-14×40 CDS-ZL Rifle Scope Boone & Crockett Reticle
Leupold VX-3HD 4.5-14×40 CDS-ZL Rifle Scope Boone & Crockett Reticle
Couldn't load pickup availability
Leupold VX-3HD 4.5–14×40 CDS-ZL Rifle Scope Boone & Crockett Reticle
(Model 180620)
Features
- Elite Optical System: Fully multi-coated lenses, extra-low dispersion glass, glare-reduction coatings, and the Xtended Twilight® lens system deliver outstanding brightness and clarity in low-light and bright conditions.
- 3.1:1 Zoom Ratio: Integrated removable throw lever enables rapid transitions between 4.5× (wide field) and 14× (precision).
- CDS-ZL® ZeroLock® Elevation Dial: Push-button, lockable elevation turret with one-revolution stop for quick, repeatable return to zero.

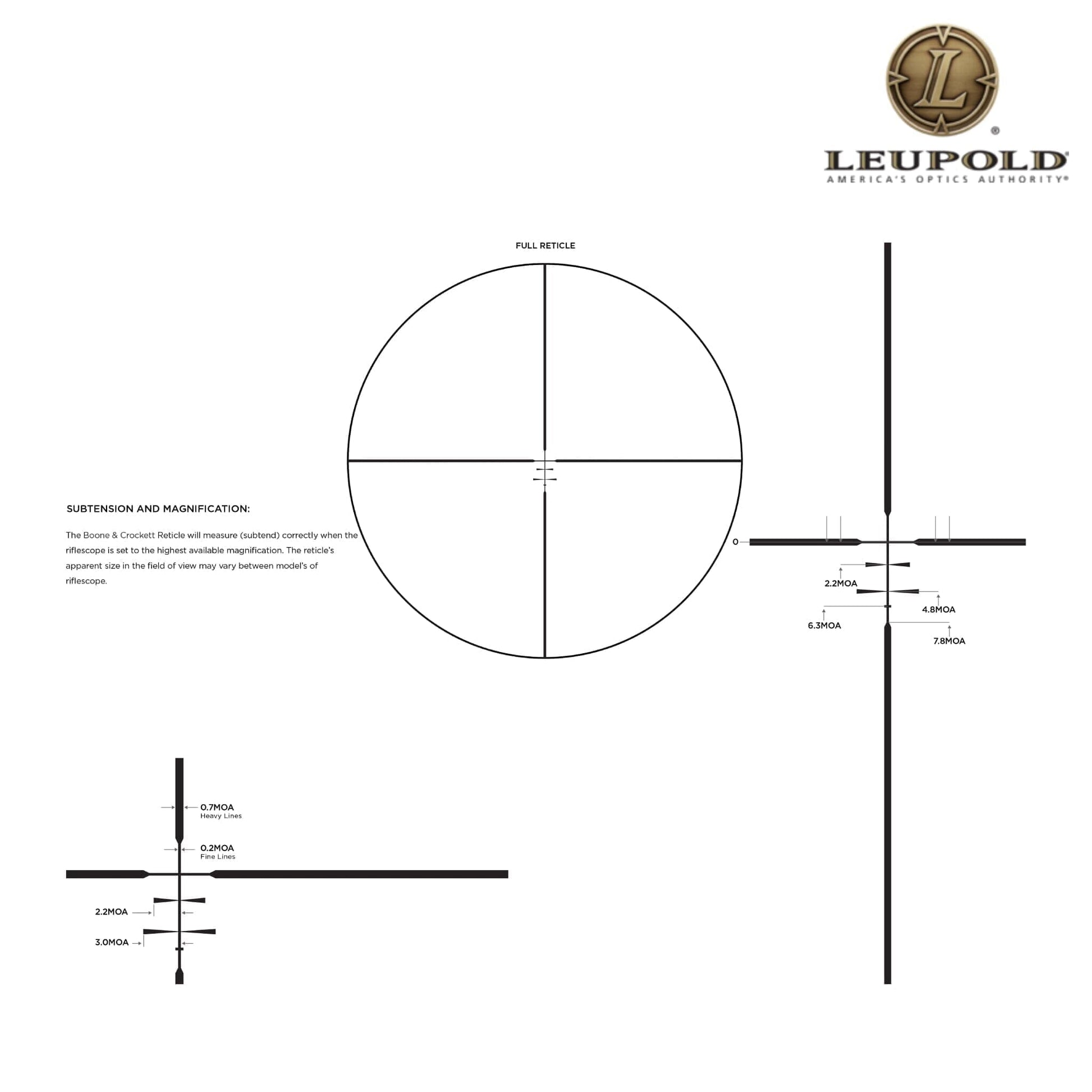

- Boone & Crockett® Reticle (Second Focal Plane): Glass-etched reticle designed for big-game hold-overs and quick target acquisition in rugged terrain.
- Ergonomic Controls: Low-profile windage turret and fast-focus eyepiece engineered for gloved operation.
- Rugged Construction: CNC-machined 1″ main tube; fully waterproof, fog-proof, and shock-proof; recoil-rated for repeated use with heavy calibers.
Technical Specifications for Leupold VX-3HD 4.5–14×40 CDS-ZL Rifle Scope Boone & Crockett Reticle
Specification |
Details |
Model / MPN |
180620 |
SKU |
LEU-180620 |
UPC |
030317028367 |
Tube Diameter |
1″ (25.4 mm) |
Magnification Range |
4.5 × ⇄ 14 × |
Objective Lens Diameter |
40 mm |
Reticle |
Boone & Crockett® (SFP, glass-etched) |
Parallax |
Fixed at 150 yd |
Eye Relief |
3.7″ (94 mm) @ 4.5× ⇄ 3.5″ (89 mm) @ 14× |
Field of View @ 100 yd |
23.2 ft @ 4.5× ⇄ 7.7 ft @ 14× |
Elevation Click Value |
¼ MOA per click; total 67 MOA over full range |
Windage Click Value |
¼ MOA per click; total 67 MOA over full range |
Length |
12.3″ (312 mm) |
Weight |
16.2 oz (459 g) |
Finish |
Matte-black hard-coat anodize |
Waterproof / Fog-Proof |
Yes |
Shock-Proof |
Yes |
Included Accessories
- Removable throw lever
- Flip-up lens covers
- User manual
