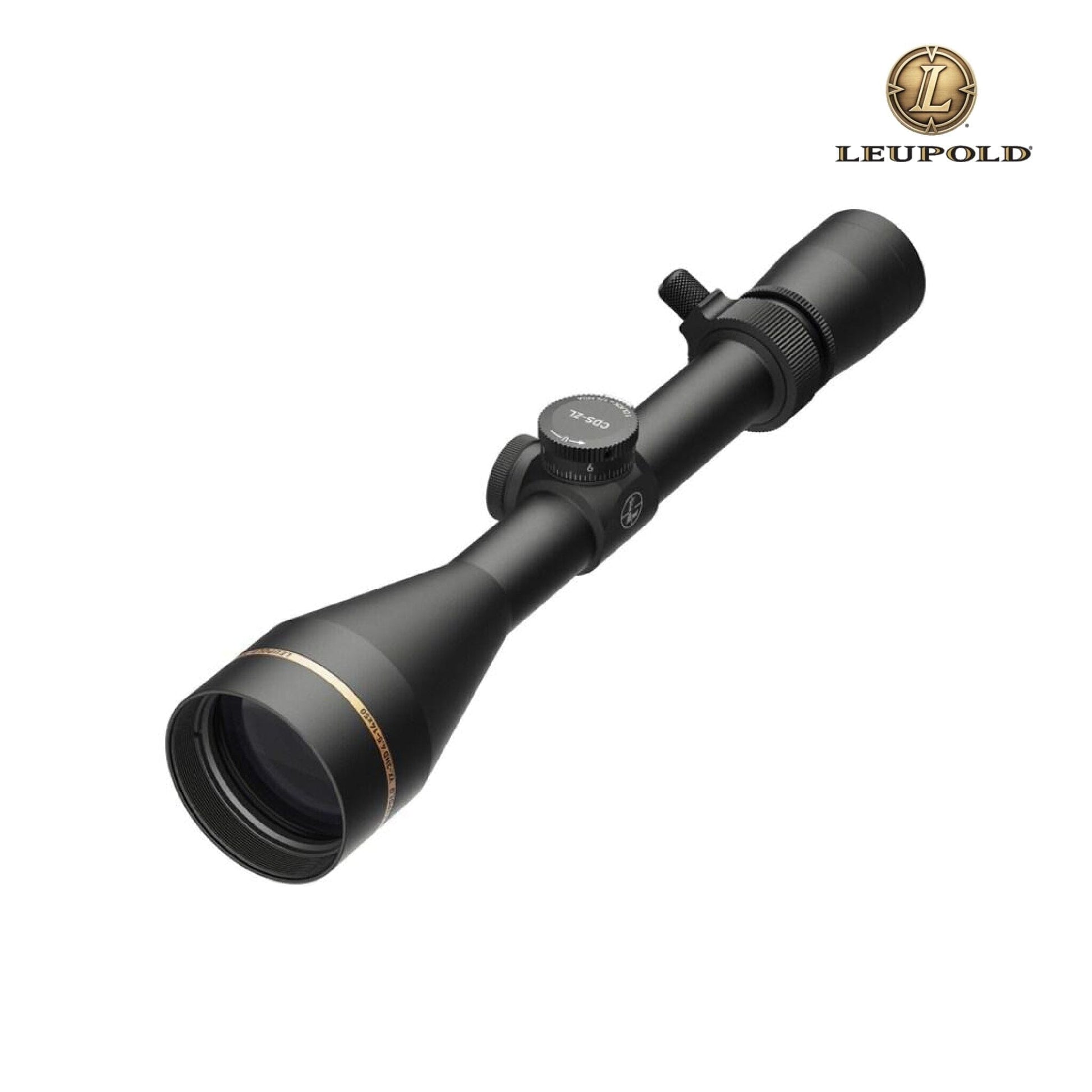

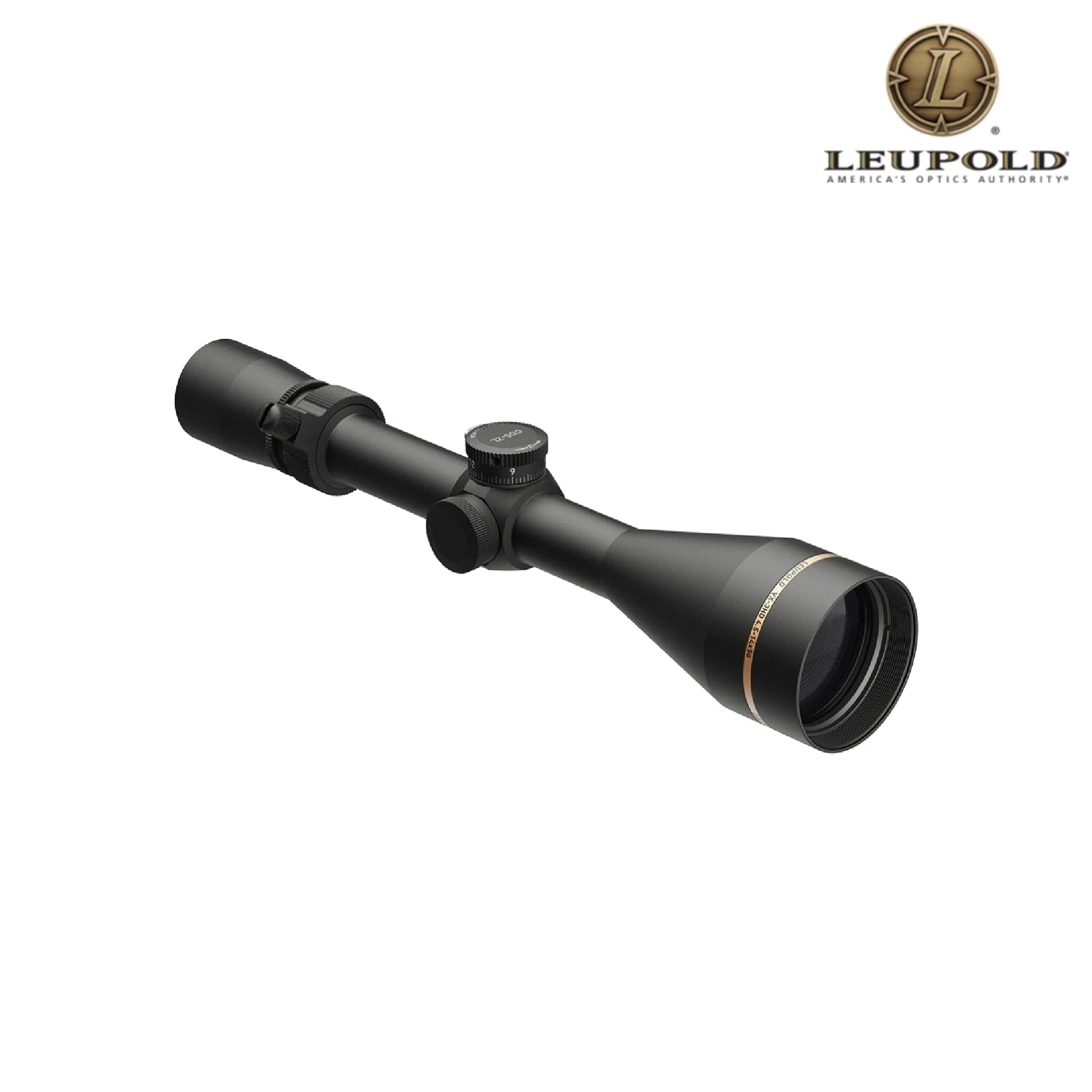

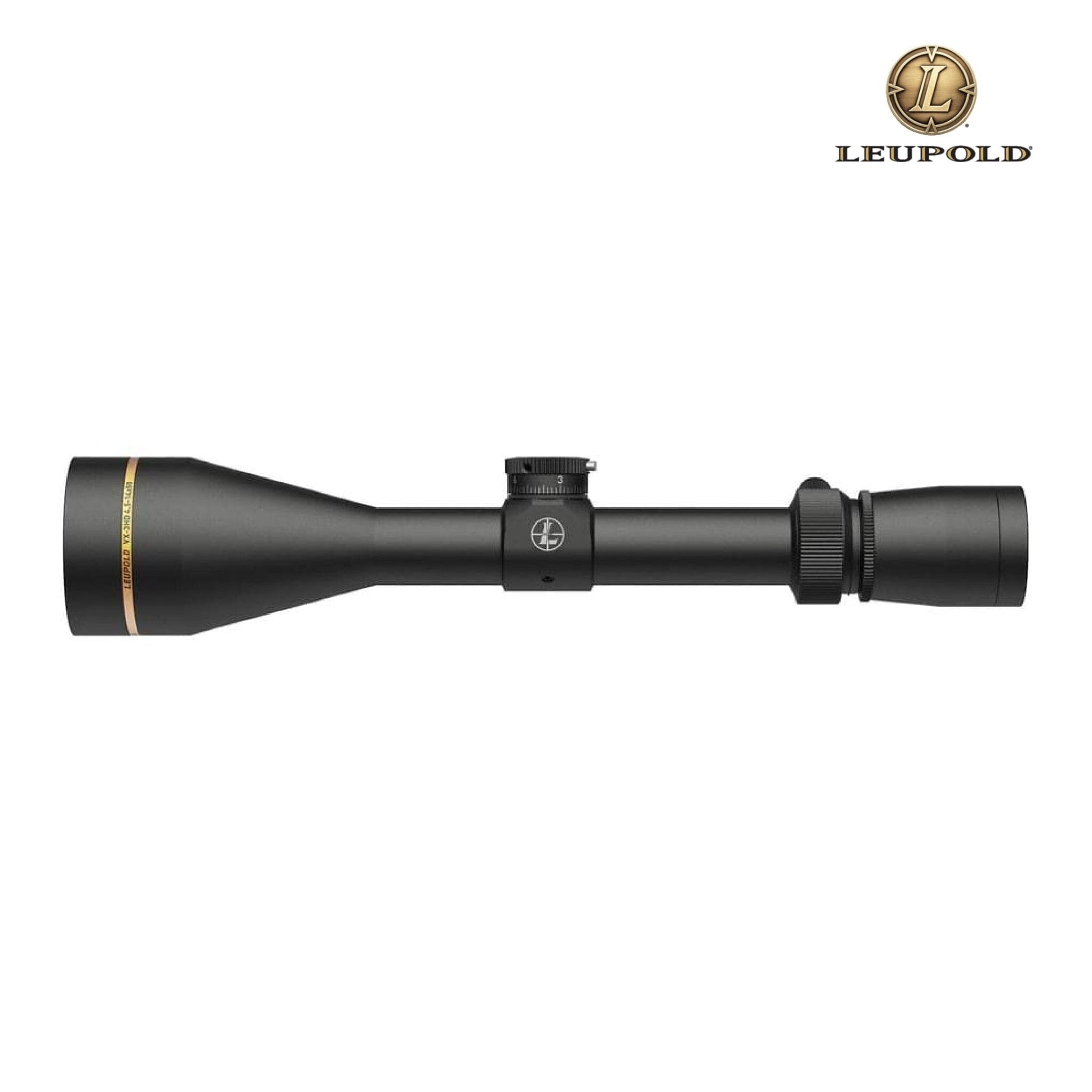

Leupold VX-3HD 4.5–14×50 CDS-ZL Rifle Scope Duplex Reticle
(Model 180622)
Features
- Elite Optical System: Fully multi-coated lenses, extra-low dispersion glass, glare-reduction coatings, and the Xtended Twilight® lens system deliver exceptional brightness, contrast, and clarity in all light conditions.
- 3.1:1 Zoom Ratio & Throw Lever: Removable throw lever for rapid transitions between 4.5× (wide field) and 14× (precision).
- CDS-ZL® ZeroLock® Elevation Dial: Push-button, lockable elevation turret with a one-revolution stop for quick, repeatable return to zero.

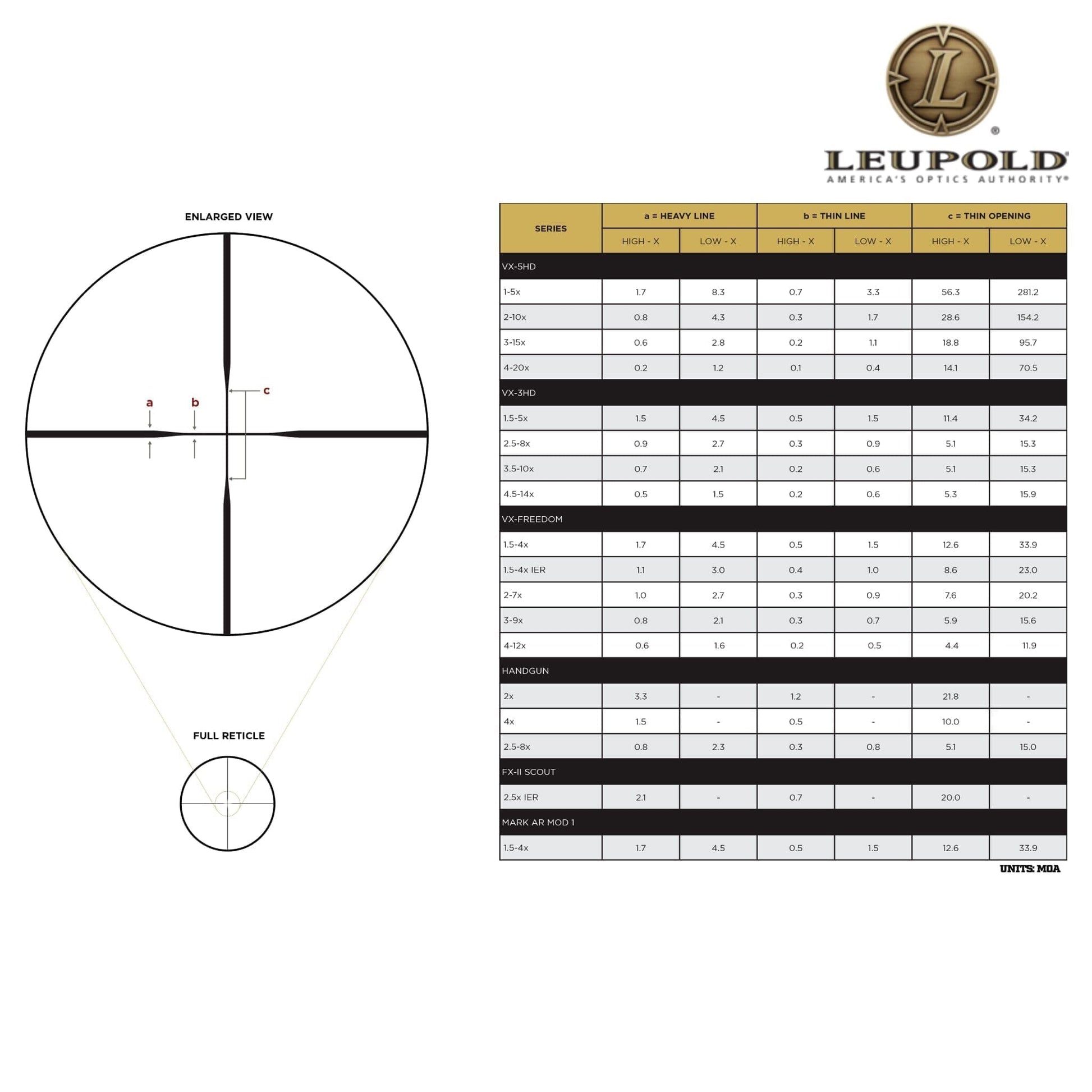

- Duplex® Reticle (Second Focal Plane): Glass-etched, non-illuminated reticle for a clean sight picture and intuitive hold-over reference.
- Ergonomic Controls: Low-profile windage turret and fast-focus eyepiece designed for use with gloves.
- Rugged Construction: CNC-machined 1″ main tube; fully waterproof, fog-proof, and shock-proof; rated to withstand heavy recoil.
- Made in USA & Lifetime Guarantee
Technical Specifications for Leupold VX-3HD 4.5–14×50 CDS-ZL Rifle Scope Duplex Reticle
Specification |
Details |
Model / MPN |
180622 |
SKU |
LEU-180622 |
UPC |
030317028572 |
Tube Diameter |
1″ (25.4 mm) |
Magnification Range |
4.5 × ⇄ 14 × |
Objective Lens Diameter |
50 mm |
Reticle |
Duplex® (SFP, non-illuminated) |
Parallax |
Fixed at 150 yd |
Eye Relief |
4.4″ (112 mm) at 4.5× ⇄ 3.6″ (91 mm) at 14× |
Field of View @ 100 yd |
20.5 ft at 4.5× ⇄ 7.6 ft at 14× |
Elevation/Windage Click |
¼ MOA per click; 67 MOA total travel each axis |
Overall Length |
12.3″ (312 mm) |
Weight |
15 oz (425 g) |
Finish |
Matte-black hard-coat anodize |
Waterproof/Fog-Proof |
Yes |
Shock-Proof |
Yes |
Included Accessories
- Removable throw lever
- Flip-up lens covers
- User manual
