Leupold

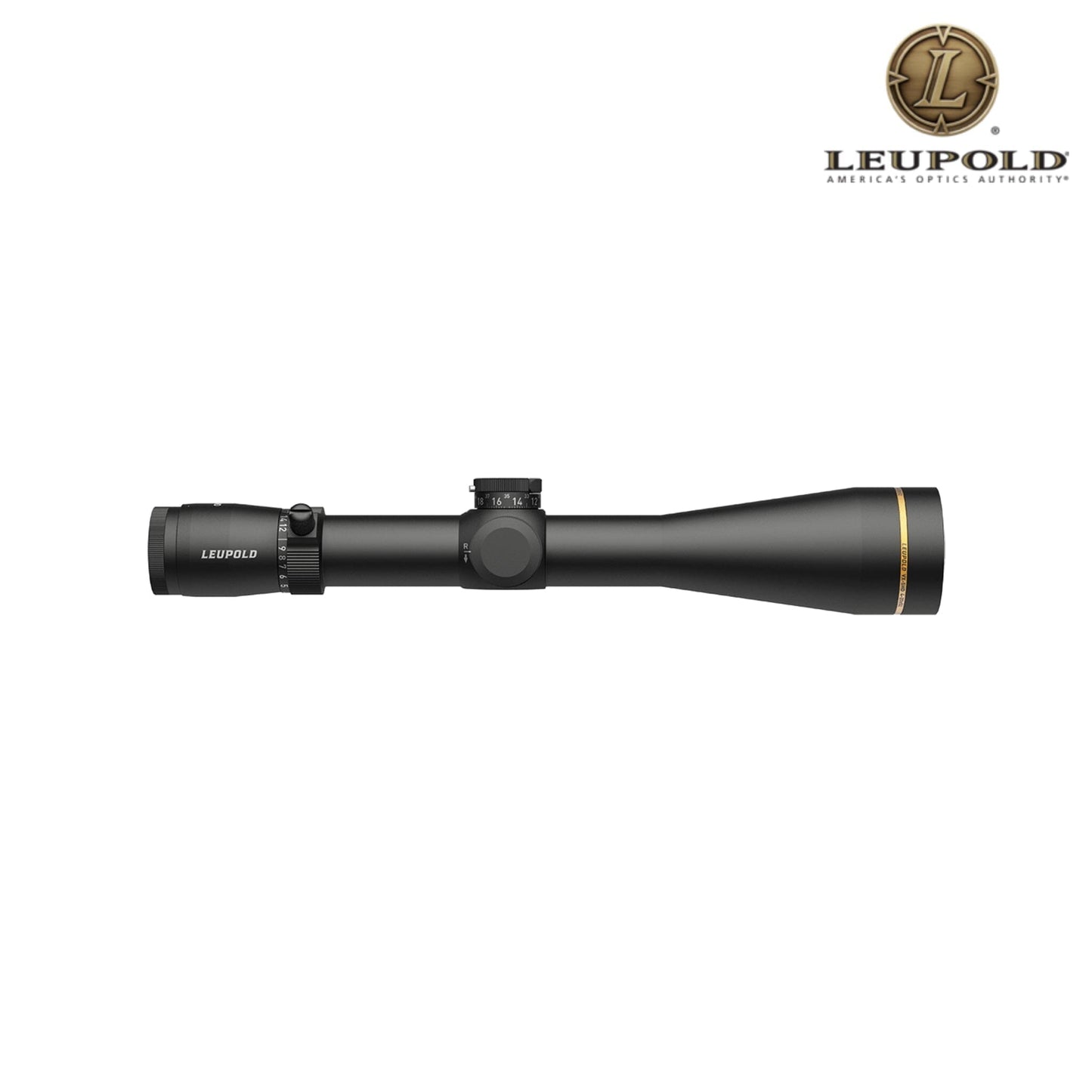

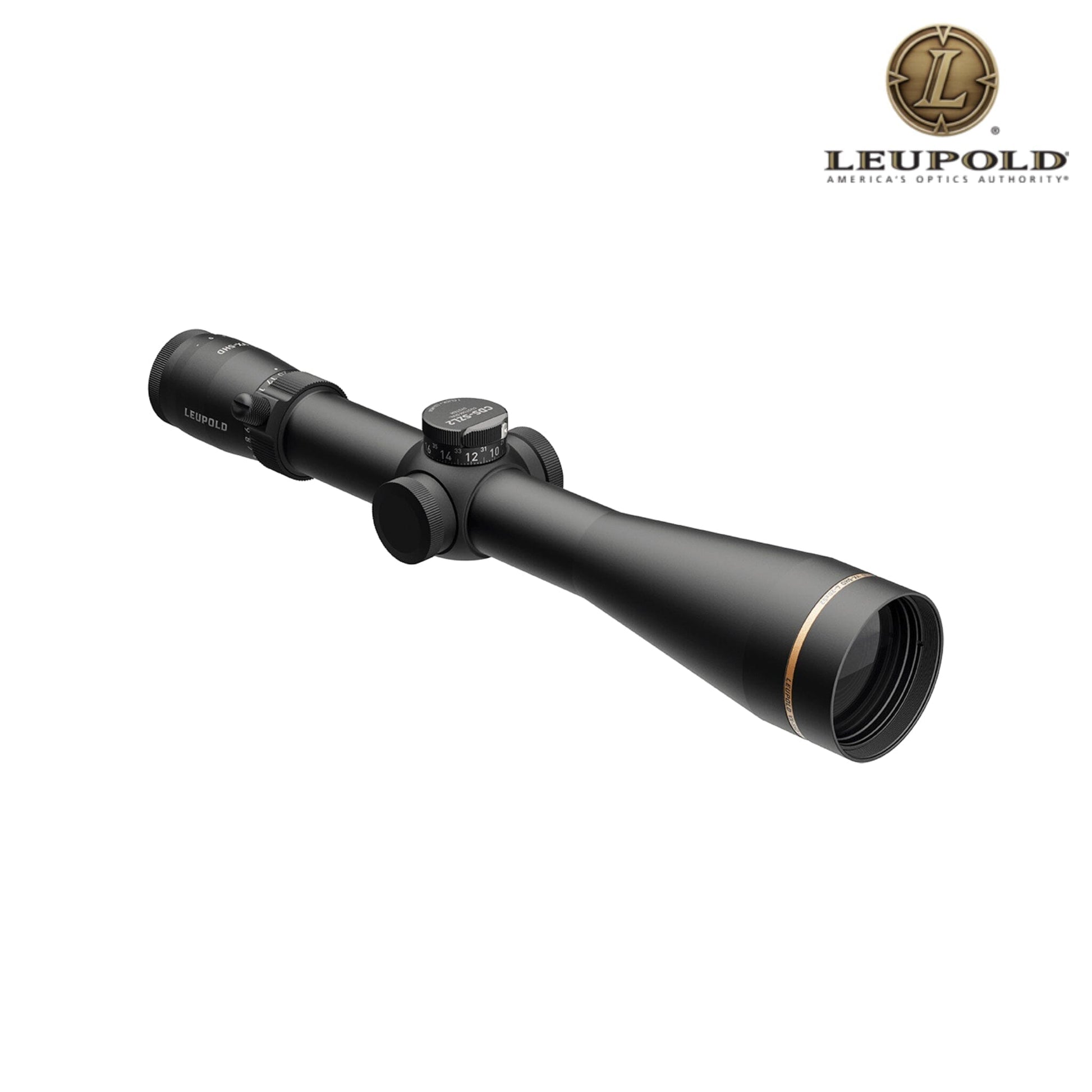

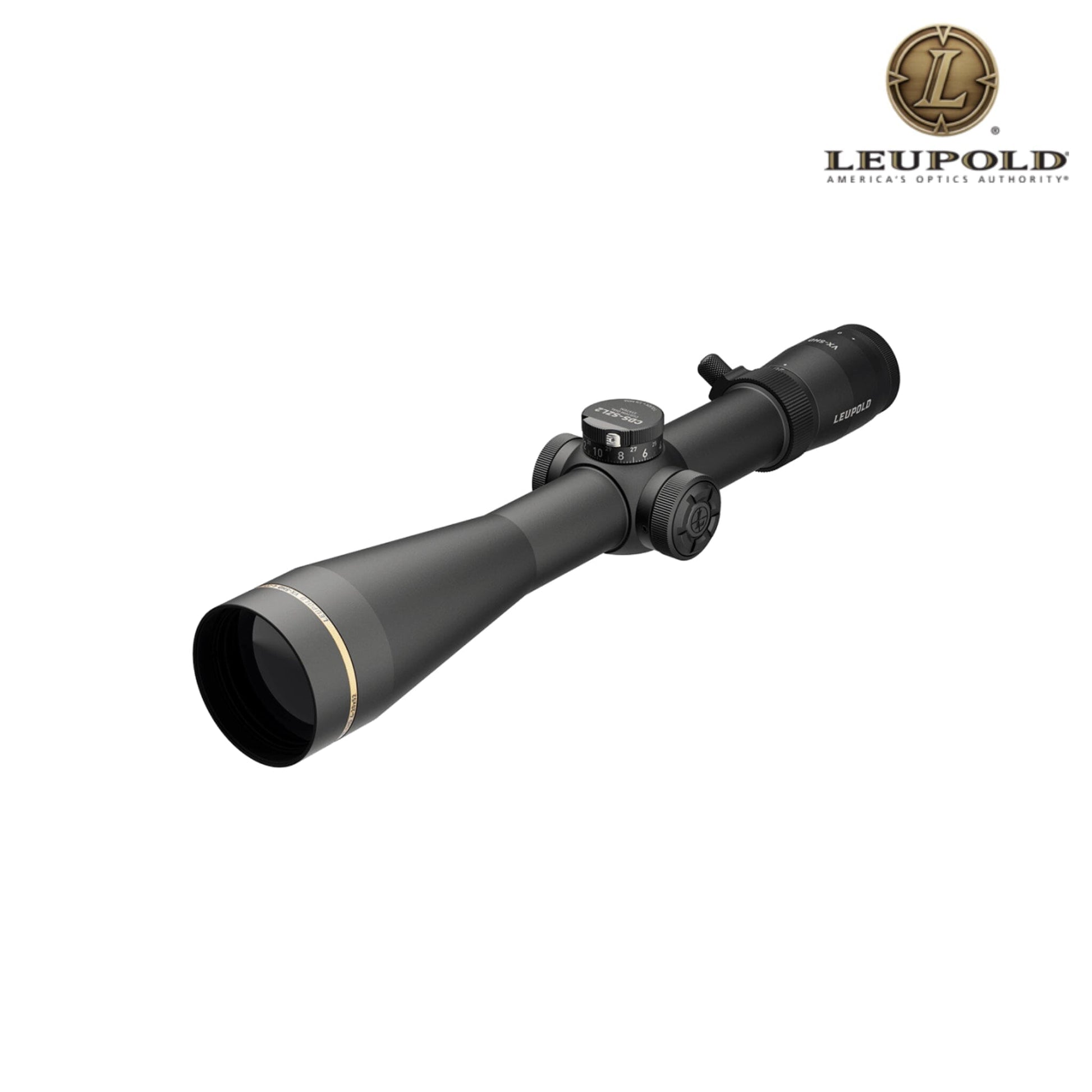

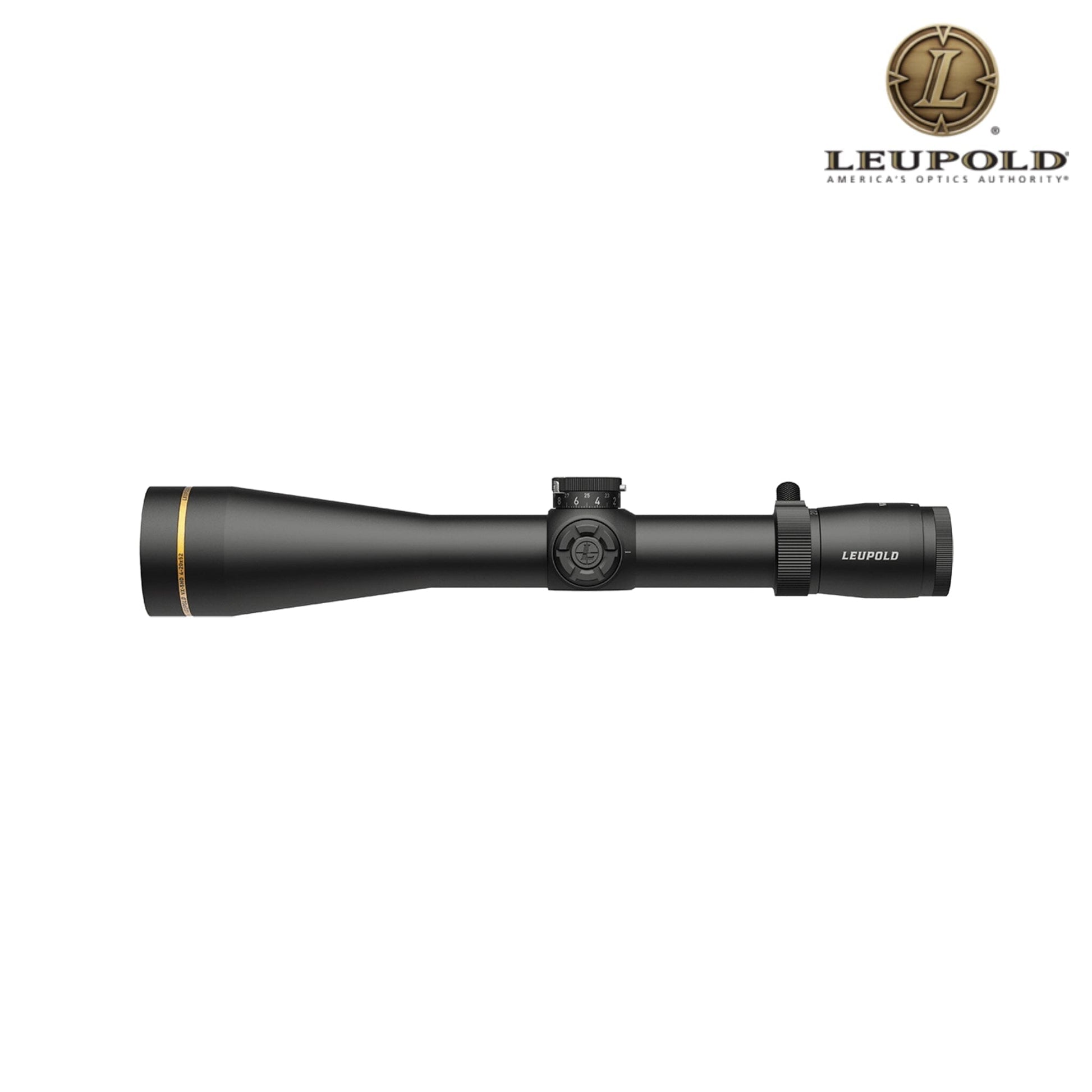

Leupold VX-5HD Gen 2 4-20×52 CDS-SZL2 Side-Focus Riflescope - FireDot Duplex Reticle
Leupold VX-5HD Gen 2 4-20×52 CDS-SZL2 Side-Focus Riflescope - FireDot Duplex Reticle
Couldn't load pickup availability
Leupold VX-5HD Gen 2 4-20×52 CDS-SZL2 Side-Focus Riflescope - FireDot Duplex Reticle
Features
- Ultra-Flexible 5:1 Zoom Range – 4–20× magnification delivers close-quarters speed and extreme long-distance precision.

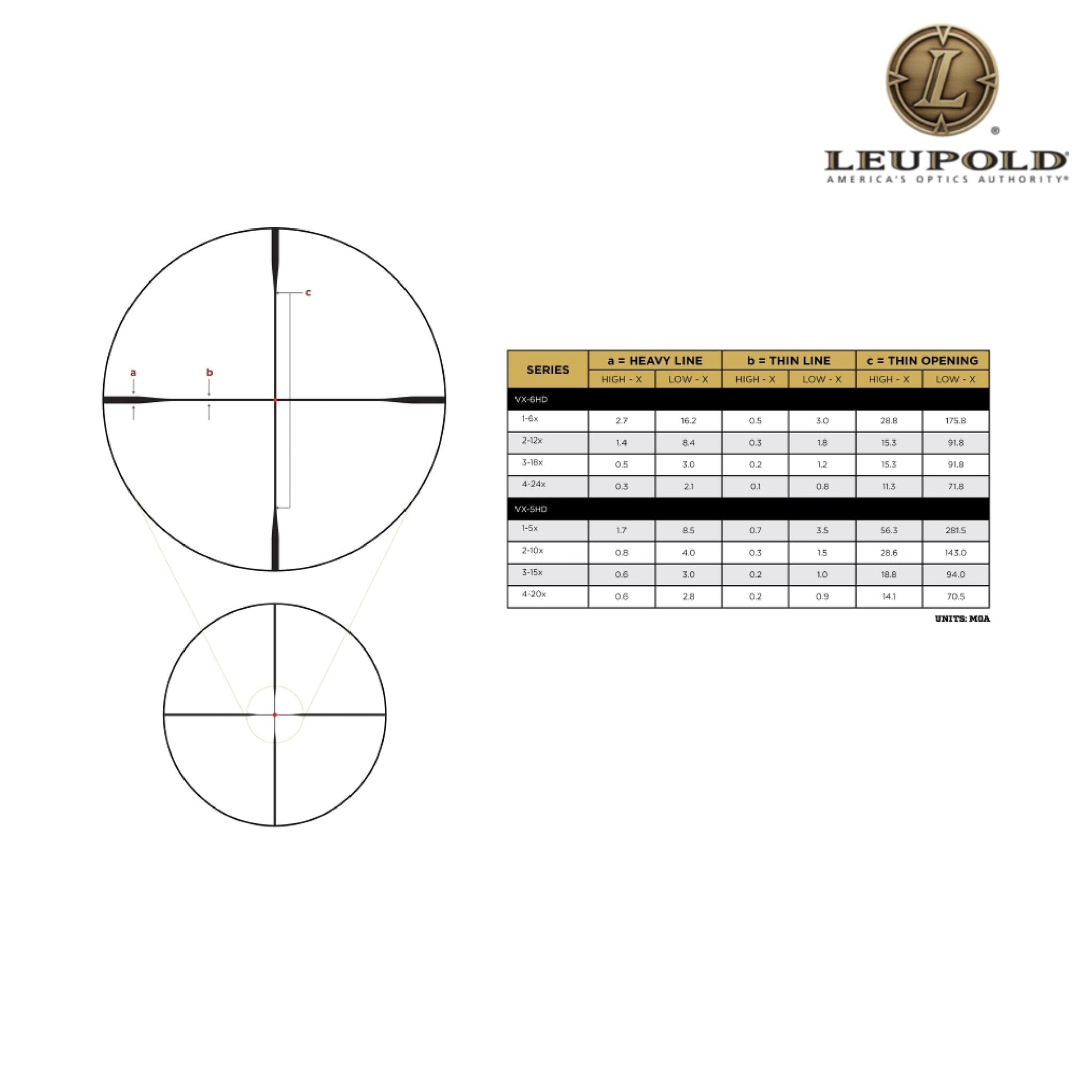

- Illuminated FireDot® Duplex Reticle – Combines a crisp center dot with a classic duplex pattern; illumination enhances target acquisition in all light conditions.
- Professional-Grade Optics – Superior light transmission, edge-to-edge clarity, and aggressive glare reduction for top-tier optical performance.

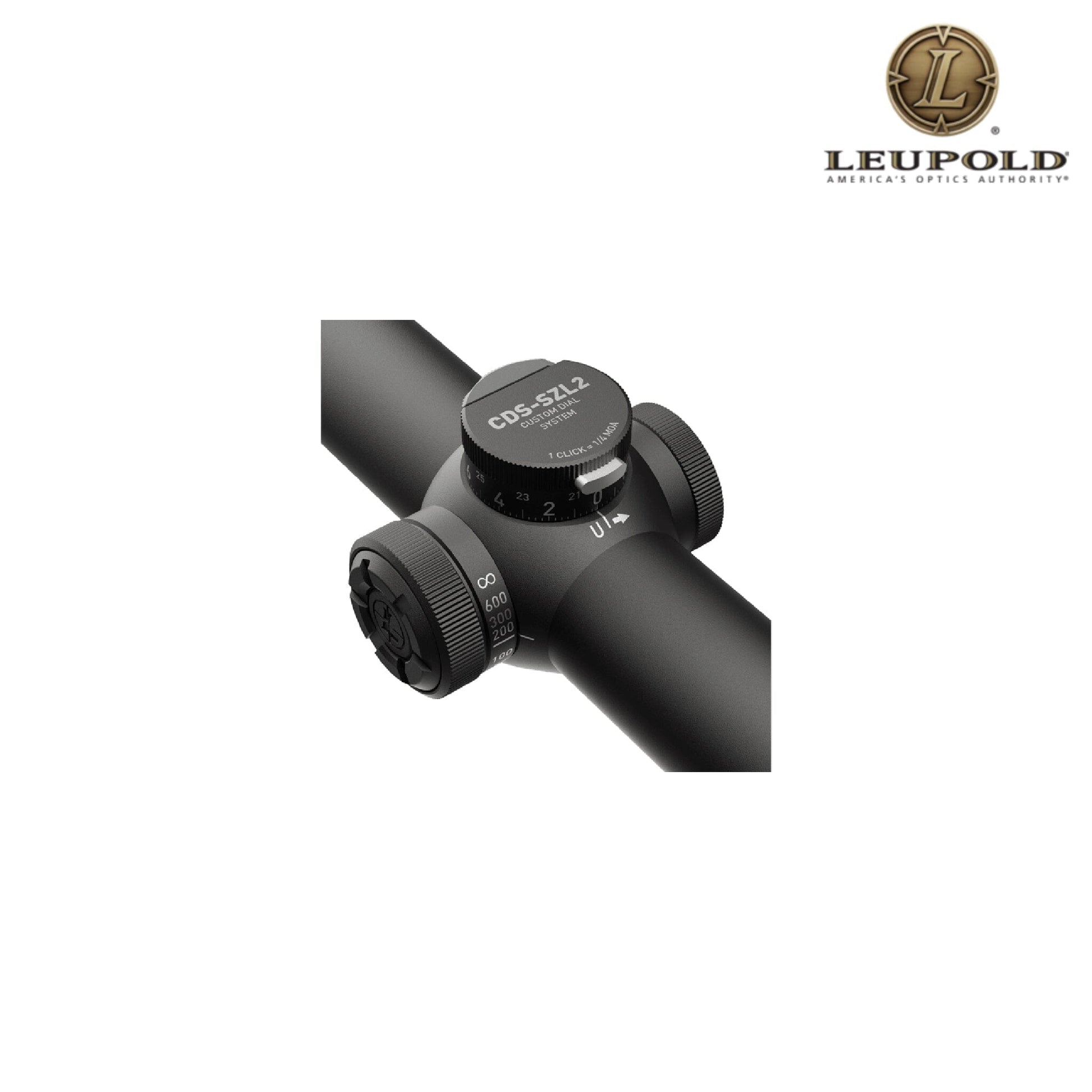

- Tool-Free SpeedSet™ CDS Elevation Dial – Enables fast zeroing and custom ballistics dialing without tools. Includes ZeroLock® for secure setting retention.
- Side Parallax Adjustment & Quick-Focus Eyepiece – Easily fine-tune parallax from 50 yards to infinity and rapidly sharpen your reticle.
- Guard-Ion™ Lens Coating – Hydrophobic protection resists dirt, water, and scratches for long-lasting clarity.
- Built for Abuse – Waterproof, fogproof, and shockproof; integrated throw lever for fast magnification shifts in all conditions.
Technical Specifications for Leupold VX-5HD Gen 2 4-20×52 CDS-SZL2 Side-Focus Riflescope - FireDot Duplex Reticle
Specification |
Details |
Manufacturer |
Leupold |
Model / Part Number (MPN) |
183858 |
SKU |
183858 |
UPC |
030317036928 |
Magnification |
4–20× |
Objective Lens Diameter |
52 mm |
Tube Size |
34 mm |
Reticle |
Illuminated FireDot® Duplex (SFP) |
Field of View (@100 yds) |
~27.7 ft @ 4× → ~5.8 ft @ 20× |
Eye Relief |
~3.8 in (constant) |
Elevation Adjustment Range |
±50 MOA (total ~100 MOA) |
Windage Adjustment Range |
±40 MOA (total ~80 MOA) |
Adjustment Click Value |
¼ MOA per click |
Parallax Adjustment |
Side-focus, 50 yds to ∞ |
Length |
~24.3 in |
Weight |
~14.5 oz |
Lens Coating |
Guard-Ion hydrophobic coating |
Optical System |
Professional-Grade Optical System (HD clarity, glare reduction) |
Illumination Power |
Battery-powered (CR2032), Motion Sensor Technology |
Zeroing System |
SpeedSet™ CDS with ZeroLock® |
Environmental Durability |
Waterproof, fogproof, shockproof |
Country of Origin |
USA |
Warranty |
Leupold Full Lifetime Guarantee |
Included Accessories
- VX-5HD Gen 2 4–20×52 scope
- KillLight® lens covers
- Custom CDS elevation dial (pre-installed)
- Throw lever (integrated)
- Battery and documentation
