Leupold VX-5HD Gen 2 4-20x52 CDS-SZL2 Side-Focus Riflescope - Duplex Reticle
Leupold VX-5HD Gen 2 4-20x52 CDS-SZL2 Side-Focus Riflescope - Duplex Reticle
Couldn't load pickup availability
Leupold VX-5HD Gen 2 4-20×52 CDS-SZL2 Side-Focus Riflescope - Duplex Reticle
Features
- Wide 5:1 Zoom Ratio (4–20×) — Offers both rapid target acquisition and precision long-range shooting.

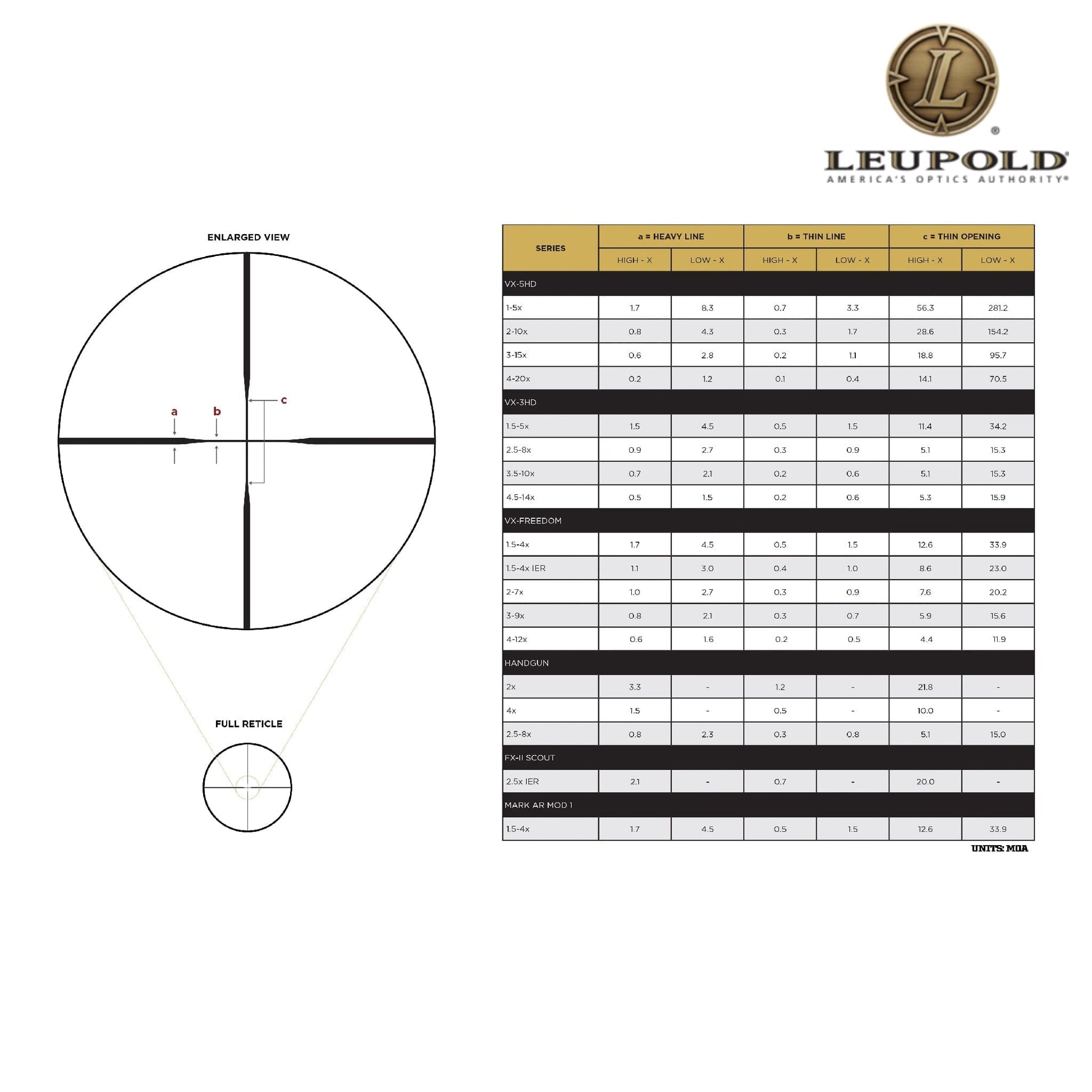

- Classic Duplex Reticle — Non-illuminated Second Focal Plane reticle with trusted Duplex pattern delivering a clear aiming point.
- Professional-Grade Optical System — Provides top-level light transmission, sharp edge-to-edge clarity, and extreme glare reduction.

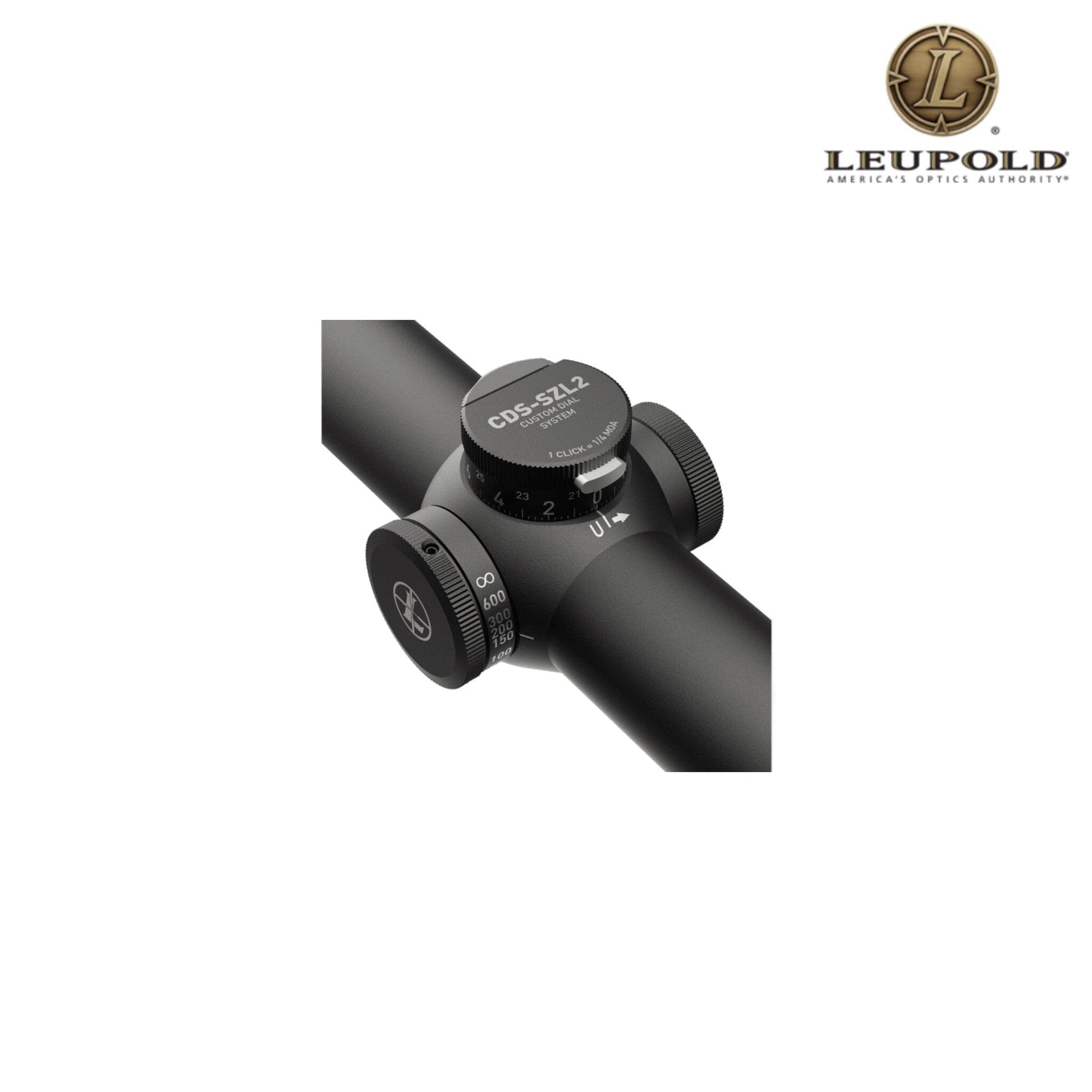

- SpeedSet™ CDS Elevation Dial with ZeroLock® — Tool-free elevation adjustment with locking mechanism for quick and reliable ballistic tuning.
- Side-Focus Parallax Control & Quick-Focus Eyepiece — Enables fine tuning from 50 yards to infinity for crisp reticle clarity.
- Guard-Ion™ Hydrophobic Coating — Keeps lenses cleaner with dirt and moisture resistance to maintain clarity in all conditions.
- Built Rugged for the Field — Designed to be waterproof, fogproof, and shockproof, with an integrated throw lever for fast magnification changes.
Technical Specifications for Leupold VX-5HD Gen 2 4-20×52 CDS-SZL2 Side-Focus Riflescope - Duplex Reticle
Specification |
Details |
Manufacturer |
Leupold |
Model / Part Number (MPN) |
183857 |
SKU |
183857 |
UPC |
030317036805 |
Magnification |
4–20× |
Objective Lens Diameter |
52 mm |
Tube Size |
34 mm |
Reticle |
Duplex (SFP) |
Field of View (@100 yds) |
~27.7 ft (4×) → ~5.8 ft (20×) |
Eye Relief |
~3.8 in (constant) |
Elevation Adjustment Range |
±50 MOA (total ~100 MOA) |
Windage Adjustment Range |
±40 MOA (total ~80 MOA) |
Adjustment Click Value |
¼ MOA per click |
Parallax Adjustment |
Side-focus, 50 yds to ∞ |
Length |
Approx. length consistent with model line |
Weight |
Approx. weight similar to Gen 2 series (not specified) |
Lens Coating |
Guard-Ion™ hydrophobic coating |
Elevation Dial |
SpeedSet™ CDS with ZeroLock® |
Environmental Durability |
Waterproof, fogproof, shockproof |
Country of Origin |
USA |
Warranty |
Leupold Lifetime Guarantee |
Included Accessories
- VX-5HD Gen 2 4–20×52 Riflescope — Duplex Reticle
- SpeedSet™ ZeroLock elevation dial (factory installed)
- KillLight® lens caps
- Integrated throw lever
- Documentation and warranty paperwork
