Leupold VX-5HD Gen 2 4-20x52 CDS-SZL2 Side-Focus Riflescope - TMOA Reticle
Leupold VX-5HD Gen 2 4-20x52 CDS-SZL2 Side-Focus Riflescope - TMOA Reticle
Couldn't load pickup availability
Leupold VX-5HD Gen 2 4-20×52 CDS-SZL2 Side-Focus Riflescope - TMOA Reticle
Features
- Versatile 5:1 Zoom Capability – Offers everything from close-quarters utility at 4× to precision long-range capability at 20×.

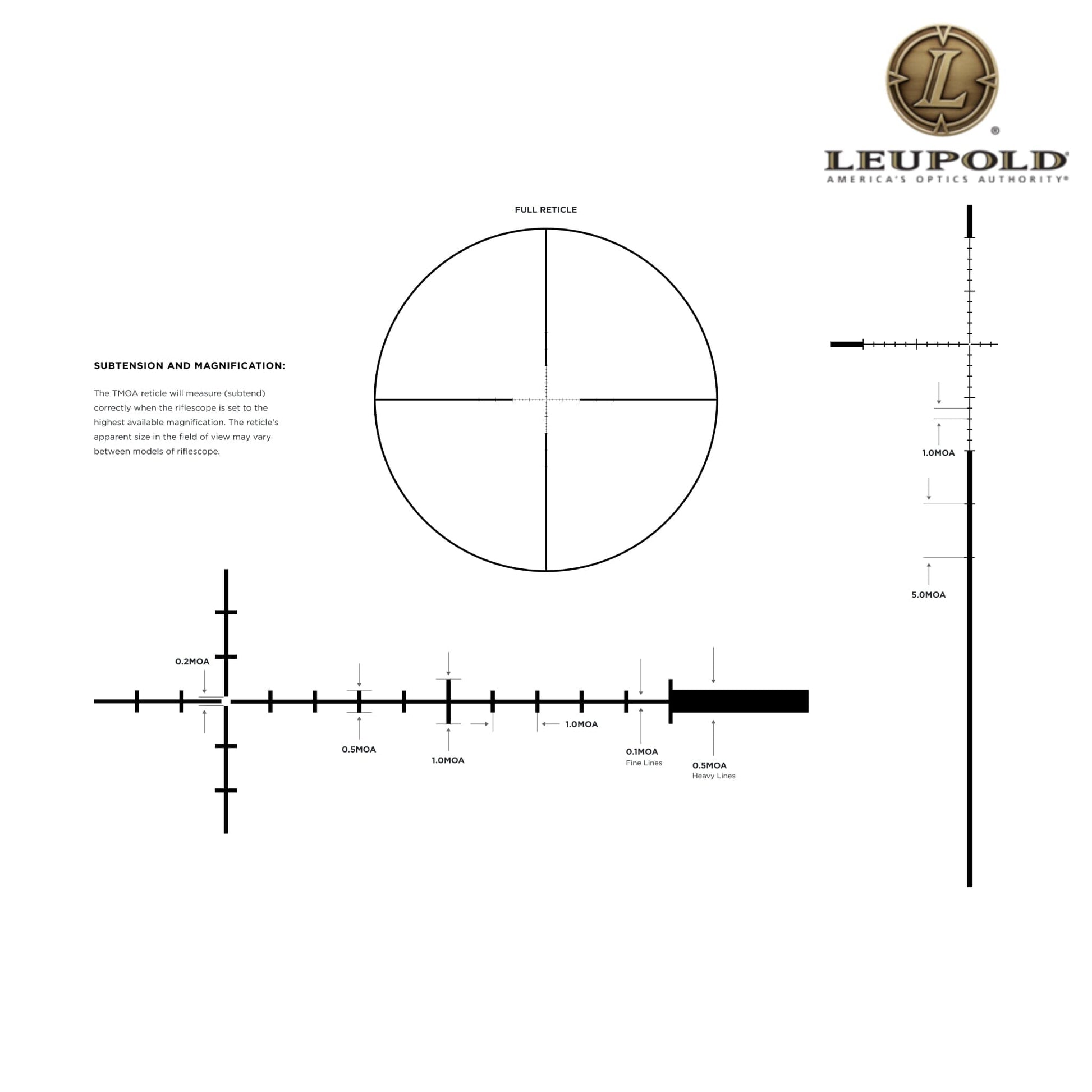

- TMOA® Illuminated Reticle – A Second Focal Plane (SFP) TMOA reticle features MOA-based holdover and windage markers for intuitive aiming at extended distances.
- Leupold Professional-Grade Optical System – Delivers unmatched clarity, excellent glare resistance, and superior light transmission for demanding hunting environments.

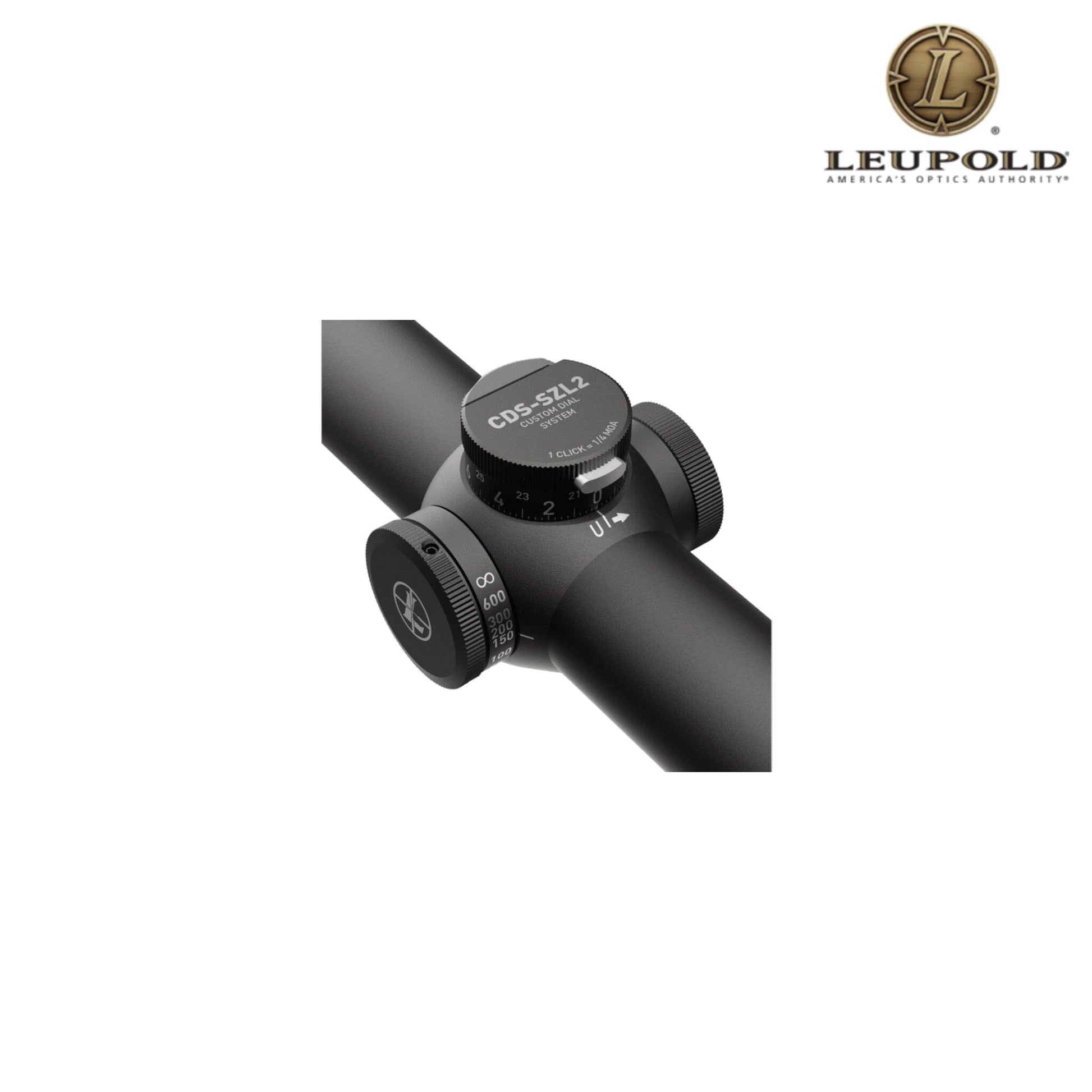

- CDS® SpeedSet™ Elevation Dial with ZeroLock® – Tool-free dialing enables fast ballistic zeroing with precise lock-down retention.
- Side-Focus Parallax Control & Quick-Focus Eyepiece – Adjust parallax from 50 yards to infinity and fine-tune your focus quickly under pressure.
- Guard-Ion™ Hydrophobic Lens Coating – Repels water and dirt for a consistently clear sight picture even in adverse conditions.
- Made to Withstand the Elements – Built to be waterproof, fogproof, and shockproof; includes a convenient throw lever for fast magnification adjustments.
Technical Specifications for Leupold VX-5HD Gen 2 4-20×52 CDS-SZL2 Side-Focus Riflescope - TMOA Reticle
Specification |
Details |
Manufacturer |
Leupold |
Model / MPN |
183859 |
SKU |
183859 |
UPC |
030317036980 |
Magnification |
4–20× |
Objective Lens Diameter |
52 mm |
Tube Diameter |
34 mm |
Reticle |
TMOA® (Second Focal Plane) |
Field of View @ 100 yds |
~27.7 ft (4×) to ~5.8 ft (20×) |
Eye Relief |
~3.8″ (constant) |
Elevation Adjustment Range |
±50 MOA (Total ~100 MOA) |
Windage Adjustment Range |
±40 MOA (Total ~80 MOA) |
Adjustment Click Value |
¼ MOA |
Parallax Adjustment |
Side-focus, 50 yds to ∞ |
Length |
~14.5″ |
Weight |
~23.8 oz |
Lens Coating |
Guard-Ion Hydrophobic |
Optical System Quality |
Professional-Grade (HD clarity, glare reduction) |
Elevation Dial |
SpeedSet™ CDS with ZeroLock® |
Environmental Durability |
Waterproof, fogproof, shockproof |
Country of Origin |
USA |
Warranty |
Leupold Limited Lifetime Guarantee |
Included Accessories
- VX-5HD Gen 2 4–20×52 Riflescope with TMOA Reticle
- CDS ZeroLock Elevation Dial (pre-installed)
- KillLight® Lens Covers
- Throw Lever (integrated)
- Documentation & Warranty Card
