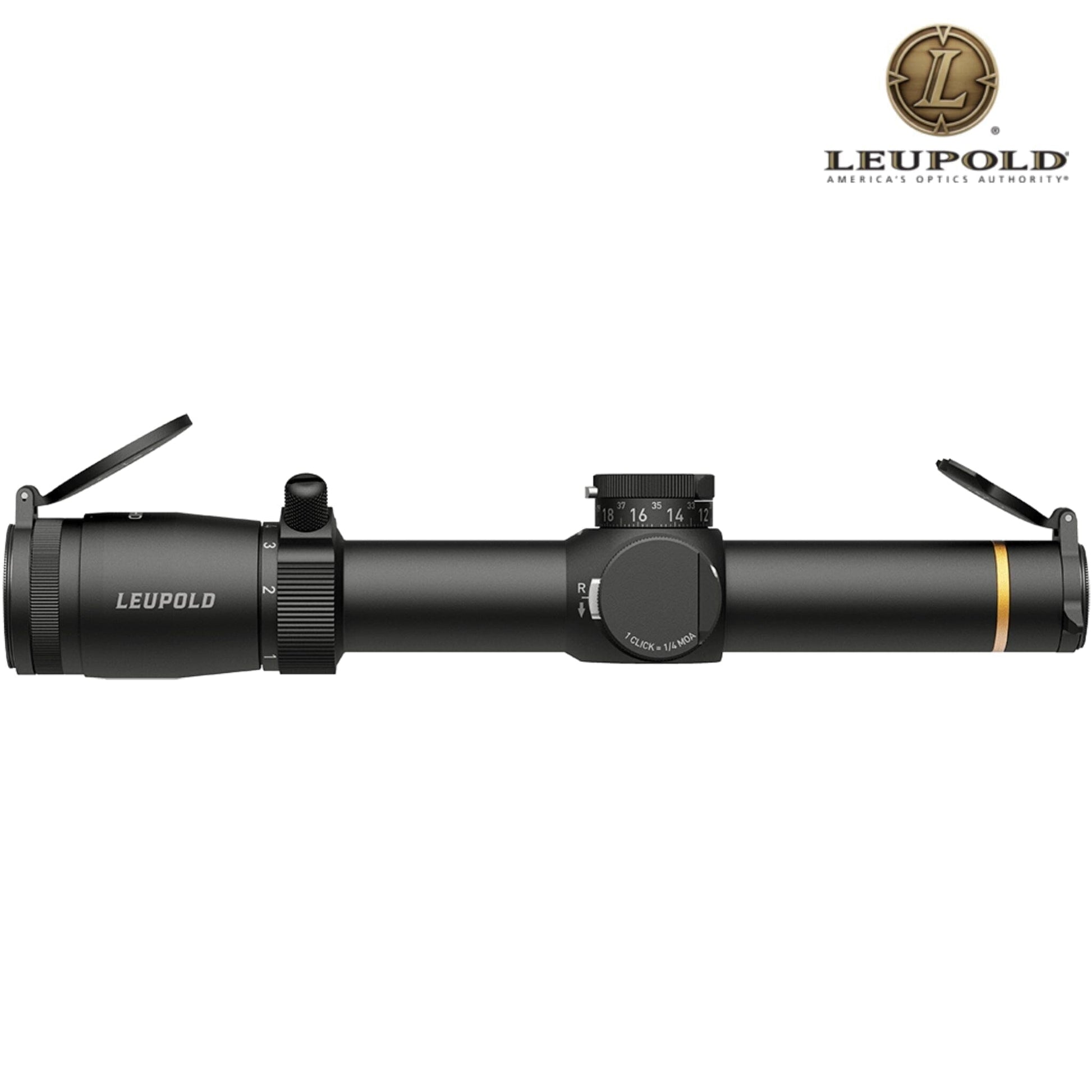

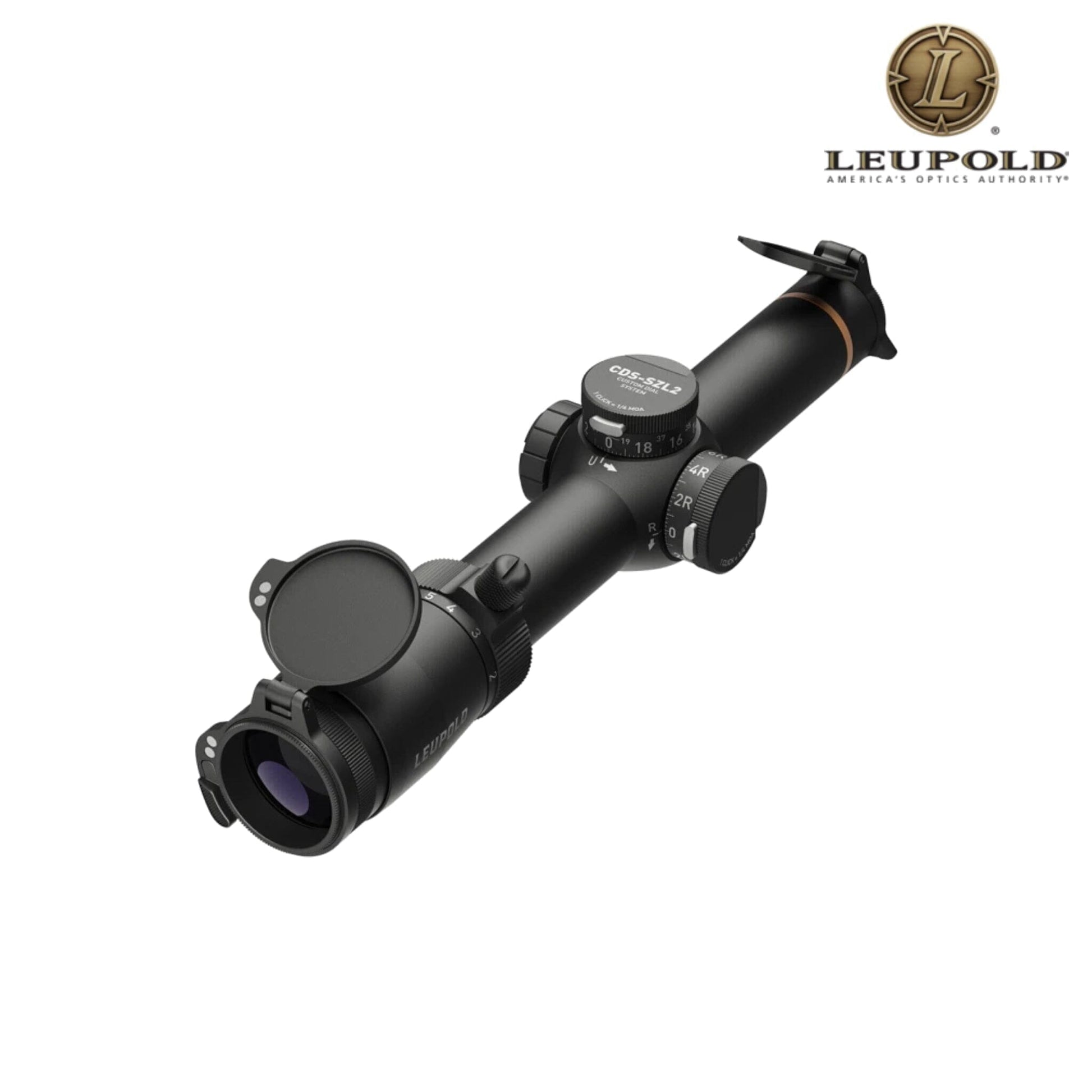

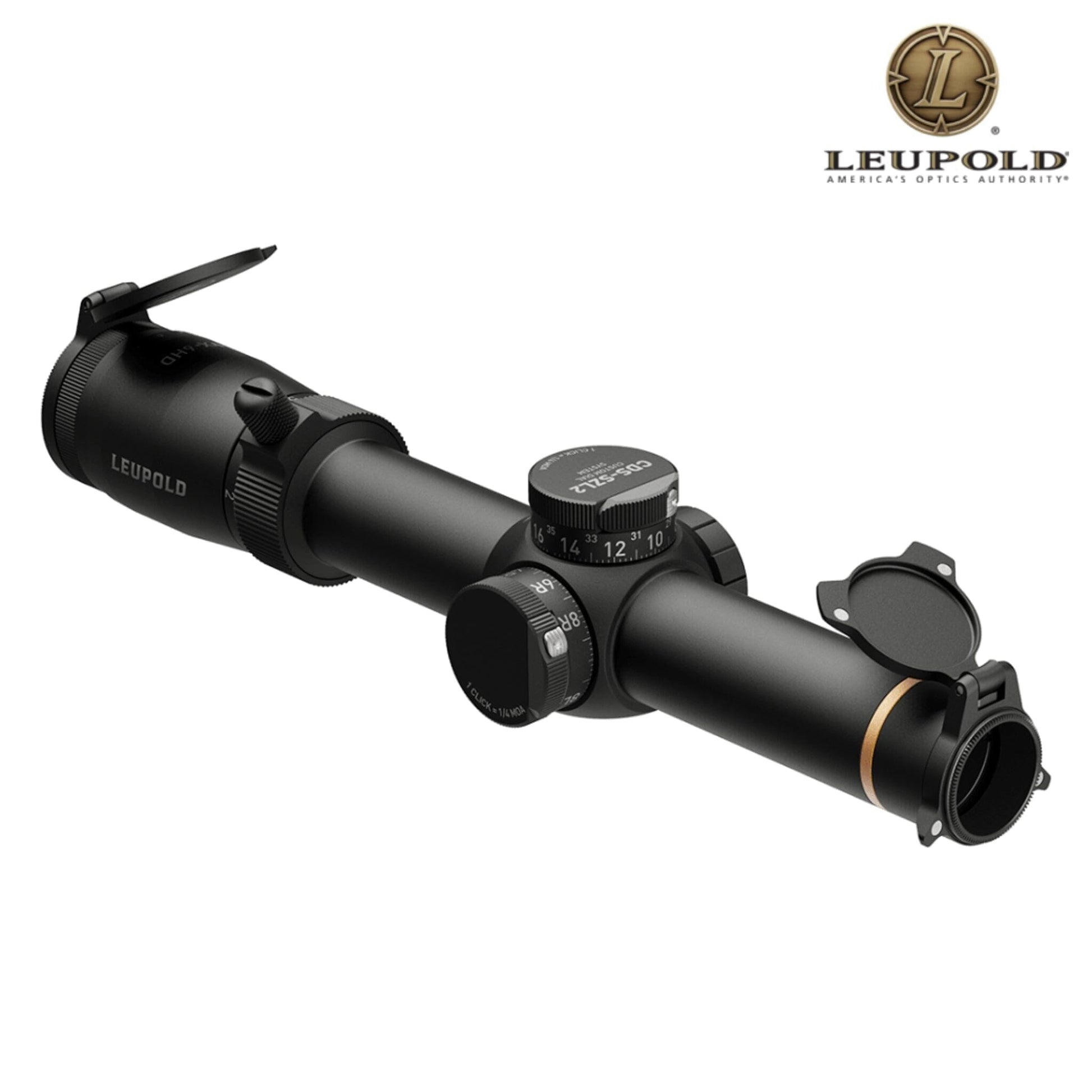

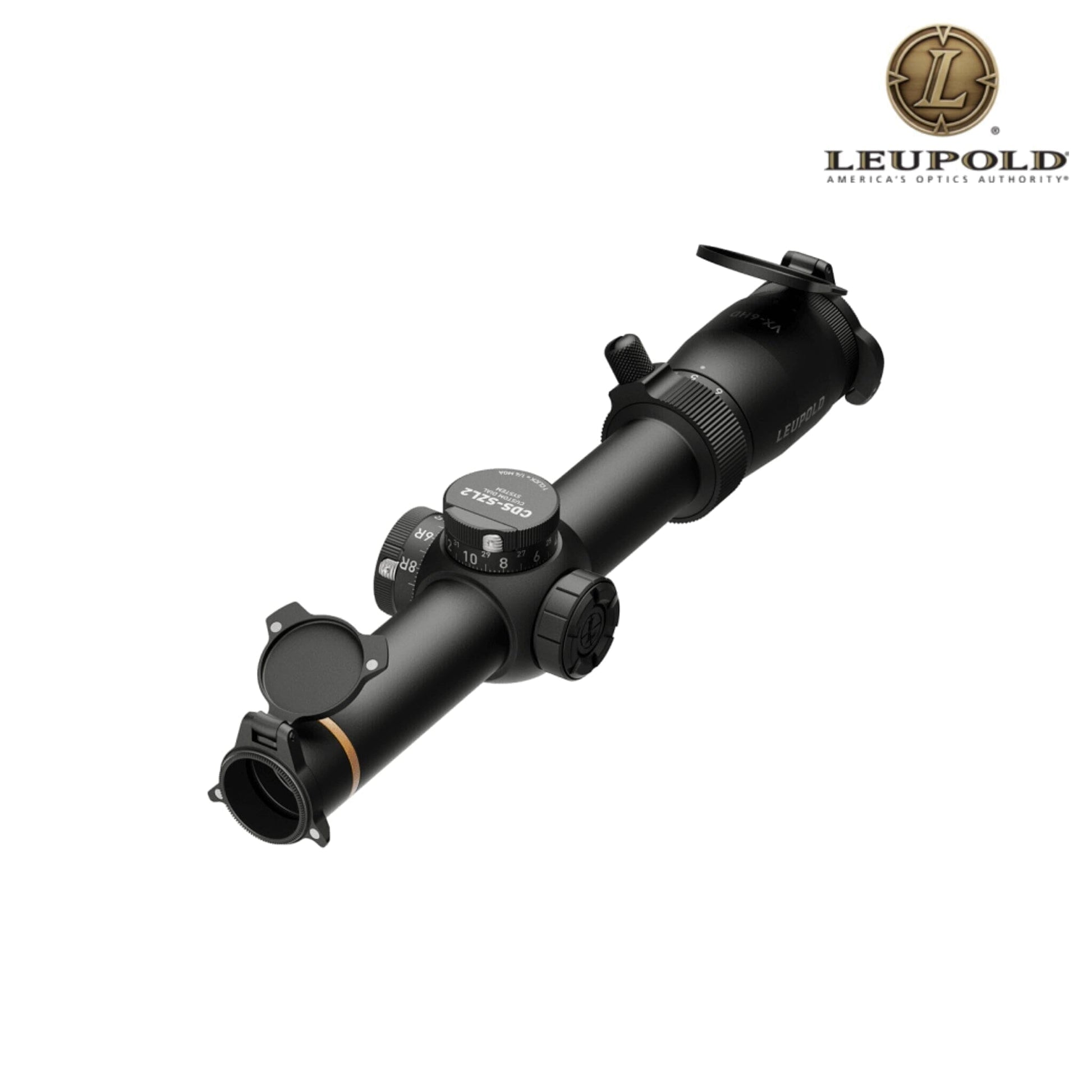

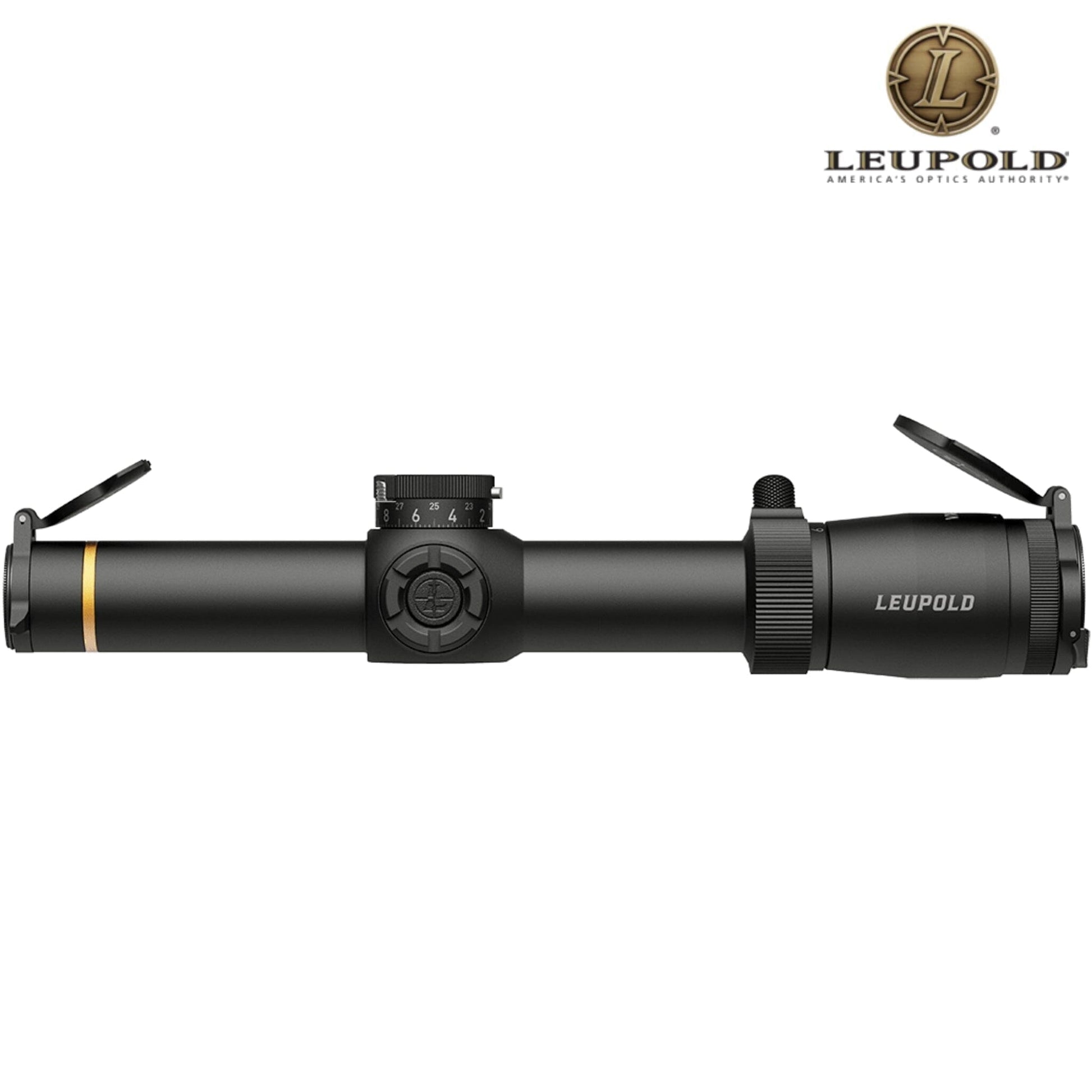

Leupold VX-6HD Gen 2 1–6×24 CDS-ZL2 Rifle Scope FireDot Duplex Reticle
Leupold VX-6HD Gen 2 1–6×24 CDS-ZL2 Rifle Scope FireDot Duplex Reticle
Couldn't load pickup availability
Leupold VX-6HD Gen 2 1–6×24 CDS-ZL2 Rifle Scope FireDot Duplex Reticle
(Model 183835)
Features
- 6:1 Zoom Ratio: Fast-throw reversible lever for rapid transitions between 1× (wide field) and 6× (precision).
- Professional-Grade Optics: Fully multi-coated, extra-low dispersion glass with Leupold’s Xtended Twilight® system for outstanding brightness, resolution, and edge-to-edge clarity.
- Guard-Ion® Hydrophobic Coating: Repels water, oil, dirt, and fingerprints for a clear, unobstructed sight picture.

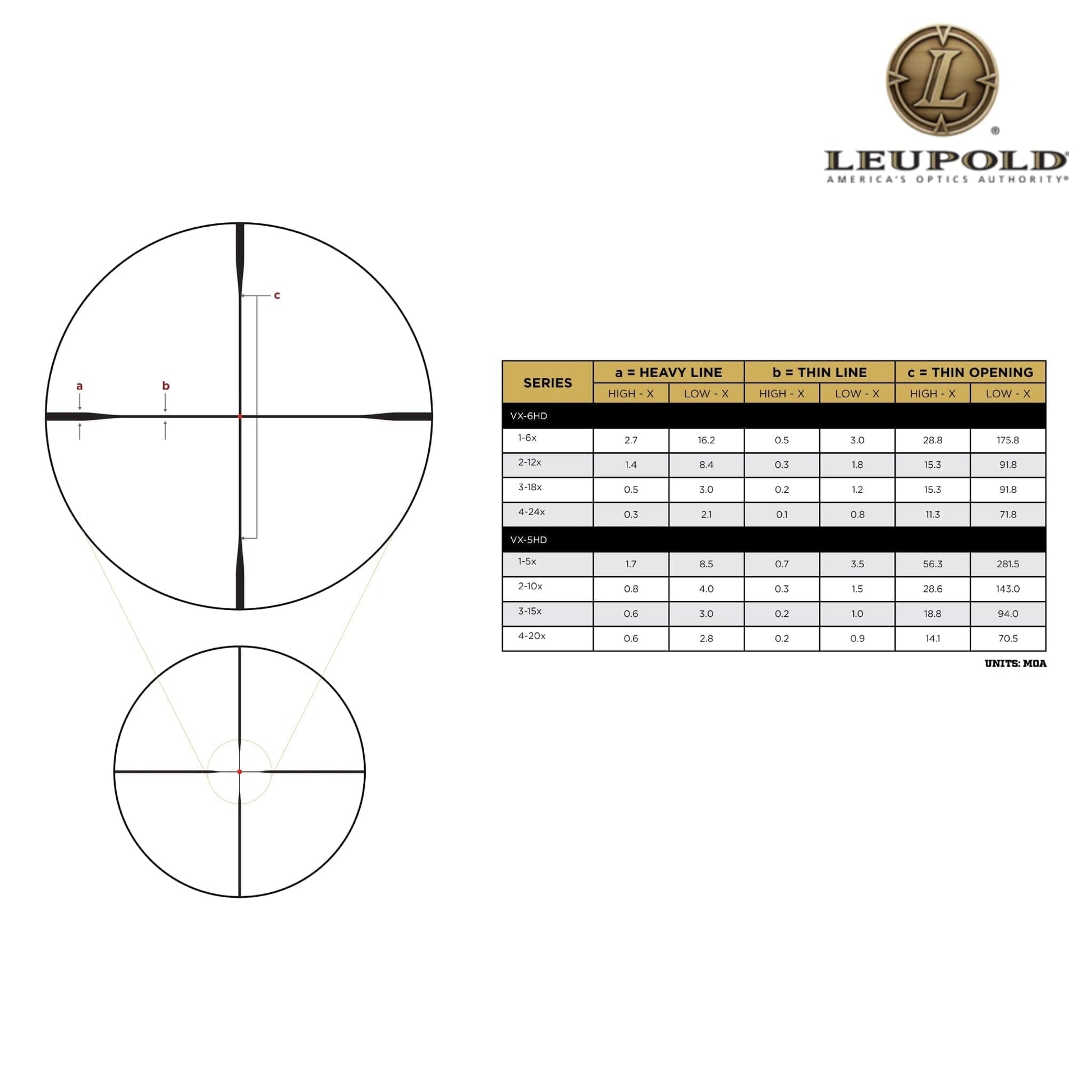

- FireDot™ Duplex Reticle (Second Focal Plane): Illuminated red-LED dot centered in a classic Duplex® post; 11 intensity levels (7 daylight-bright, 4 NV-compatible) with Motion Sensor Technology™ auto-shutoff/re-activation.

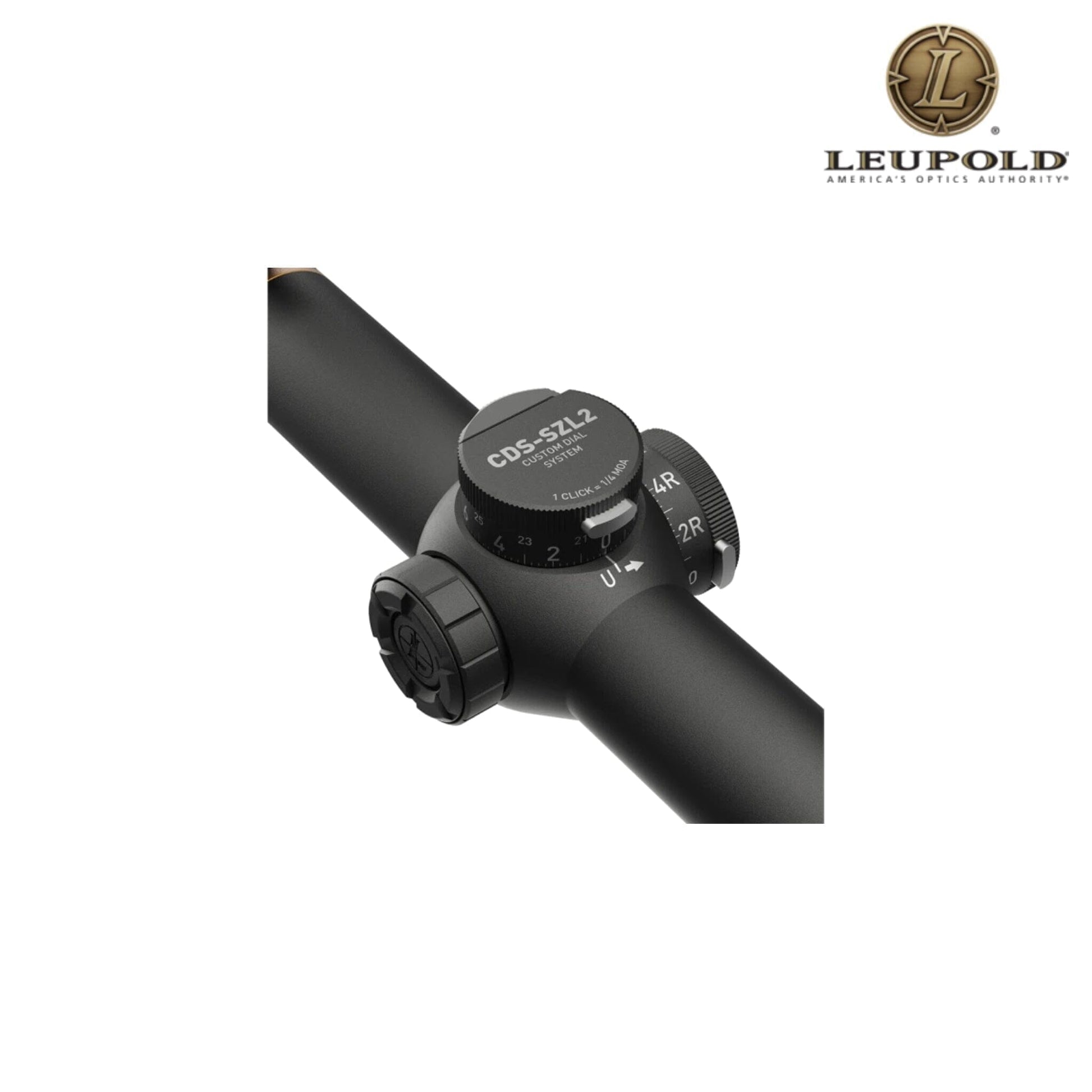

- CDS-ZL2® ZeroLock® Elevation Dial: Push-button, lockable 2-revolution turret compatible with Custom Dial System®—lockable, resettable to zero, and repeatable under field conditions.
- Electronic Reticle Level: Integrated digital level alerts when the scope is canted, enhancing long-range accuracy.
- Fast-Focus Eyepiece & Ergonomic Turrets: Rapid eye-focus adjustment and low-profile windage turret designed for gloved operation.
- Alumina® Flip-Back Lens Covers: Protect lenses from moisture, dirt, and debris without adding bulk.
- Rugged Construction: CNC-machined 30 mm main tube of 6061-T6 aluminum; matte-black hard-coat anodize; fully waterproof, fog-proof, and shock-proof; recoil-rated for the harshest environments.
- Made in USA & Lifetime Guarantee
Technical Specifications for Leupold VX-6HD Gen 2 1–6×24 CDS-ZL2 Rifle Scope FireDot Duplex Reticle
Specification |
Details |
Model / MPN |
183835 |
SKU |
183835 |
UPC |
030317036881 |
Country of Origin |
USA |
Tube Diameter |
30 mm |
Magnification Range |
1 × ⇄ 6 × |
Objective Lens Diameter |
24 mm |
Reticle |
FireDot™ Duplex (SFP, illuminated) |
Illumination Settings |
7 daylight-bright + 4 NV-compatible |
Parallax Focus |
Fixed at 100 yd |
Eye Relief |
3.7″ (94 mm) @ 1× ⇄ 3.8″ (97 mm) @ 6× |
Field of View @ 100 yd |
114.6 ft @ 1× ⇄ 19.6 ft @ 6× |
Elevation Adjustment |
¼ MOA/click; 90 MOA per rev; 180 MOA total; ZeroLock® resettable |
Windage Adjustment |
¼ MOA/click; 180 MOA total |
Length |
10.76″ (273 mm) |
Weight |
17.4 oz (493 g) |
Finish |
Matte-black hard-coat anodize |
Waterproof / Fog-Proof |
Yes |
Shock-Proof |
Yes |
Included Accessories
- Alumina® flip-back lens covers
- Removable throw lever
- Two Custom Dial System® dials with SpeedSet™ technology
- CR2032 battery
- Cleaning cloth & adjustment tool
- User manual
