Leupold VX-Freedom 1.5–4×20 Rifle Scope Pig-Plex Reticle
Leupold VX-Freedom 1.5–4×20 Rifle Scope Pig-Plex Reticle
Couldn't load pickup availability
Leupold VX-Freedom 1.5–4×20 Rifle Scope Pig-Plex Reticle
(Model 174177)
Features
- Advanced Optical System: Fully multi-coated, extra-low dispersion lenses paired with the Twilight Light Management System for excellent brightness, glare reduction, and edge-to-edge clarity.
- 3:1 Zoom Ratio: Fast throw-lever allows swift transitions between 1.5× (wide field) and 4× (mid-range precision).

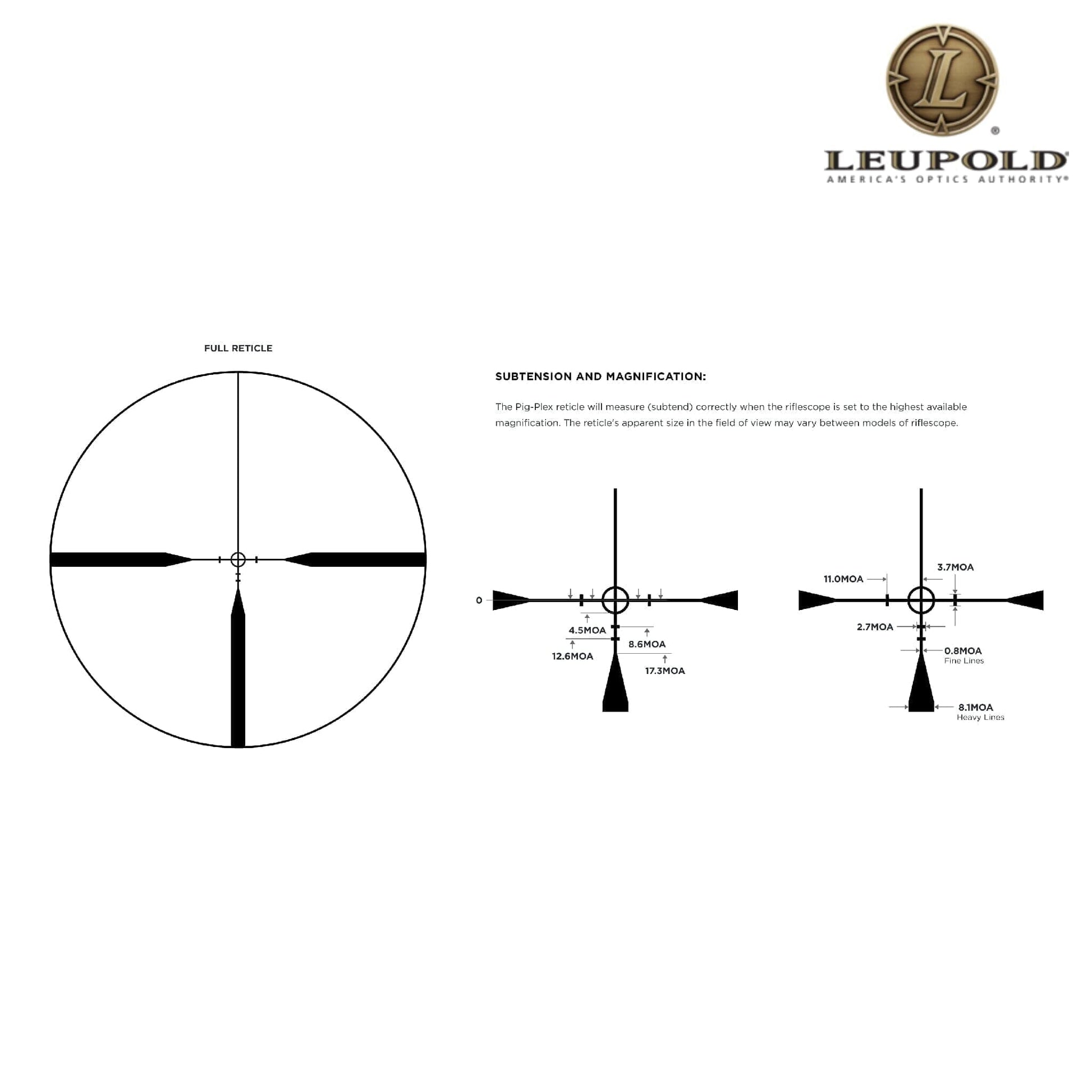

- Pig-Plex® Reticle (Second Focal Plane): Open center “pig-ear” posts with 5-MOA spaced hash marks; subtends correctly at 4× for intuitive hold-over/hold-off.
- ¼-MOA Finger-Click Adjustments: Tactile, audible clicks with 125 MOA total travel per axis for precise zeroing.
- Long Eye Relief: 4.2″ at 1.5× → 3.7″ at 4× for comfortable, consistent cheek welds.
- Rugged Construction: CNC-machined 1″ main tube of 6061-T6 aluminum; matte-black hard-coat anodize; 100% waterproof, fog-proof, and shock-proof.
- Lightweight & Compact: Ultra-light at 9.6 oz and just 9.35″ long—ideal for hunting and brush use.
- Made in USA & Lifetime Guarantee
Technical Specifications for Leupold VX-Freedom 1.5–4×20 Rifle Scope Pig-Plex Reticle
Specification |
Details |
Model / MPN |
174177 |
SKU |
174177 |
UPC |
030317018733 |
Country of Origin |
USA |
Magnification Range |
1.5 × ⇄ 4 × |
Objective Lens Diameter |
20 mm |
Tube Diameter |
1″ (25.4 mm) |
Reticle |
Pig-Plex® (SFP, non-illuminated) |
Parallax Focus |
Fixed at 100 yd |
Eye Relief |
4.2″ (107 mm) @ 1.5× ⇄ 3.7″ (94 mm) @ 4× |
Field of View @ 100 yd |
74.2 ft @ 1.5× ⇄ 29.4 ft @ 4× |
Elevation Adjustment |
¼ MOA per click; 125 MOA total travel |
Windage Adjustment |
¼ MOA per click; 125 MOA total travel |
Length |
9.35″ (237 mm) |
Weight |
9.6 oz (272 g) |
Finish |
Matte-black hard-coat anodize |
Waterproof / Fog-Proof |
Yes |
Shock-Proof |
Yes |
Included Accessories
- Removable fast-throw magnification lever
- Flip-up lens covers (Alumina® 20 mm)
- Cleaning cloth
- User manual
