Leupold VX-Freedom 4-12x40 CDS Rifle Scope TRI-MOA Reticle
Leupold VX-Freedom 4-12x40 CDS Rifle Scope TRI-MOA Reticle
Couldn't load pickup availability

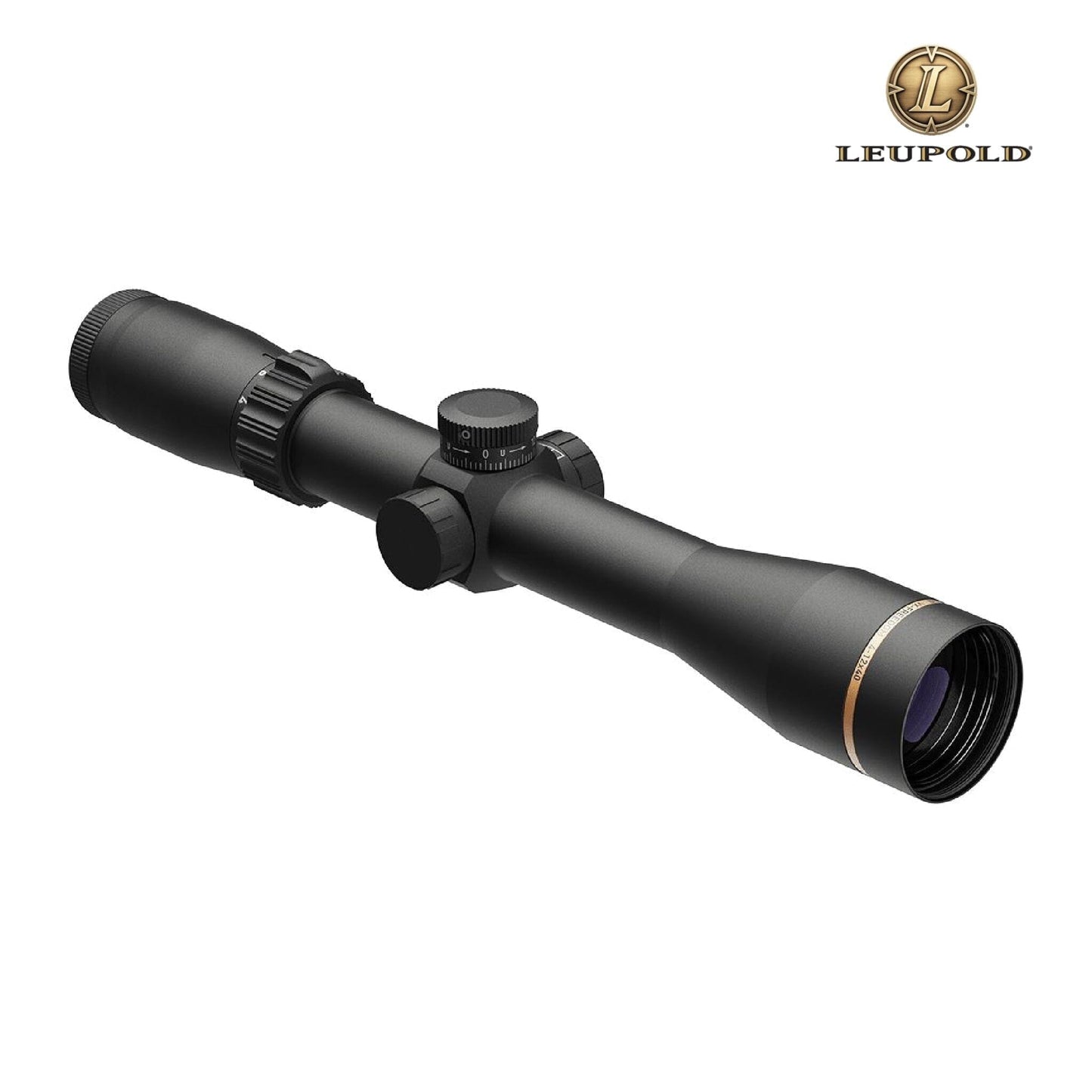

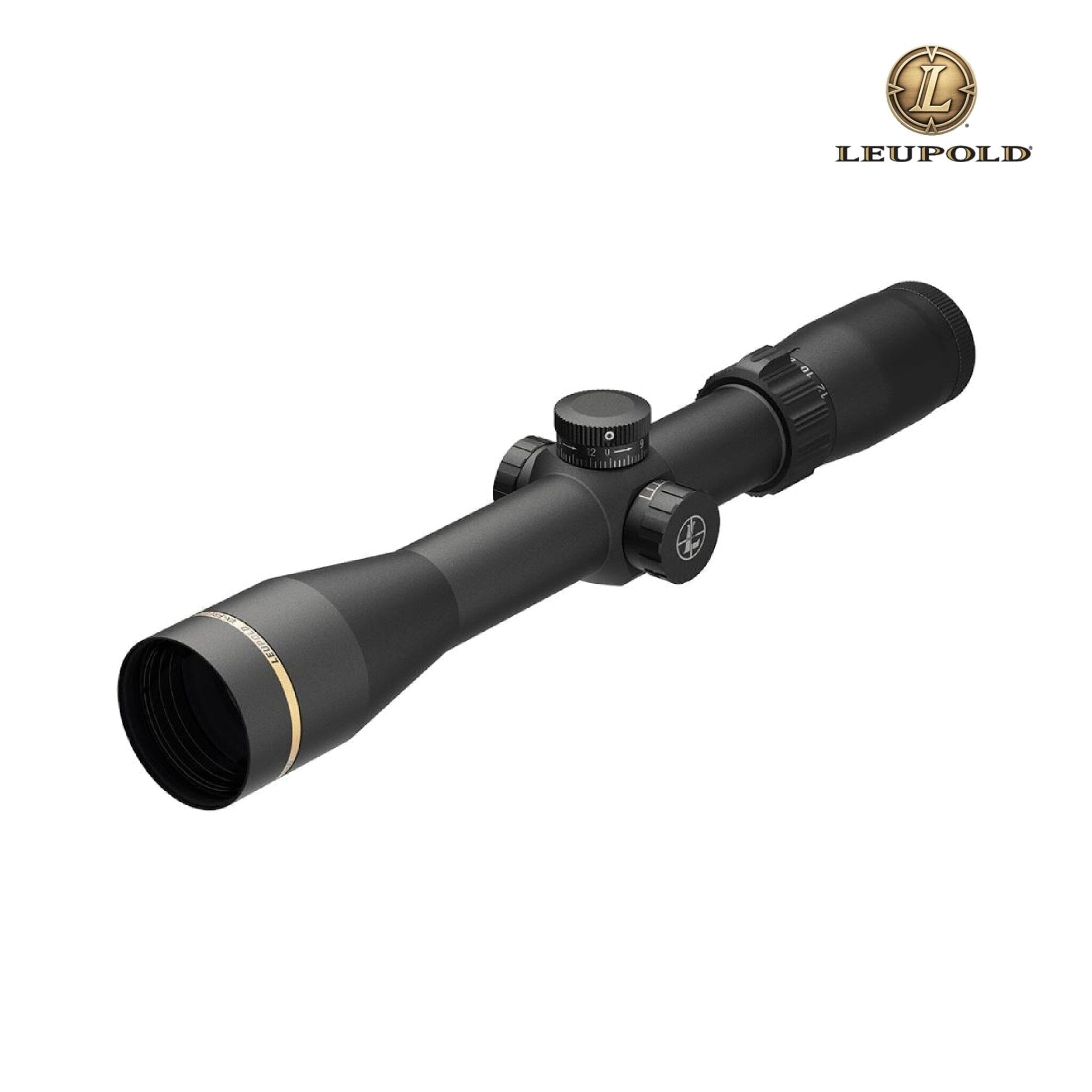

Leupold VX-Freedom 4–12×40 CDS Rifle Scope Tri-MOA Reticle
(Model 175079)
Features
- 3:1 Zoom Ratio: Fast-throw magnification lever for rapid shifts between 4× (wide field) and 12× (longer-range precision)
- Advanced Optical System: Fully multi-coated, extra-low-dispersion glass with Leupold’s Twilight Light Management System for outstanding brightness, glare reduction, and edge-to-edge clarity.

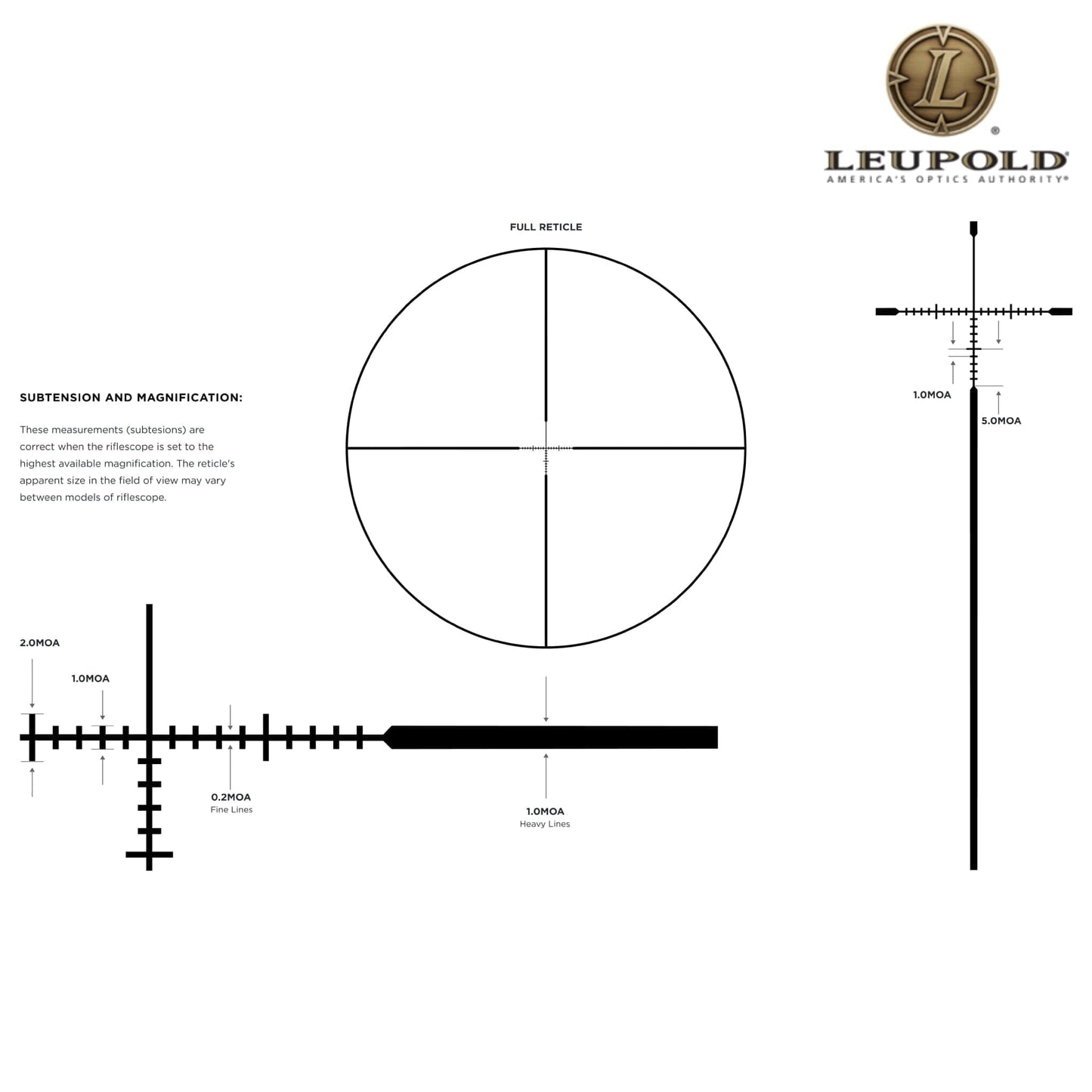

- Tri-MOA® Reticle (Second Focal Plane): Three-post MOA design with 1 MOA hash-marks—subtends true at 12× for precise hold-over and wind-hold.
- Custom Dial System® (CDS®): Push-button, lockable elevation dial with zero-stop return to zero; compatible with pre-set CDS™ Custom Dial turrets for your exact ballistics.
- Side-Focus Parallax: Quick-set adjustment from 35 yd to ∞ for tack-sharp reticle alignment across all magnifications.
- Rugged Construction: CNC-machined 30 mm main tube of 6061-T6 aluminum; matte-black hard-coat anodize; 100 % waterproof, fog-proof, and shock-proof; recoil-rated for heavy calibers.
- Made in USA & Lifetime Guarantee
Technical Specifications for Leupold VX-Freedom 4–12×40 CDS Rifle Scope Tri-MOA Reticle
Specification |
Details |
Model / MPN |
175079 |
SKU |
175079 |
UPC |
030317018962 |
Country of Origin |
USA |
Tube Diameter |
30 mm |
Magnification Range |
4 × ⇄ 12 × |
Objective Lens Diameter |
40 mm |
Reticle |
Tri-MOA® (SFP, non-illuminated) |
Parallax Focus |
Side focus, 35 yd → ∞ |
Eye Relief |
4.9″ (125 mm) @ 4× ⇄ 3.7″ (94 mm) @ 12× |
Field of View @ 100 yd |
21.5 ft @ 4× ⇄ 10 ft @ 12× |
Elevation Adjustment |
¼ MOA/click; 20 MOA/rev; 80 MOA total; zero-stop |
Windage Adjustment |
¼ MOA/click; 80 MOA total |
Length |
12.4″ (314 mm) |
Weight |
14.3 oz (405 g) |
Finish |
Matte-black hard-coat anodize |
Waterproof / Fog-Proof |
Yes |
Shock-Proof |
Yes |
Included Accessories
- Removable fast-throw magnification lever
- Alumina® 40 mm flip-up lens covers
- CDS™ adjustment tool
- Cleaning cloth
- User manual
