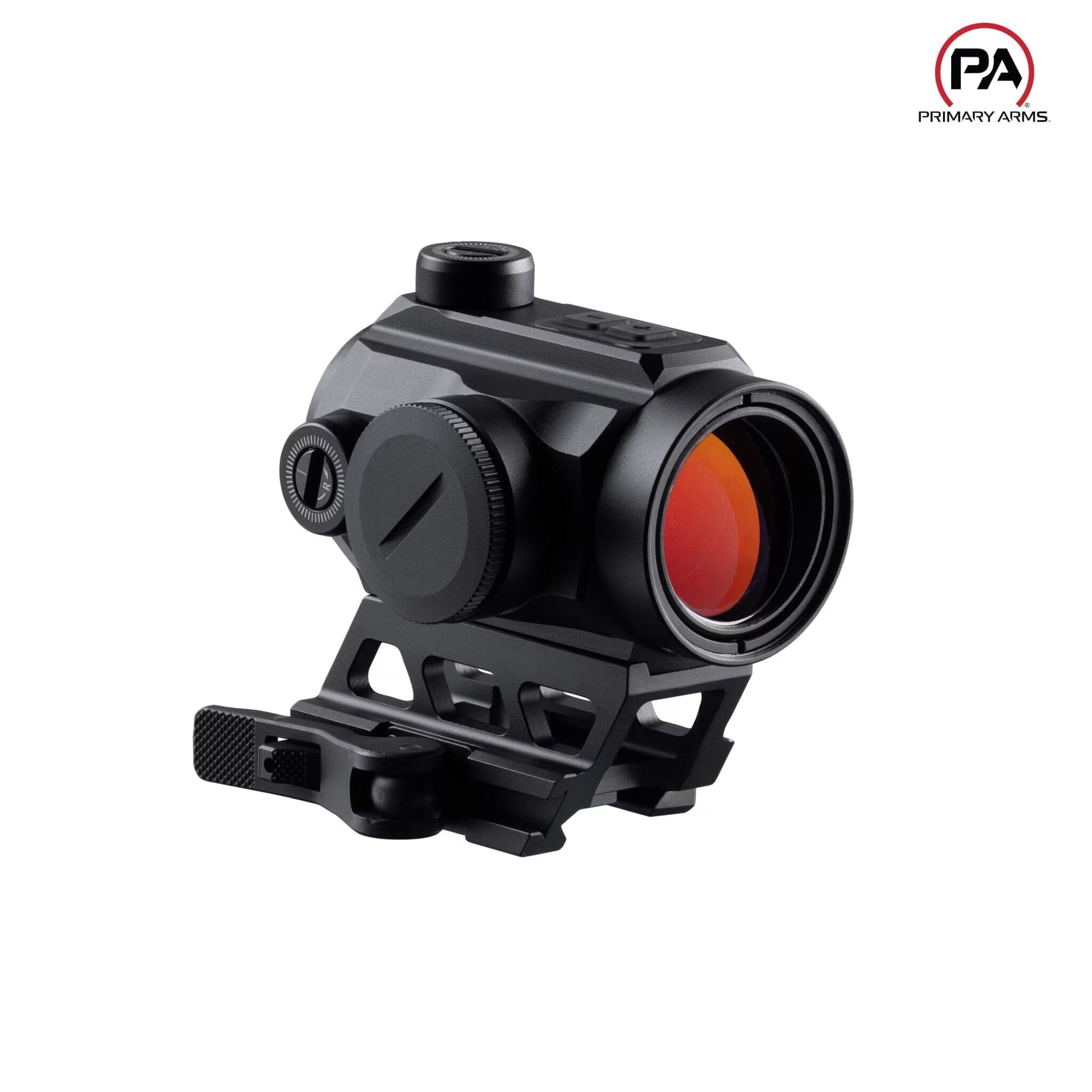

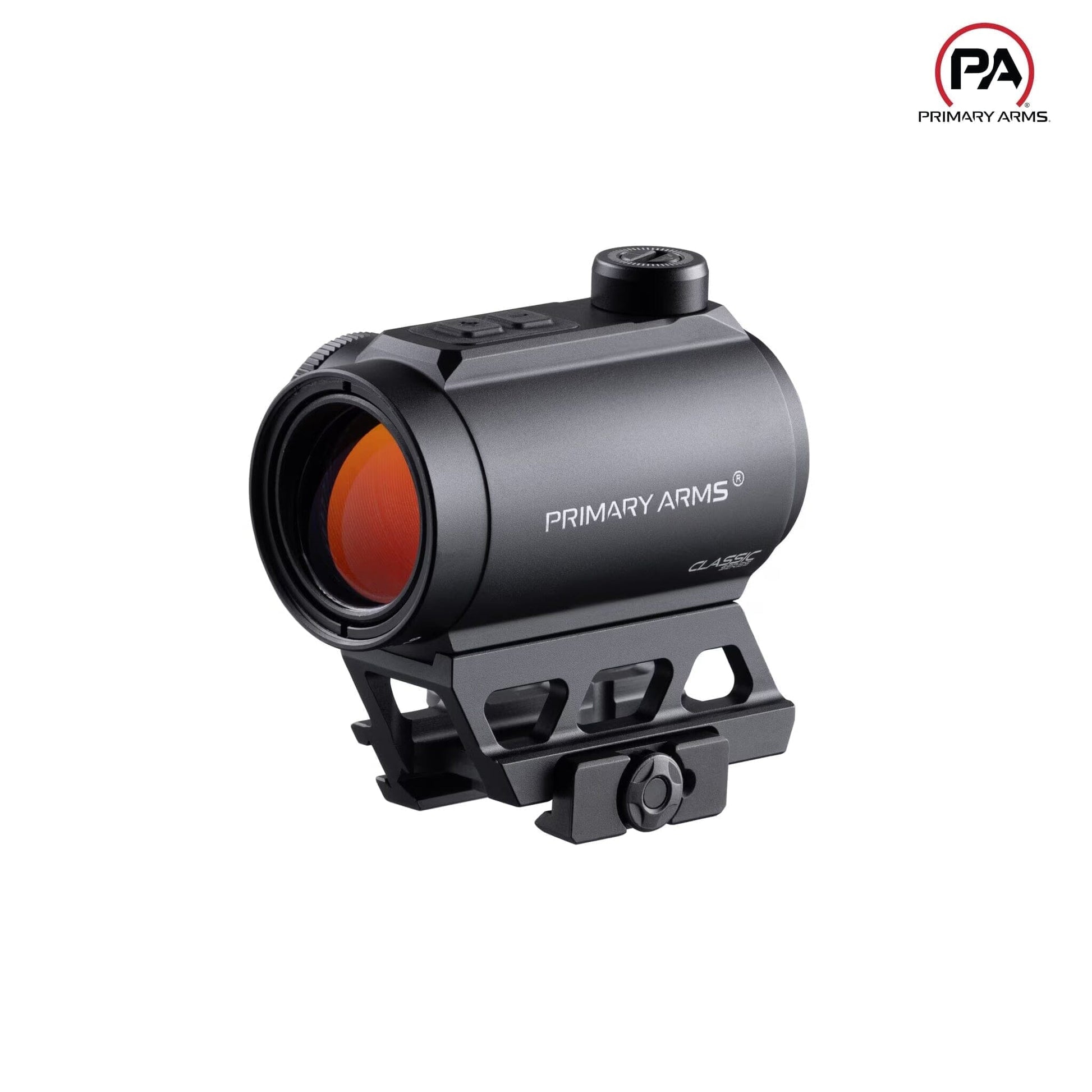

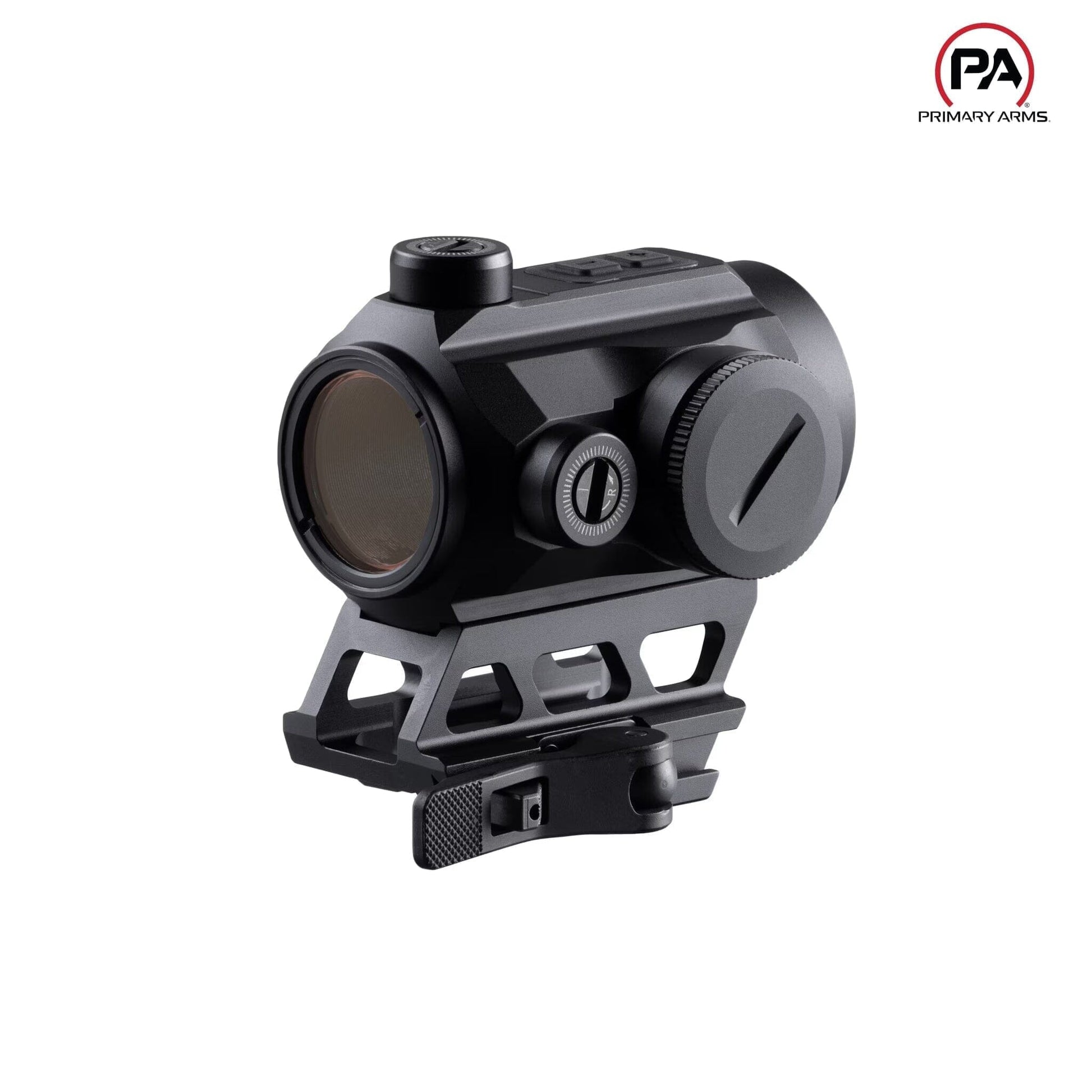

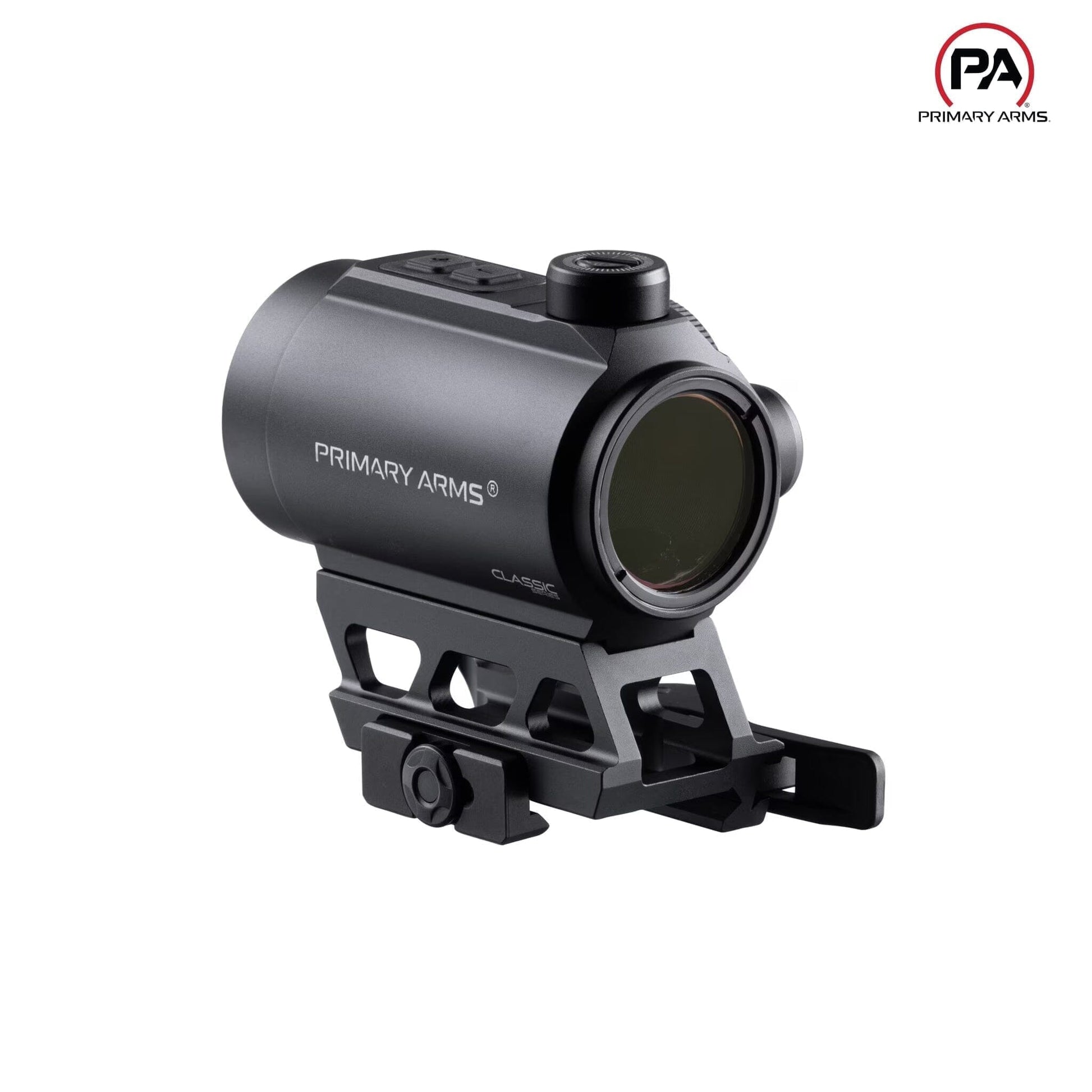

Primary Arms Classic Series 25mm Push Button Red Dot Sight - 3 MOA Dot
Primary Arms Classic Series 25mm Push Button Red Dot Sight - 3 MOA Dot
Couldn't load pickup availability
Primary Arms Classic Series 25mm Push Button Red Dot Sight - 3 MOA Dot
Features
- 3 MOA Red Dot – Precise 3 MOA dot for rapid target acquisition at close to medium distances with unlimited eye relief.
- Push-Button Controls – Simple up/down buttons for quick brightness adjustments (8 levels, including 2 NV-compatible settings) without removing your eye from the sight.
- Durable Aluminum Housing – CNC-machined 6061-T6 aluminum body with matte-black Type III hard-anodized finish; O-ring sealed and nitrogen-purged for IP67 waterproofing and fog-proof reliability.
- CR2032 Power – Operates on a single CR2032 battery (included) for up to 50,000 h of continuous runtime on mid-level brightness.
- Tool-Free Adjustment – 1 MOA per click windage and elevation turrets with protective caps; zero-resettable for repeatable zero retention after sight-in.
- Low-Profile Mounting – Integrated 20 MOA-canted Picatinny mount positions the optic at the proper angle for extended-range dialing without additional shims.
- Lightweight & Compact – Weighs just 3 oz and measures under 3 in long, making it ideal for pistols, shotguns, and carbines.
Technical Specifications for Primary Arms Classic Series 25mm Push Button Red Dot Sight - 3 MOA Dot
Specification |
Details |
Manufacturer |
Primary Arms |
Model / Part Number |
810036 |
SKU |
PA-CLX-RD-25 |
UPC |
818500018636 |
Dot Size |
3 MOA |
Brightness Levels |
8 (including 2 NV-compatible) |
Battery |
1 × CR2032 3 V lithium (included) |
Body Material |
6061-T6 aluminum, Type III hard-anodize |
Waterproof Rating |
IP67 (1 m submersion) |
Fog-Proof |
Nitrogen-purged |
Impact Resistance |
Withstands recoil up to .50 BMG |
Adjustment Graduation |
1 MOA per click (elevation & windage) |
Total Adjustment |
± 60 MOA elevation; ± 60 MOA windage |
Mount Interface |
Integrated 20 MOA-canted Picatinny clamp |
Eye Relief |
Unlimited |
Field of View |
Unlimited |
Length |
2.9 in (74 mm) |
Weight |
3 oz (85 g) |
Finish |
Matte-black Type III hard-anodize |
Warranty |
Lifetime warranty |
Included Accessories
- CR2032 battery (installed)
- Hex wrench for turret caps
- Lens cleaning cloth
- Instruction manual & warranty documentation
