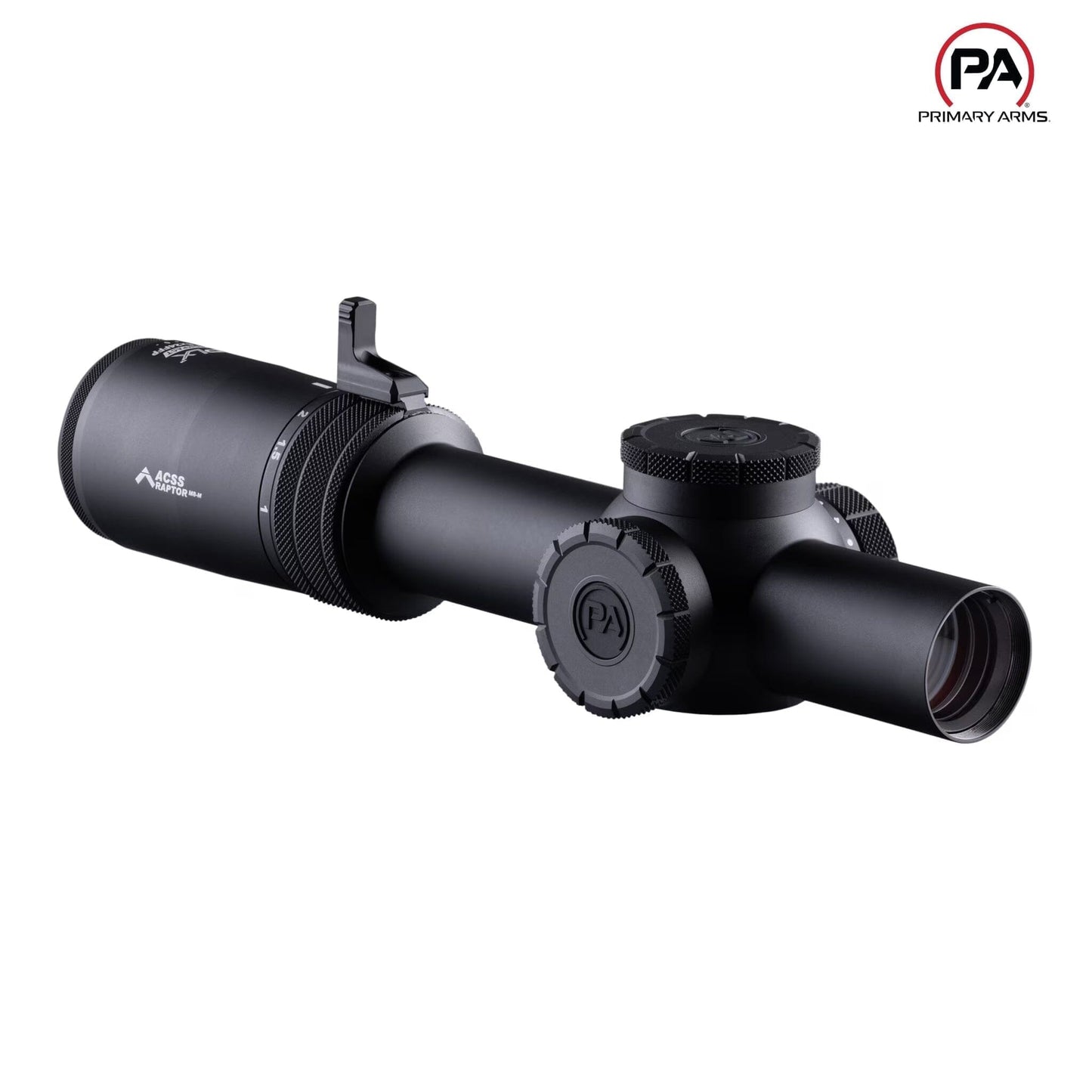

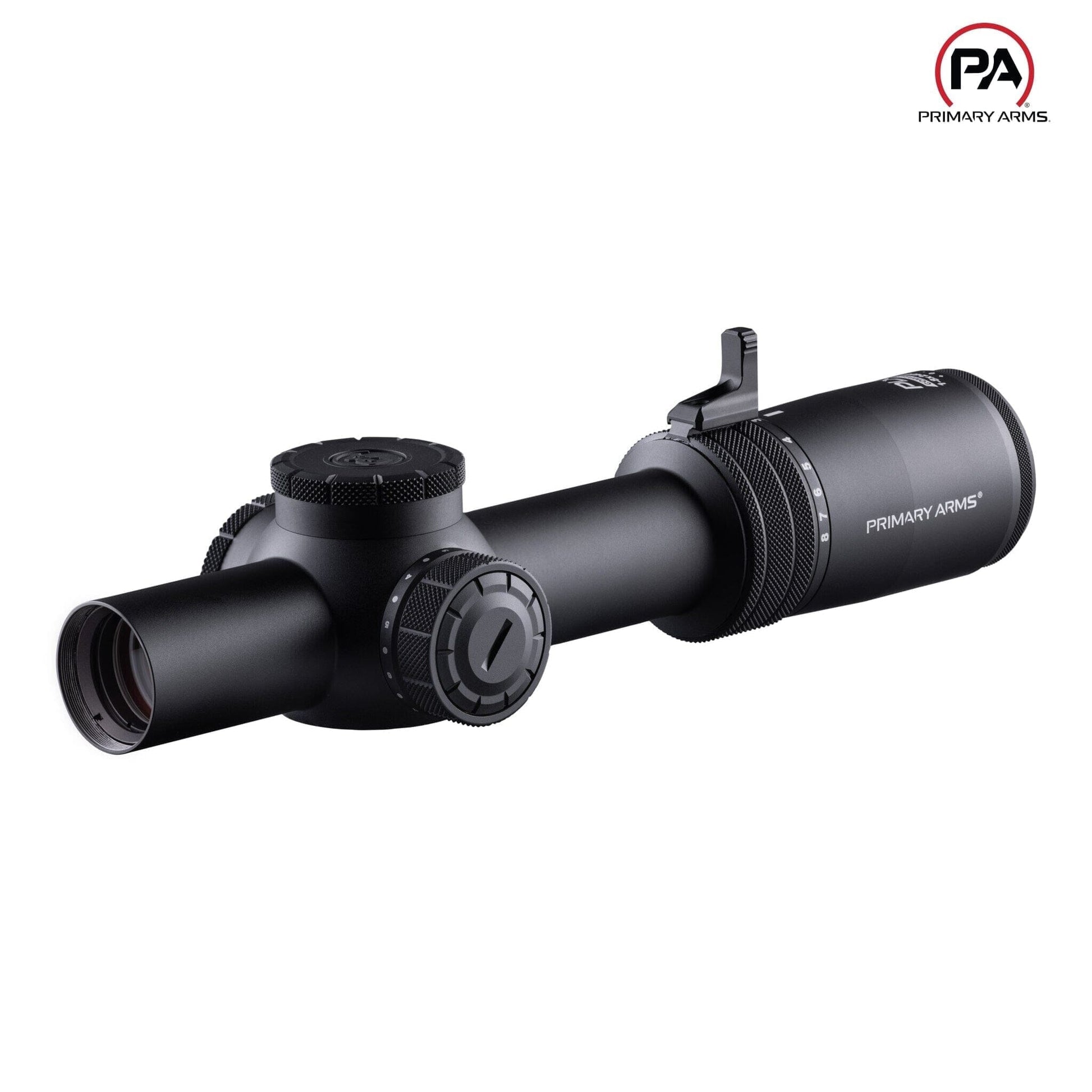

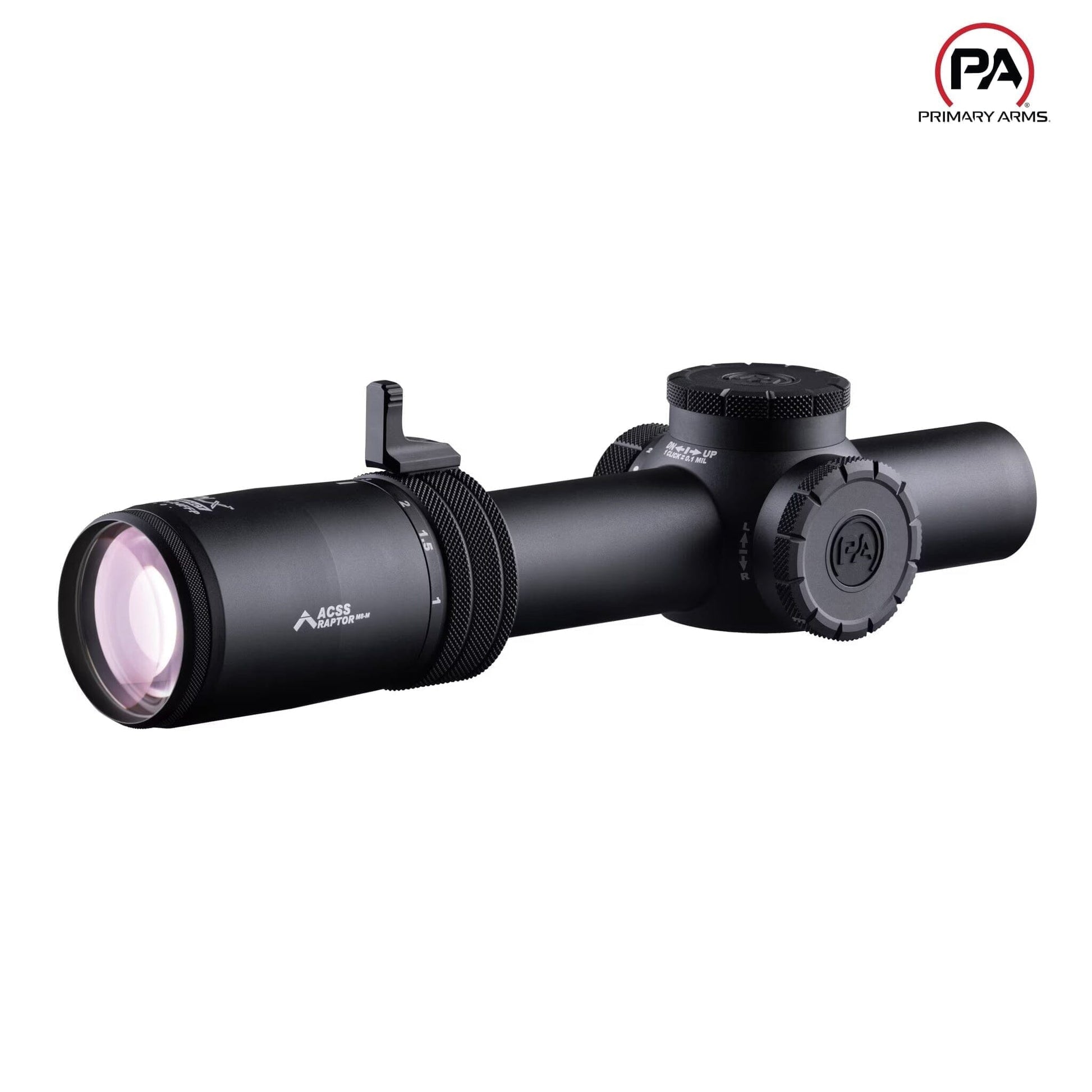

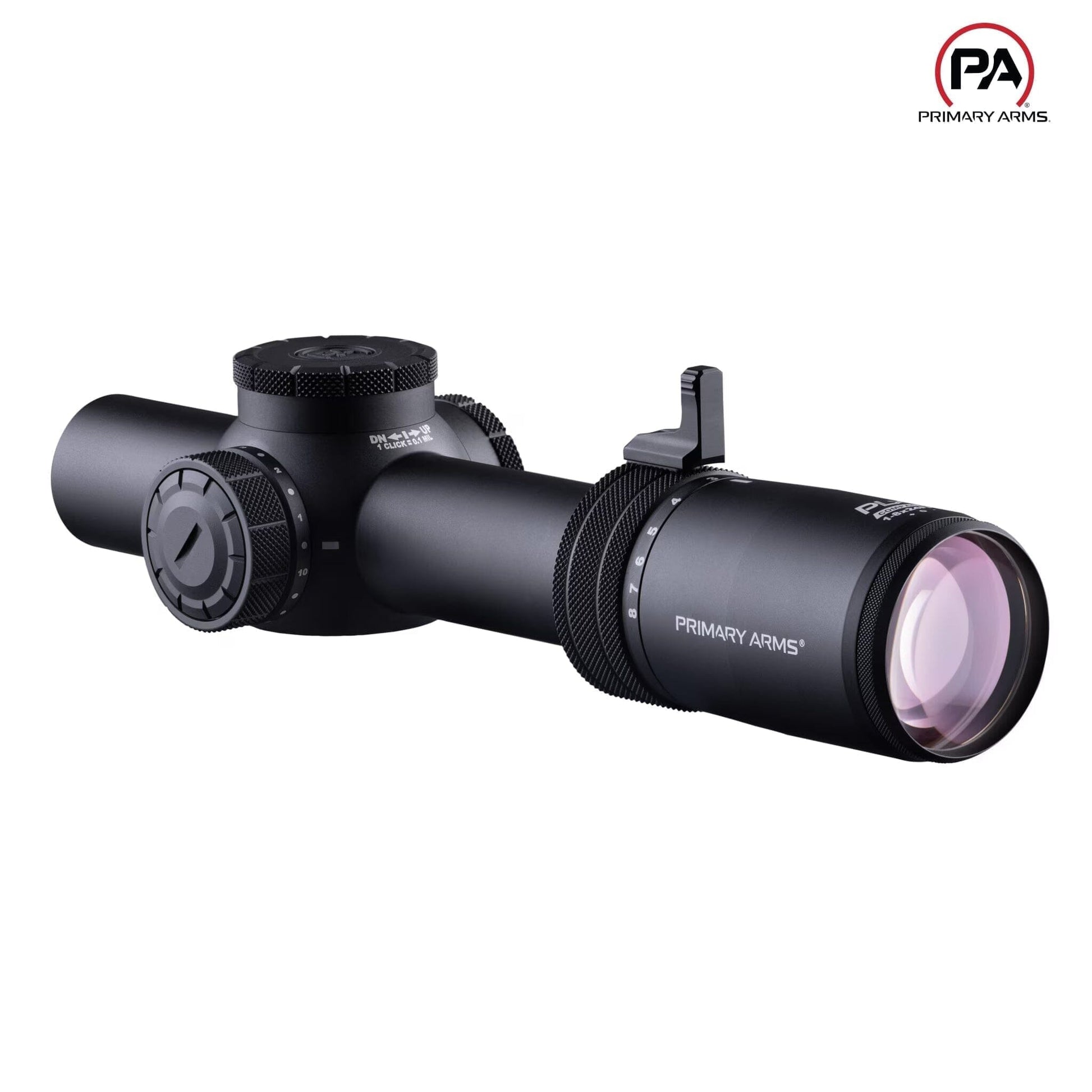

Primary Arms Compact PLxC 1-8x24 FFP Riflescope - ACSS Raptor M8 Yard Reticle - Black

Primary Arms Compact PLxC 1-8x24 FFP Riflescope - ACSS Raptor M8 Yard Reticle - Black

Regular price $1,499.99 USD
Regular price Sale price $1,499.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Primary Arms Compact PLxC 1‑8×24 FFP Riflescope - ACSS Raptor M8 Yard Reticle - Black

Features

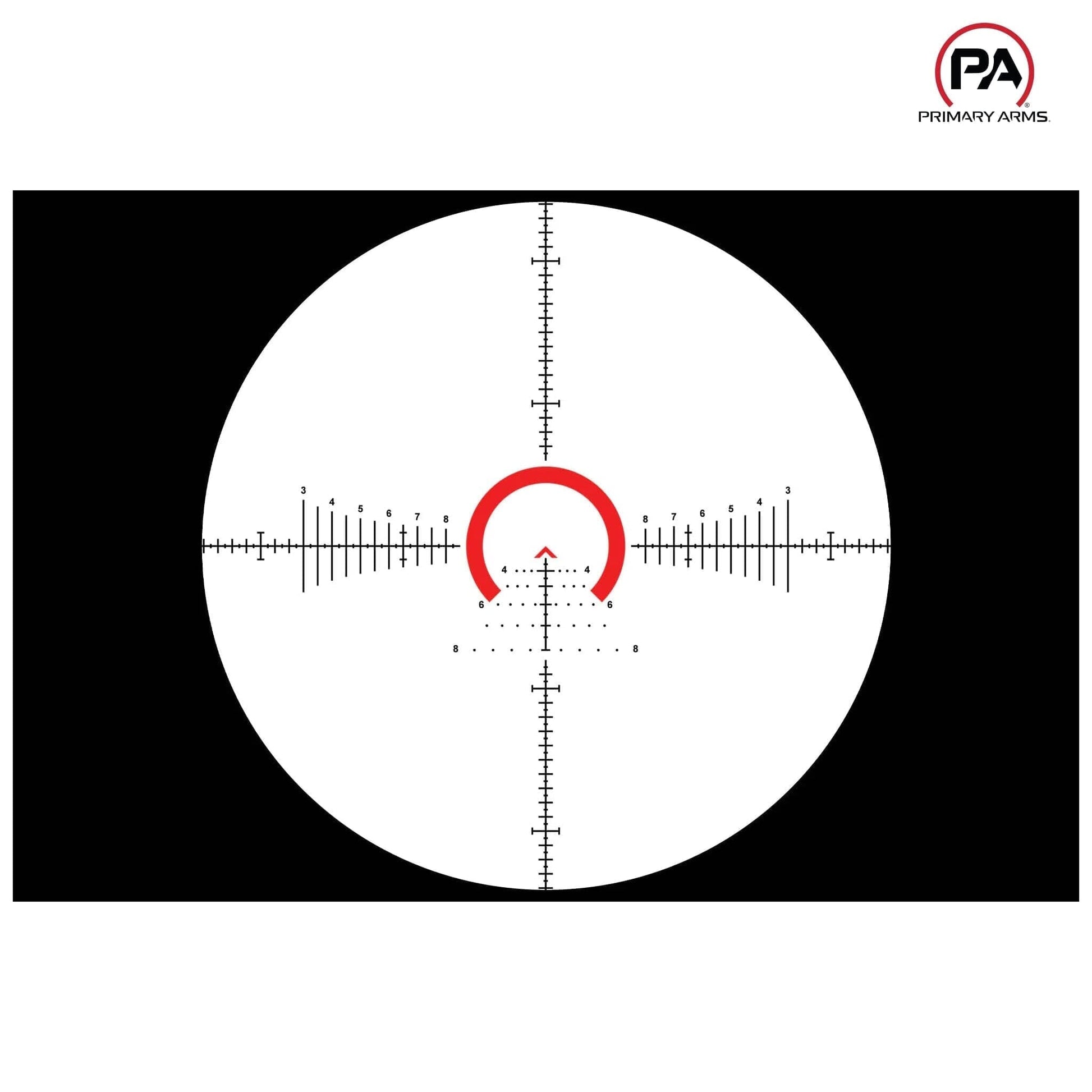

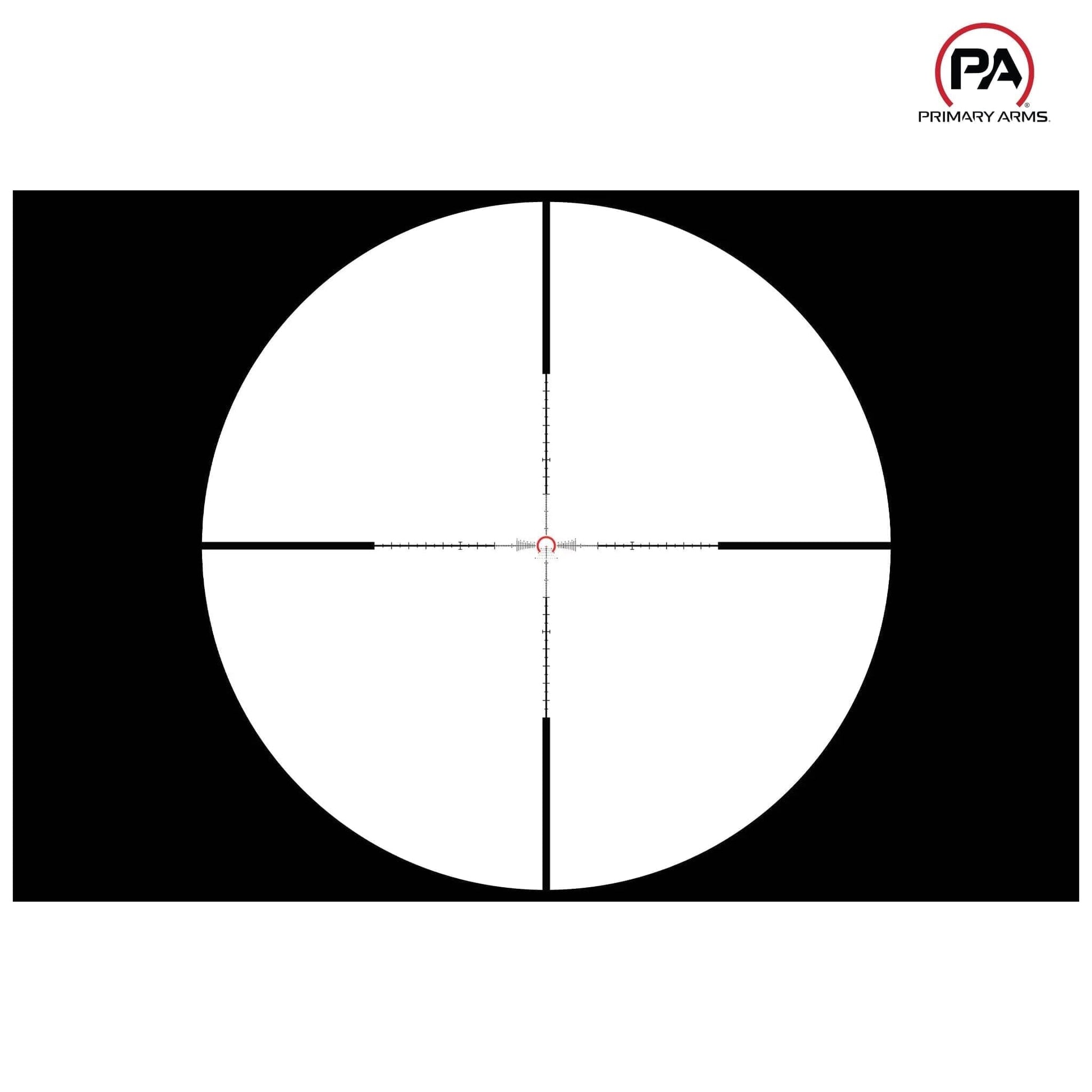

  • ACSS Raptor M8 Yard Reticle – First‑focal‑plane fiber‑wire reticle calibrated in yards for 5.56 /.308, with integrated ranging stadia (100–800 yd), moving‑target leads, wind holds, and center chevron; bright‑red fiber‑optic illumination with 11 brightness levels and 6 h auto‑off.
  • Premium Japanese ED Glass – Fully multi‑coated extra‑low dispersion lenses deliver outstanding light transmission, contrast, and edge‑to‑edge sharpness in all lighting conditions.
  • Ultra‑Wide Field of View – 121 ft @ 100 yd at 1× for exceptional situational awareness; 14.6 ft @ 100 yd at 8× for precision engagements.
  • Forgiving Eye Relief – Generous 3.2 in at 1× to 3.7 in at 8× ensures a comfortable cheek weld and rapid target acquisition.
  • SOS® Steel‑on‑Steel Turrets – Crisp 0.1 mrad (¼ MIL) clicks with 29.1 mrad (100 MOA) total travel per axis and mechanical zero‑stop for instant return to zero.
  • AutoLive Motion‑Sensing Illumination – Automatically adjusts reticle brightness based on ambient light and motion to optimize visibility and conserve battery.
  • Compact & Lightweight – Measures 9.28 in (235 mm) and weighs 16.8 oz (476 g), ideal for lightweight rifle platforms.
  • Durable Construction – One‑piece 30 mm aluminum tube in matte‑black Type II hard‑anodize; O‑ring sealed and nitrogen‑purged for IP67 waterproofing and fog‑proof reliability.

Technical Specifications for Primary Arms Compact PLxC 1‑8×24 FFP Riflescope - ACSS Raptor M8 Yard Reticle - Black

Specification

Details

Manufacturer

Primary Arms

Model / Part Number

610150

SKU 

PA-PLXC-1-8X24F-RAPTOR-5.56Y

UPC

818500016892

Magnification Range

1 × – 8 ×

Objective Lens Diameter

24 mm

Tube Diameter

30 mm

Reticle

ACSS Raptor M8 Yard, fiber‑wire illuminated (FFP)

Field of View

121 ft @ 100 yd (1×); 14.6 ft @ 100 yd (8×)

Eye Relief

3.2 in (1×); 3.7 in (8×)

Exit Pupil

8 mm @ 1×; 3 mm @ 8×

Diopter Adjustment

± 2 dpt

Turret Adjustment

0.1 mrad (¼ MIL) per click; 29.1 MIL (100 MOA) total travel

Parallax

Fixed at 100 yd

Illumination Power

CR2032 3 V lithium coin (included)

Length

9.28 in (235 mm)

Weight

16.8 oz (476 g)

Finish

Matte‑black Type II hard‑anodize

Waterproof / Fogproof

IP67 (1 m submersion; fog‑proof)

Warranty

Lifetime warranty

Included Accessories

  • Quick‑detach throw lever
  • Flip‑up lens covers
  • CR2032 battery (installed)
  • Instruction manual & warranty documentation
