Primary Arms GLx 2X Prism Scope - ACSS CQB-M5 Reticle
Primary Arms GLx 2X Prism Scope - ACSS CQB-M5 Reticle
Couldn't load pickup availability

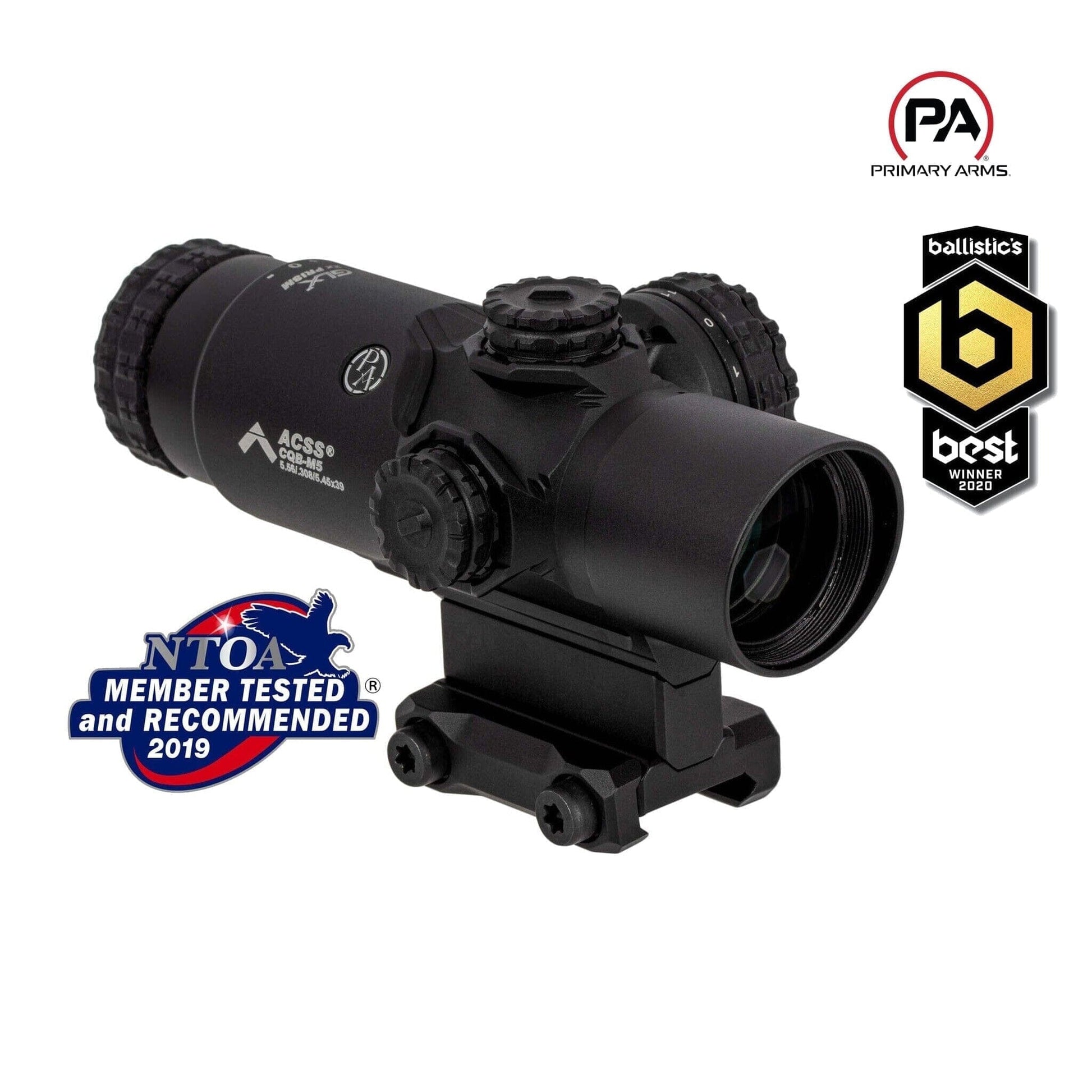

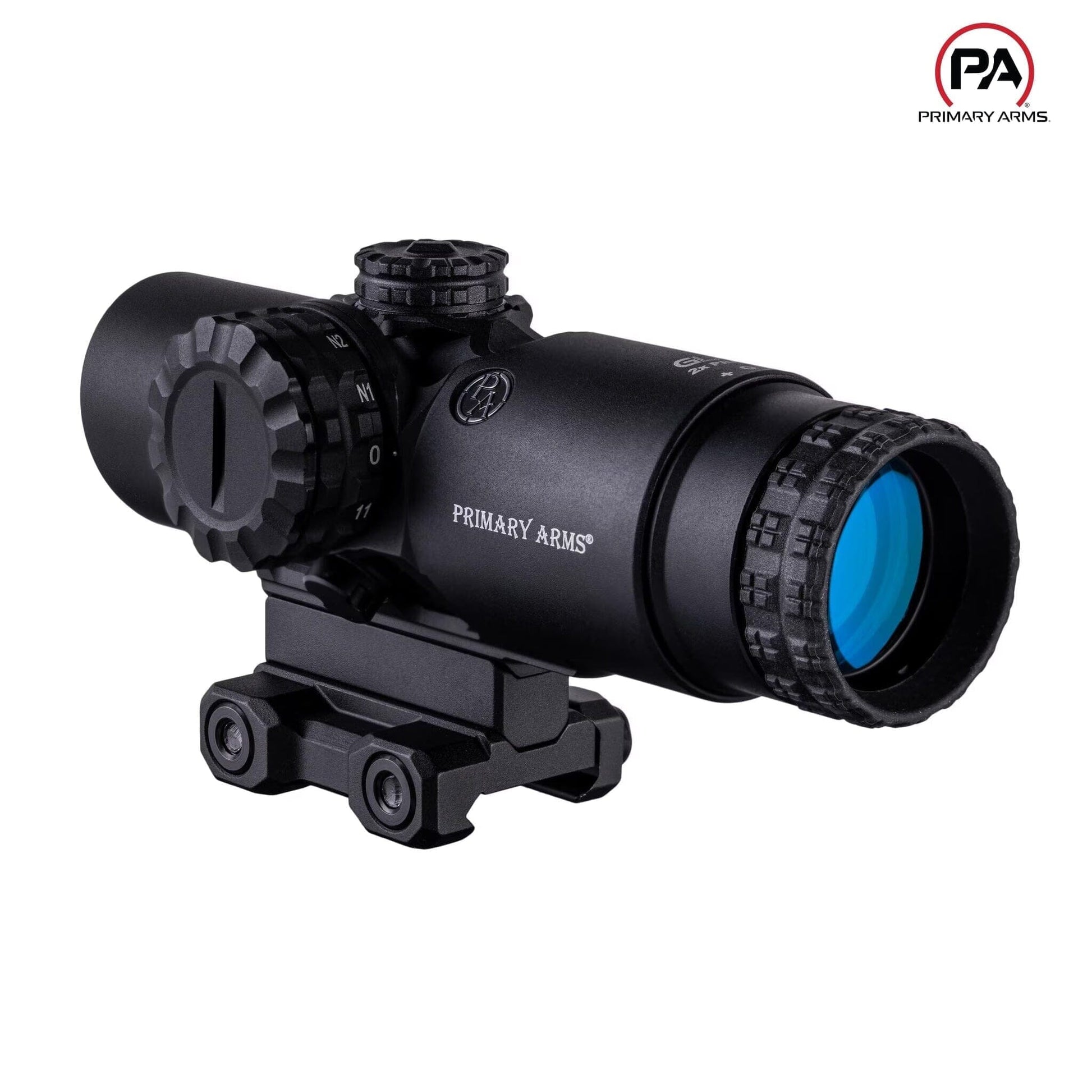

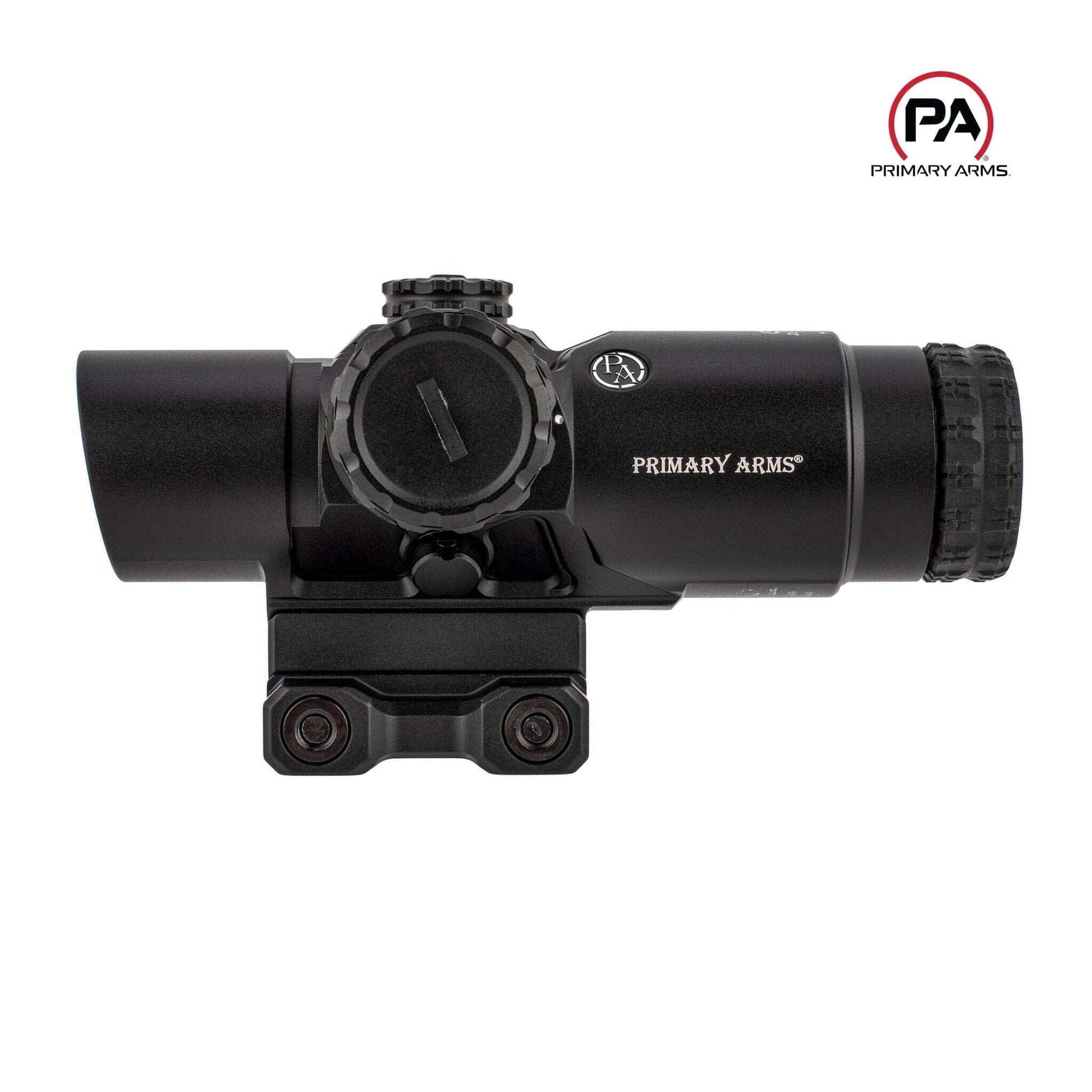

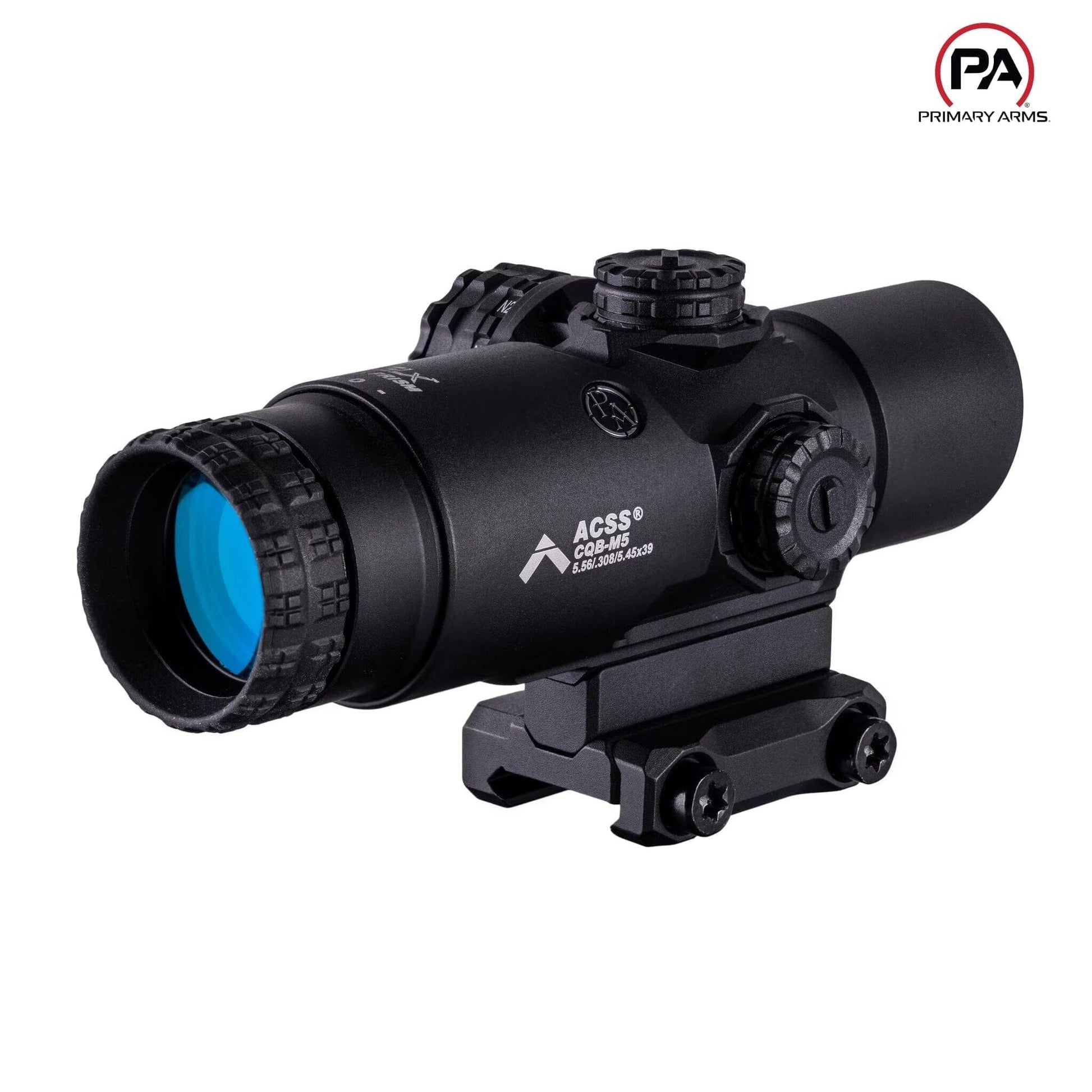

Primary Arms GLx 2× Prism Scope - ACSS CQB-M5 Reticle
Features

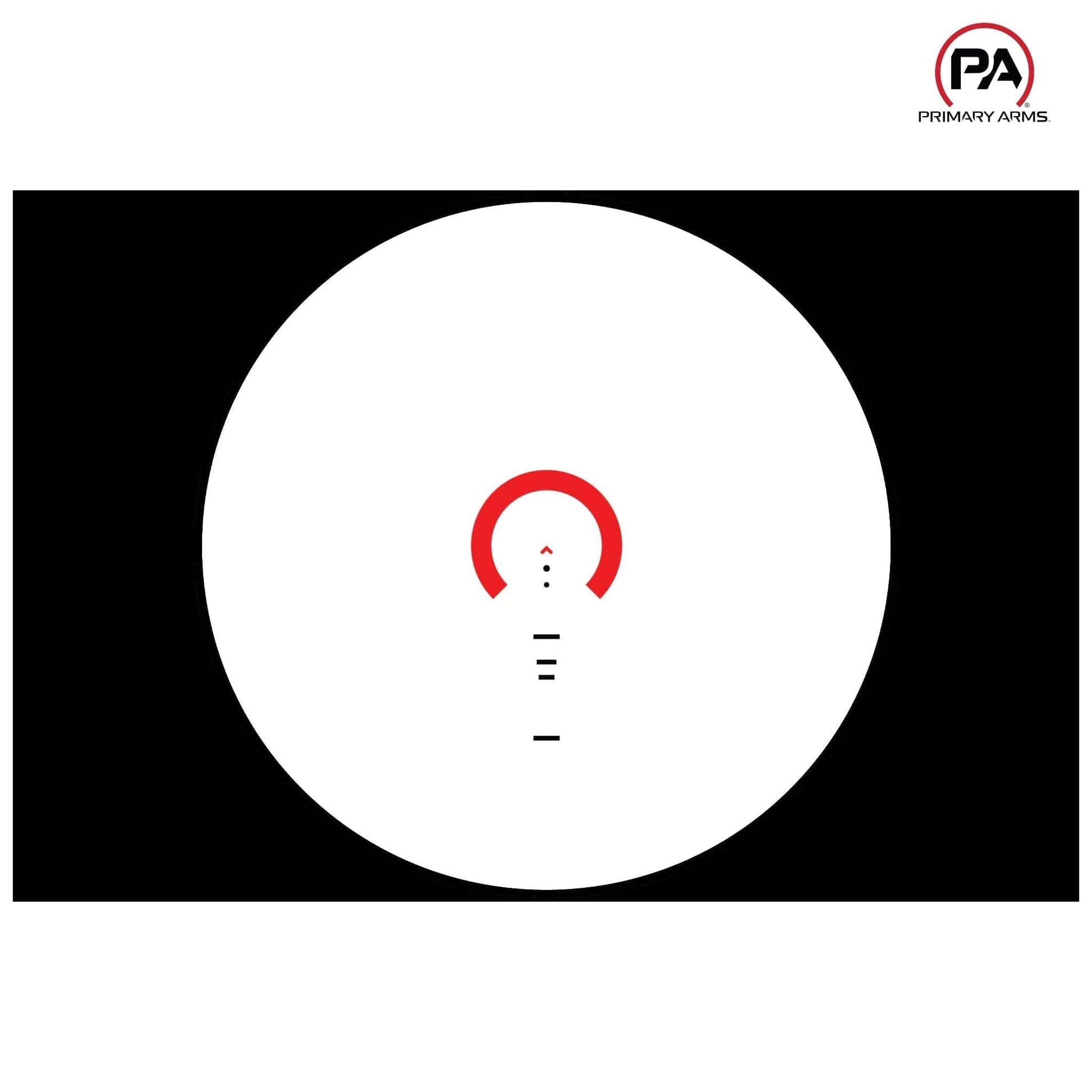

- ACSS CQB-M5 Reticle – Second-focal-plane fiber-wire reticle calibrated for 5.56/.308 with quick-acquisition horseshoe center, integrated 5.56 BDC stadia, moving-target leads, and hold-over hashmarks; bright-red illumination via fiber optics with 11 brightness levels and 6 h auto-off.
- True-2× Prism Optic – Dedicated 2× magnification providing a wide field of view at short to medium ranges; ideal for fast target transitions in CQB and patrol scenarios.
- Premium Glass & Coatings – Fully multi-coated Japanese glass elements ensure high light transmission, crisp contrast, and edge-to-edge clarity in varied lighting.
- Integrated SOS® Turrets – Low-profile steel-on-steel turrets with 0.1 mrad (¼ MIL) clicks, 10 mrad (34 MOA) total elevation and windage travel, and zero-reset capability for quick return to zero.
- Compact & Rugged Construction – One-piece 30 mm aluminum housing in matte-black Type III hard-anodized finish; O-ring sealed and nitrogen-purged for IP67 waterproofing and fog-proof reliability.
- Unlimited Eye Relief – Prism design offers true 1×-style eye relief with the added benefit of 2× magnification for enhanced engagement at distance.
- Built-In Picatinny Mount – Integrated quick-detach mount for rapid installation and removal, maintaining bore-centric alignment without tools.
Technical Specifications for Primary Arms GLx 2× Prism Scope - ACSS CQB-M5 Reticle
Specification |
Details |
Manufacturer |
Primary Arms |
Model / Part Number |
710010 |
SKU |
PA-GLX-2XP-ACSS-5.56 |
UPC |
818500015062 |
Magnification |
Fixed 2× |
Prism Objective |
24 mm |
Housing Diameter |
30 mm |
Reticle |
ACSS CQB-M5, fiber-wire illuminated (SFP) |
Field of View |
55 ft @ 100 yd |
Eye Relief |
Unlimited |
Exit Pupil |
10 mm |
Diopter Adjustment |
–4 to +2 dpt |
Turret Adjustment |
0.1 mrad per click; 10 mrad (34 MOA) total per axis |
Parallax |
Fixed at 100 yd |
Illumination Power |
Fiber-optic only (no battery) |
Length |
4.5 in (114 mm) |
Weight |
13 oz (368 g) |
Finish |
Matte-black Type III hard-anodize |
Waterproof / Fogproof |
IP67 (1 m submersion; fog-proof) |
Warranty |
Lifetime warranty |
Included Accessories
- Flip-up lens covers
- Quick-detach mount lever
- Lens cleaning cloth
- Instruction manual & warranty documentation
