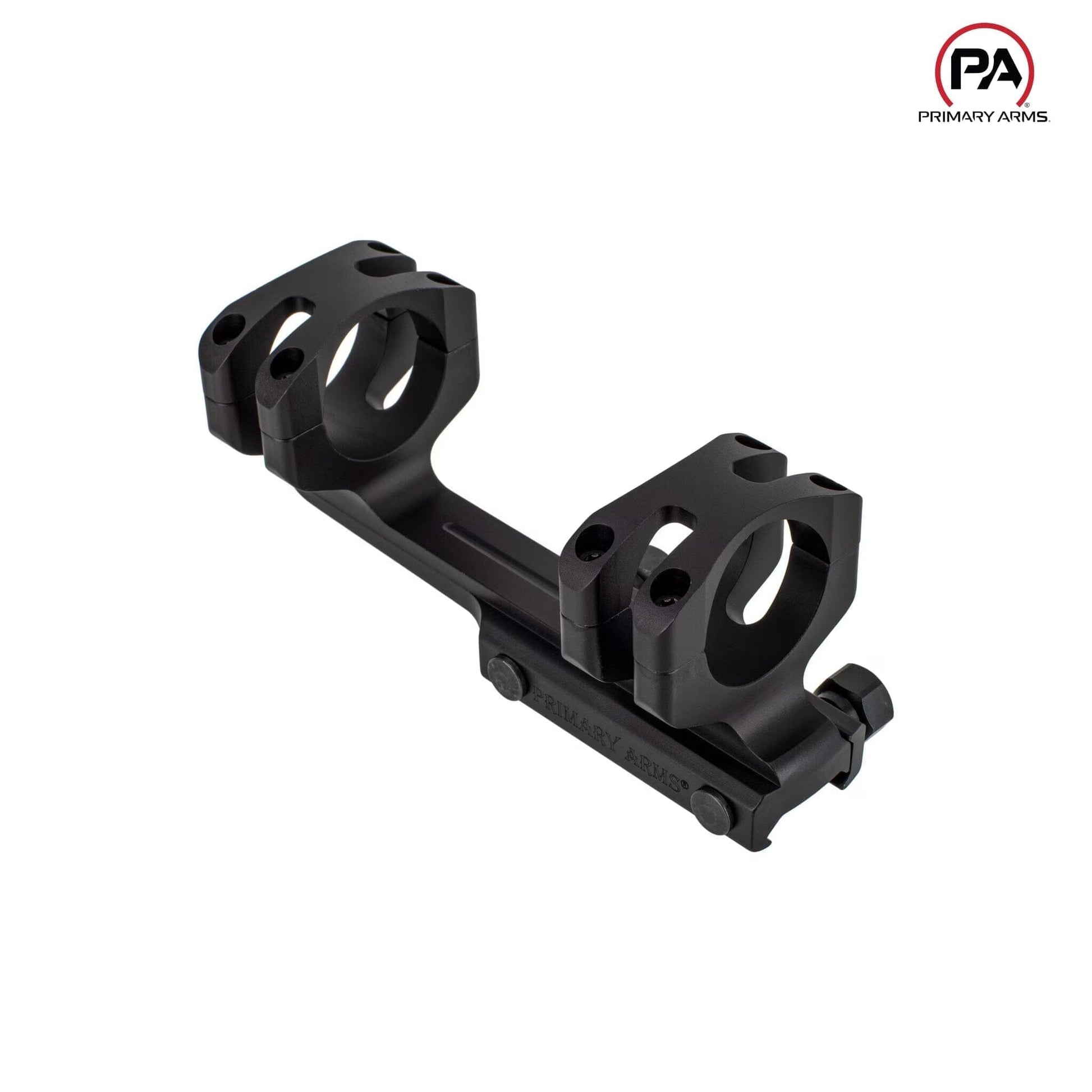

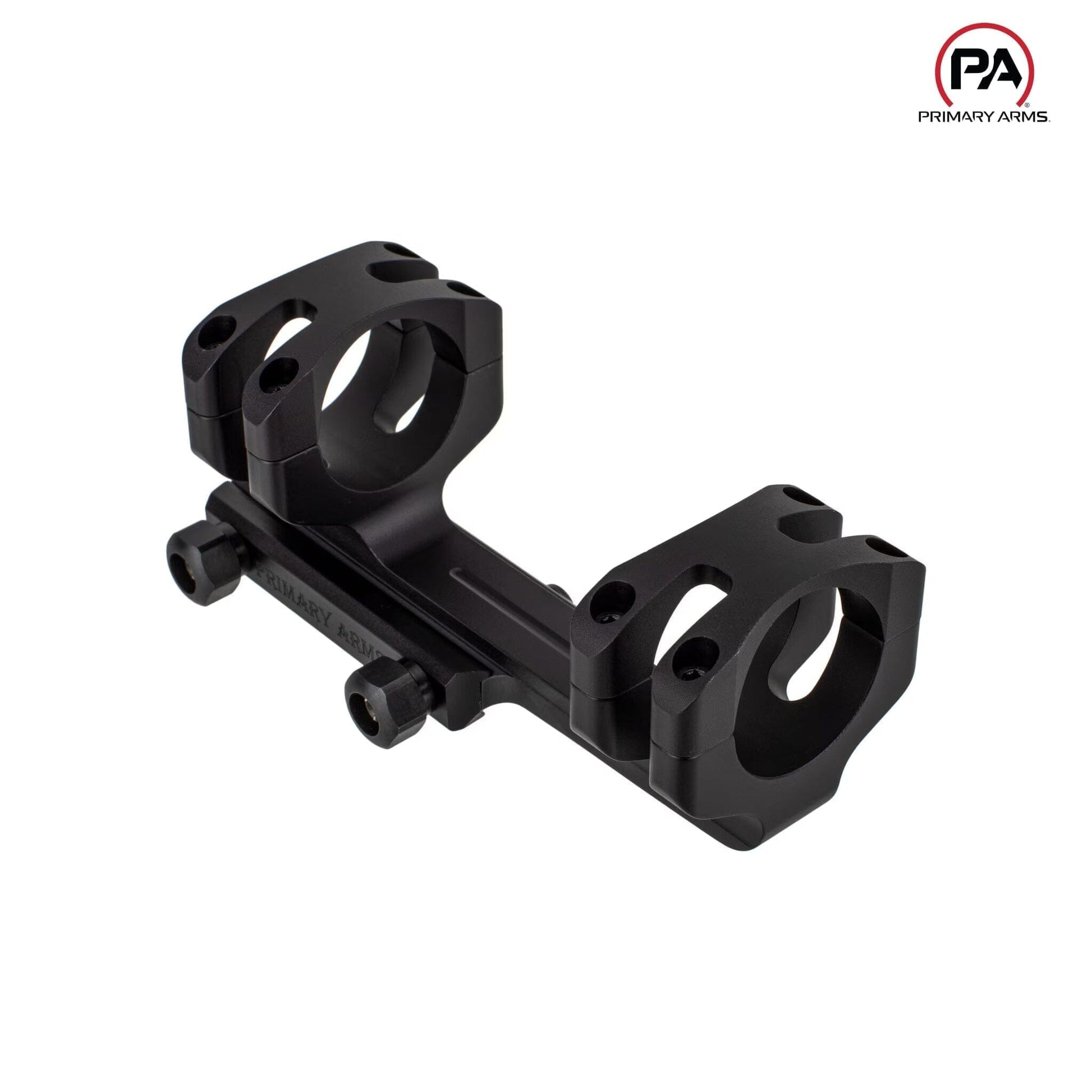

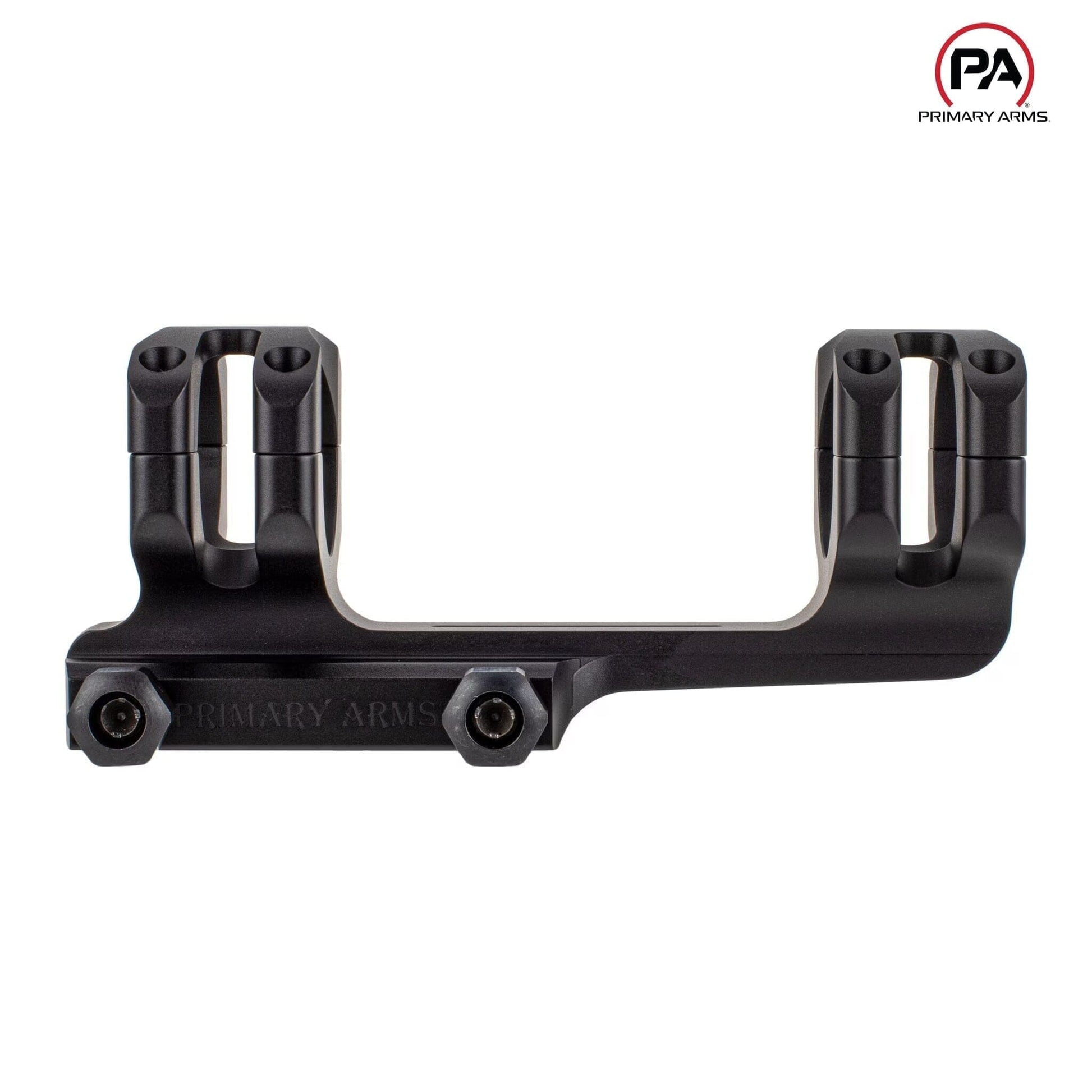

Primary Arms GLx 30mm Cantilever Scope Mount - 20 MOA
Primary Arms GLx 30mm Cantilever Scope Mount - 20 MOA
Couldn't load pickup availability
Primary Arms GLx 30mm Cantilever Scope Mount - 20 MOA
Features
- 20 MOA Built-In Cantilever – 20 MOA forward cantilever provides built-in elevation for long-range shooting without shims.
- 1.5″ Forward Offset – Positions 30 mm scopes at optimal eye relief for AR-style platforms, eliminating the need for rearward ring placement.
- CNC-Machined 6061-T6 Aluminum – One-piece mount body in matte-black Type III hard-anodized finish for exceptional strength and corrosion resistance.
- MIL-STD-1913 Picatinny Interface – Integrated rail clamp with dual cross-bolts ensures rock-solid retention and repeatable zero under heavy recoil.
- Tool-Free Installation – Oversized hex-head clamp screws allow quick mounting and removal with the included 5/32″ hex key, maintaining precise alignment.
- Recoil-Stop Inserts – Factory-installed inserts prevent rail slippage during rapid-fire sequences.
- Low-Profile Footprint – Slim design minimizes added height while preserving clearance for backup iron sights and other accessories.
Technical Specifications for Primary Arms GLx 30mm Cantilever Scope Mount - 20 MOA
Specification |
Details |
Manufacturer |
Primary Arms |
Model / Part Number |
910081 |
SKU / MPN |
PA-GLX-CM-30-1.5-20 |
UPC |
818500015468 |
Tube Diameter |
30 mm |
Offset |
1.5 in (38 mm) forward |
Built-In Cantilever |
20 MOA |
Material |
6061-T6 aluminum |
Finish |
Matte-black Type III hard-anodize |
Rail Interface |
MIL-STD-1913 Picatinny |
Clamp Screws |
2 × M5 hex-head (5/32″ hex key included) |
Recoil-Stop Inserts |
Included |
Height Above Rail |
1.2 in (30 mm) |
Weight |
6.6 oz (187 g) |
Warranty |
Lifetime warranty |
Included Accessories
- 5/32″ hex key
- Recoil-stop inserts
- Instruction manual & warranty documentation
