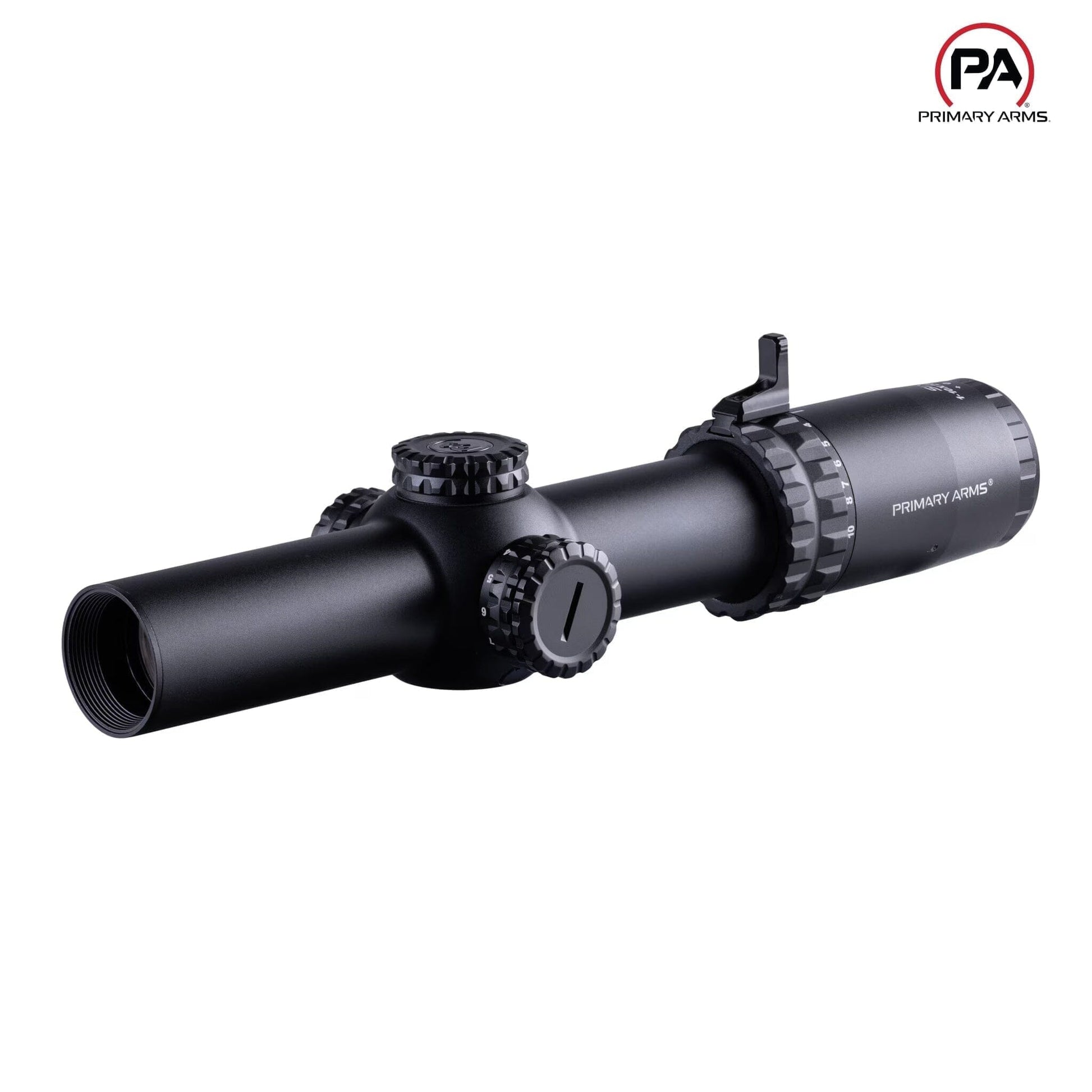

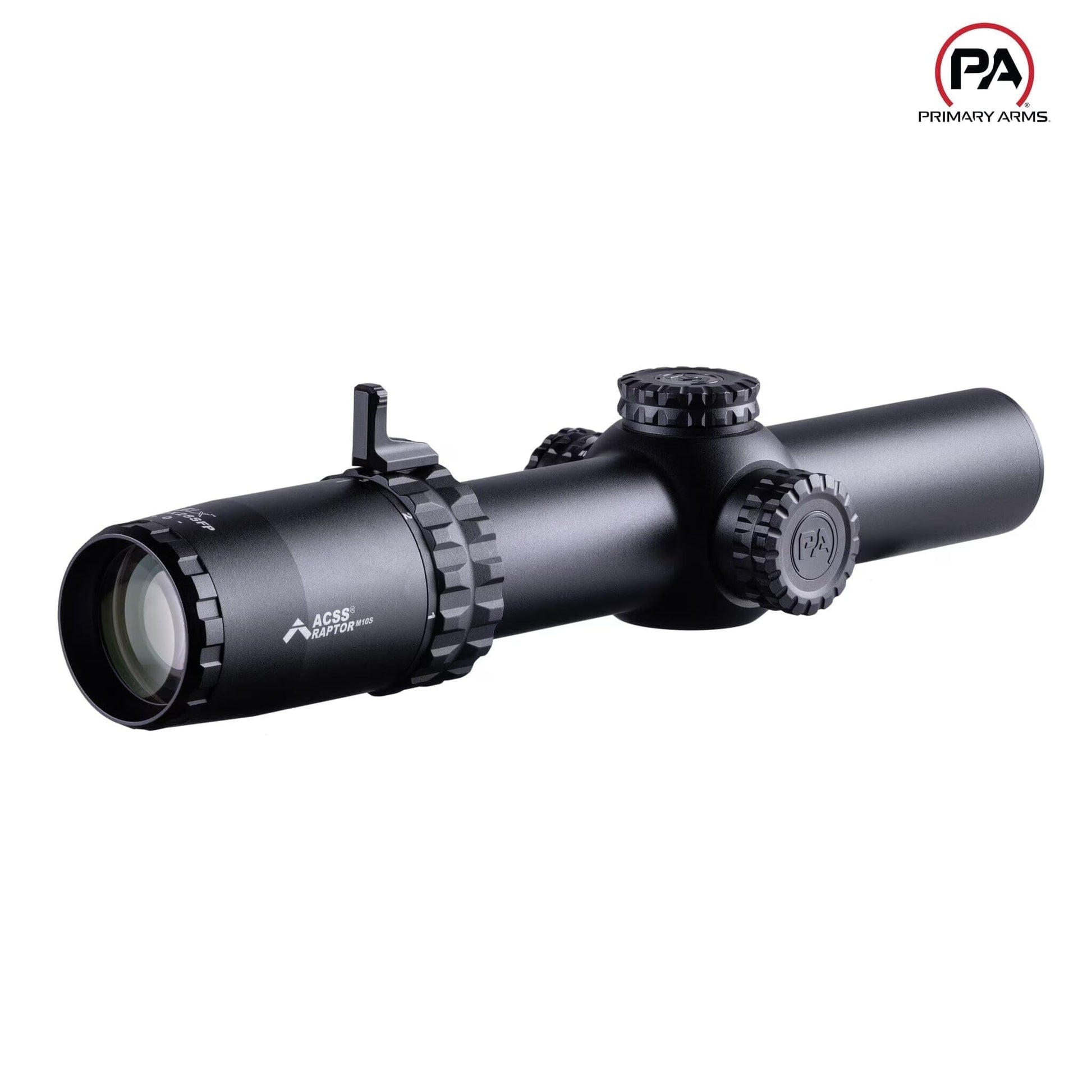

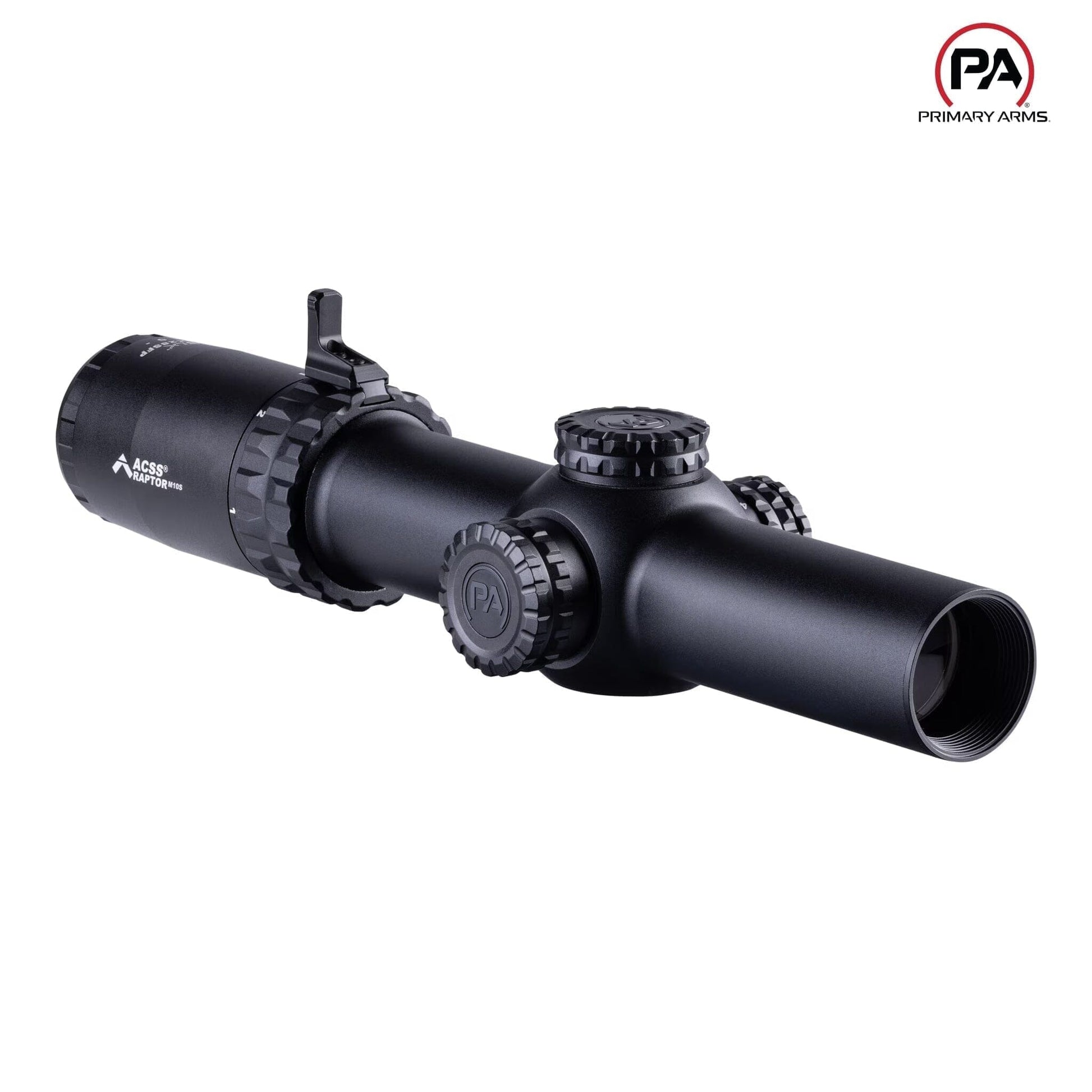

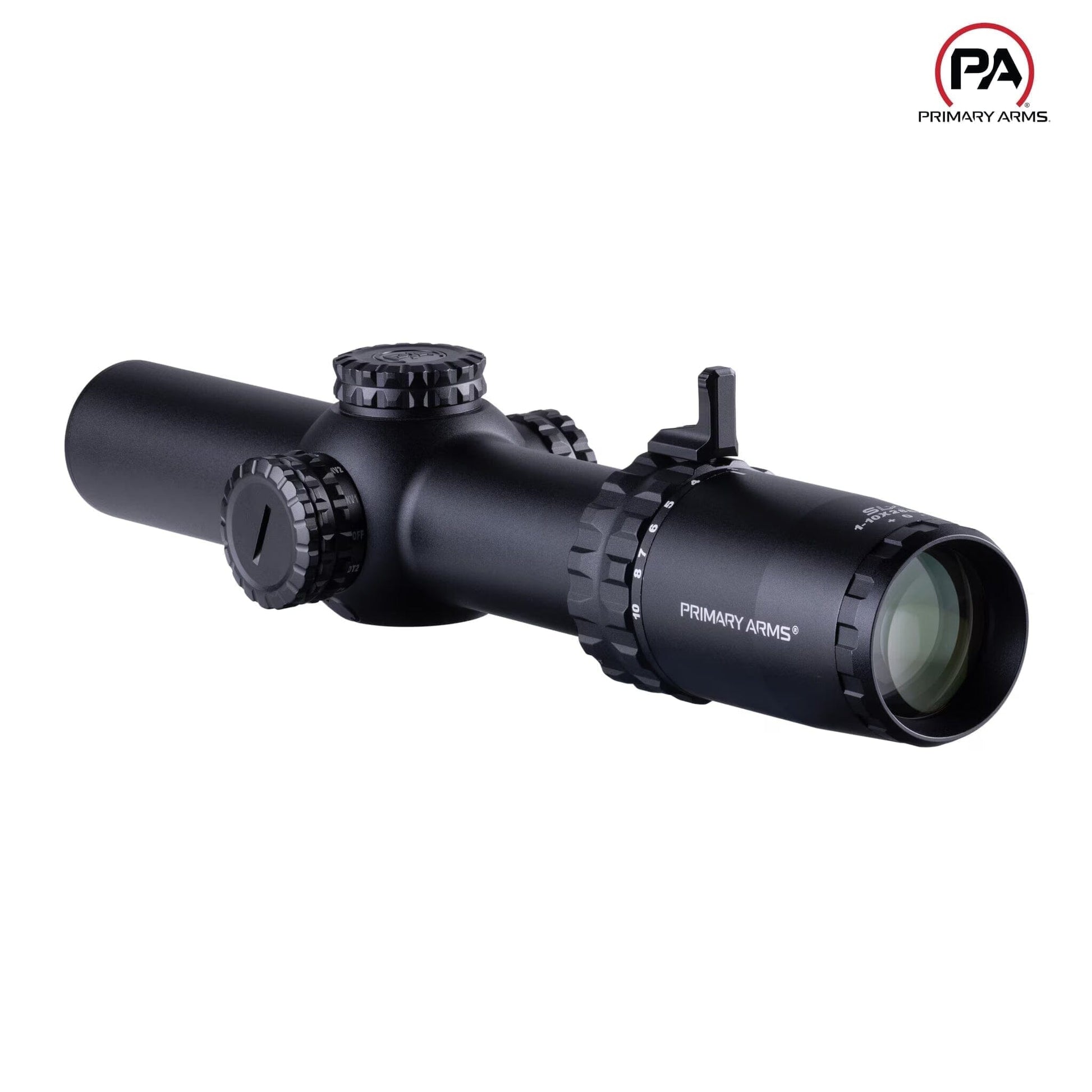

Primary Arms SLx 1-10x28 SFP Riflescope - ACSS Raptor M10S Reticle

Primary Arms SLx 1-10x28 SFP Riflescope - ACSS Raptor M10S Reticle

Regular price $449.99 USD
Regular price Sale price $449.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Primary Arms SLx 1-10×28 SFP Riflescope - ACSS Raptor M10S Reticle - Black

Features

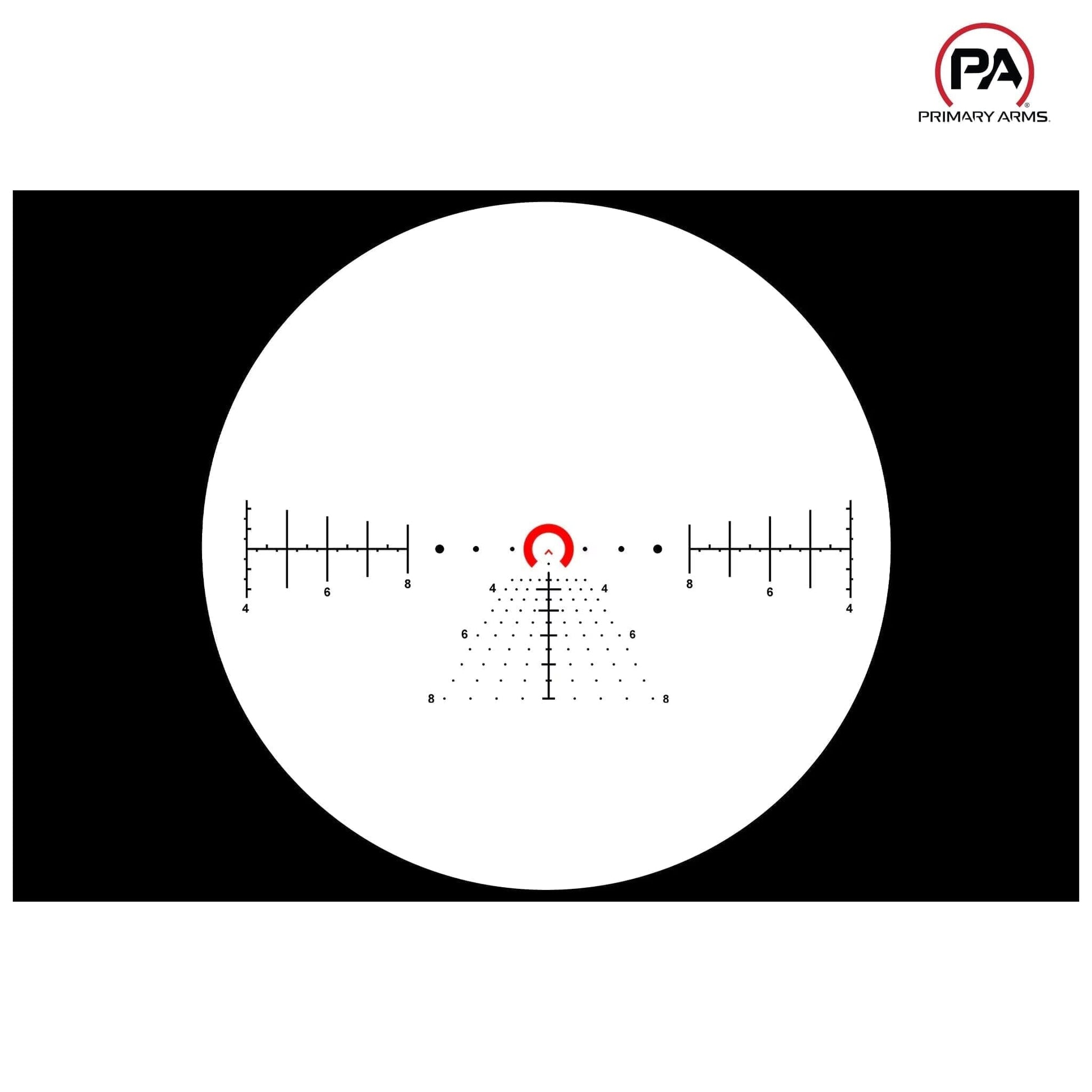

  • ACSS Raptor M10S Reticle – First-focal-plane fiber-wire MRAD reticle calibrated for 5.56 /.308 with hold-over stadia, wind-age Brackets, moving-target leads, and rapid-range bars; red fiber-optic illumination with 11 brightness levels and 6 h auto-off.
  • Versatile 1× – 10× Zoom – Broad magnification range supports ultra-fast 1× close-quarters engagements and precise 10× long-range shots.
  • Premium Multi-Coated Optics – Fully multi-coated, extra-low dispersion glass delivers exceptional light transmission, contrast, and edge-to-edge clarity in all lighting conditions.
  • SOS® Steel-on-Steel Turrets – Precise 0.1 MRAD (¼ MIL) clicks; 15 MRAD (50 MOA) total elevation travel with mechanical zero-stop, and ± 10 MRAD (± 34 MOA) windage travel.
  • Side Parallax Focus – Side-mounted dial adjusts parallax from 50 yd to infinity for crisp reticle-to-target clarity at any distance.
  • Forgiving Eye Relief – Generous 3.5 in at 1× to 3.1 in at 10× ensures comfortable, consistent cheek weld and rapid target acquisition.
  • Compact & Durable Chassis – One-piece 30 mm 6061-T6 aluminum tube in matte-black Type III hard-anodize; O-ring sealed and nitrogen-purged for IP67 waterproof and fog-proof reliability.

Technical Specifications for Primary Arms SLx 1-10×28 SFP Riflescope - ACSS Raptor M10S Reticle - Black

Specification

Details

Manufacturer

Primary Arms

Model / Part Number

610157

SKU

PA-SLX-1-10X28S-RAPTOR-5.56

UPC

818500016724

Magnification Range

1 × – 10 ×

Objective Lens Diameter

28 mm

Tube Diameter

30 mm

Reticle

ACSS Raptor M10S, fiber-wire illuminated (FFP)

Field of View

102 ft @ 100 yd (1×); 10 ft @ 100 yd (10×)

Eye Relief

3.5 in @ 1×; 3.1 in @ 10×

Exit Pupil

28 mm @ 1×; 2.8 mm @ 10×

Diopter Adjustment

± 3 dpt

Elevation Total Adjustment

15 MRAD (50 MOA)

Windage Total Adjustment

± 10 MRAD (± 34 MOA)

Click Value

0.1 MRAD (¼ MIL) per click

Parallax Adjustment

Side focus, 50 yd to ∞

Illumination Power

1 × CR2032 3 V lithium (included)

Length

10.2 in (259 mm)

Weight

15.5 oz (439 g)

Finish

Matte-black Type III hard-anodize

Waterproof / Fogproof

IP67 (1 m submersion; fog-proof)

Warranty

Lifetime warranty

Included Accessories

  • QD throw-lever magnification ring
  • Flip-up lens covers
  • CR2032 battery (installed)
  • Instruction manual & warranty documentation

SEO Keywords
Primary Arms SLx 1-10×28 FFP, ACSS Raptor M10S reticle, MRAD variable scope, fiber-wire illuminated optic.
