Primary Arms SLx 1-8x24 Riflescope - ACSS 5.56/5.45/.308 Reticle
Primary Arms SLx 1-8x24 Riflescope - ACSS 5.56/5.45/.308 Reticle
Couldn't load pickup availability

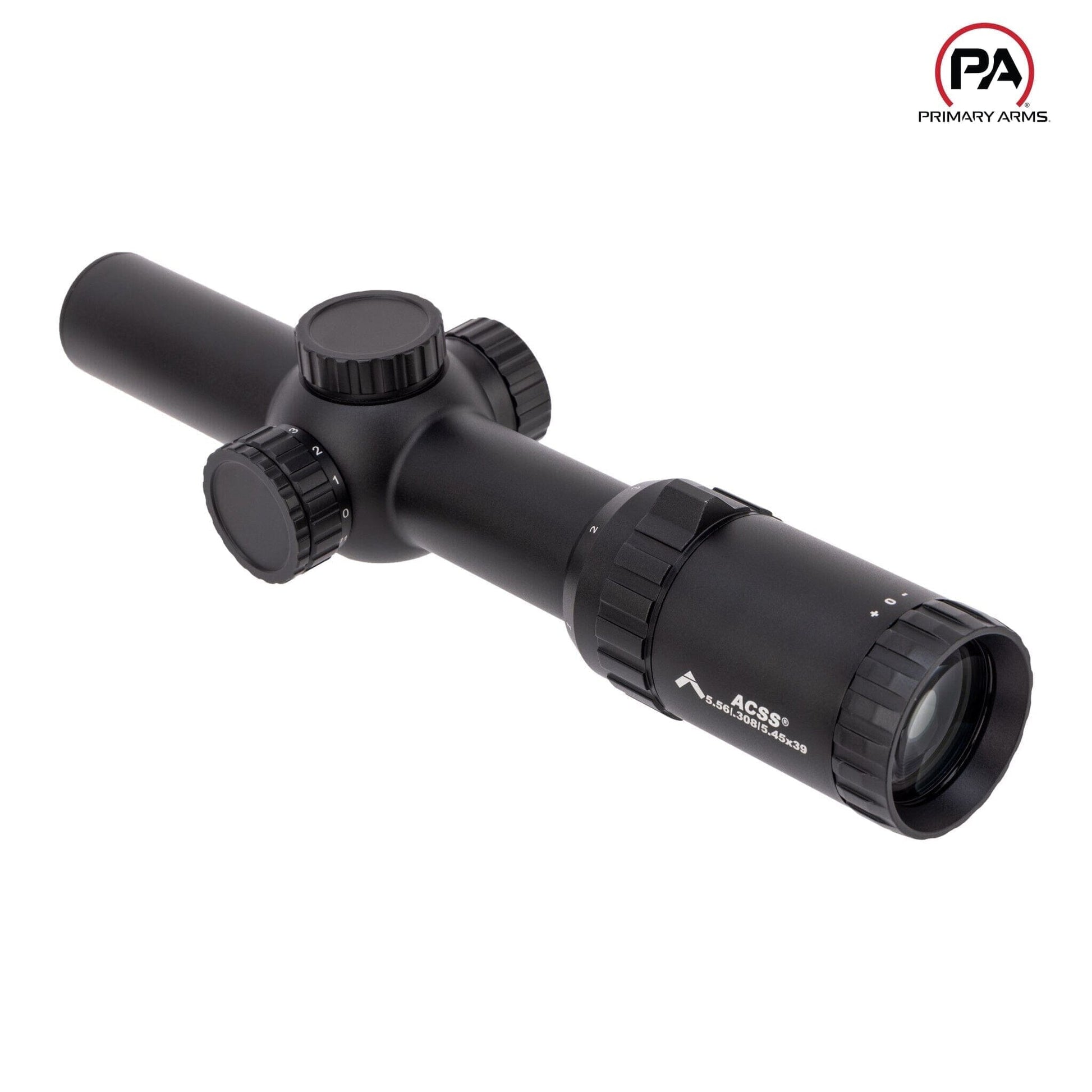

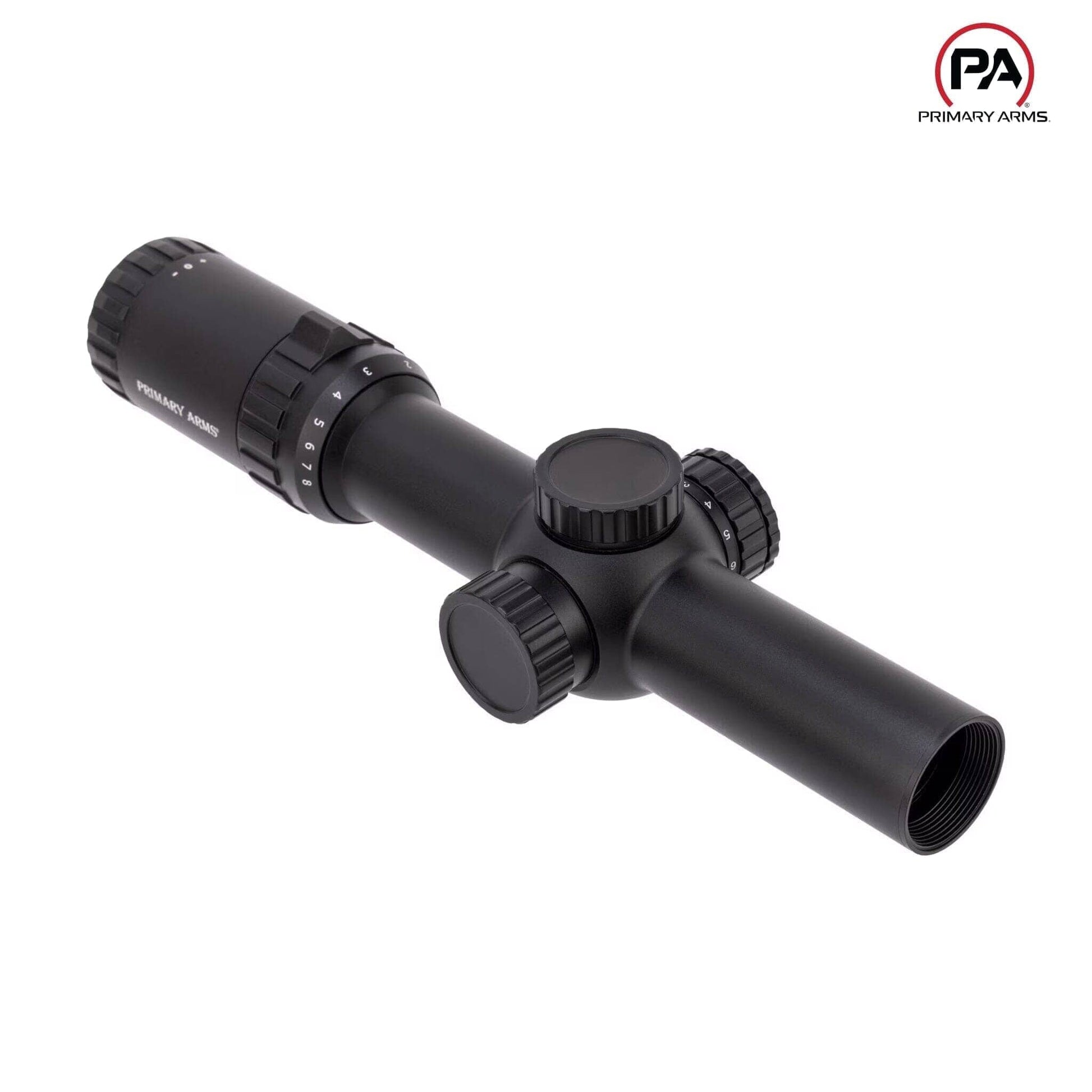

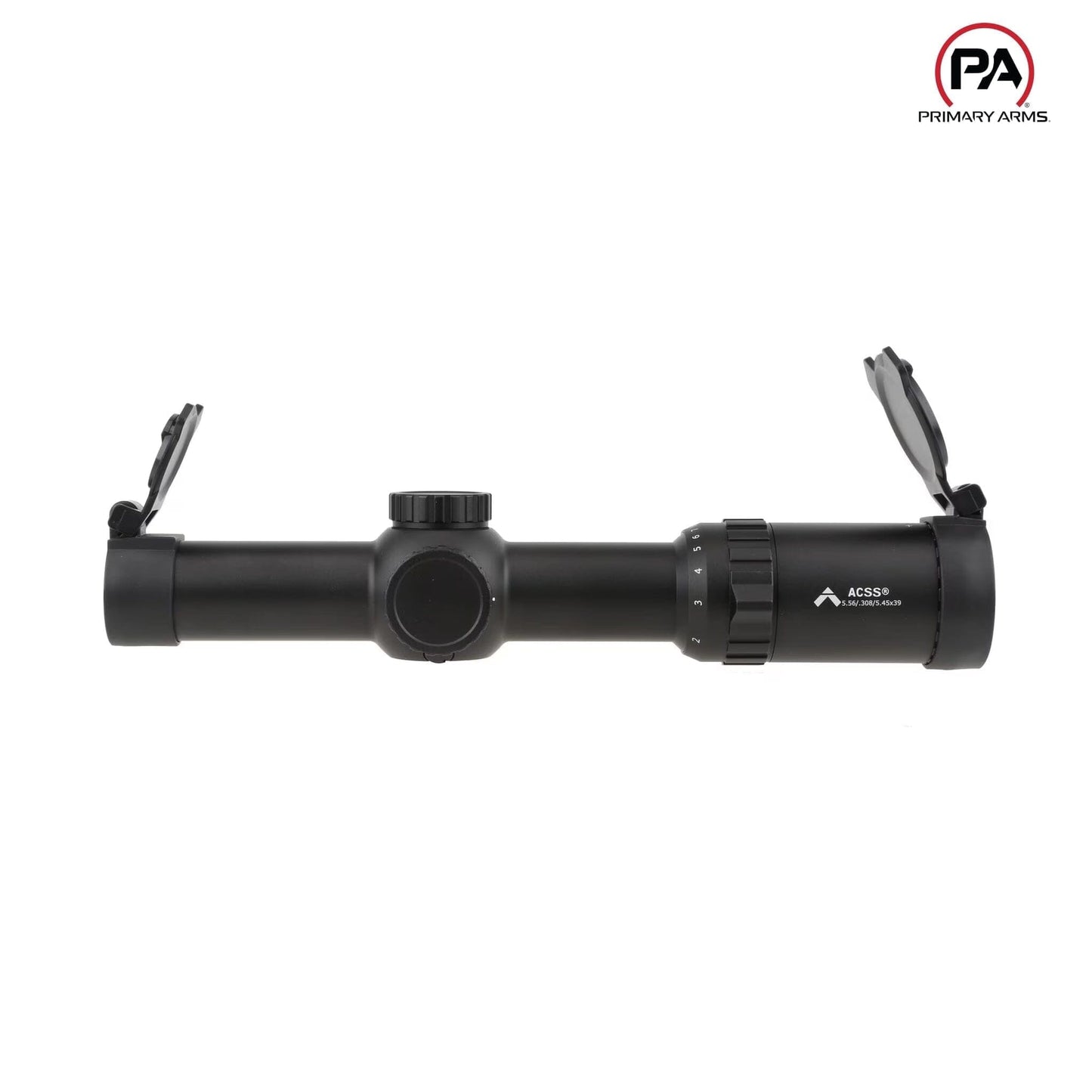

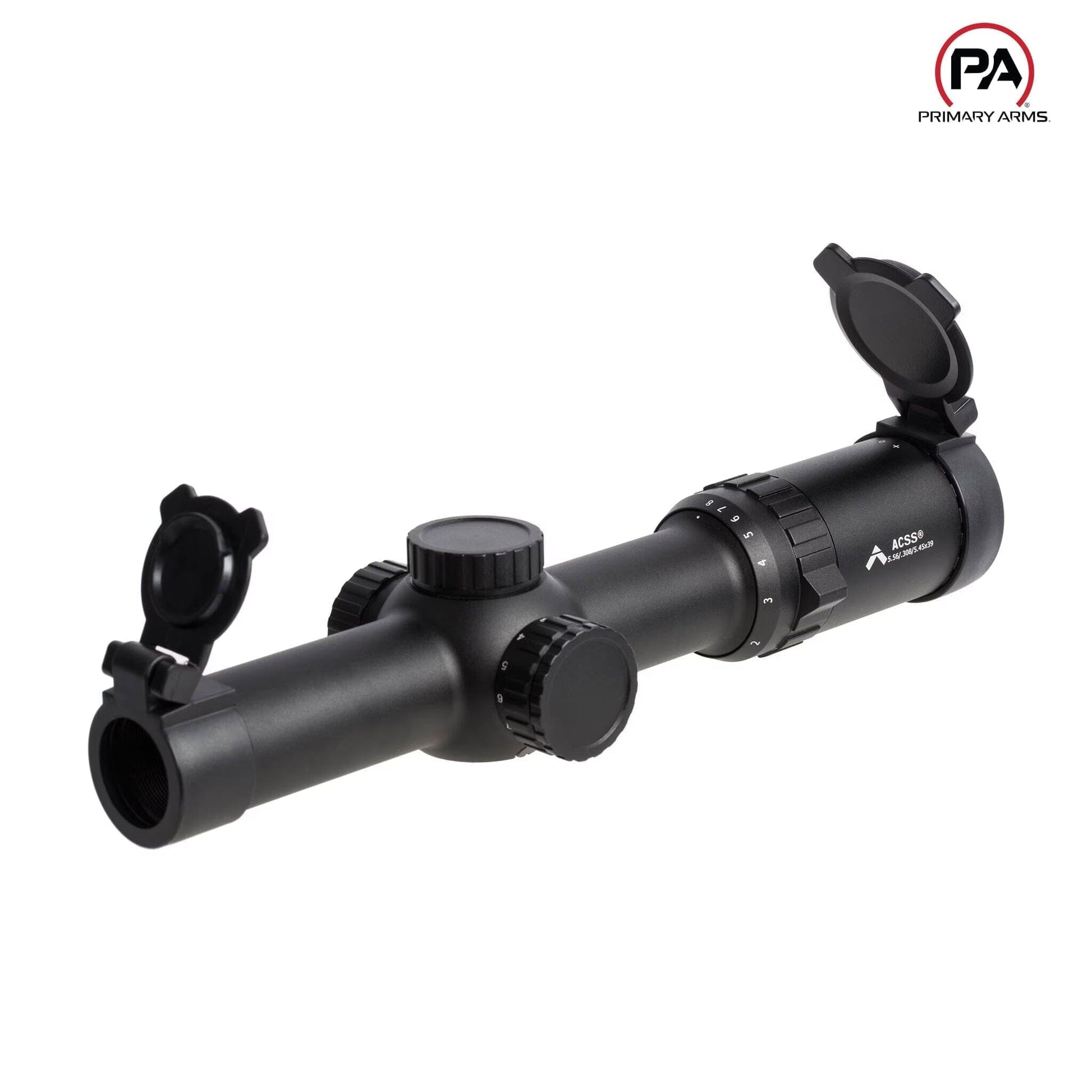

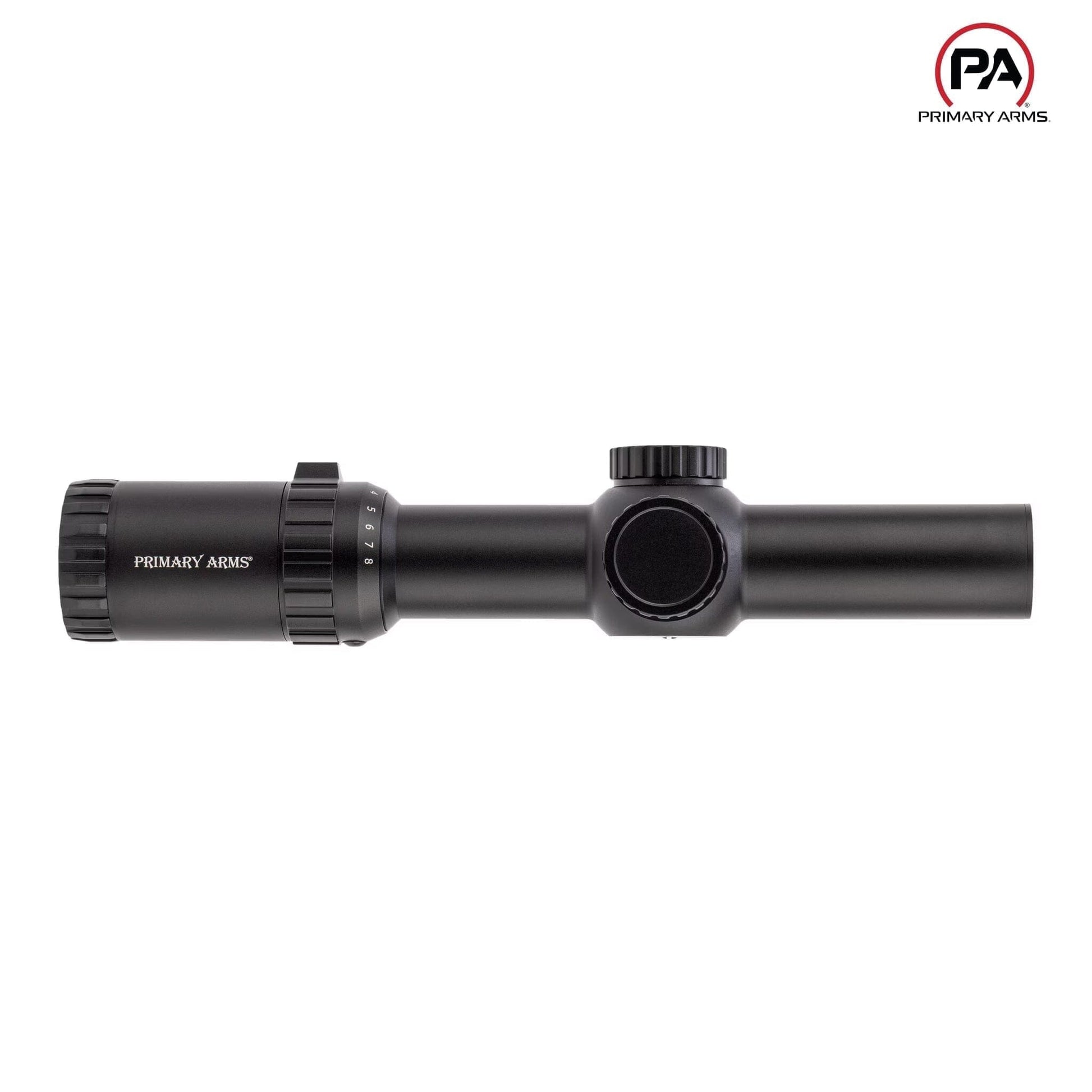

Primary Arms SLx 1-8×24 SFP Riflescope - ACSS 5.56/5.45/.308 Reticle
Features

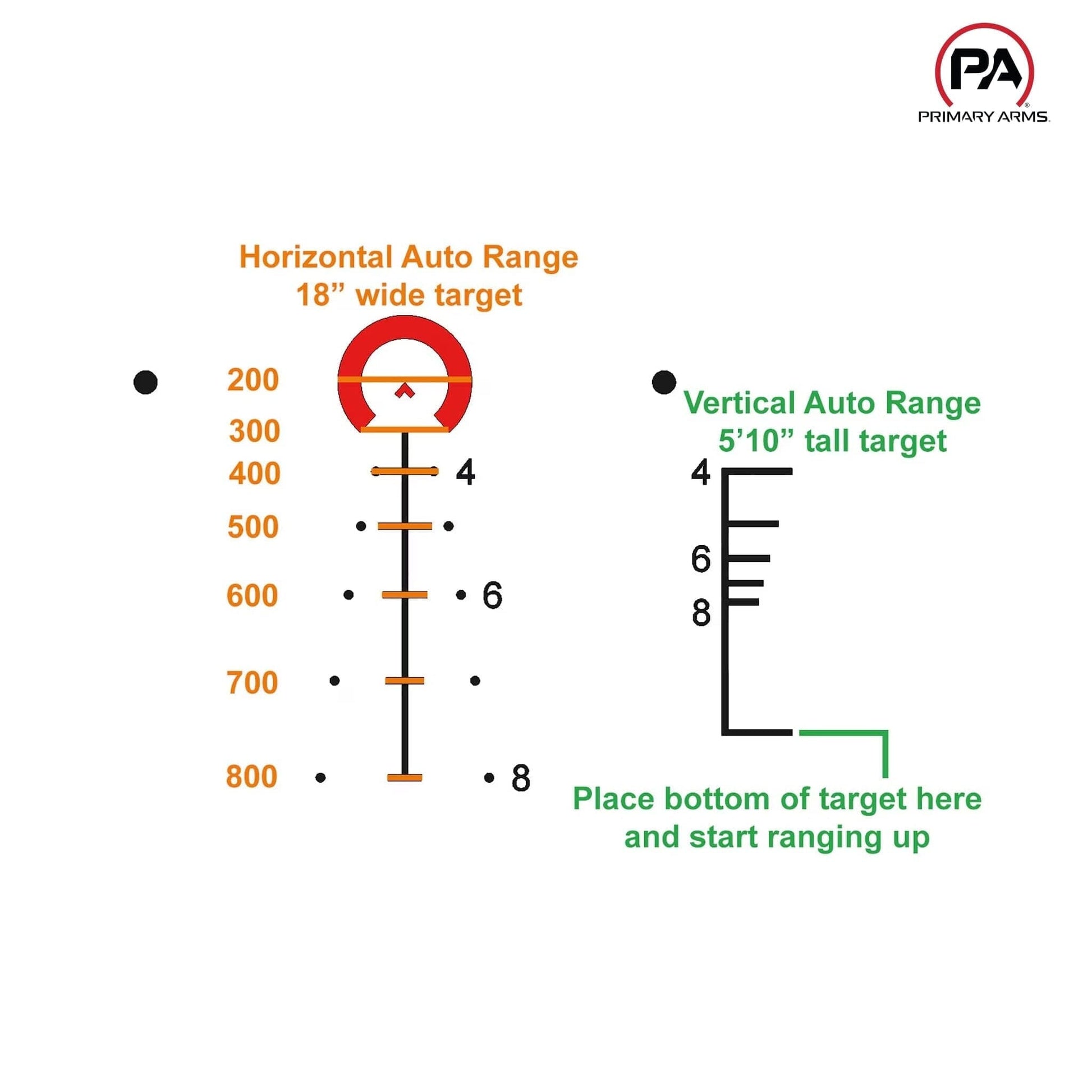

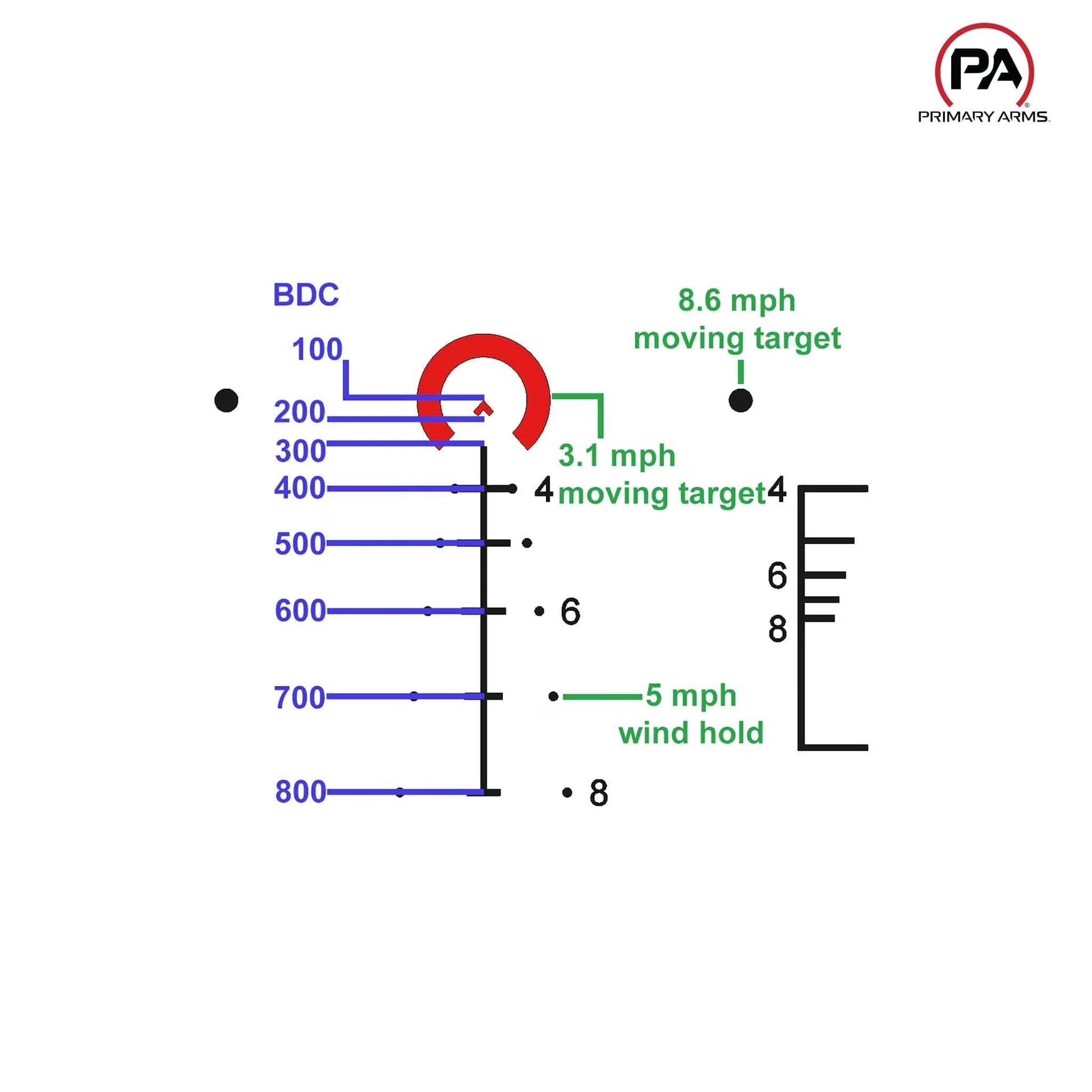

- ACSS 5.56/5.45/.308 Reticle – Second-focal-plane MRAD reticle calibrated for 5.56×45 mm, 5.45×39 mm, and .308 Win; includes BDC subtensions, moving-target leads, wind-age brackets, and rapid-range bars; bright-red fiber-optic-wire illumination with 11 brightness levels and 6 h auto-off.
- Versatile 1×–8× Magnification – Broad zoom range for true 1× close-quarters speed and 8× precision at distance in a compact 24 mm objective package.
- Premium Multi-Coated Optics – Fully multi-coated extra-low-dispersion glass delivers excellent light transmission, high contrast, and edge-to-edge clarity across the magnification range.
- SOS® Steel-on-Steel Turrets – Precision 0.1 mrad (¼ MIL) tactile clicks; 20 mrad (69 MOA) total elevation and windage travel with a mechanical zero-stop on elevation for instant return to zero.
- Side Parallax Focus – Side-mounted parallax dial adjustable from 10 m to ∞ for razor-sharp reticle-to-target alignment at any distance.
- Durable 30 mm Chassis – One-piece 30 mm 6061-T6 aluminum tube in matte-black Type III hard-anodize; O-ring sealed and nitrogen-purged for IP67 waterproof and fog-proof reliability.
- Generous Eye Relief – 3.5 in at 1× to 3.0 in at 8× for comfortable cheek weld and rapid target acquisition.
- Compact & Lightweight – Measures 11.2 in (285 mm) and weighs 16.8 oz (476 g), ideal for lightweight carbine applications.
Technical Specifications for Primary Arms SLx 1-8×24 SFP Riflescope - ACSS 5.56/5.45/.308 Reticle
Specification |
Details |
Manufacturer |
Primary Arms |
Model / Part Number |
610029 |
SKU |
PA1-8X24SFP-ACSS-5.56 |
UPC |
818500011750 |
Magnification Range |
1 × – 8 × |
Objective Lens Diameter |
24 mm |
Tube Diameter |
30 mm |
Reticle |
ACSS 5.56/5.45/.308 (SFP), fiber-wire illuminated |
Field of View |
102 ft @ 100 yd (1×); 13 ft @ 100 yd (8×) |
Eye Relief |
3.5 in @ 1×; 3.0 in @ 8× |
Exit Pupil |
24 mm @ 1×; 3.0 mm @ 8× |
Diopter Adjustment |
± 3 dpt |
Elevation Total Adjustment |
20 mrad (69 MOA); mechanical zero-stop |
Windage Total Adjustment |
± 20 mrad (± 69 MOA) |
Click Value |
0.1 mrad (¼ MIL) per click |
Parallax Adjustment |
Side focus, 10 m to ∞ |
Illumination Power |
CR2032 3 V lithium coin (included) |
Length |
11.2 in (285 mm) |
Weight |
16.8 oz (476 g) |
Finish |
Matte-black Type III hard-anodize |
Waterproof / Fog-Proof |
IP67 (1 m submersion; fog-proof) |
Warranty |
Lifetime warranty |
Included Accessories
- QD throw-lever magnification ring
- Flip-up lens covers
- CR2032 battery (installed)
- Instruction manual & warranty documentation
