Primary Arms
Primary Arms SLx 3x MicroPrism Scope - Red ACSS Raptor 7.62x39/300 BLK Yard Reticle - Black
Primary Arms SLx 3x MicroPrism Scope - Red ACSS Raptor 7.62x39/300 BLK Yard Reticle - Black
Couldn't load pickup availability

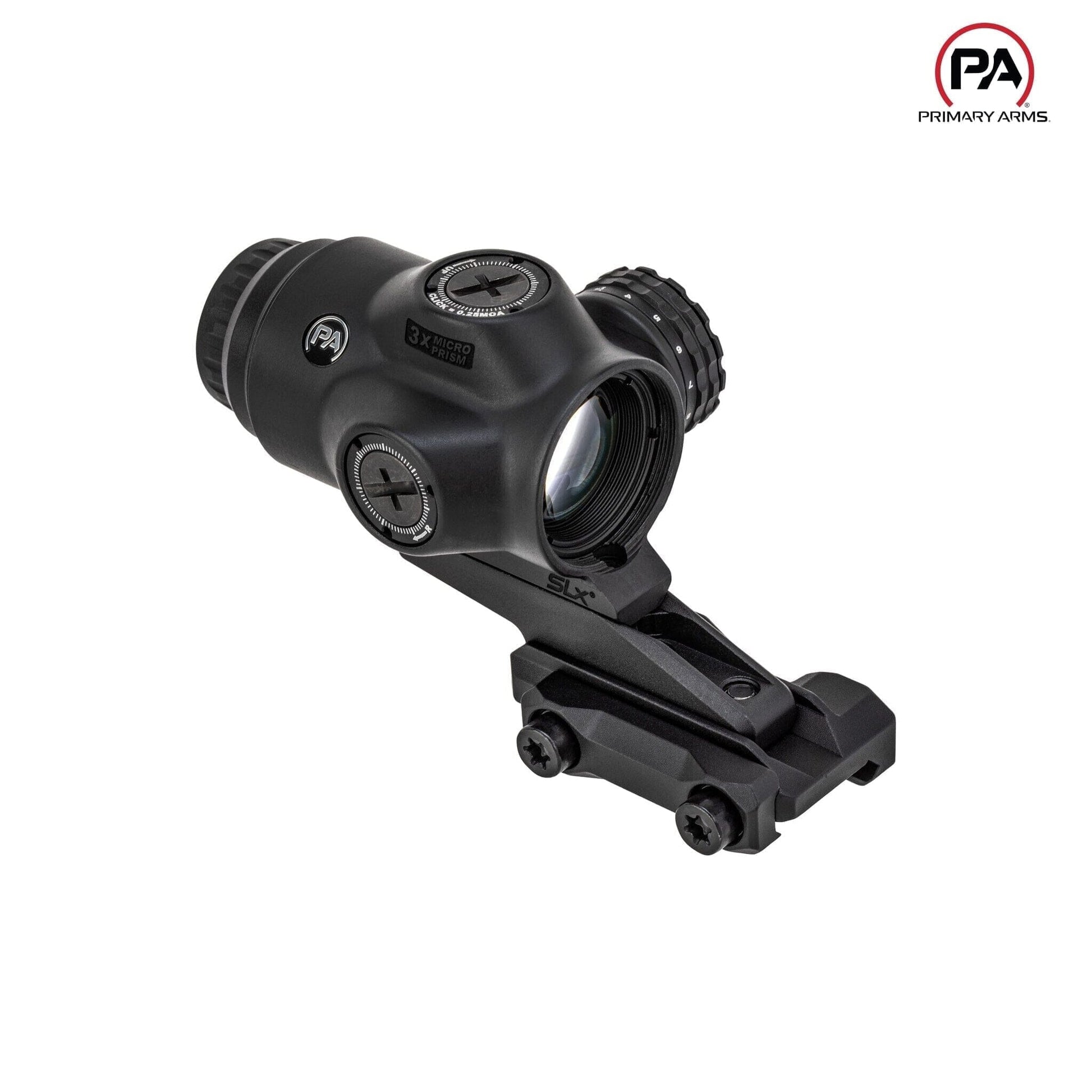

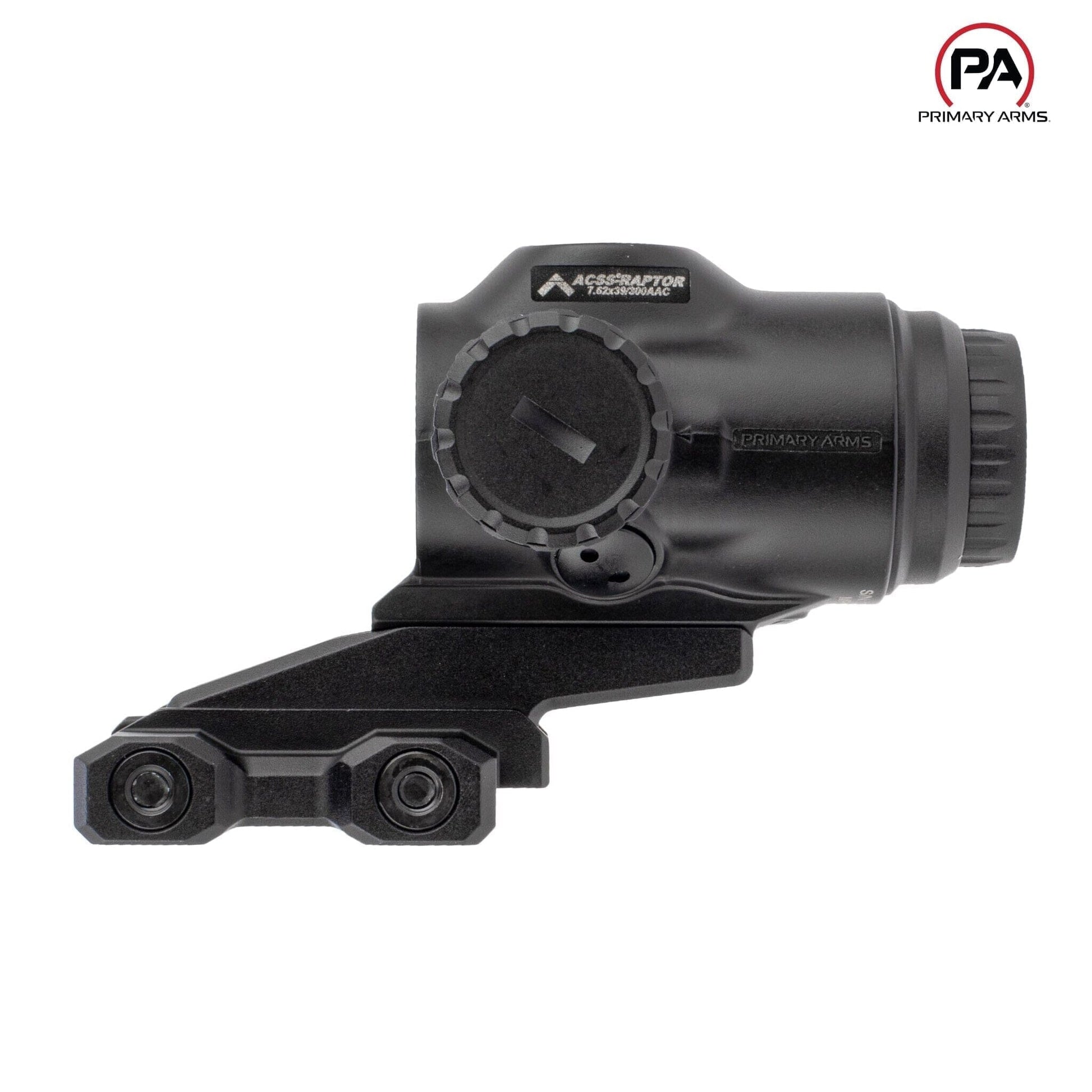

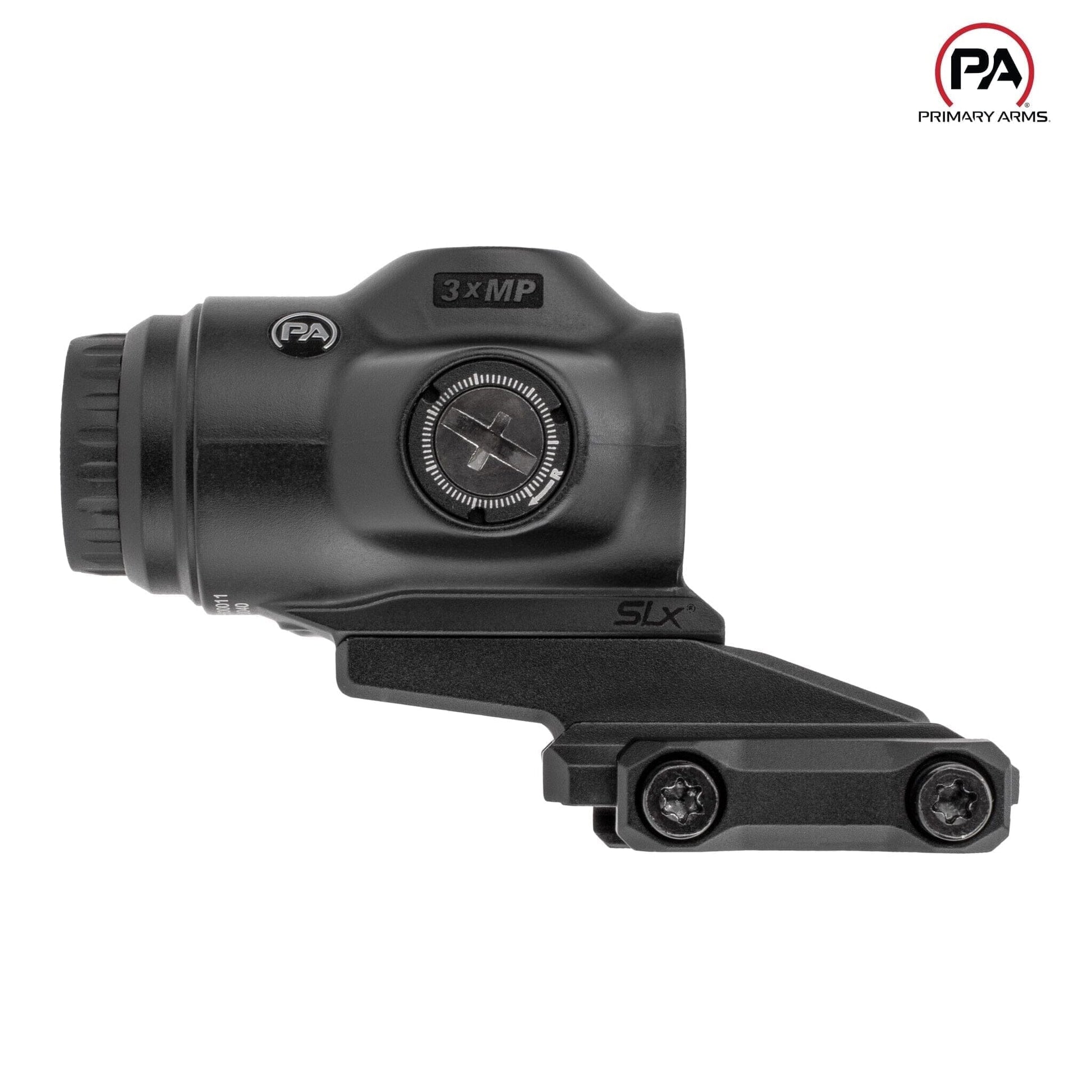

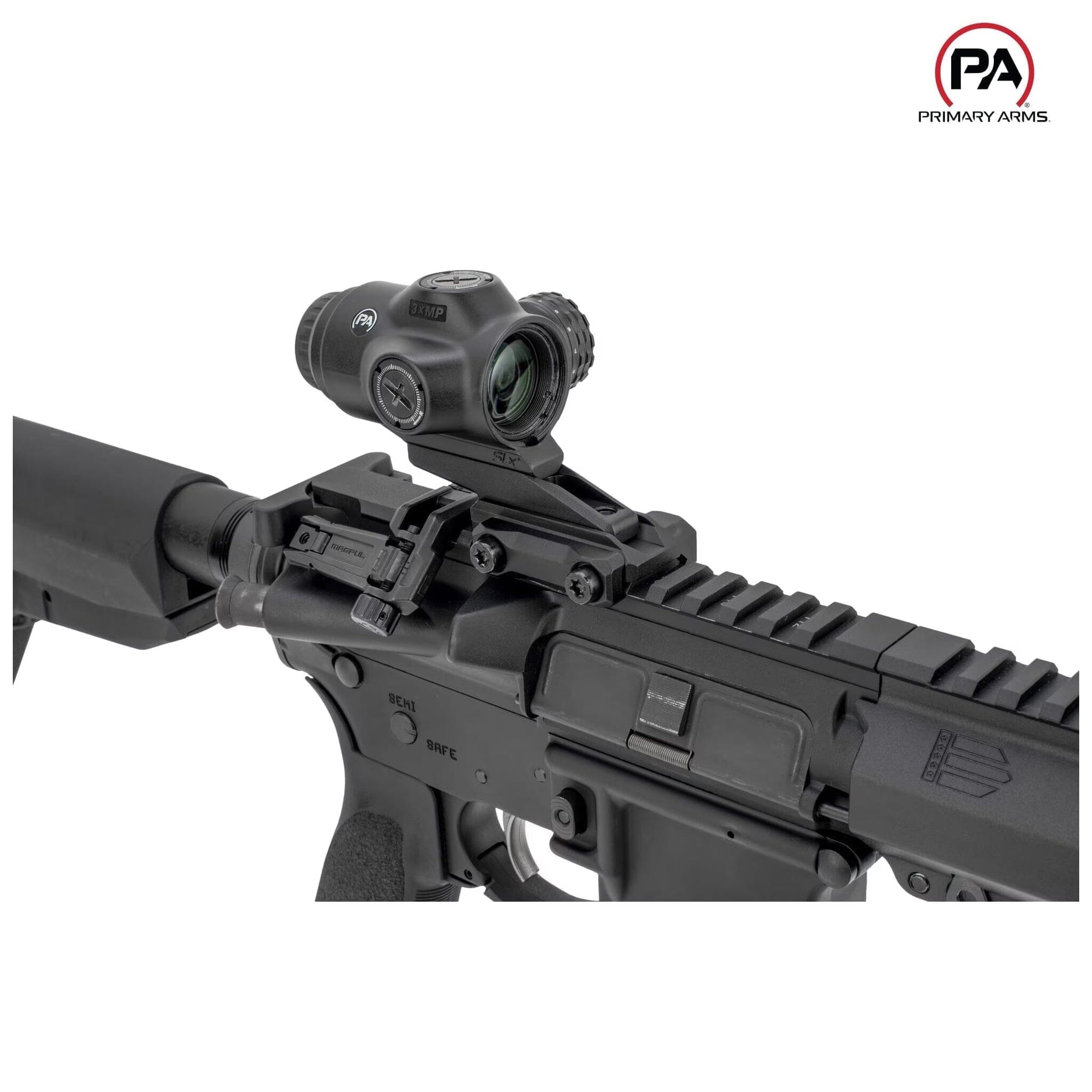

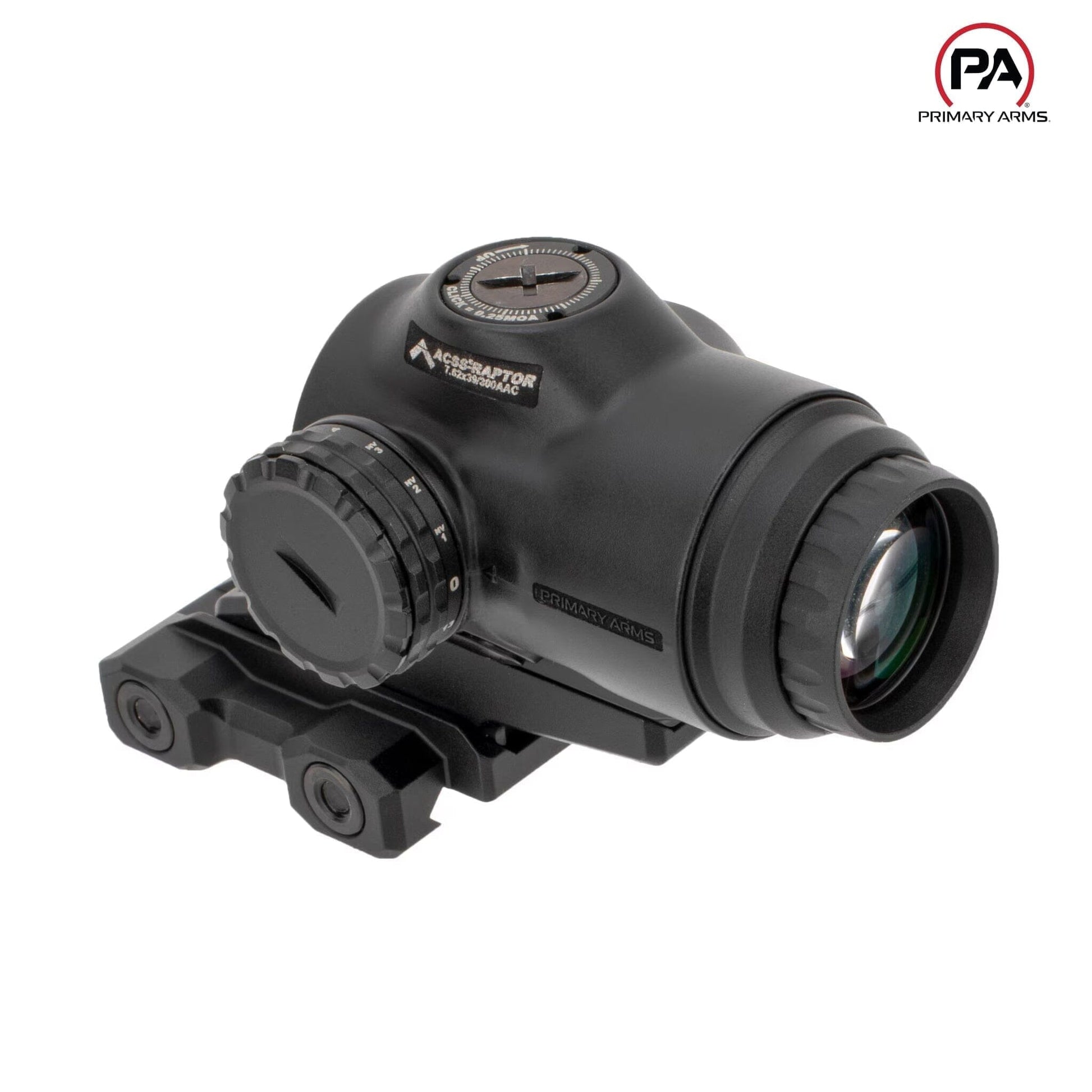

Primary Arms SLx 3× MicroPrism Scope - Red ACSS Raptor 7.62×39/.300 BLK Yard Reticle - Black
Features

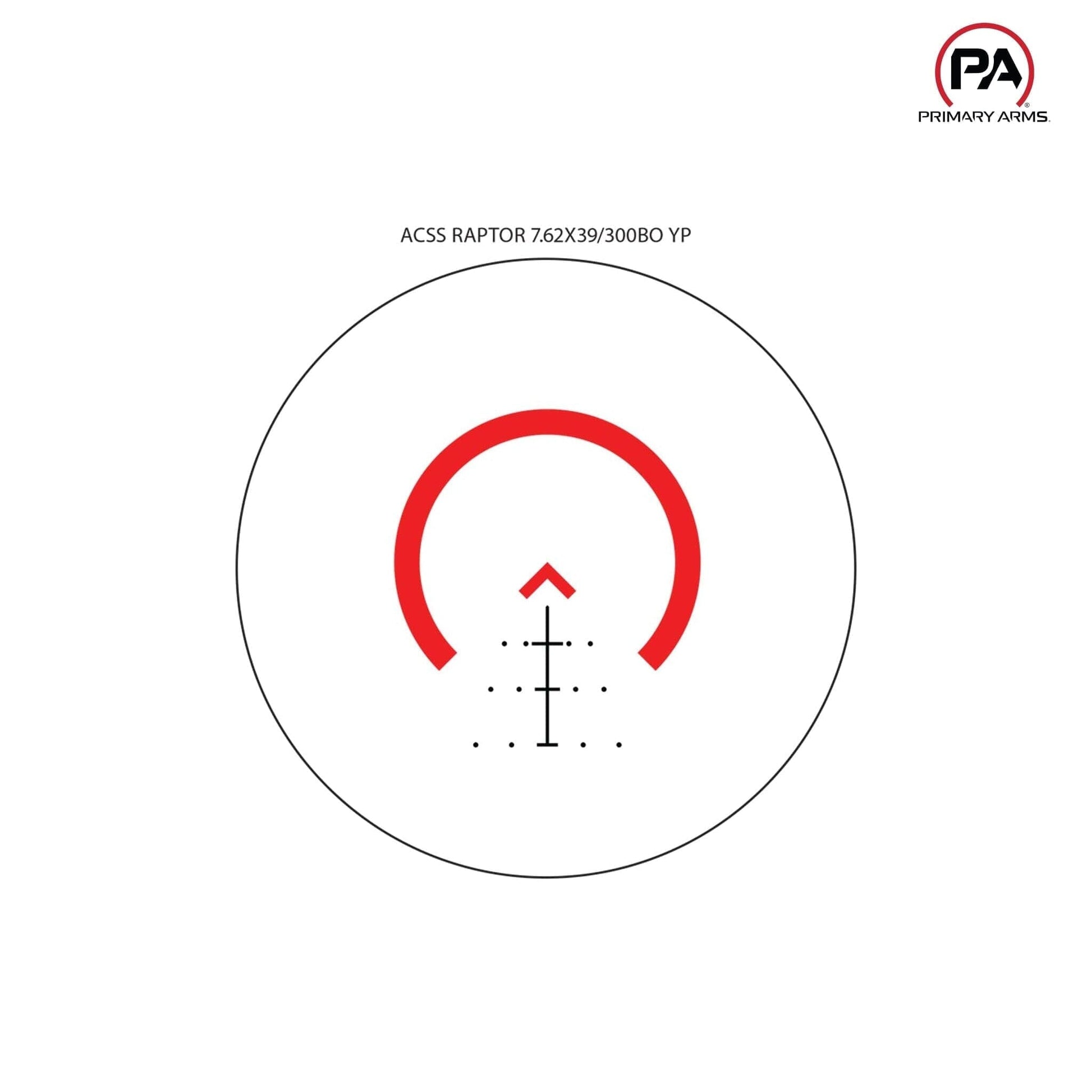

- ACSS Raptor 7.62×39/.300 BLK Yard Reticle – First-focal-plane MRAD fiber-wire reticle calibrated in 100 yd increments for 7.62×39 mm and .300 Blackout, featuring an illuminated chevron aiming point, outer horseshoe for rapid acquisition, integrated yard-based stadia, wind-age brackets, and moving-target leads; red fiber-optic illumination with 13 brightness levels, 3 NV-compatible settings, and AutoLive® motion-sensing on/off.
- True 3× Prism Design – Dedicated 3× magnification prism optic delivers enhanced mid-range target identification while retaining unlimited eye relief and minimal parallax.
- Advanced Illumination System – Red LED powered by a single CR2032 battery (included) with AutoLive® motion-sensing to extend battery life and automatic 6 h shut-off when stationary.
- SOS® Steel-on-Steel Turrets – Exposed, capped turrets with tactile 0.25 MOA clicks; 80 MOA total elevation and 80 MOA total windage adjustment for dialing extended engagements.
- Durable Aluminum Chassis – CNC-machined 30 mm 6061-T6 aluminum tube in matte-black Type III hard-anodize; O-ring sealed and nitrogen-purged for IP67 waterproof and fog-proof reliability.
- Rapid-Focus Eyepiece – Fast-focus diopter adjustment ensures crisp reticle clarity across all shooters.
Technical Specifications for Primary Arms SLx 3× MicroPrism Scope - Red ACSS Raptor 7.62×39/.300 BLK Yard Reticle - Black
Specification |
Details |
Manufacturer |
Primary Arms |
Model / MPN |
SLx 3× MicroPrism / 710040 |
SKU |
PA-SLX-3XMP-RAPTOR-7YP |
UPC |
818500015680 |
Magnification |
Fixed 3× |
Objective Lens Diameter |
20 mm |
Tube Diameter |
30 mm |
Reticle |
ACSS Raptor 7.62×39/.300 BLK Yard (FFP), fiber-wire illuminated |
Illumination Settings |
13 levels; 3 NV-compatible; AutoLive® motion-sensing |
Field of View |
38 ft @ 100 yd |
Eye Relief |
2.70 in (68.6 mm) |
Exit Pupil |
7.4 mm |
Diopter Adjustment |
± 3 dpt |
Elevation Total Adjustment |
80 MOA |
Windage Total Adjustment |
80 MOA |
Click Value |
0.25 MOA per click |
Parallax Adjustment |
Fixed at 3× |
Length |
4.2 in (107 mm) |
Weight |
12.4 oz (352 g) |
Finish |
Matte-black Type III hard-anodize |
Waterproof / Fog-Proof |
IP67 (1 m submersion; fog-proof) |
Warranty |
Lifetime warranty |
Included Accessories
- Flip-up lens covers
- CR2032 battery (installed)
- Lens cleaning cloth
- Instruction manual & warranty documentation
