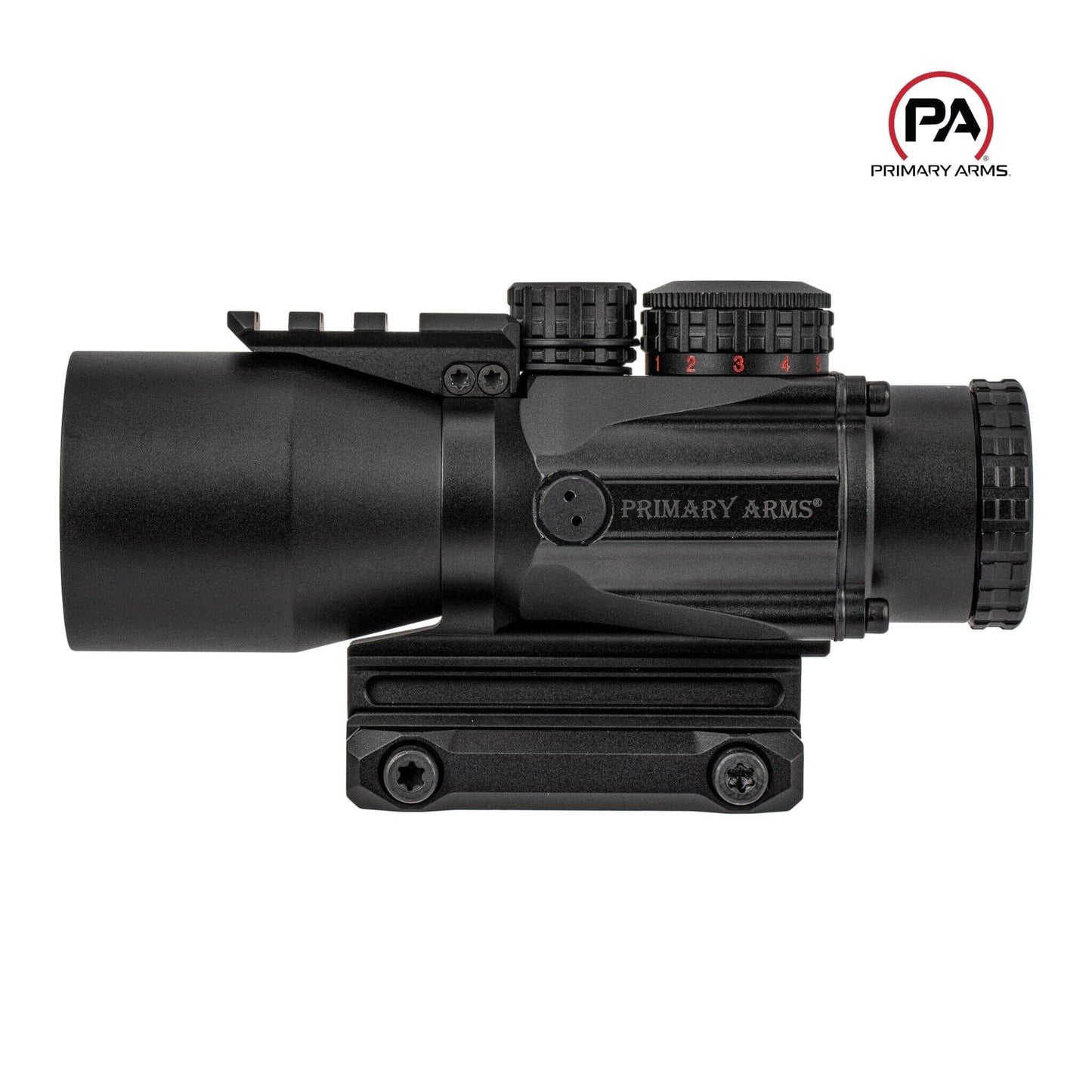

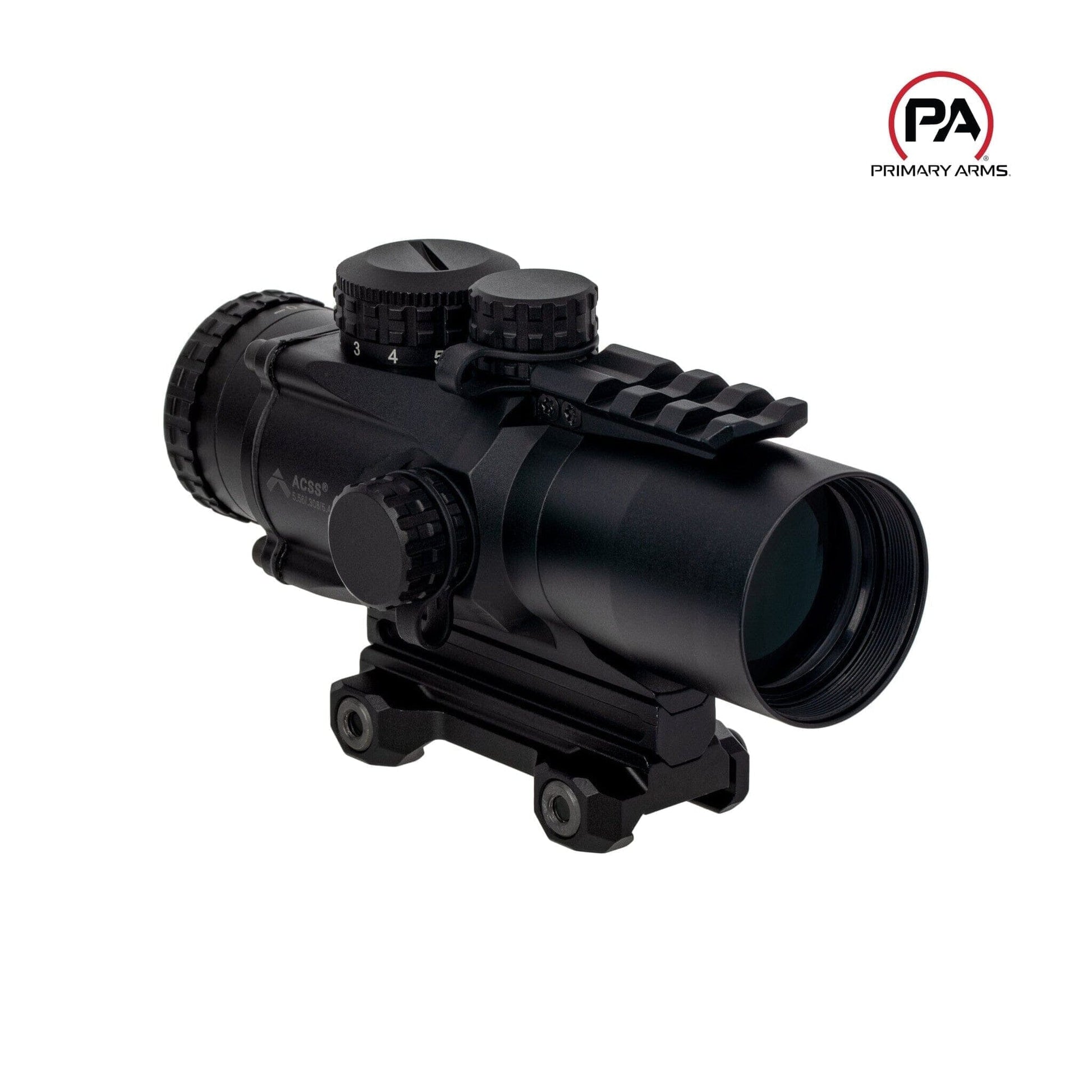

Primary Arms SLx 5×36 Gen III Prism Scope - ACSS 5.56/.308 Reticle
Features

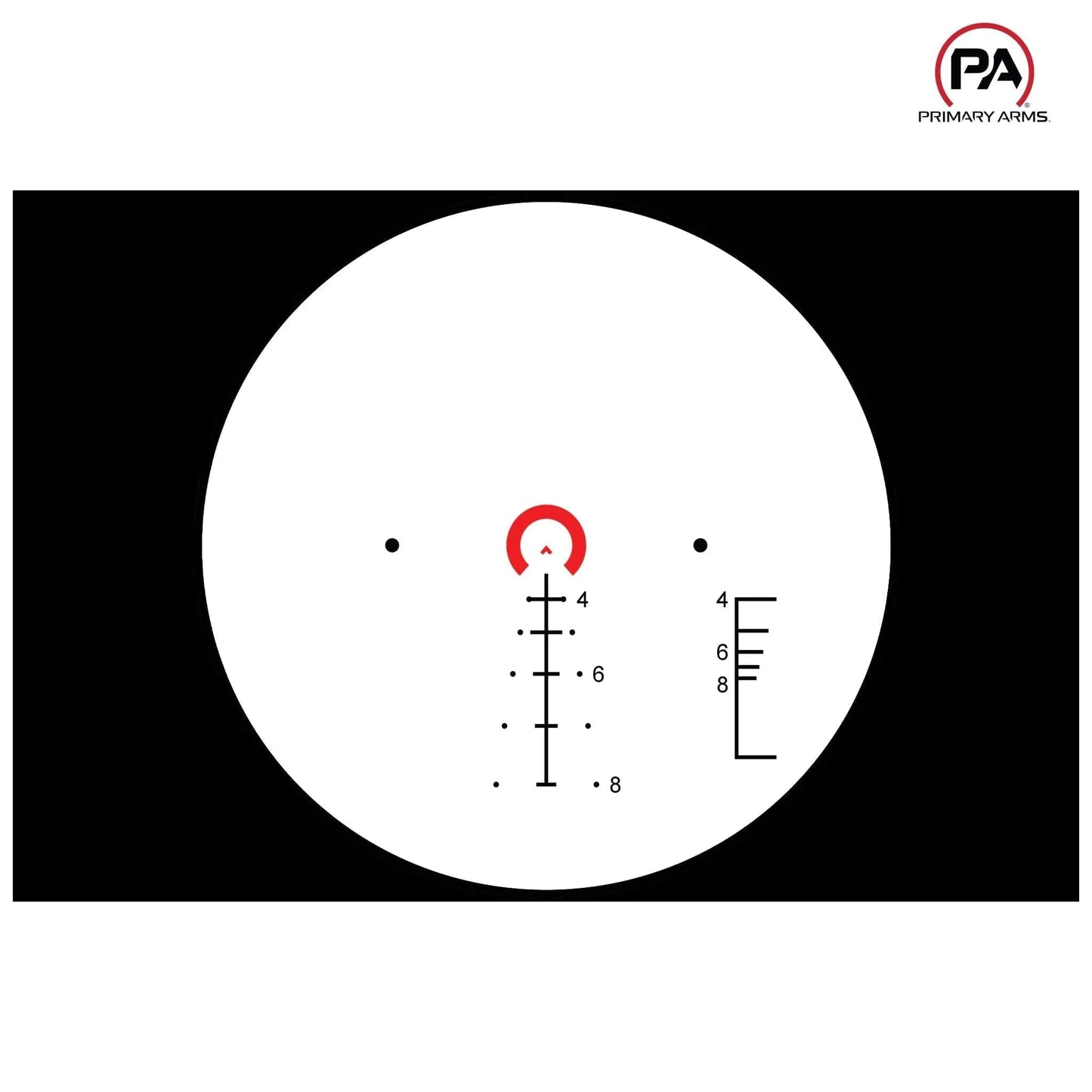

- ACSS 5.56/.308 Reticle – First-focal-plane, glass-etched MRAD reticle calibrated for 5.56 NATO/.223 Rem and .308 Win with integrated ranging stadia to 600 yd, chevron aiming point, wind-hold brackets, moving-target leads, and rapid-range hashmarks; full-time red-LED illumination with 11 brightness levels
- Fixed 5× Magnification – Dedicated 5× prism power for rapid, both-eyes-open target acquisition and precise mid-range engagements
- Premium Optics – 36 mm objective and 25 mm ocular with fully multi-coated, extra-low-dispersion Japanese glass for high light transmission, crisp contrast, and edge-to-edge clarity; generous 7.2 mm exit pupil for a forgiving eye box
- Enhanced Mounting System – One-piece clamp mount with integrated AR-height riser and removable MIL-STD-1913 top rail for co-witness or piggy-back optics
- SOS® Steel-on-Steel Turrets – Capped turrets with tactile 0.25 MOA clicks; > 60 MOA total elevation (zero-resettable) and > 60 MOA total windage adjustment
- Durable Chassis – CNC-machined 30 mm one-piece 6061-T6 aluminum tube in matte-black Type III hard-anodize; O-ring sealed and nitrogen-purged for IP67 waterproofing, fog-proofing, and shock resistance
- Optimized Ergonomics – 2.8 in – 3.2 in eye relief; 32 ft @ 100 yd field of view; fast-focus eyepiece with replaceable magnification fin for rapid adjustment.
Technical Specifications for Primary Arms SLx 5×36 Gen III Prism Scope - ACSS 5.56/.308 Reticle
Specification |
Details |
Manufacturer |
Primary Arms |
Model / Part Number |
SLx 5×36 Gen III Prism Scope / PAC5X-GENIII-ACSS-5.56 |
SKU / MPN |
PAC5X-GENIII-ACSS-5.56 / 710028 |
UPC |
818500014935 |
Magnification |
Fixed 5× |
Objective Lens Diameter |
36 mm |
Ocular Lens Diameter |
25 mm |
Tube Diameter |
30 mm |
Reticle |
ACSS 5.56/.308 (FFP), red-LED illuminated |
Illumination Settings |
11 levels |
Field of View |
32 ft @ 100 yd (9.8 m @ 91 m) |
Eye Relief |
2.8 in – 3.2 in (71 – 81 mm) |
Exit Pupil |
7.2 mm |
Diopter Adjustment |
± 3 dpt |
Click Value |
0.25 MOA per click |
Elevation Total Adjustment |
> 60 MOA (zero-resettable) |
Windage Total Adjustment |
> 60 MOA |
Parallax |
Fixed at 5× |
Mount Compatibility |
Picatinny MIL-STD-1913; includes AR-height riser |
Length (without covers) |
5.5 in (140 mm) |
Weight (with mount & battery) |
17 oz (482 g) |
Battery Type |
CR2032 3 V lithium coin (installed) |
Waterproof / Fog-Proof |
IP67 (1 m submersion; fog-proof) |
Finish |
Matte-black Type III hard-anodize |
Warranty |
Lifetime warranty |
Included Accessories
- AR-height riser
- Removable Picatinny top rail
- Flip-up lens covers
- CR2032 battery (installed)
- Lens cleaning cloth
- Instruction manual & warranty documentation
