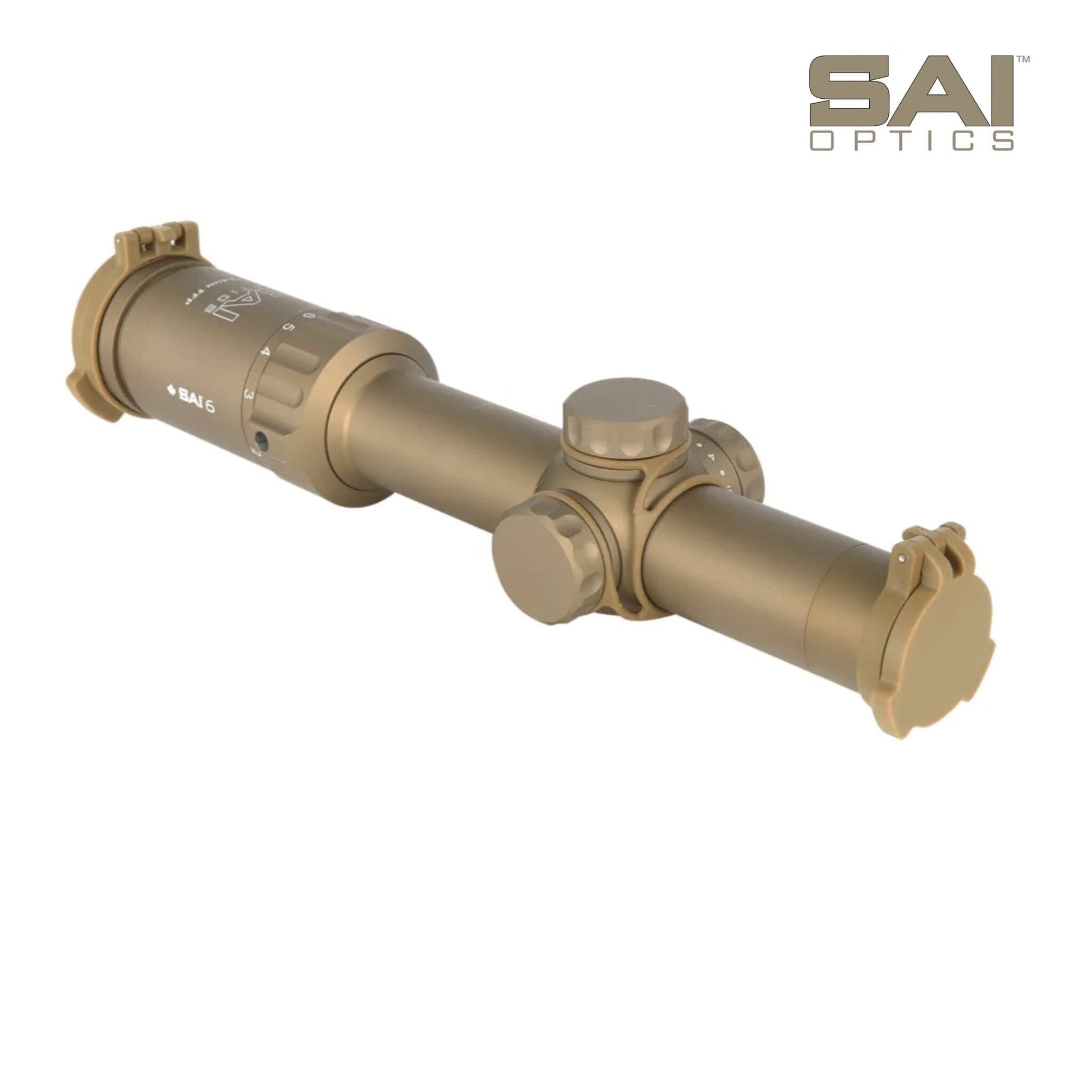

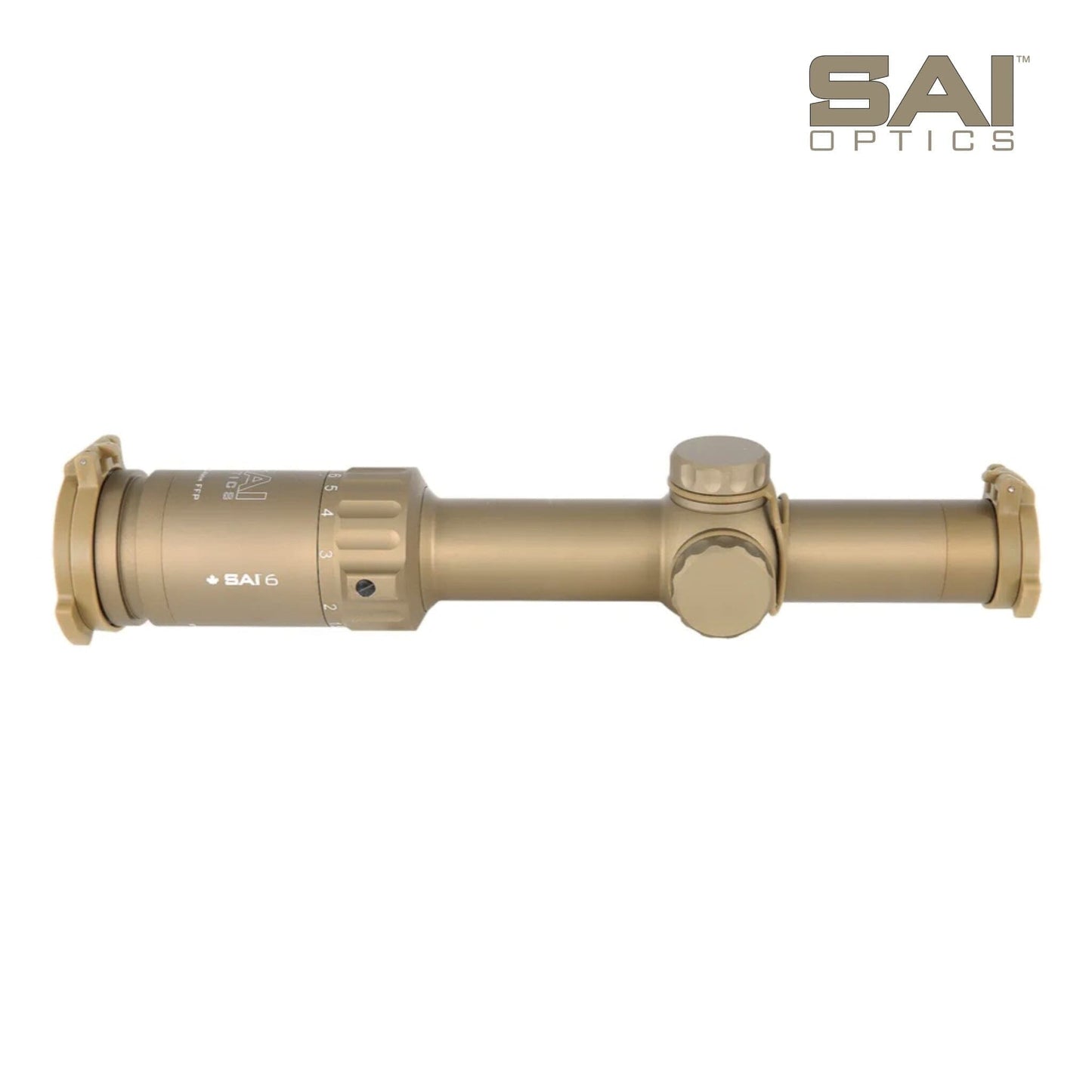

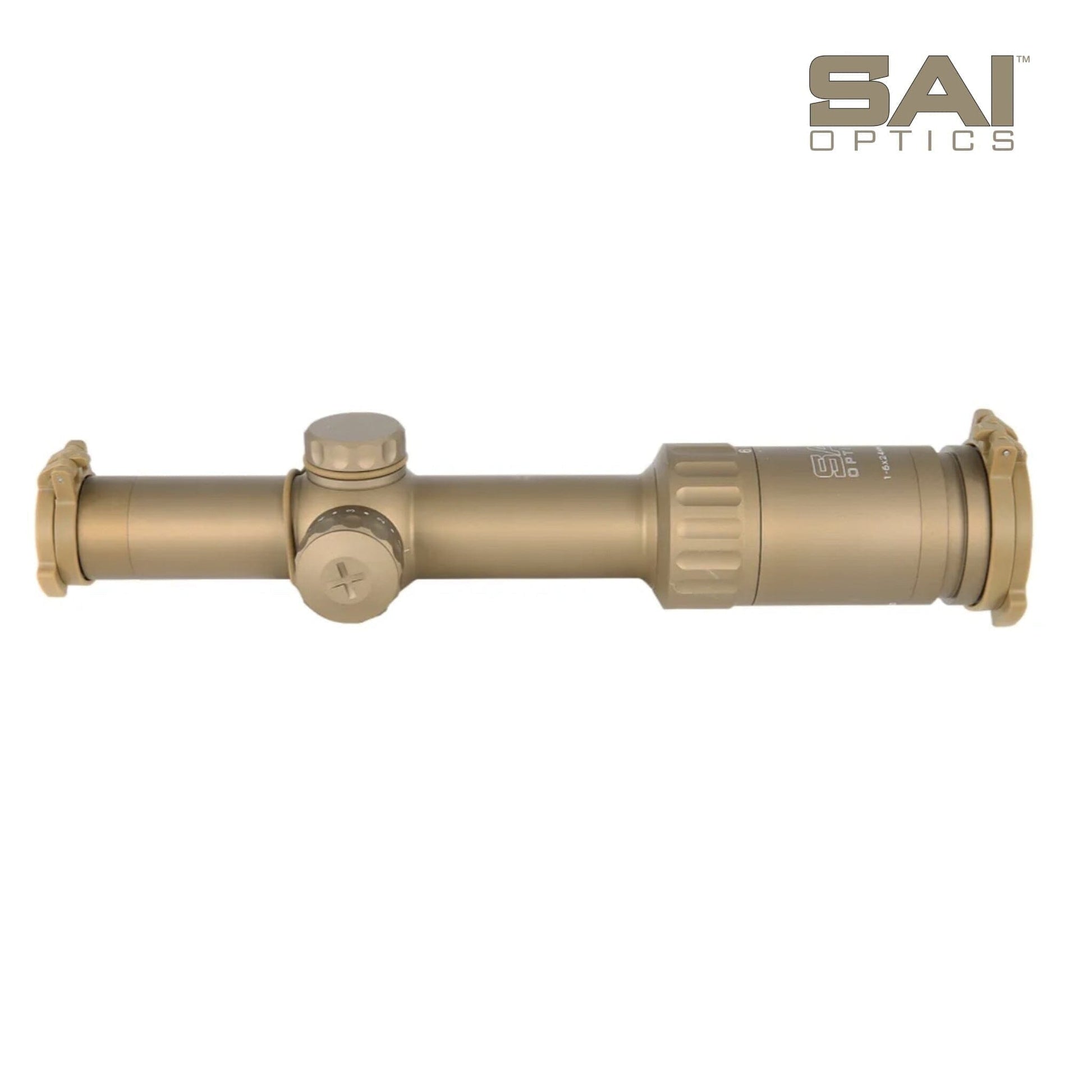

SAI Optics 1-6x24 Riflescope .223/5.56 Crosshair Reticle
SAI Optics 1-6x24 Riflescope .223/5.56 Crosshair Reticle
Couldn't load pickup availability
SAI Optics 1-6x24 Riflescope .223/5.56 Crosshair Reticle
Features

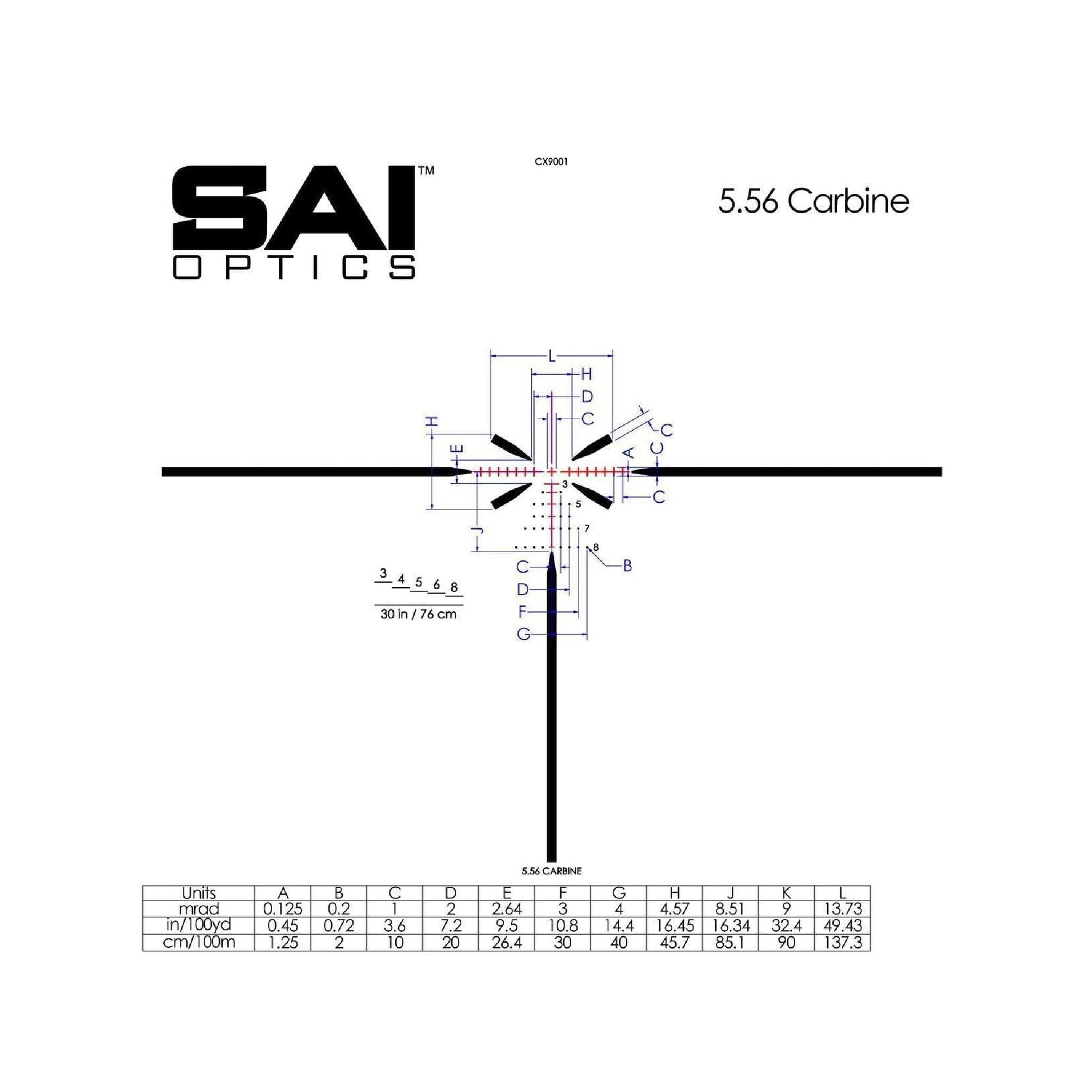

- Crosshair Reticle with Rapid Aiming Feature (RAF) – First focal plane reticle designed for fast target acquisition. Calibrated for 5.56 NATO with VSOR range estimation, holdovers, and wind holds.
- 1–6× Magnification Range – Ideal for both close-quarters and mid-range engagements.
- First Focal Plane (FFP) Reticle – Ensures accurate holdovers and range estimation at all magnifications.
- LED-Illuminated Reticle – Adjustable brightness with daylight-visible center cross; RAF outline remains non-illuminated.
- Fixed Parallax at 110m – Optimized for rapid transitions and typical engagement distances in tactical environments.

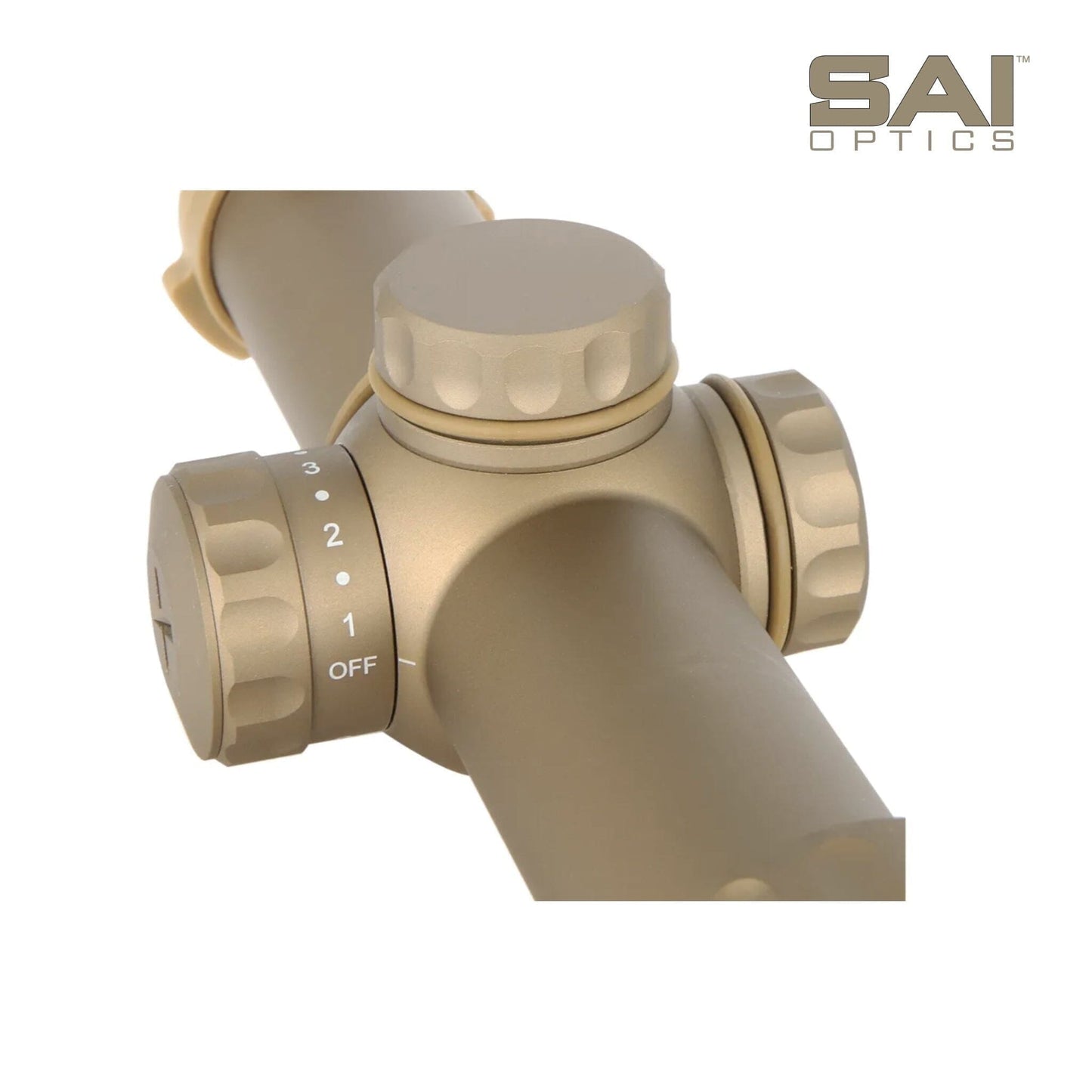

- Precise 0.1 mrad Adjustments – Repeatable, tactile turret clicks for windage and elevation.
- Rugged Duty-Grade Construction – Waterproof to 3 meters, shockproof (tested to 1000g), fog-resistant, and built to handle extreme temperatures from –40°C to +65°C.
- Matte Hardcoat Anodized Finish – Durable and non-reflective to reduce visual signature.
Technical Specifications for SAI Optics 1-6x24 Riflescope .223/5.56 Crosshair Reticle
|
Specification |
Details |
|
Manufacturer |
SAI Optics |
|
Model / MPN |
RNG16-T170-C10 |
|
SKU |
RNG16-T170-C10 |
|
UPC |
666595000582 |
|
Magnification |
1–6× |
|
Objective Lens Diameter |
24 mm |
|
Tube Diameter |
30 mm |
|
Reticle |
FFP Crosshair with RAF, LED-illuminated |
|
Caliber Calibration |
.223/5.56 NATO |
|
Click Value |
0.1 mrad |
|
Elevation / Windage Range |
35 mrad (~120 MOA) |
|
Parallax |
Fixed @ 110 m |
|
Eye Relief |
~90 mm (3.5″) |
|
Exit Pupil |
9.5 mm (1×) / 4.0 mm (6×) |
|
Field of View @ 100 m |
38.8 m (1×) / 6.5 m (6×) |
|
Length |
256 mm (10.07″) |
|
Weight |
510 g (18 oz) |
|
Finish |
Hardcoat Anodized – Matte Black |
|
Housing Material |
Aircraft-Grade Aluminum |
|
Waterproof / Fogproof |
Yes – waterproof to 3 m, nitrogen-purged |
|
Shock Resistance |
1000 g – tested over 10,000 impacts |
|
Illumination |
LED, 10 brightness settings |
|
Battery Type |
CR2032 |
|
Operating Temperature |
–40°C to +65°C |
|
Warranty |
Limited 5-Year / Lifetime Mechanical |
|
Country of Origin |
Japan (optics) / Assembled in USA |
Included Accessories
- Tenebraex Tactical Flip-Up Lens Covers
- KillFlash Anti-Reflection Device
- CR2032 Battery
- Adjustment-Cap Lanyard
- Battery Tool
- User Manual
- Warranty Documentation
