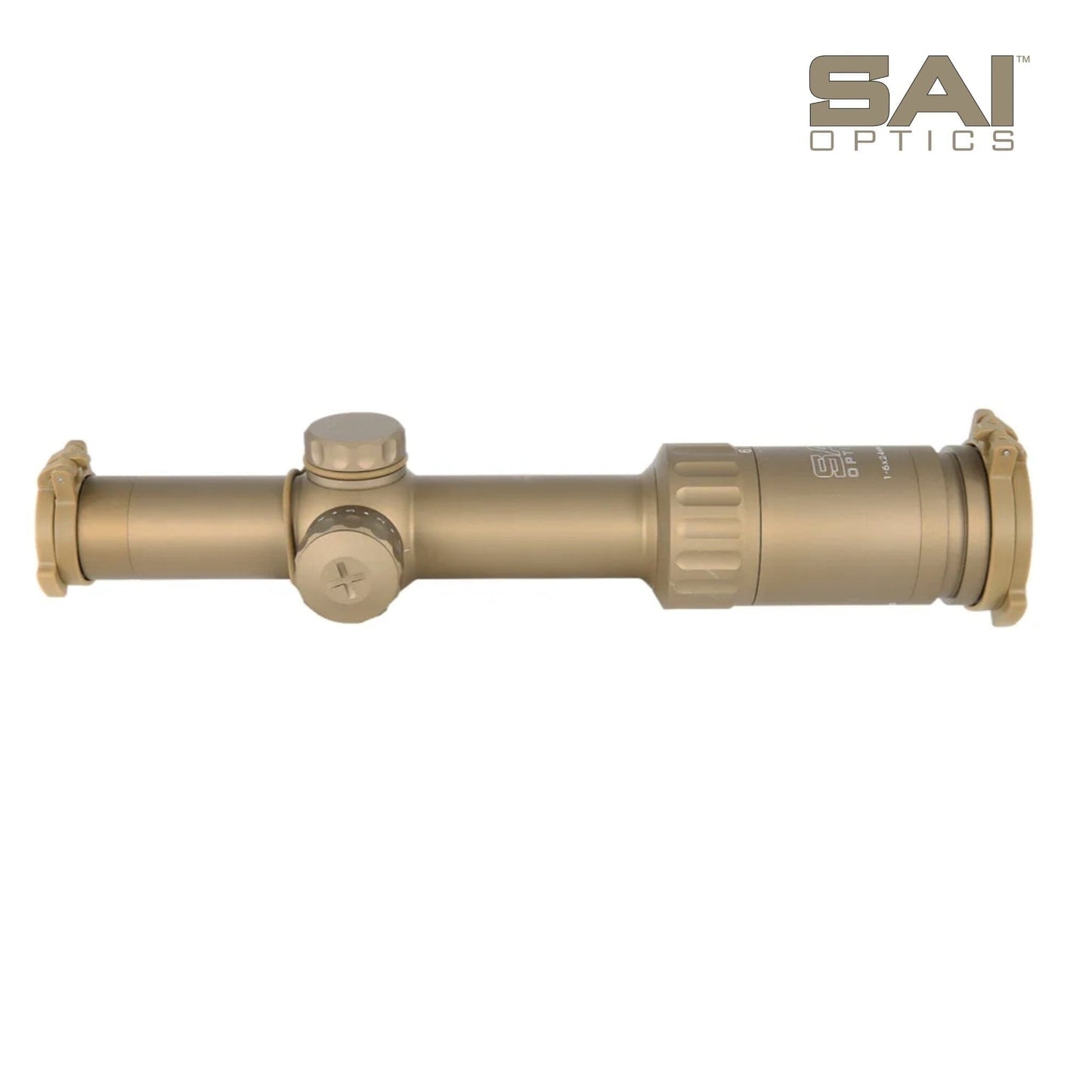

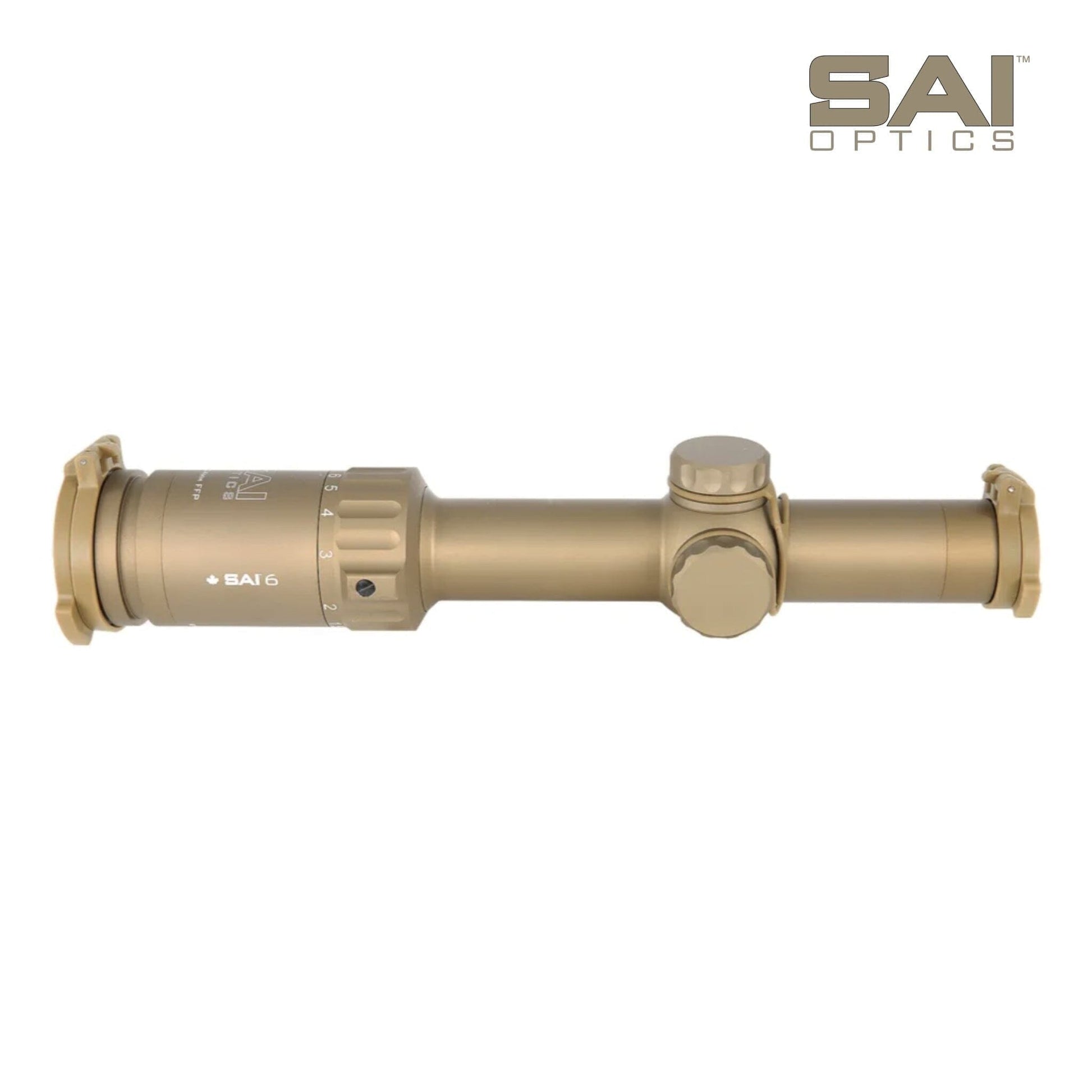

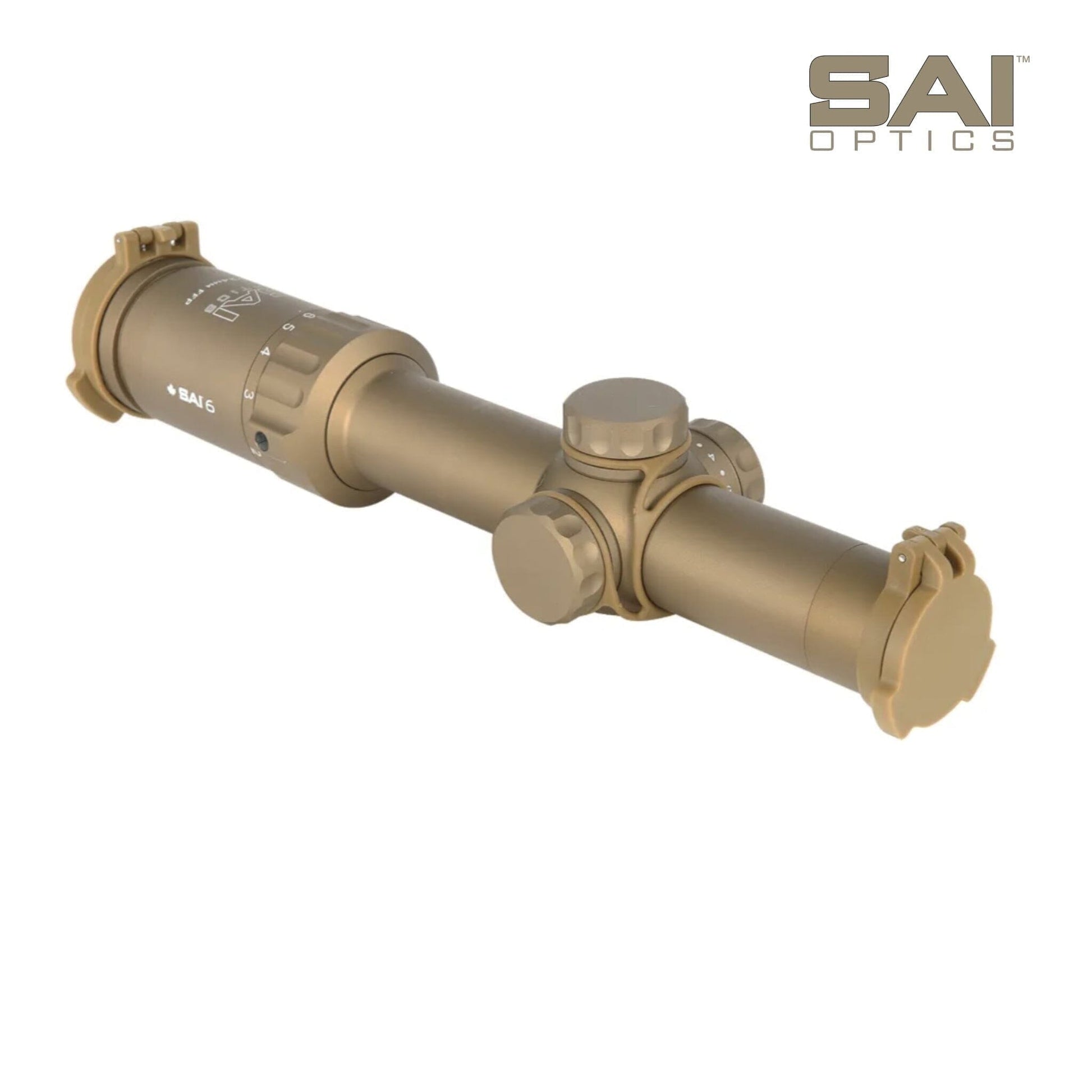

SAI Optics 1-6x24 Riflescope .308/7.62 Crosshair Reticle
SAI Optics 1-6x24 Riflescope .308/7.62 Crosshair Reticle
Couldn't load pickup availability
SAI Optics 1-6x24 Riflescope .308/7.62 Crosshair Reticle
Features

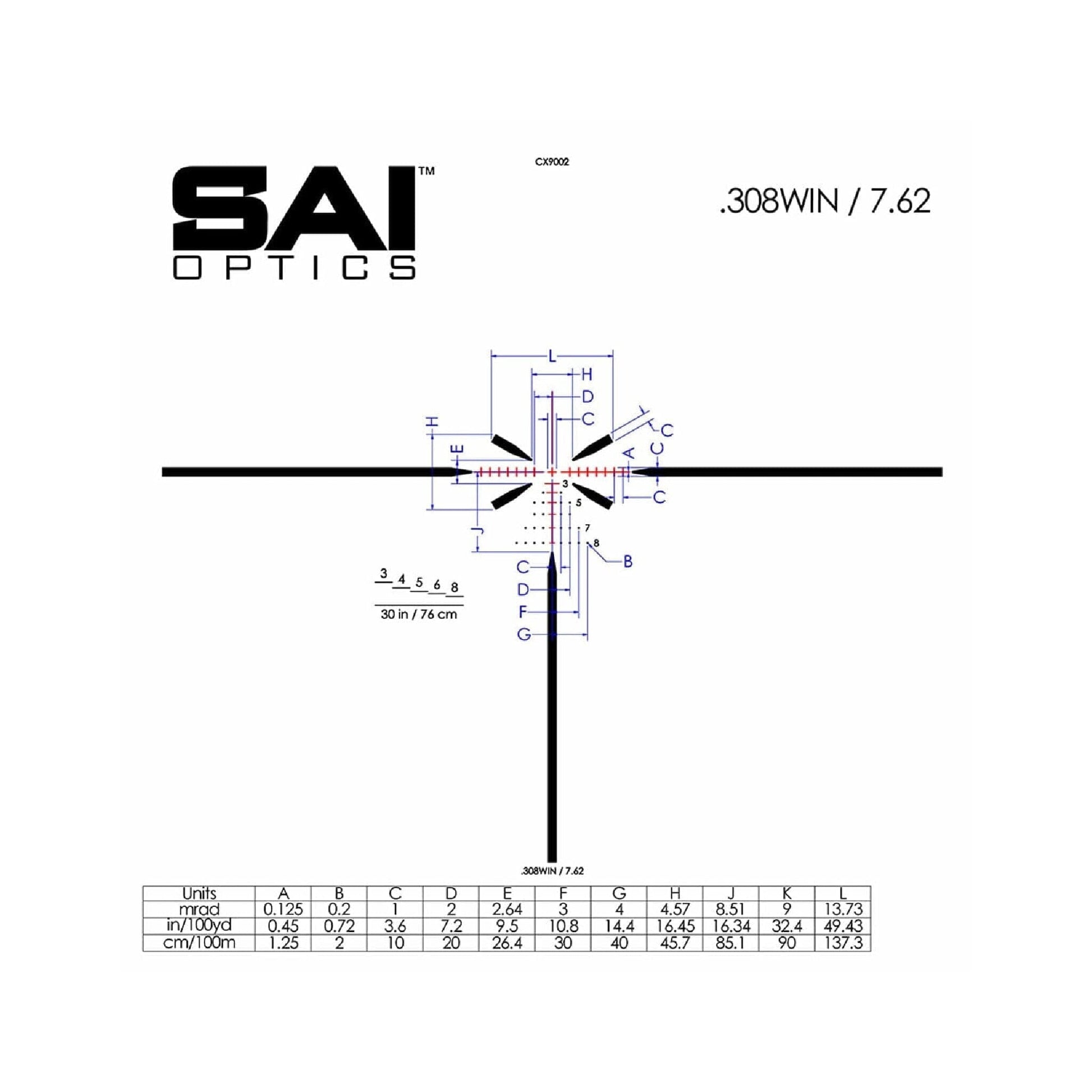

- Rapid Aiming Feature (RAF) Crosshair Reticle – First focal plane reticle designed for fast target acquisition. Calibrated for 7.62 NATO, featuring a floating center cross, holdover hash marks, wind hold-off dots, and a VSOR rangefinder.
- 1–6× Magnification Range – Ideal for both close-quarters and mid-range engagements, offering fast transitions with a wide field of view.
- First Focal Plane (FFP) Reticle – Ensures accurate holdovers and range estimation at all magnifications.
- LED-Illuminated Reticle – Adjustable brightness settings with daylight-visible center cross; RAF “X” remains etched only.
- Fixed Parallax at 110 m – Optimized for typical engagement distances with minimal distortion.

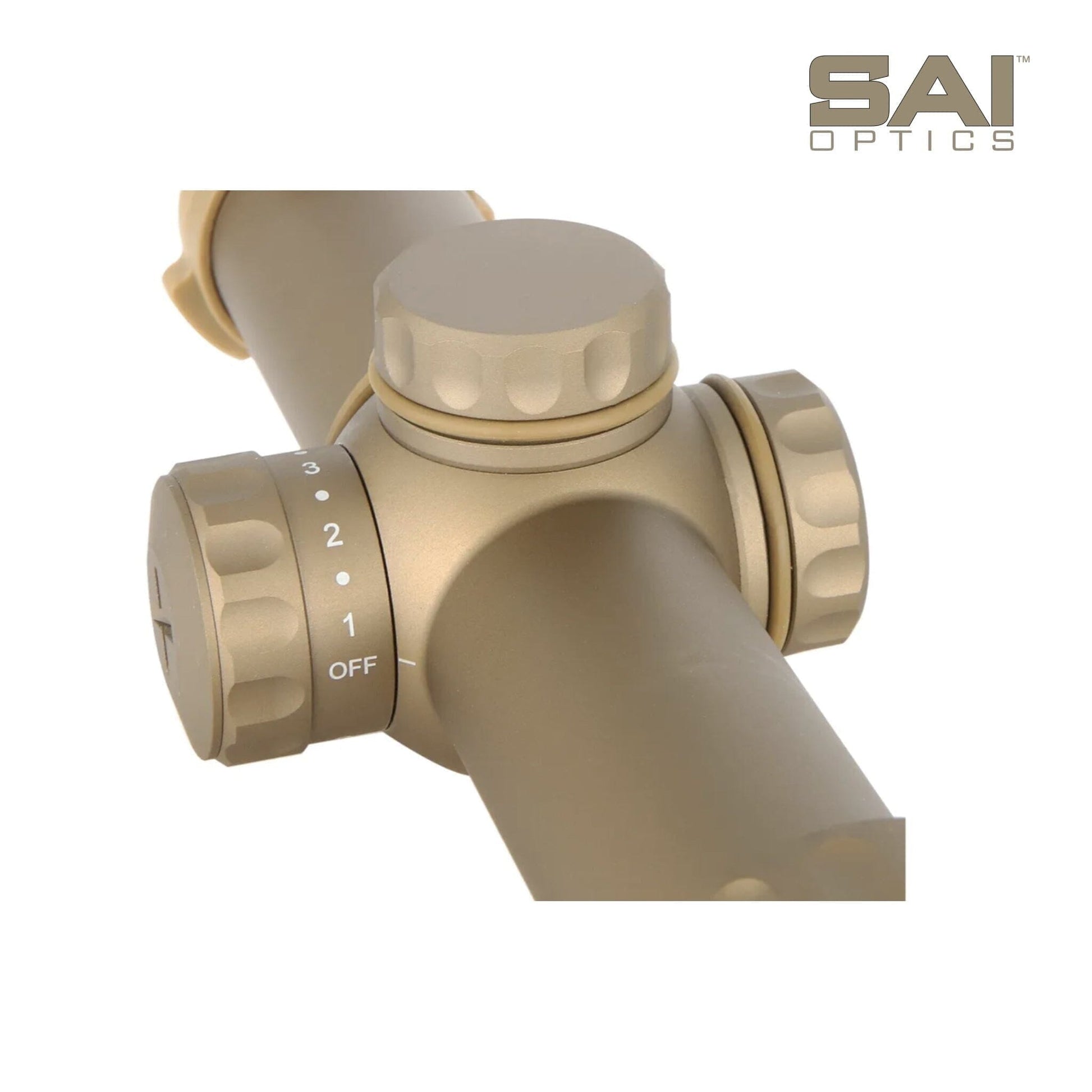

- 0.1 mrad Adjustments – Tactile and repeatable turret clicks for precise windage and elevation changes.
- Rugged Construction – Waterproof to 3 m, fogproof, and shockproof up to 1000 g for 10,000 cycles. Designed to perform in extreme environments from –40°C to +65°C.
- Matte Hardcoat Anodized Finish – Non-reflective and built for durability in demanding operational conditions.
Technical Specifications for SAI Optics 1-6x24 Riflescope .308/7.62 Crosshair Reticle
Specification |
Details |
Manufacturer |
SAI Optics |
Model / MPN |
RNG16-T170-C20 |
SKU |
RNG16-T170-C20 |
UPC |
666595000780 |
Magnification |
1–6× |
Objective Lens Diameter |
24 mm |
Tube Diameter |
30 mm |
Reticle |
FFP Crosshair with Rapid Aiming Feature |
Caliber Compatibility |
Calibrated for .308 / 7.62 NATO |
Click Value |
0.1 mrad |
Elevation / Windage Range |
±35 mrad (~120 MOA) |
Parallax |
Fixed at 110 m |
Eye Relief |
~90 mm (3.5″) |
Exit Pupil |
9.5 mm (1×) / 4.0 mm (6×) |
Field of View @ 100 m |
38.8 m (1×) / 6.5 m (6×) |
Length |
256 mm (10.07″) |
Weight |
510 g (18 oz) |
Finish |
Hardcoat Anodized – Matte Black |
Housing Material |
Aircraft-Grade Aluminum |
Waterproof / Fogproof |
Yes – Waterproof to 3 m; nitrogen-purged |
Shock Resistance |
Rated to 1000 g over 10,000 impacts |
Illumination |
LED, 10 brightness settings |
Battery Type |
CR2032 |
Operating Temperature |
–40°C to +65°C |
Warranty |
5-Year Limited / Lifetime Mechanical |
Country of Origin |
Japan (optics); assembled by SAI/ATI |
Included Accessories
- Tenebraex Tactical Flip-Up Lens Covers
- KillFlash Anti-Reflection Device
- CR2032 Battery
- Adjustment-Cap Lanyard
- Battery Tool
- User Manual
- Warranty Documentation
