SAI Optics 1-6x24 Riflescope 6.8 BDC RAF Reticle
SAI Optics 1-6x24 Riflescope 6.8 BDC RAF Reticle
Couldn't load pickup availability
SAI Optics 1-6x24 Riflescope 6.8 BDC RAF Reticle
Features

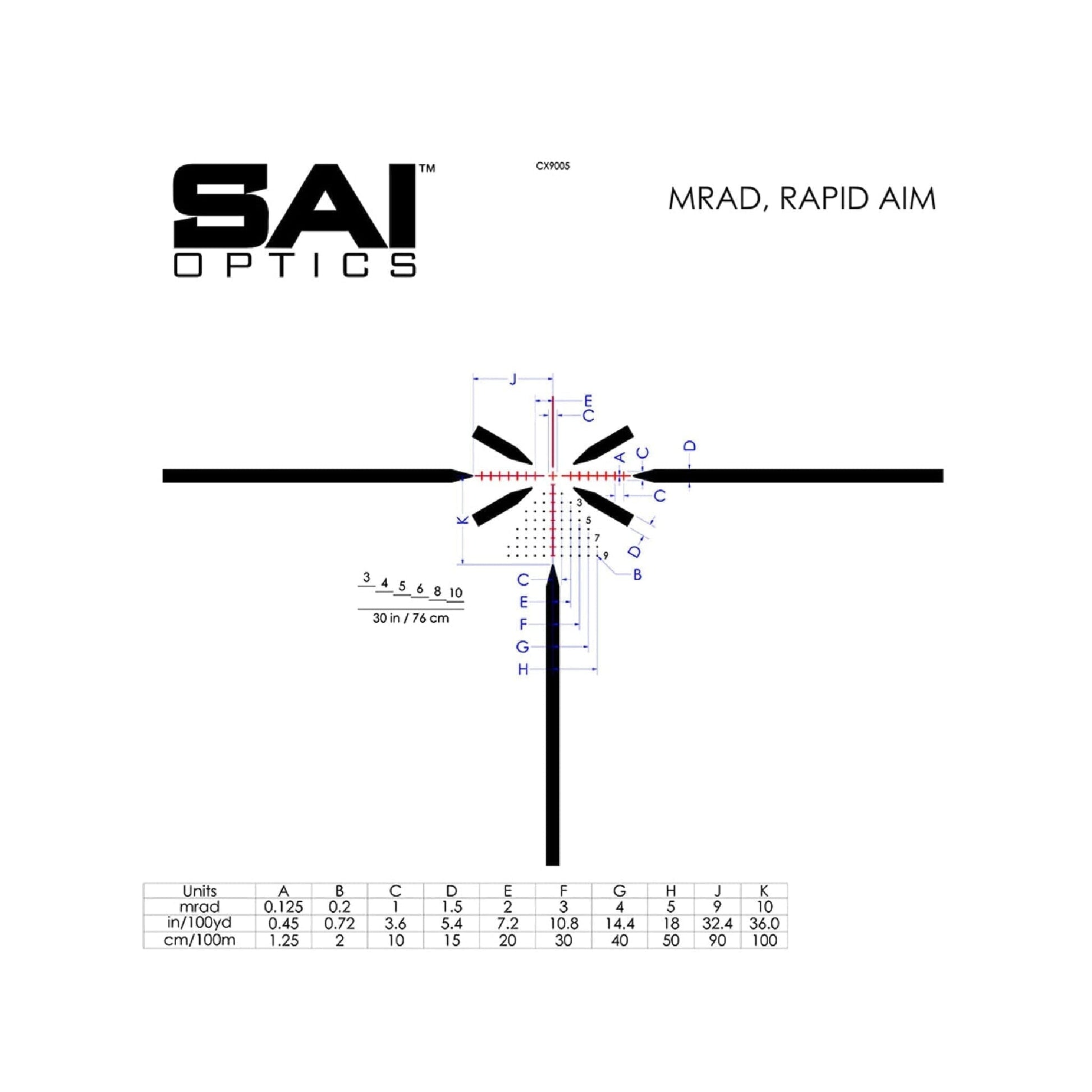

- Rapid Aiming Feature (RAF) Reticle with 6.8 BDC – First focal plane reticle featuring a bold open “X” design for quick close-quarters acquisition, floating center cross, elevation holdovers, windage dots, and VSOR rangefinder calibrated for 6.8x51mm NATO.
- 1–6× Variable Magnification – Versatile optical zoom ideal for both close and mid-range engagements.
- First Focal Plane (FFP) Reticle – Ensures consistent subtensions and accurate holdovers at all magnification levels.
- LED-Illuminated Center Cross – Red LED with 10 brightness levels; RAF outline remains etched for visibility with or without power.
- Fixed Parallax at 110 m – Optimized for real-world engagement distances with minimal distortion.

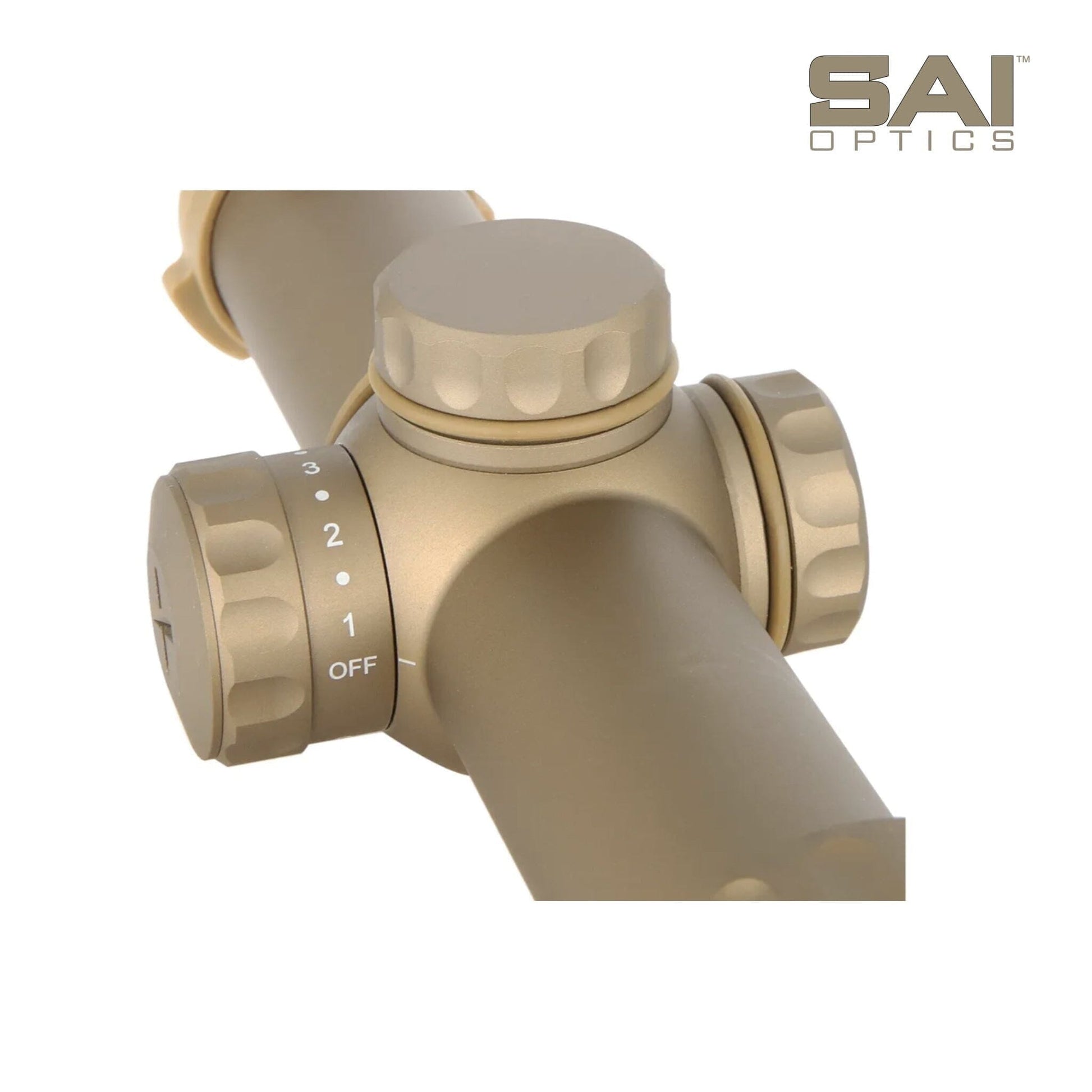

- 0.1 mrad Adjustments – Tactile turret clicks with ±35 mrad travel for windage and elevation.
- Rugged Tactical Build – Shock-rated to 1000 g over 10,000 impacts, waterproof to 3 meters for 2 hours, nitrogen-purged, and temperature-rated from –40°C to +65°C.
- Matte Hardcoat Anodized Finish – Durable and non-reflective, available in Coyote Brown or Matte Black.
Technical Specifications for SAI Optics 1-6x24 Riflescope 6.8 BDC RAF Reticle
Specification |
Details |
Manufacturer |
SAI Optics |
Model / MPN |
RNG16-T170-C30 |
SKU |
RNG16-T170-C30 |
UPC |
666595000889 |
Magnification |
1–6× |
Objective Lens Diameter |
24 mm |
Tube Diameter |
30 mm |
Reticle |
FFP Crosshair with Rapid Aiming Feature (RAF) |
Caliber Compatibility |
Calibrated for 6.8×51 NATO |
Click Value |
0.1 mrad |
Elevation / Windage Range |
±35 mrad (~120 MOA) |
Parallax |
Fixed at 110 m |
Eye Relief |
~90 mm (3.54″) |
Exit Pupil |
9.5 mm (1×) / 4.0 mm (6×) |
Field of View @ 100 m |
38.8 m (1×) / 6.5 m (6×) |
Length |
256 mm (10.07″) |
Weight |
510 g (18 oz) |
Finish |
Hardcoat Anodized – Coyote Brown |
Housing Material |
Aircraft-Grade Aluminum |
Waterproof / Fogproof |
Yes – Waterproof to 3 m; nitrogen-purged |
Shock Resistance |
1000 g over 10,000 cycles |
Illumination |
LED, 10 brightness settings |
Battery Type |
CR2032 |
Operating Temperature |
–40°C to +65°C |
Warranty |
5-Year Limited / Lifetime Mechanical |
Country of Origin |
Japan (optics); assembled by SAI |
Included Accessories
- Tenebraex Tactical Flip-Up Lens Covers
- KillFlash Anti-Reflection Device
- CR2032 Battery
- Adjustment-Cap Lanyard
- Battery Tool
- User Manual
- Warranty Documentation
