SAI Optics 1-6x24 Riflescope RAF Reticle
SAI Optics 1-6x24 Riflescope RAF Reticle
Couldn't load pickup availability
SAI Optics 1-6x24 Riflescope RAF Reticle
Features

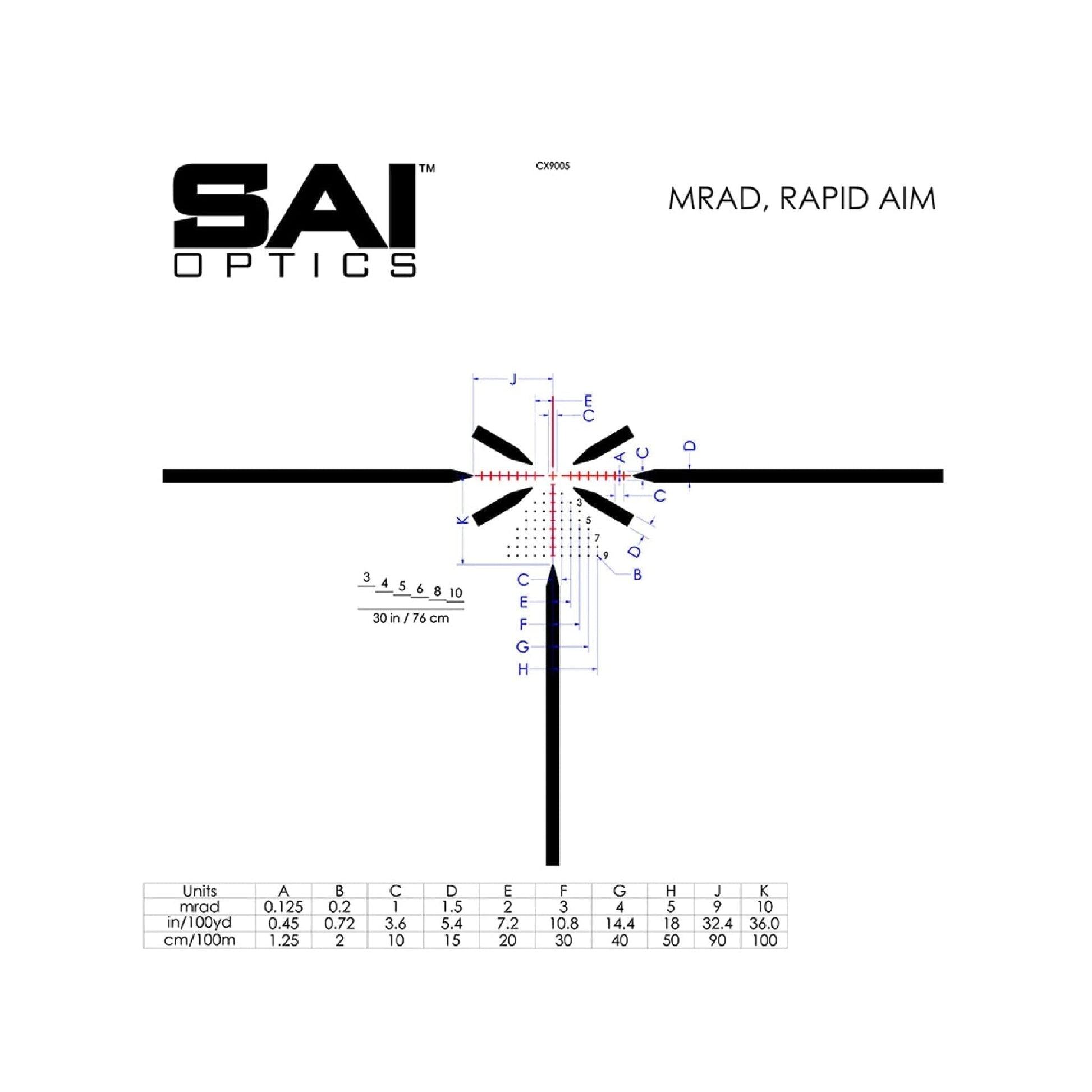

- Rapid Aiming Feature™ (RAF) Reticle with MRAD BDC – First focal plane reticle featuring a bold open “X” for close-quarters engagement, a floating center cross, elevation holdovers, windage dots, and VSOR rangefinding lines calibrated in MRAD.
- 1–6× Magnification – Versatile magnification range suitable for both close-quarters and mid-range shooting.
- First Focal Plane (FFP) – Reticle maintains consistent subtensions throughout the entire zoom range for accurate ranging and holdovers.

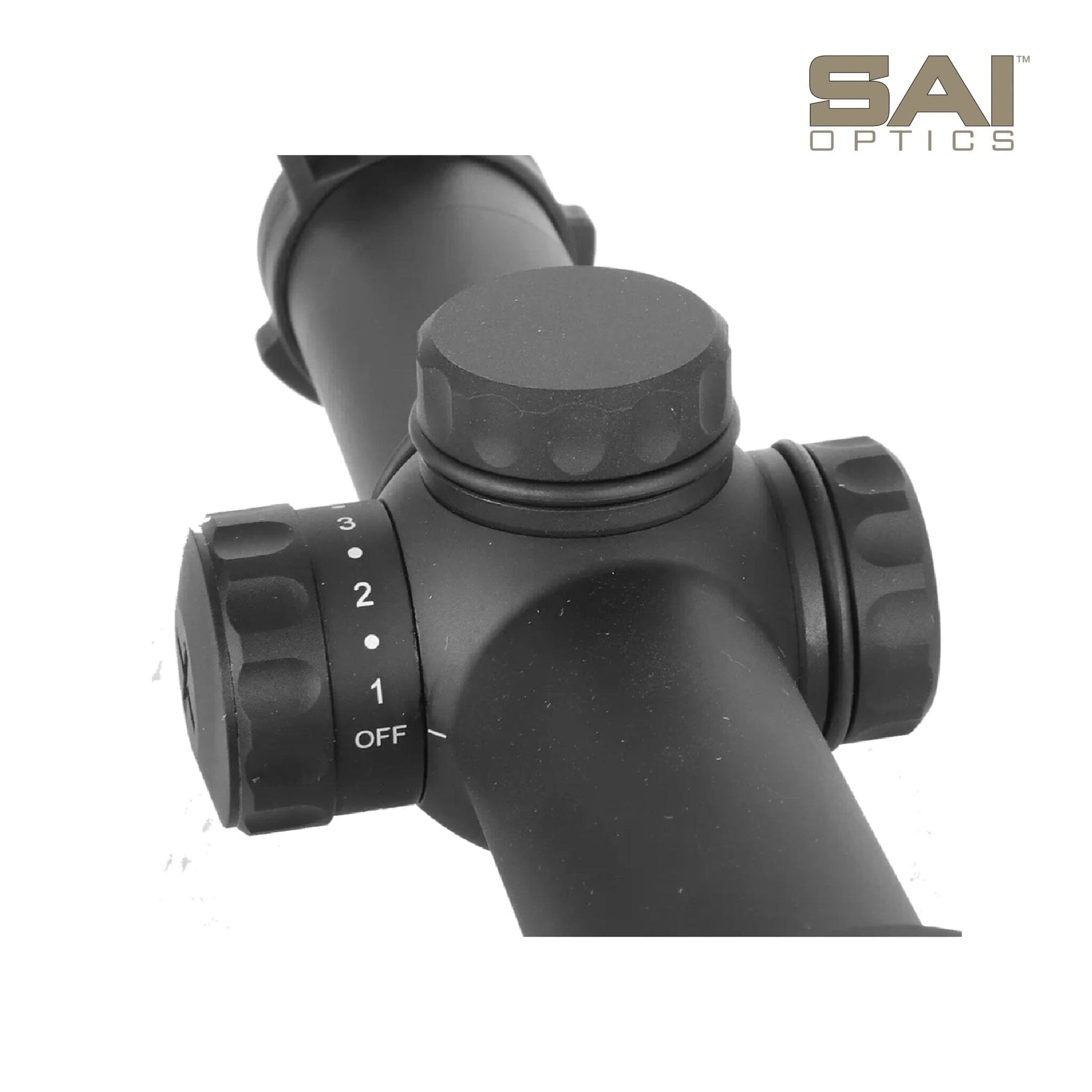

- LED-Illuminated Center Cross – 10 adjustable brightness levels; illumination focuses only on the center cross and fine stadia, leaving the RAF X always visible.
- Fixed Parallax at 110 m – Optimized for practical engagement distances with minimal visual distortion.
- Tactical-Grade Construction – Shock-rated to 1000 g over 10,000 cycles, waterproof up to 3 meters for 2 hours, fogproof and nitrogen-purged, and reliable in extreme environments from –40°C to +65°C.
- Matte Black Finish – Durable, non-reflective, Type II hardcoat anodized finish for stealth and corrosion resistance.
- Accessory-Compatible Design – Accepts standard flip covers, anti-reflection devices, and filter-compatible accessories.
Technical Specifications for SAI Optics 1-6x24 Riflescope RAF Reticle
Specification |
Details |
Manufacturer |
SAI Optics |
Model / MPN |
RNG16-BK22-MA1 |
SKU |
RNG16-BK22-MA1 |
UPC |
666595000896 |
Magnification |
1–6× |
Objective Lens Diameter |
24 mm |
Tube Diameter |
30 mm |
Reticle |
FFP MRAD BDC Reticle with Rapid Aiming Feature (RAF) |
Click Value |
0.1 mrad |
Elevation / Windage Range |
±35 mrad (approx. 120 MOA) |
Parallax |
Fixed at 110 m |
Eye Relief |
~90 mm (3.5″) |
Exit Pupil |
9.5 mm (1×) / 4.0 mm (6×) |
Field of View @ 100 m |
38.8 m (1×) / 6.5 m (6×) |
Length |
256 mm (10.07″) |
Weight |
510 g (18 oz) |
Finish |
Hardcoat Anodized – Matte Black |
Housing Material |
Aircraft-Grade Aluminum |
Waterproof / Fogproof |
Submersible to 3 m for 2 hours; nitrogen-purged |
Shock Resistance |
1000 g rated – 10,000 cycle impact testing |
Illumination |
LED – 10 brightness settings |
Battery Type |
CR2032 |
Operating Temperature |
–40°C to +65°C |
Warranty |
5-Year Limited / Lifetime Mechanical |
Country of Origin |
Japan (optics); assembled by SAI |
Included Accessories
- Tenebraex Flip-Up Lens Covers
- KillFlash Anti-Reflection Device
- CR2032 Battery
- Adjustment Cap Lanyard
- Battery Tool
- User Manual
- Warranty Card
