Steiner Optics
Steiner T6Xi 1-6x24mm FFP Rifle Scope KC-1 Reticle
Steiner T6Xi 1-6x24mm FFP Rifle Scope KC-1 Reticle
Couldn't load pickup availability
Steiner T6Xi 1–6×24mm FFP Rifle Scope KC-1 Reticle
(Model 5103)
Features
- 1–6× Variable Magnification: Rapid throw-lever changes for close-quarters (1×) to mid-range precision (6×).

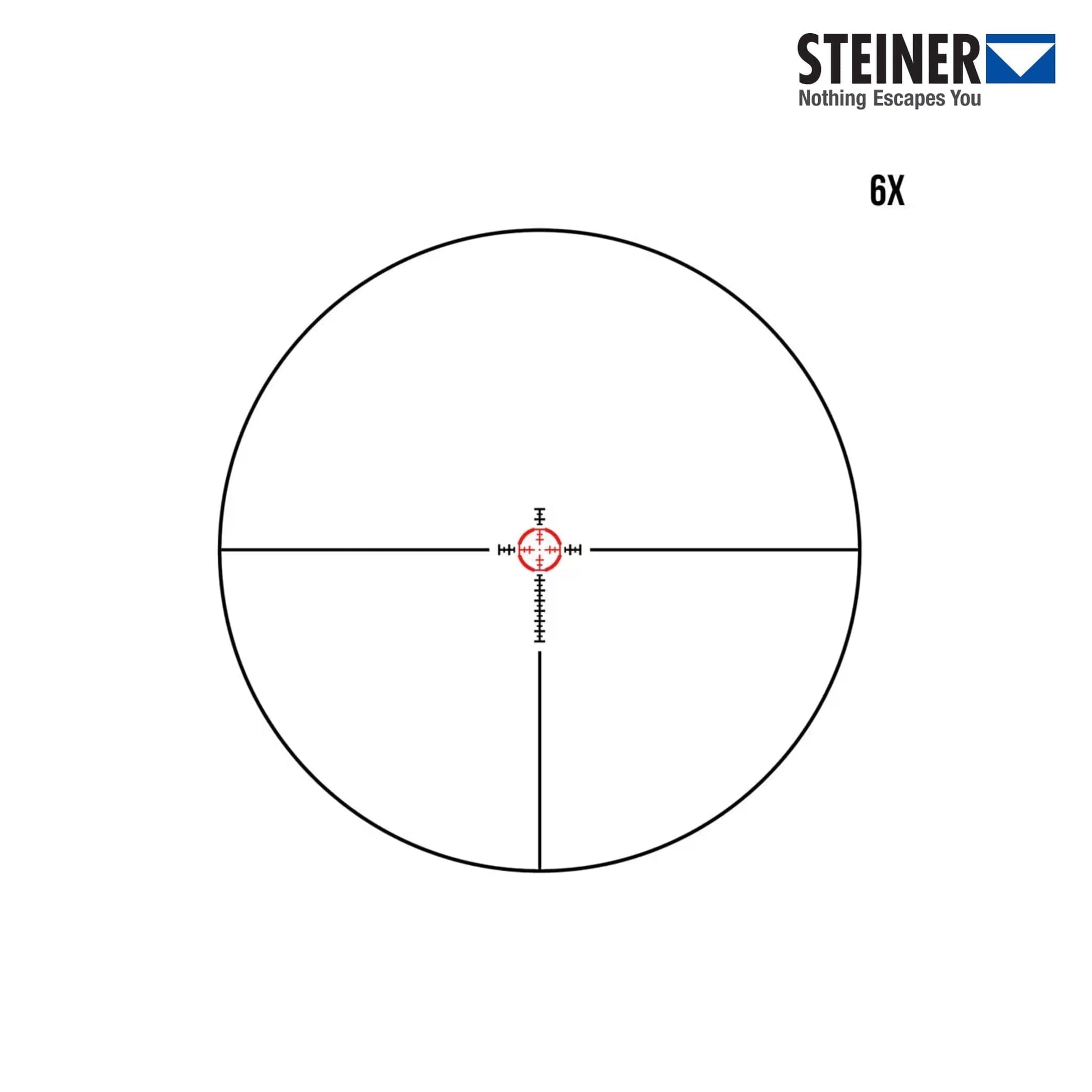

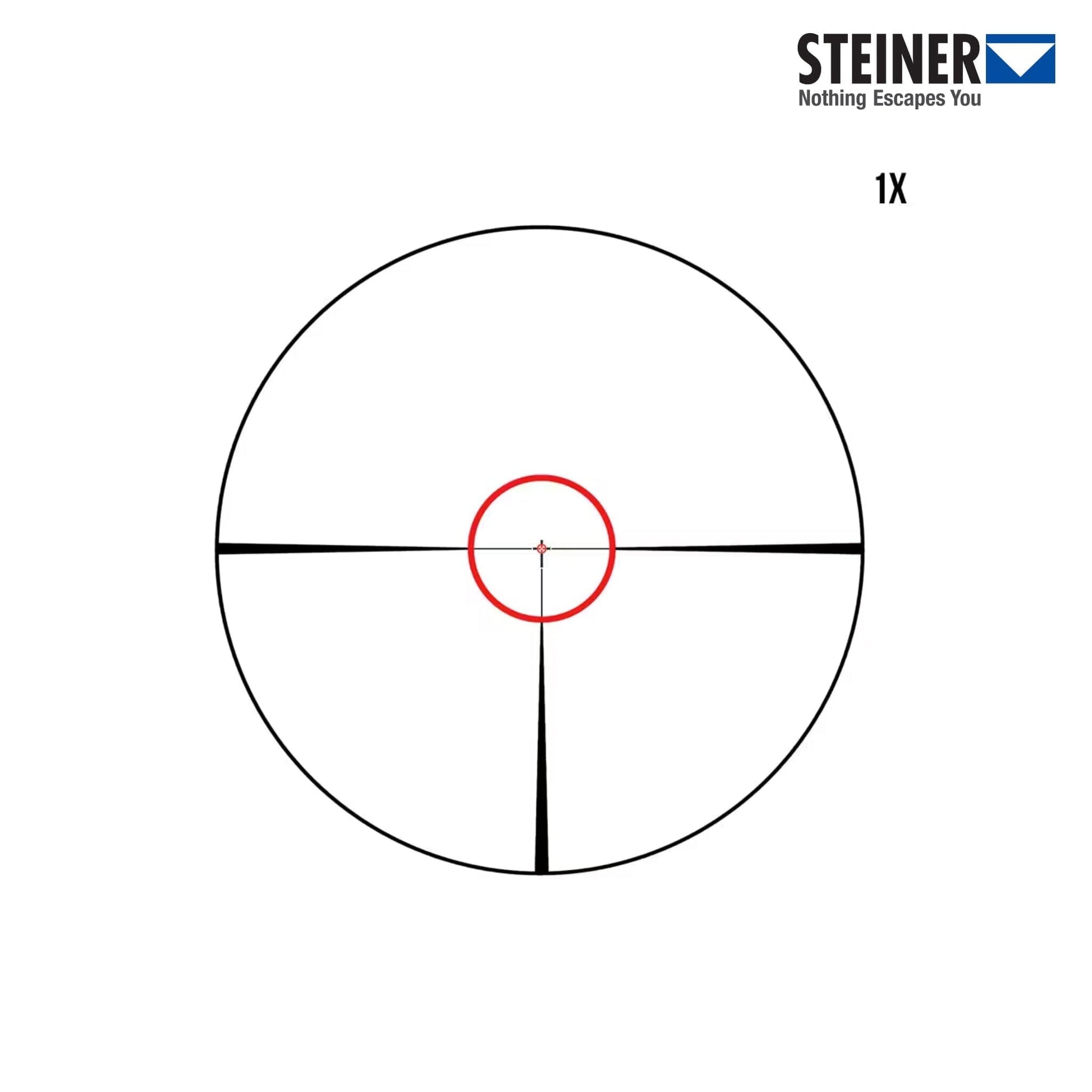

- First Focal Plane KC-1 Reticle: Glass-etched “KC-1” pattern calibrated in milliradians for hold-over/hold-off at any magnification; illuminated via red LED with 11 brightness levels (7 daylight, 4 night-vision compatible).
- Exposed & Capped Turrets: Choice of low-profile never-lost capped turrets or exposed turrets—both with 0.1 mrad click value and 30 mrad total windage/elevation travel.
- High-Performance Optics: Ultra-low dispersion glass, fully multi-coated lenses and prisms deliver exceptional resolution, contrast and color fidelity.
- Side Focus Parallax: Fixed at 100 yd for optimal image and reticle alignment without extra knobs.
- Rugged Construction: 30 mm main tube machined from aircraft-grade aluminium; Type III hard-coat anodize; waterproof, fog-proof and shock-proof to withstand .50 BMG recoil.
- Extended Eye Relief: 3.4″–3.9″ constant; parallax-free at all ranges when properly focused.
- Made in USA & Lifetime Warranty
Technical Specifications for Steiner T6Xi 1–6×24mm FFP Rifle Scope KC-1 Reticle
Specification |
Details |
Model / MPN |
5103 |
SKU |
5103 |
UPC |
000381851031 |
Country of Origin |
USA |
Magnification |
1 × ⇄ 6 × |
Objective Lens Diameter |
24 mm |
Main Tube Diameter |
30 mm |
Reticle |
KC-1 MIL (FFP, glass-etched, LED-illuminated) |
Illumination Settings |
11 levels (7 daylight + 4 NV-compatible) |
Exit Pupil |
4.0 mm (6×)⇄10.3 mm (1×) |
Eye Relief |
3.4″–3.9″ (86–99 mm) |
Field of View @ 100 yd |
19 ft (6×) ⇄ 114 ft (1×) |
Adjustment Click Value |
0.1 mrad |
Total Windage/Elevation Travel |
±30 mrad each |
Parallax |
Fixed at 100 yd |
Turret Options |
Exposed or capped; never-lost capped design |
Length |
10.4″ (264 mm) |
Weight |
20 oz (567 g) |
Finish / Housing Material |
Aircraft-grade aluminum; matte-black anodize |
Waterproof / Fog-Proof / Shock |
Yes |
Included Accessories
- Throw-lever
- Lens covers
- CR2450 battery
- User manual
