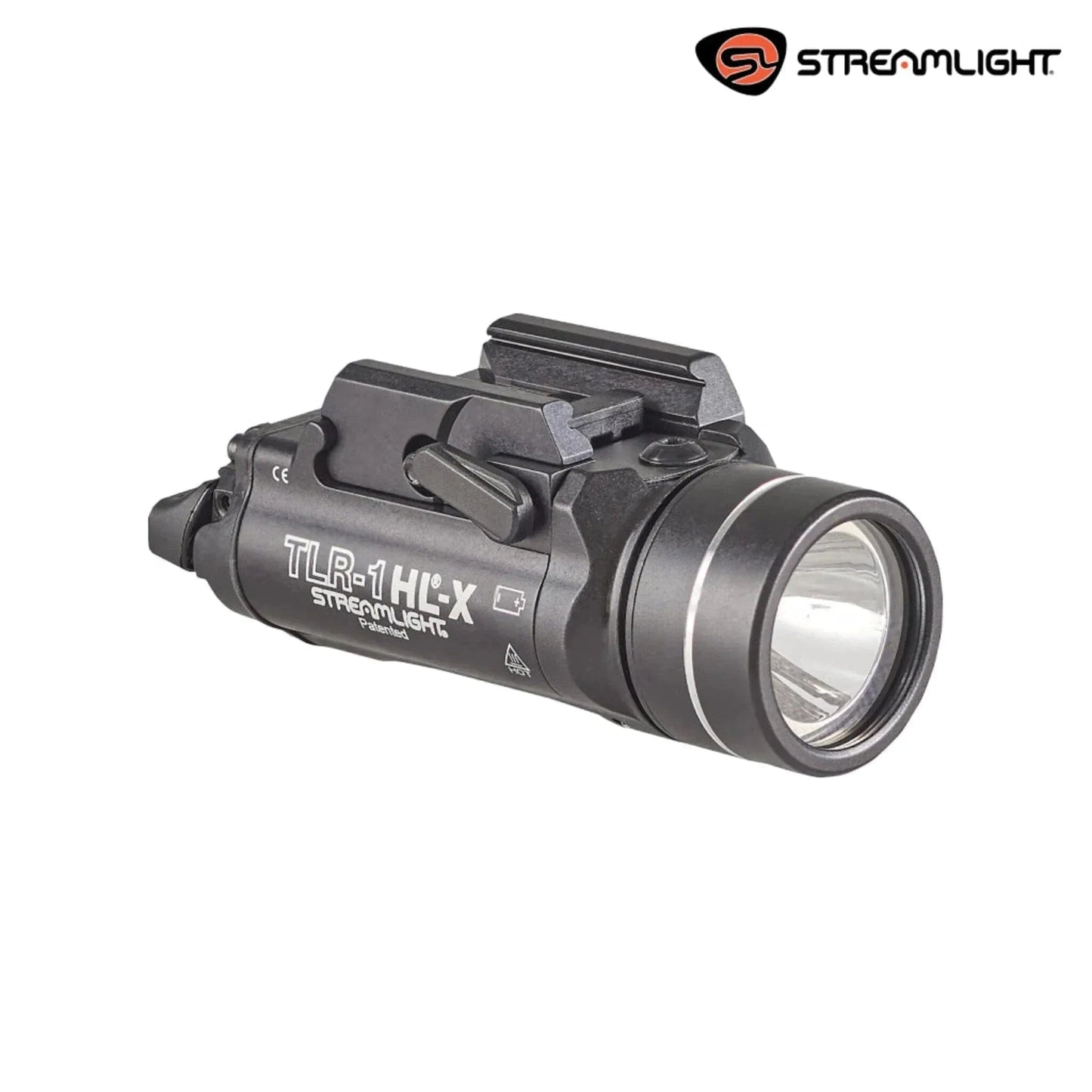

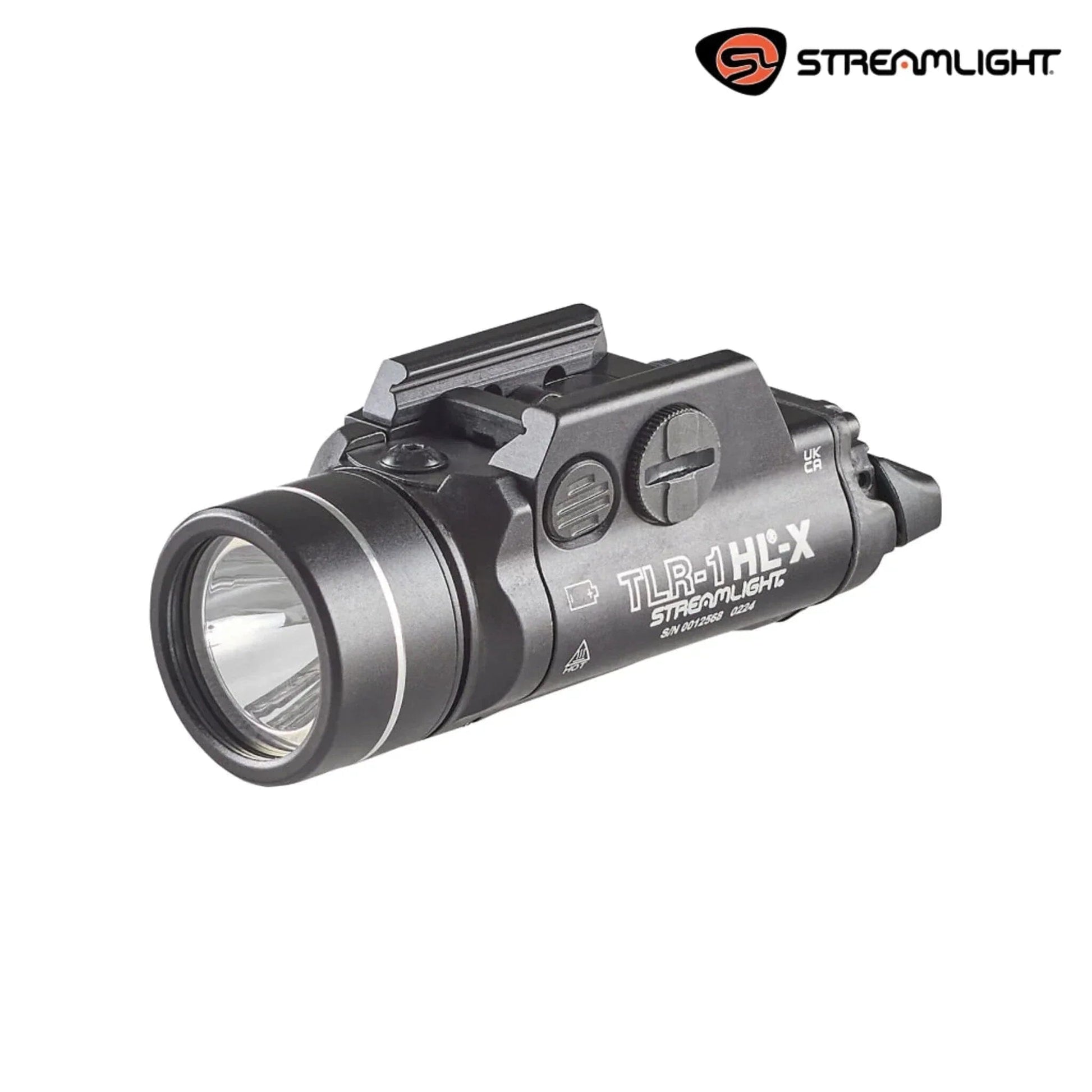

Streamlight TLR‑1 HL‑X WeaponLight - Fits Picatinny Rails (Model 69500)
Features
- Multi‑Fuel Design – Operates on two CR123A lithium batteries (included) or two SL‑B9 rechargeable packs (sold separately).
- High‑Power C4® LED – Delivers 1,000 lumens with a peak beam intensity of 15,000 cd and a beam distance of 245 m.
- Rapid Recharge via USB‑C – (When using SL‑B9 packs) Integrated USB‑C port and cord for on‑the‑go charging.
- User‑Programmable Strobe – Default solid‑on mode with strobe programmable by the end user.
- Rail‑Grip Clamp System – Tool‑free clamp secures to MIL‑STD‑1913 Picatinny rails and Glock‑style accessory rails; includes all rail‑locating keys.
- Front‑Loading Battery Door – “Safe‑off” door switch prevents accidental activation and allows quick battery swaps without removing the light.
- Rugged Construction – 6000‑series machined aircraft aluminum body with Type III hard‑anodized finish; shock‑mounted, impact‑resistant Borofloat® glass lens.
- Waterproof & Impact Resistant – IPX7 rated to 1 m for 30 minutes; LED impervious to shock.
- Limited Lifetime Warranty – Backed by Streamlight’s limited lifetime warranty.
Technical Specifications for Streamlight TLR‑1 HL‑X WeaponLight - Fits Picatinny Rails
Specification |
Details |
Manufacturer |
Streamlight (USA) |
Model / Part Number |
69500 |
SKU |
STR‑69500 |
UPC |
080926695009 |
Compatibility |
MIL‑STD‑1913 Picatinny rails; Glock‑style accessory rails |
LED Source |
C4® LED |
Light Output |
1,000 lumens |
Peak Candela |
15,000 cd |
Beam Distance |
245 meters |
Runtime |
~1.5 hours (CR123A); ~1 hour (SL‑B9 packs) |
Battery |
2 × CR123A lithium (non‑rechargeable) or 2 × SL‑B9 rechargeable |
Body Material |
6000‑series machined aircraft aluminum; hard‑anodized finish |
Lens Material |
Shock‑mounted Borofloat® glass |
Waterproof Rating |
IPX7 (1 m for 30 min) |
Length |
3.45 in (87.6 mm) |
Weight (with CR123A) |
4.94 oz (140 g) |
Warranty |
Limited Lifetime |
Included Accessories
- 2 × CR123A lithium batteries
- Rail‑locating key set
- User manual & warranty documentation
