Trijicon AccuPoint 2.5-10×56 Riflescope Duplex Crosshair with Amber Dot Reticle
Trijicon AccuPoint 2.5-10×56 Riflescope Duplex Crosshair with Amber Dot Reticle
Couldn't load pickup availability
Trijicon AccuPoint 2.5-10×56 Riflescope Duplex Crosshair with Amber Dot Reticle
Features
- Extreme Light Gathering: 56 mm objective lens paired with fully multi-coated broadband optics delivers exceptional brightness in low-light conditions.
- Battery-Free Dual Illumination: Fiber-optic for automatic daytime brightness; tritium for constant low-light glow—always-on, no batteries required, optimized for both-eyes-open Bindon Aiming Concept™ use.

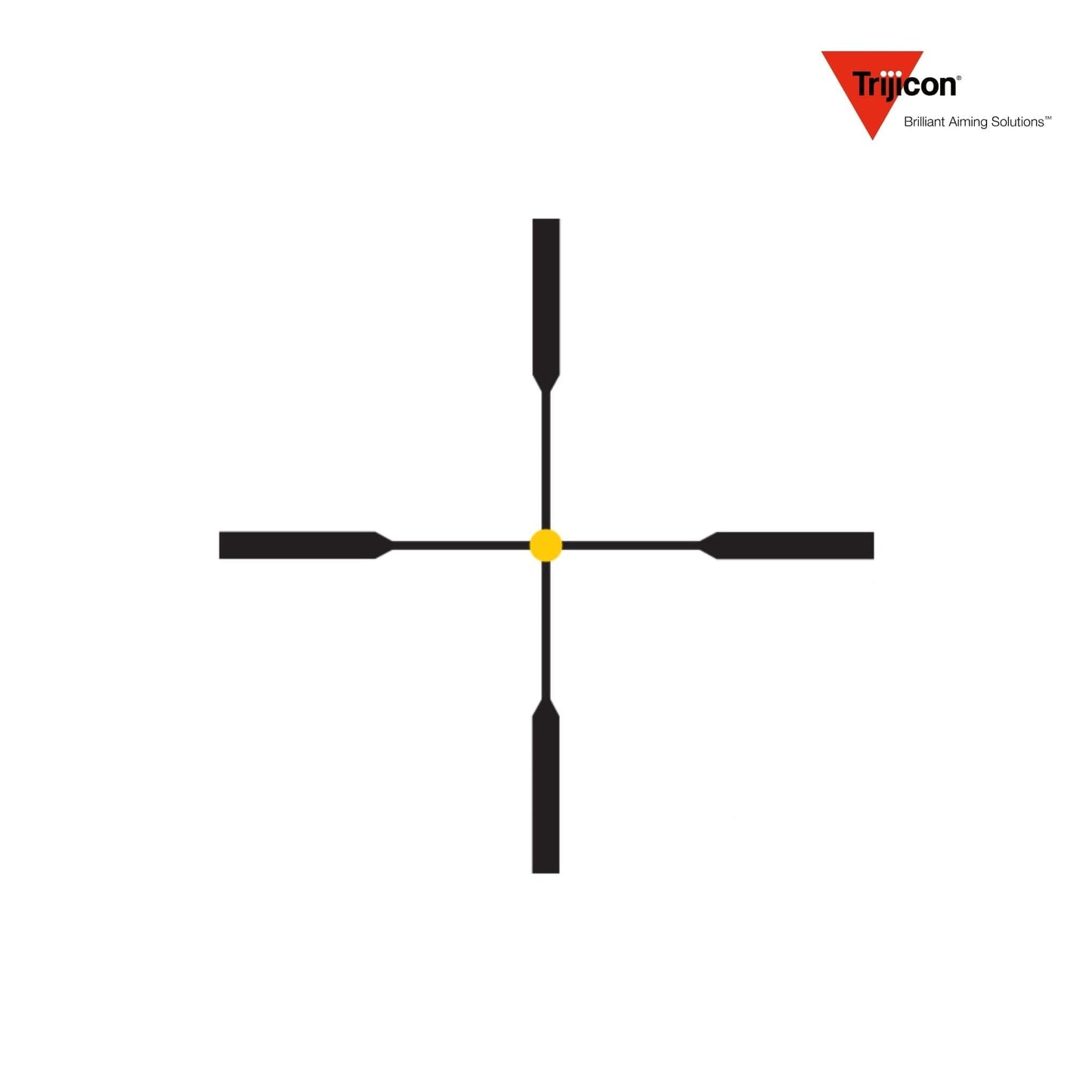

- Duplex® Crosshair with Amber Dot (SFP): Heavy duplex posts guide your eye to a crisp amber center dot; subtends true at all powers for intuitive hold-over and rapid target acquisition.
- Precision Capped Turrets: ¼ MOA per click; 60 MOA total travel for both elevation and windage; protected by low-profile, removable caps.
- Fixed Parallax: Optimized at 100 yd—no side-focus collar needed.
- Wide Field of View: 37.6 ft @ 2.5× → 10.1 ft @ 10× (at 100 yd).
- Variable Eye Relief: 4.1″ → 2.8″ across the zoom range for a comfortable, repeatable cheek weld.
- Rugged Construction: CNC-machined 30 mm main tube of 6061-T6 aluminum; matte-black hard-coat anodize; nitrogen-purged; waterproof and fog-proof; shock-tested for calibers from .22 LR through .50 BMG.
- Made in USA & No-Fault® Lifetime Warranty
Technical Specifications for Trijicon AccuPoint 2.5-10×56 Riflescope Duplex Crosshair with Amber Dot Reticle
Specification |
Details |
Manufacturer |
Trijicon |
Model / MPN |
TR22-1 |
SKU |
TR22-1 |
UPC |
719307400221 |
Country of Origin |
USA |
Tube Diameter |
30 mm |
Magnification Range |
2.5 × ⇄ 10 × |
Objective Lens Diameter |
56 mm |
Reticle |
Duplex® crosshair with amber illuminated dot (SFP) |
Illumination Source |
Fiber-optic (day) + tritium (night) |
Parallax Focus |
Fixed at 100 yd |
Eye Relief |
4.1″ → 2.8″ |
Field of View @ 100 yd |
37.6 ft → 10.1 ft |
Exit Pupil |
16.3 mm → 5.6 mm |
Elevation Adjustment |
¼ MOA/click; 60 MOA total (capped) |
Windage Adjustment |
¼ MOA/click; 60 MOA total (capped) |
Length |
13.8″ (350 mm) |
Weight |
20.7 oz (586 g) |
Finish |
Matte-black hard-coat anodize |
Waterproof / Fog-Proof |
Yes |
Shock-Proof |
Yes (.22 LR–.50 BMG tested) |
Included Accessories
- Flip-up lens covers
- Flip-throw lever
- Removable turret caps
- LensPen® cleaning tool
- Trijicon logo sticker
- User manual & warranty card
