Trijicon

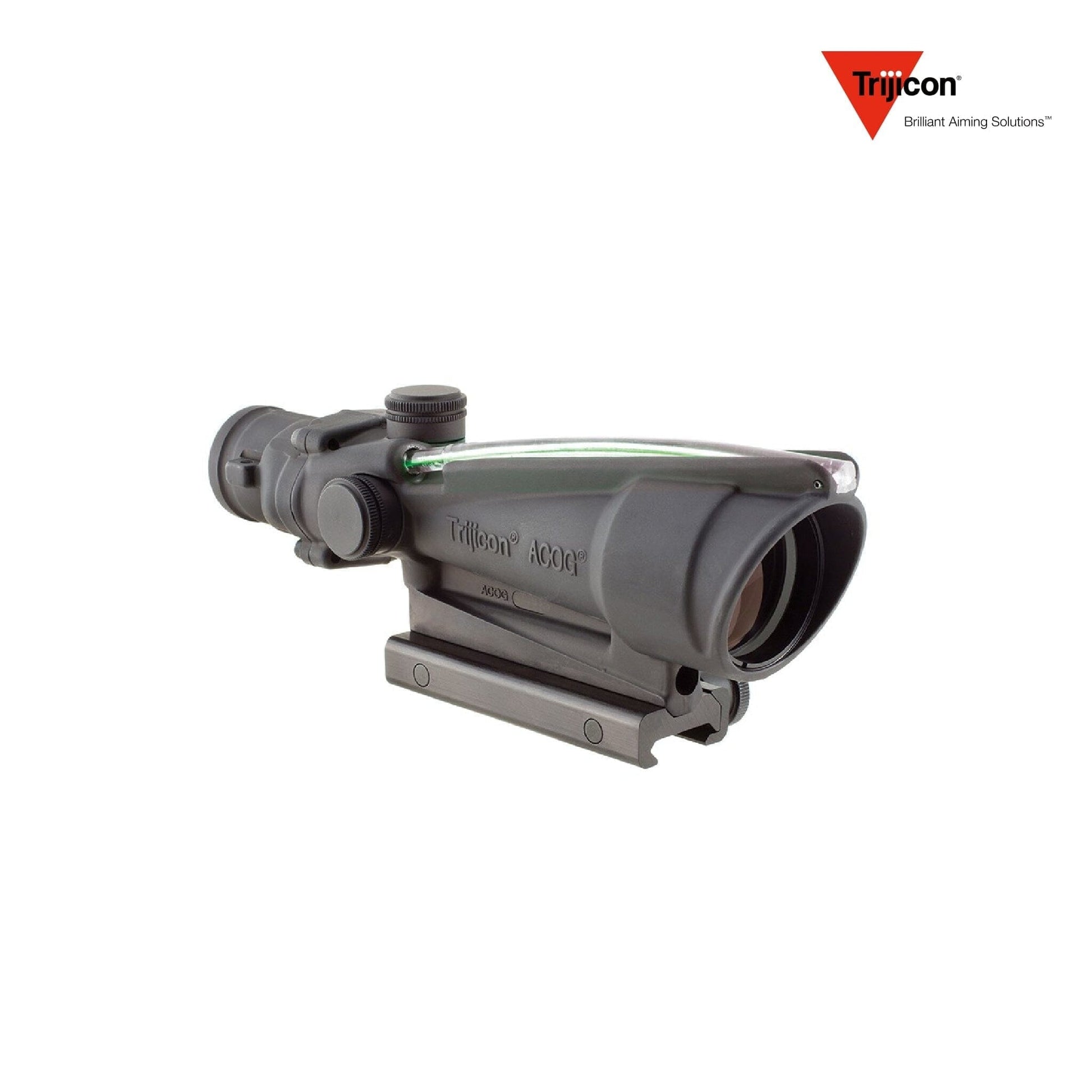

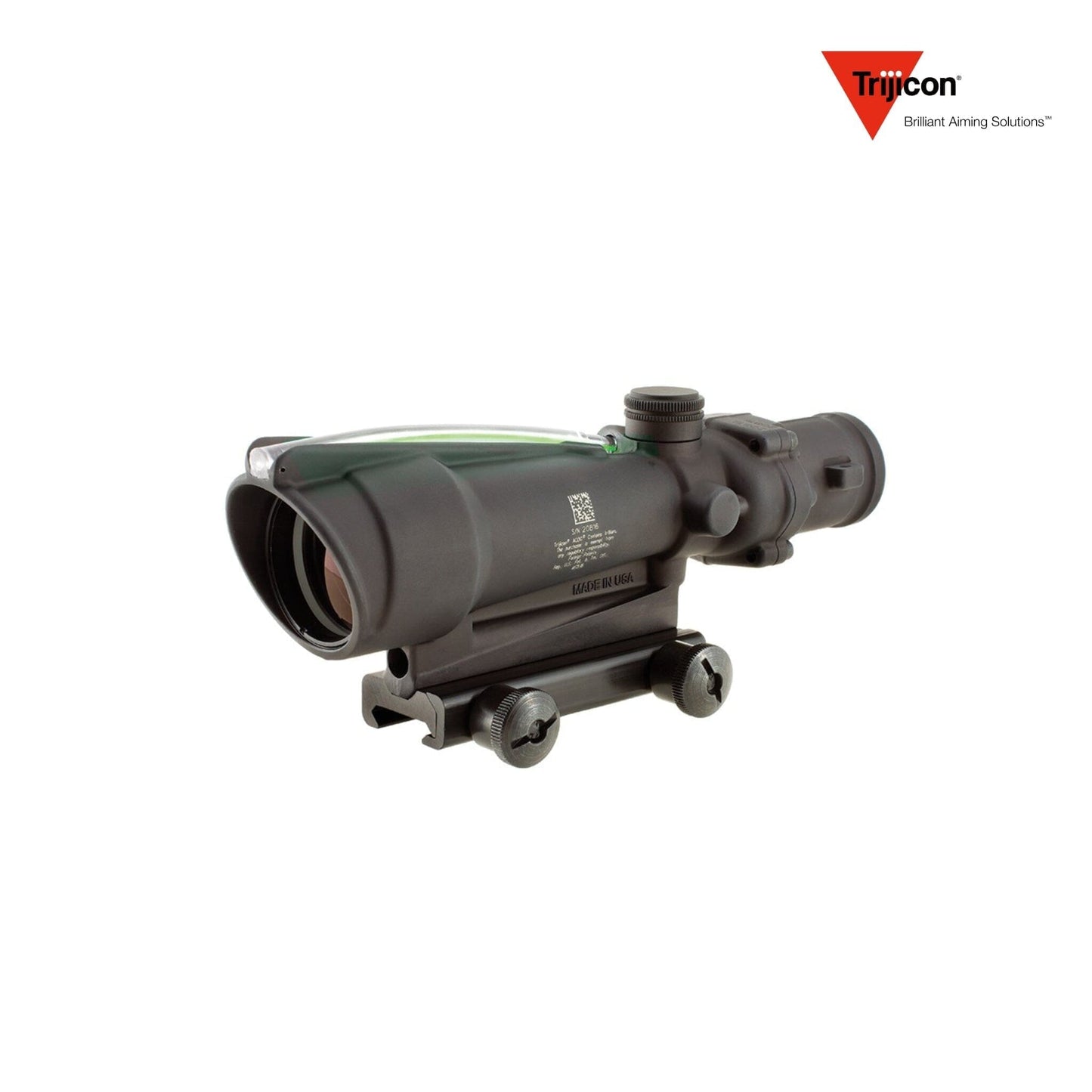

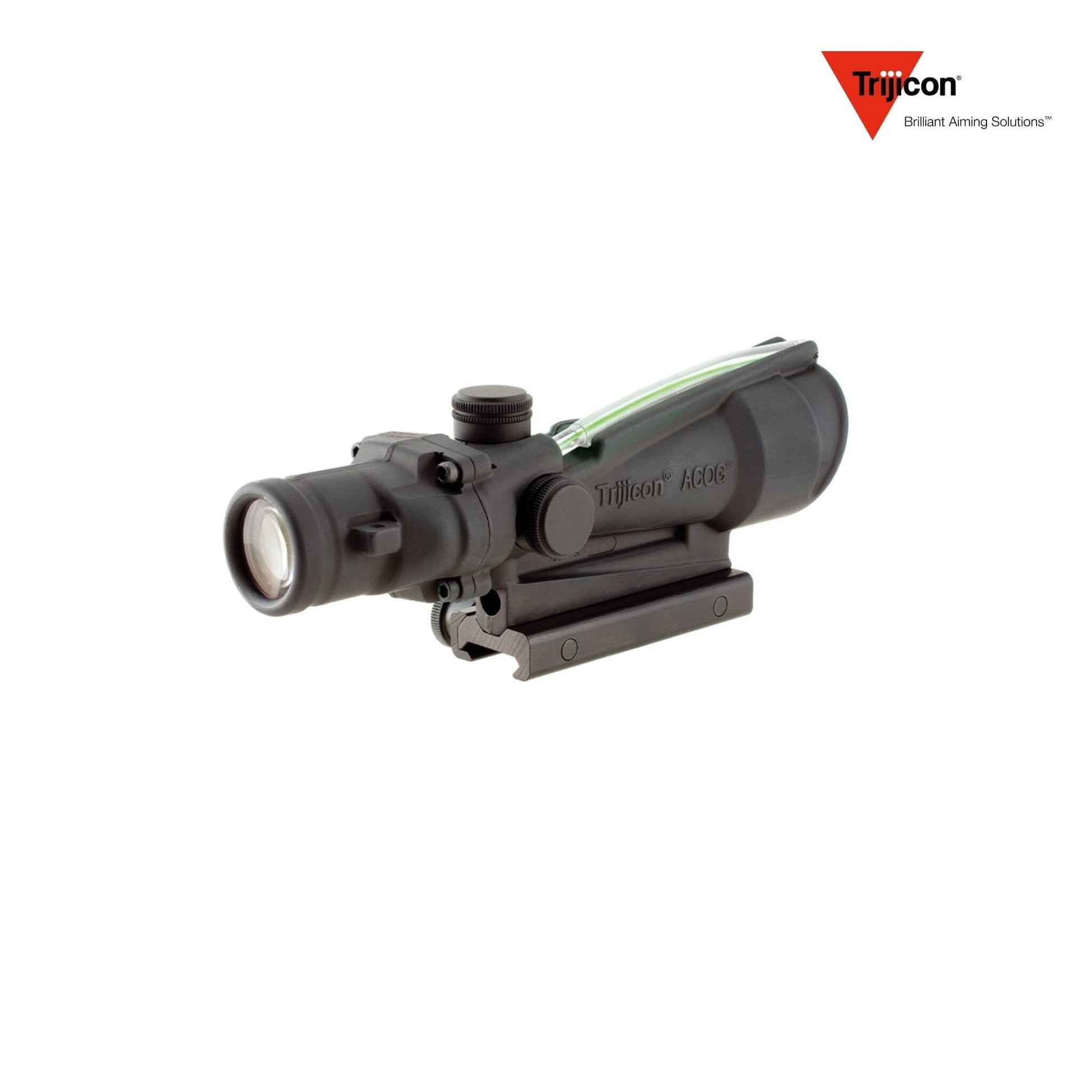

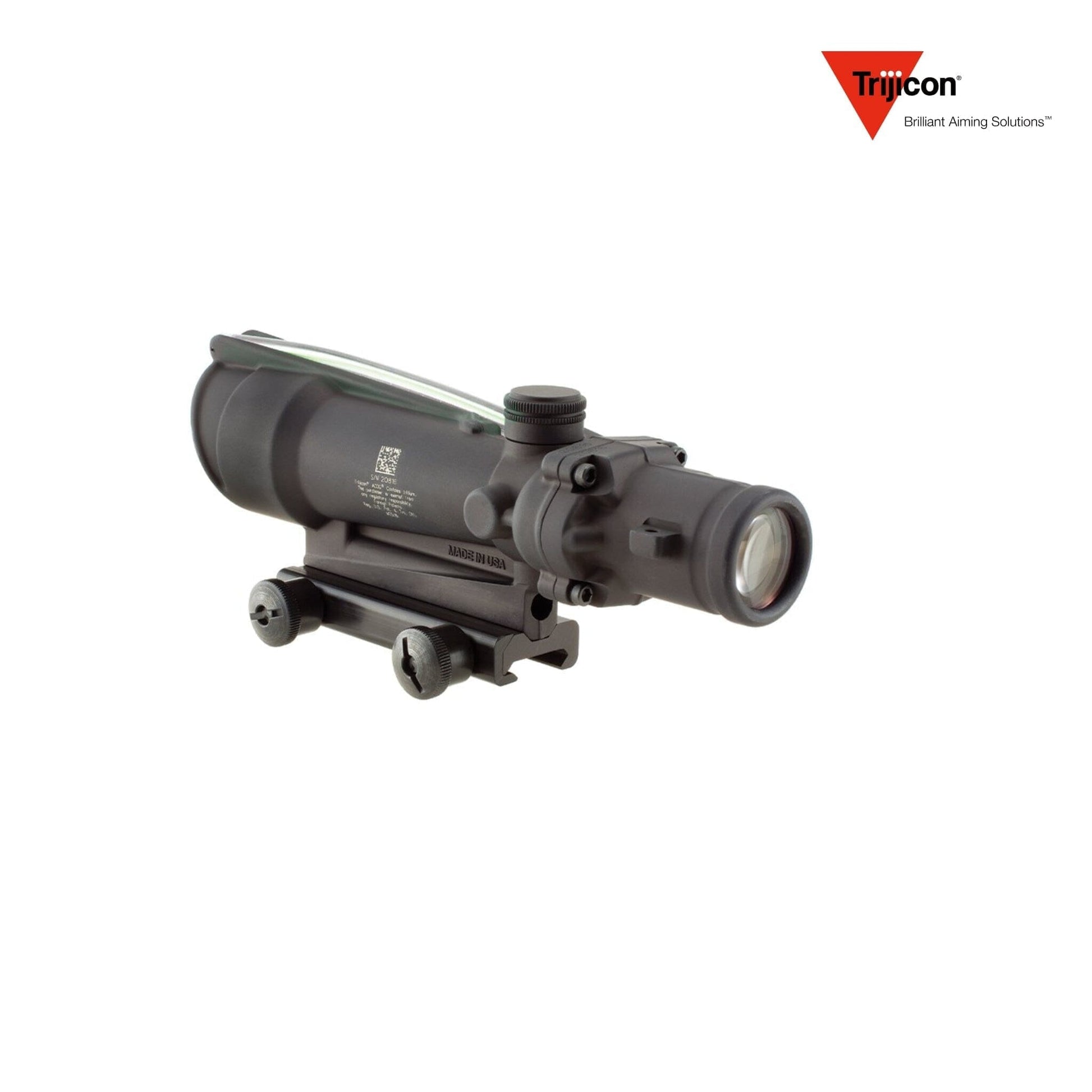

Trijicon ACOG 3.5x35 BAC Riflescope .223/5.56 BDC Green Horseshoe Reticle
Trijicon ACOG 3.5x35 BAC Riflescope .223/5.56 BDC Green Horseshoe Reticle
Couldn't load pickup availability
Trijicon ACOG 3.5×35 BAC Riflescope .223/5.56 BDC Green Horseshoe Reticle
Features
- Dual-Source Illumination: Fiber-optic for automatic daytime brightness; tritium for constant low-light glow—battery-free, always-on, optimized for both-eyes-open Bindon Aiming Concept™ acquisition.
- Fixed 3.5× Magnification: Balances rapid close-quarters target acquisition with mid-range precision.

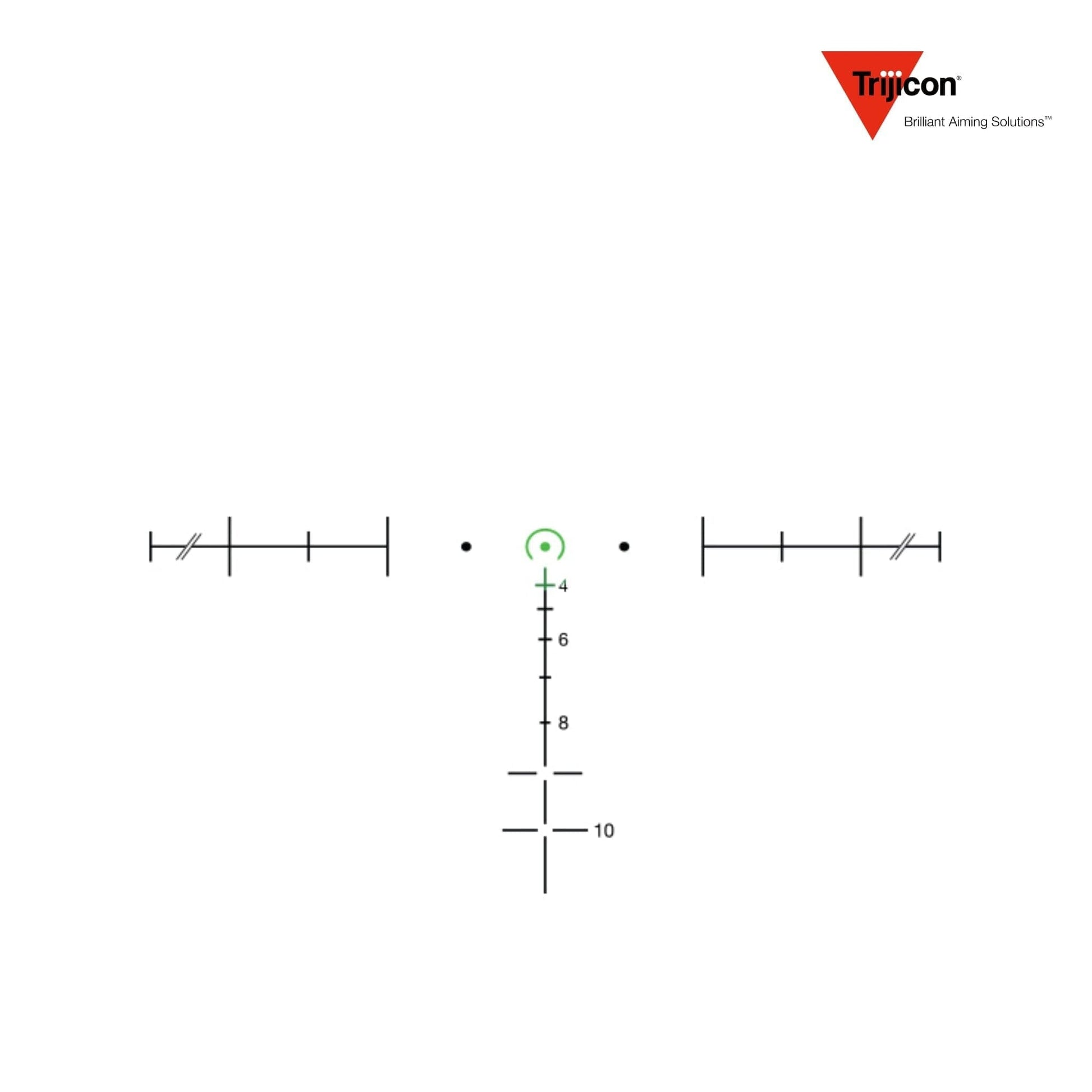

- .223/5.56 BDC Green Horseshoe Reticle: Illuminated horseshoe circle surrounding the aiming point, calibrated for .223/5.56 BDC hold-over out to 800 m; zero the horseshoe at 100 m.
- Ergonomic Flat-Top Mount: Includes TA51™ “Rock-touch” quick-detach adapter for repeatable zero on MIL-STD-1913 rails.
- 30 mm Main Tube: CNC-machined 6061-T6 aluminum; matte-black hard-coat anodize; nitrogen-purged; waterproof and fog-proof.
- Fixed Parallax: Optimized at 100 m—no external parallax adjustment required.
- Combat-Proven Durability: Shock-tested for calibers from .22 LR through .50 BMG; waterproof to 10 ft.
- Compact & Lightweight: Only 8.0″ long and under 15 oz, ideal for AR-platform rifles.
- Made in USA & No-Fault® Lifetime Warranty
Technical Specifications for Trijicon ACOG 3.5×35 BAC Riflescope .223/5.56 BDC Green Horseshoe Reticle
Specification |
Details |
Manufacturer |
Trijicon |
Model / MPN |
TA11H-G |
SKU |
TA11H-G |
UPC |
719307302287 |
Country of Origin |
USA |
Magnification |
3.5× |
Objective Lens Diameter |
35 mm |
Main Tube Diameter |
30 mm |
Reticle |
.223/5.56 BDC Green Horseshoe (FFP) |
Illumination Source |
Fiber-optic + tritium (automatic) |
Eye Relief |
2.4″ (61 mm) |
Field of View |
28.9 ft @ 100 yd |
Exit Pupil |
10 mm |
Parallax |
Fixed @ 100 m |
Turret Adjustment |
3 clicks/inch @ 100 yd |
Length |
8.0″ (203 mm) |
Weight |
14 oz (397 g) |
Finish |
Matte-black hard-coat anodize |
Waterproof / Fog-Proof |
Yes (to 10 ft) |
Shock-Proof |
Yes (.22 LR–.50 BMG) |
Included Accessories
- TA51™ flat-top quick-detach mount
- Flip-up lens covers (objective & ocular)
- LensPen® cleaning tool
- Trijicon logo sticker
- User manual & warranty card
