Trijicon ACOG 3.5x35 BAC Riflescope .223/5.56 BDC Red Crosshair Reticle
Trijicon ACOG 3.5x35 BAC Riflescope .223/5.56 BDC Red Crosshair Reticle
Couldn't load pickup availability

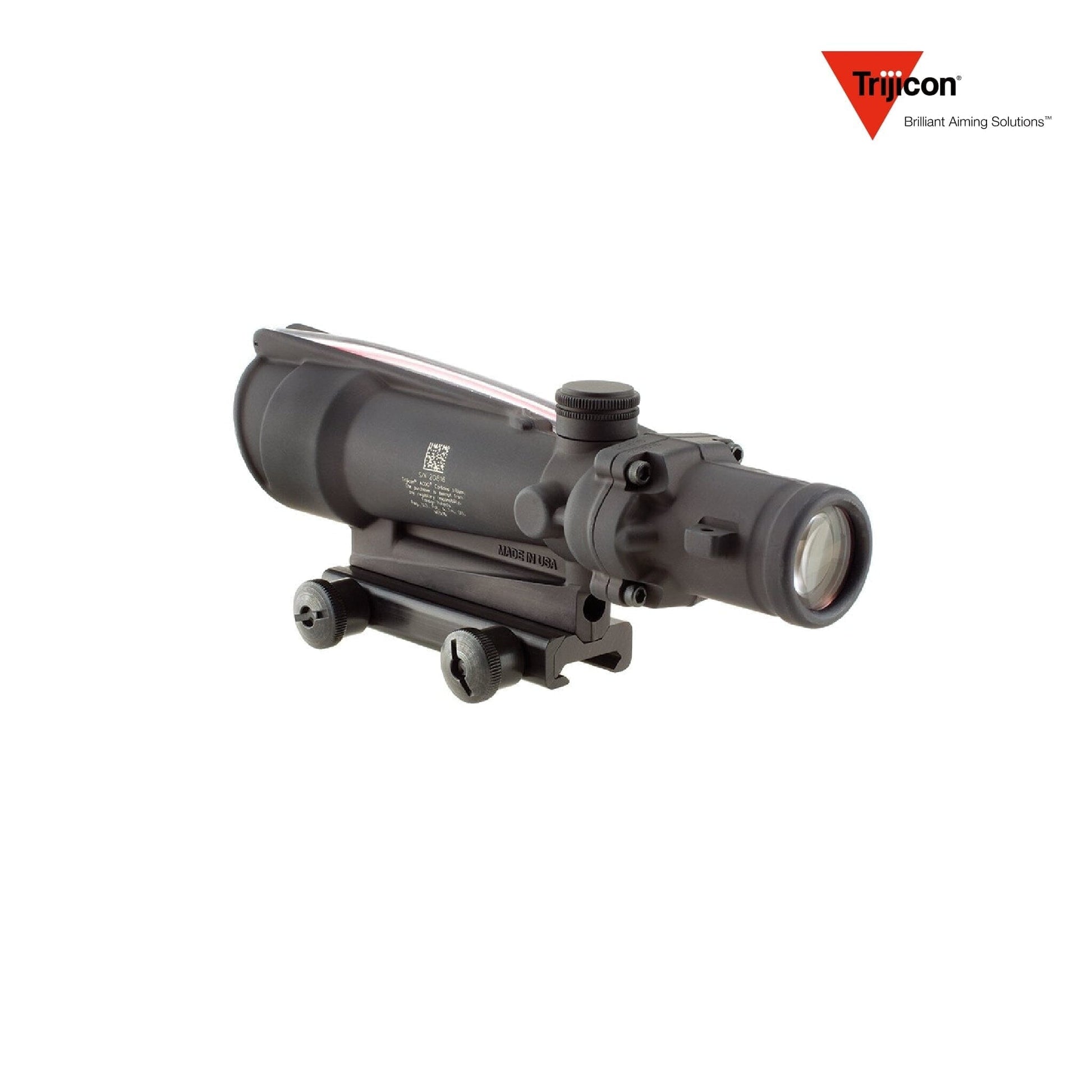

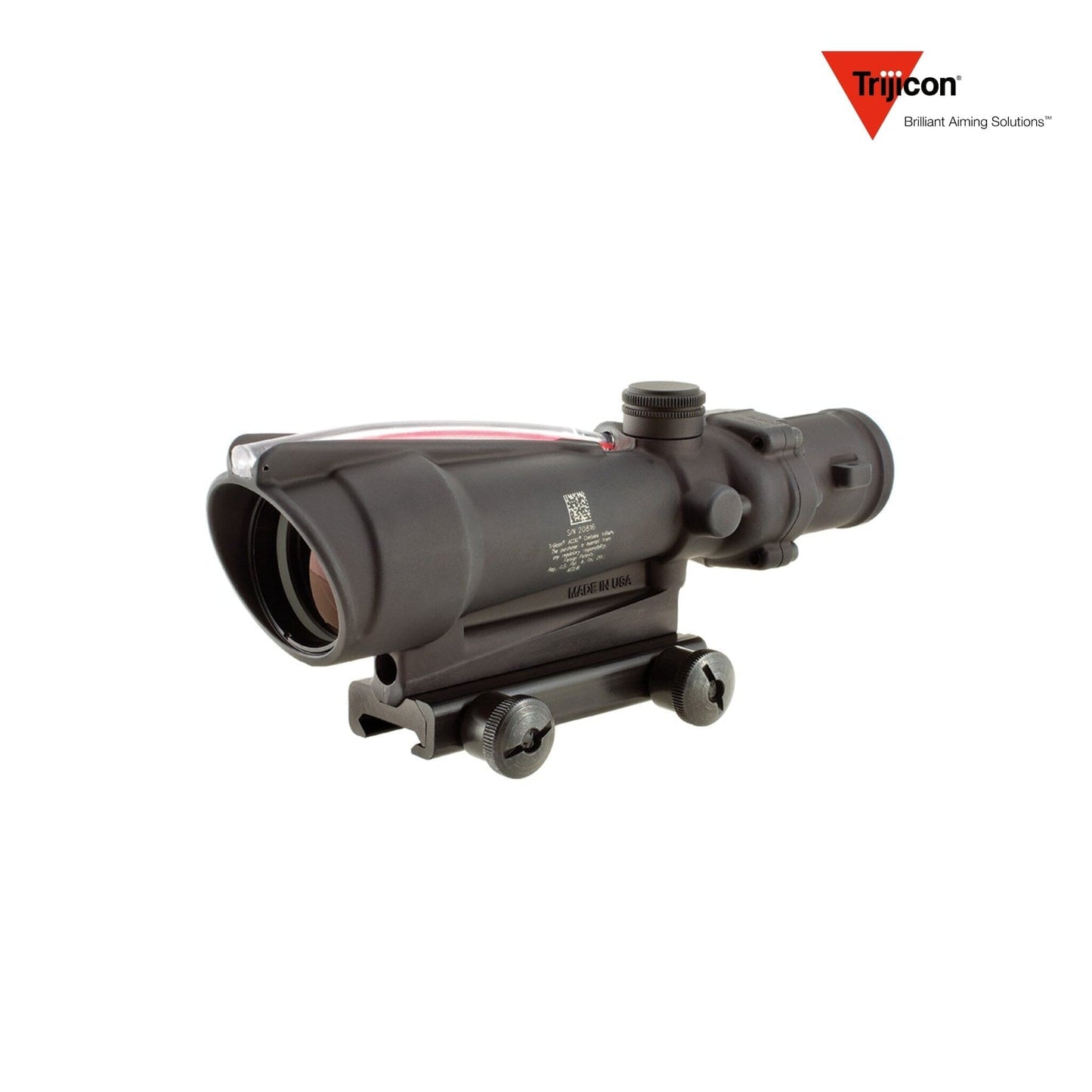

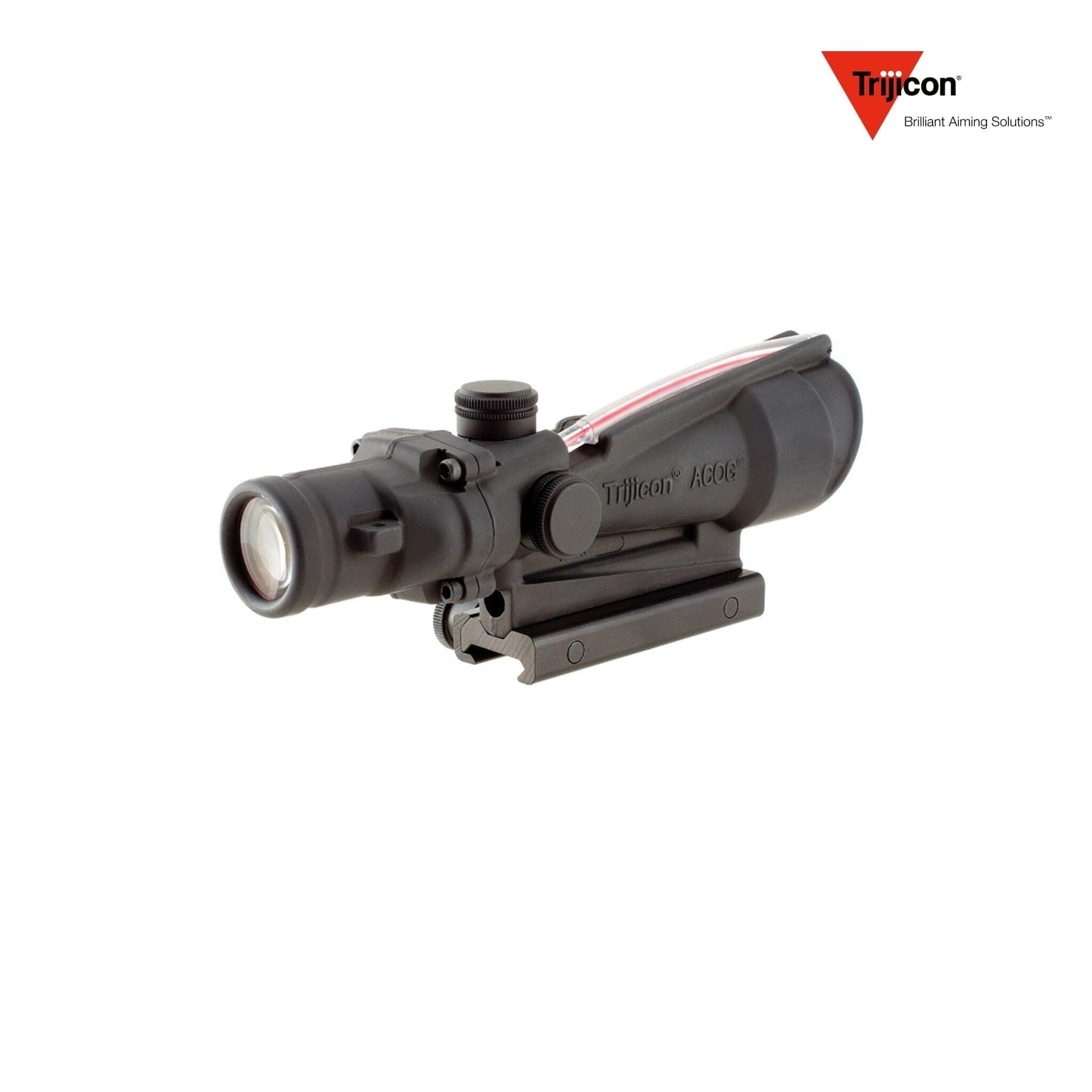

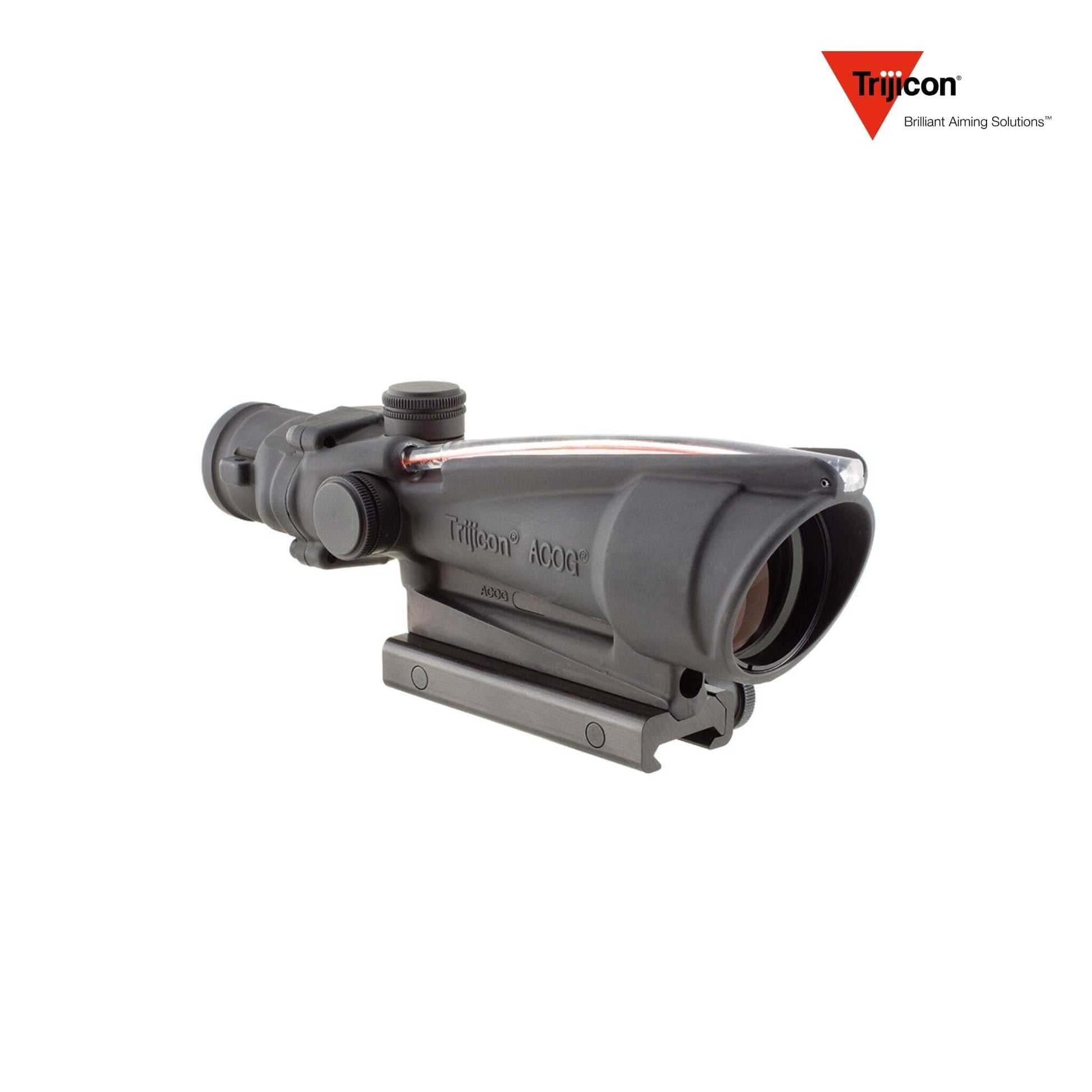

Trijicon ACOG 3.5×35 BAC Riflescope .223/5.56 BDC Red Crosshair Reticle
Features
- Dual-Source Illumination: Fiber‑optic gathers ambient light for automatic daytime brightness; tritium ensures constant low‑light glow—battery‑free, always‑on, optimized for both‑eyes‑open Bindon Aiming Concept™ target acquisition.
- Fixed 3.5× Magnification: Provides rapid close‑quarters engagement with mid‑range precision.

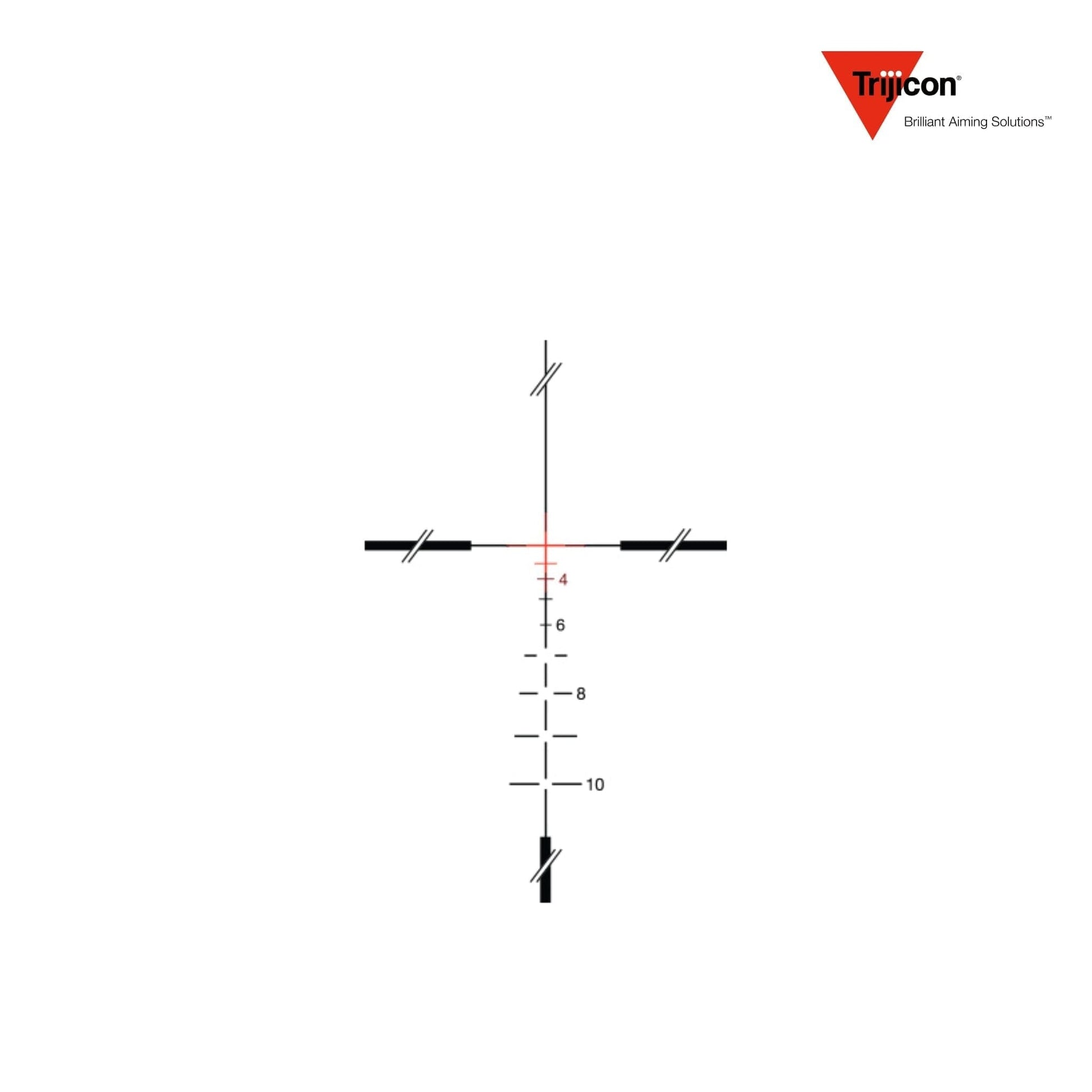

- .223/5.56 BDC Red Crosshair Reticle: Chevron‑style crosshair calibrated for .223 Rem/5.56 NATO hold‑overs out to 800 m; zero the chevron tip at 100 m for intuitive range estimation.
- Ergonomic Flat‑Top Mount: Includes TA51™ “Rock‑touch” quick‑detach flattop adapter for rapid on/off attachment with repeatable zero on MIL‑STD‑1913 rails.
- Rugged Construction: CNC‑machined 30 mm main tube of 6061‑T6 aluminum; matte‑black hard‑coat anodize; nitrogen‑purged; waterproof to 10 ft; fog‑proof; recoil‑rated for calibers from .22 LR through .50 BMG.
- Fixed Parallax: Optimized at 100 m—no side‑focus collar required.
- Compact & Lightweight: 8″ overall length, 14 oz weight—ideal for AR‑style platforms.
- Made in USA & No‑Fault® Lifetime Warranty
Technical Specifications for Trijicon ACOG 3.5×35 BAC Riflescope .223/5.56 BDC Red Crosshair Reticle
Specification |
Details |
Manufacturer |
Trijicon |
Model / MPN |
TA11J / 100158 |
SKU |
TA11J |
UPC |
719307302730 |
Country of Origin |
USA |
Magnification |
3.5× |
Objective Lens Diameter |
35 mm |
Main Tube Diameter |
30 mm |
Eye Relief |
2.4″ (61 mm) |
Field of View |
28.9 ft @ 100 yd |
Exit Pupil |
10 mm |
Parallax |
Fixed @ 100 m |
Reticle |
.223/5.56 BDC red crosshair (FFP) |
Illumination Source |
Fiber‑optic + tritium (automatic) |
Turret Adjustment |
3 clicks/inch @ 100 yd |
Length |
8.0″ (203 mm) |
Weight |
14 oz (397 g) |
Finish |
Matte‑black hard‑coat anodize |
Waterproof / Fog‑Proof |
Yes (IPX7 to 10 ft) |
Shock‑Proof |
Yes (.22 LR–.50 BMG tested) |
Included Accessories
- TA51™ flat‑top quick‑detach mount
- Flip‑up objective & ocular lens covers
- LensPen® cleaning tool
- Trijicon logo sticker
- User manual & warranty card
