Trijicon ACOG 3.5x35 BAC Riflescope .308/7.62 BDC Red Horseshoe Reticle
Trijicon ACOG 3.5x35 BAC Riflescope .308/7.62 BDC Red Horseshoe Reticle
Couldn't load pickup availability

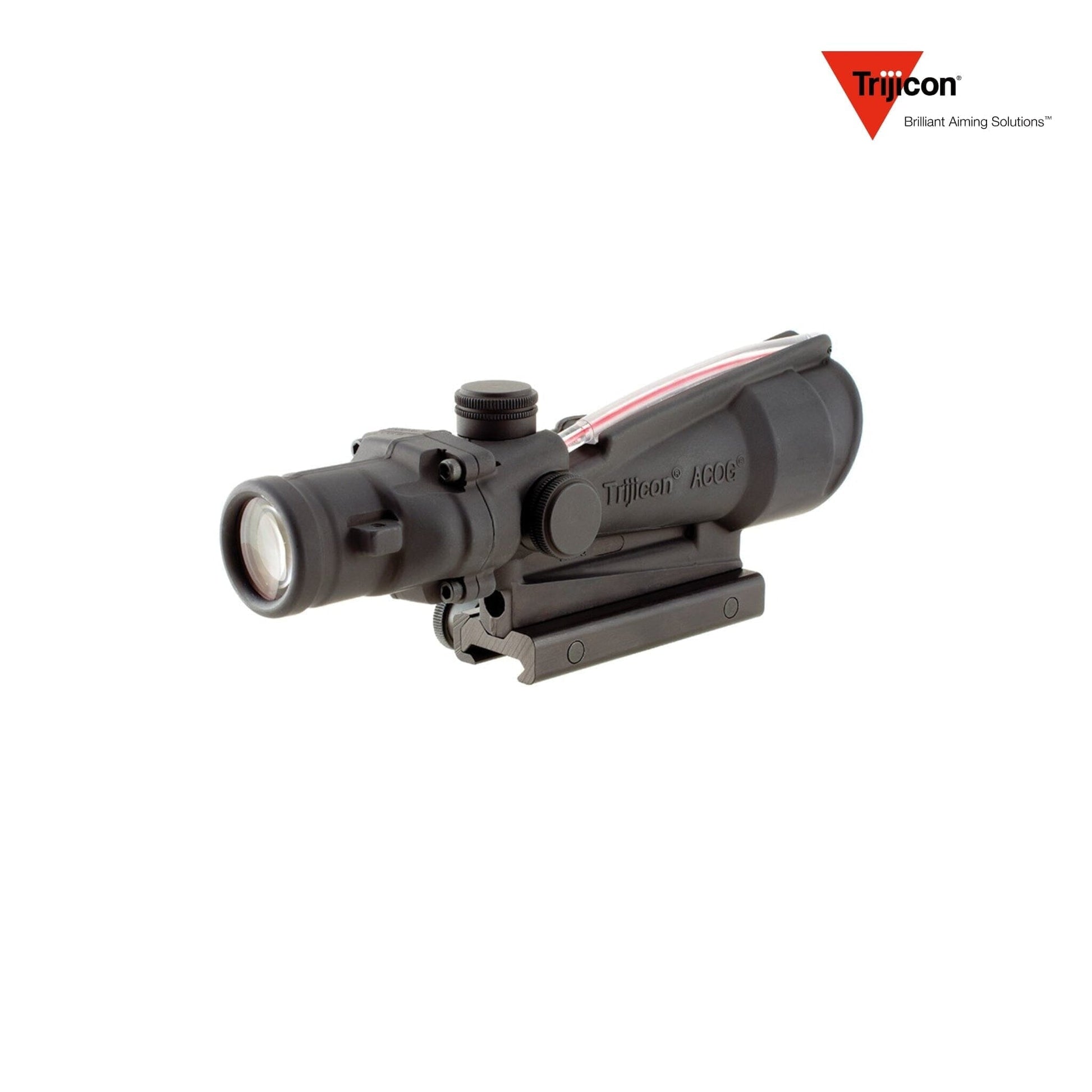

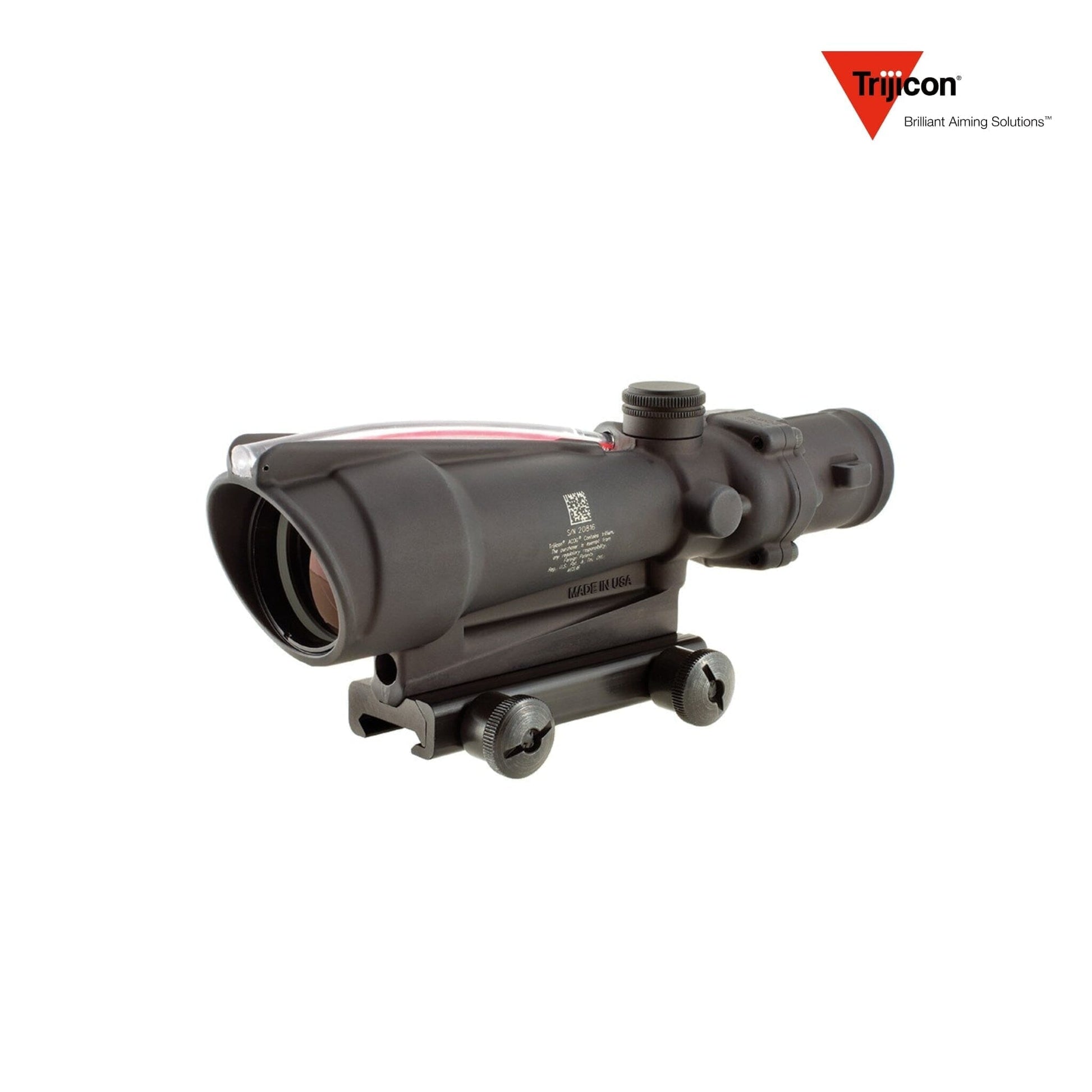

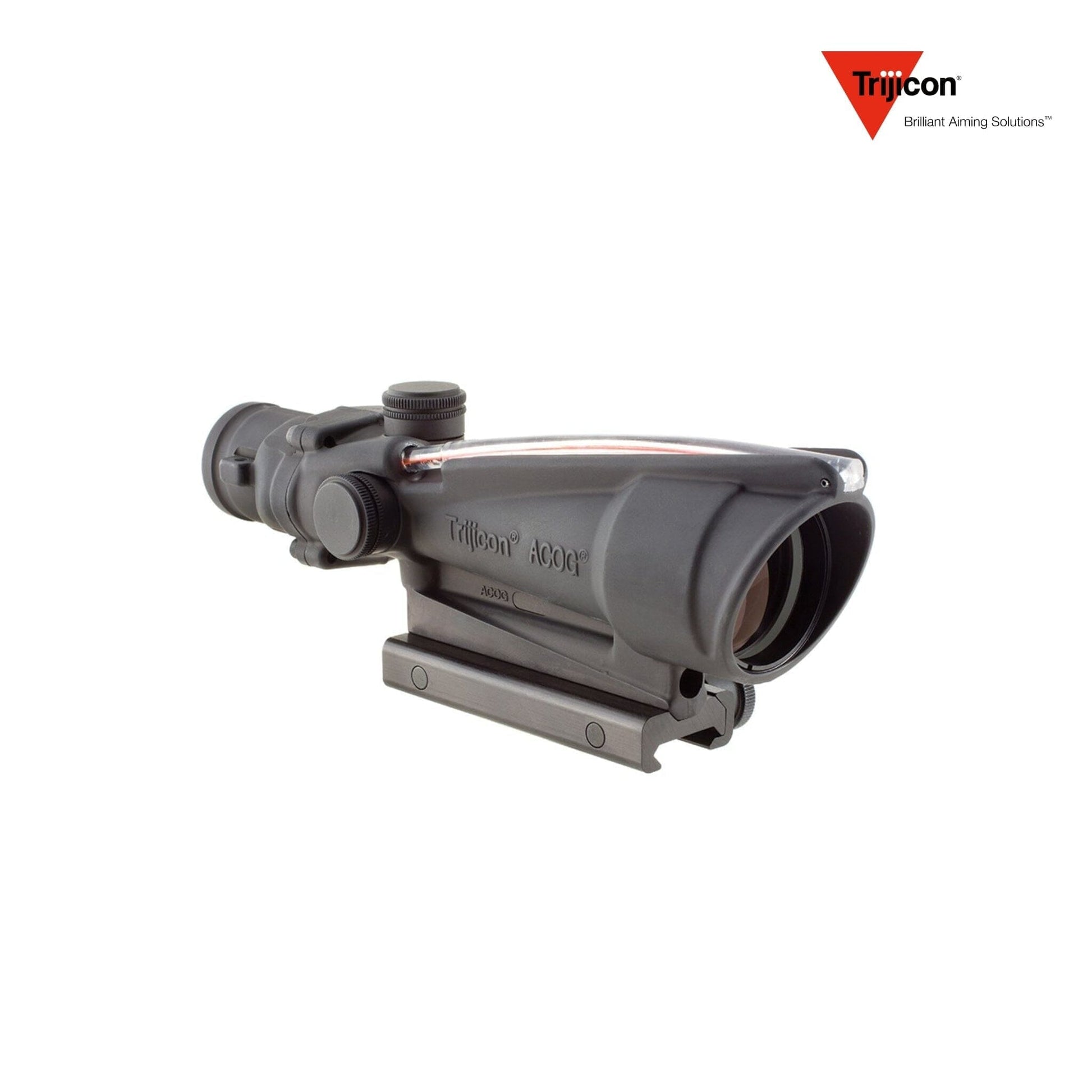

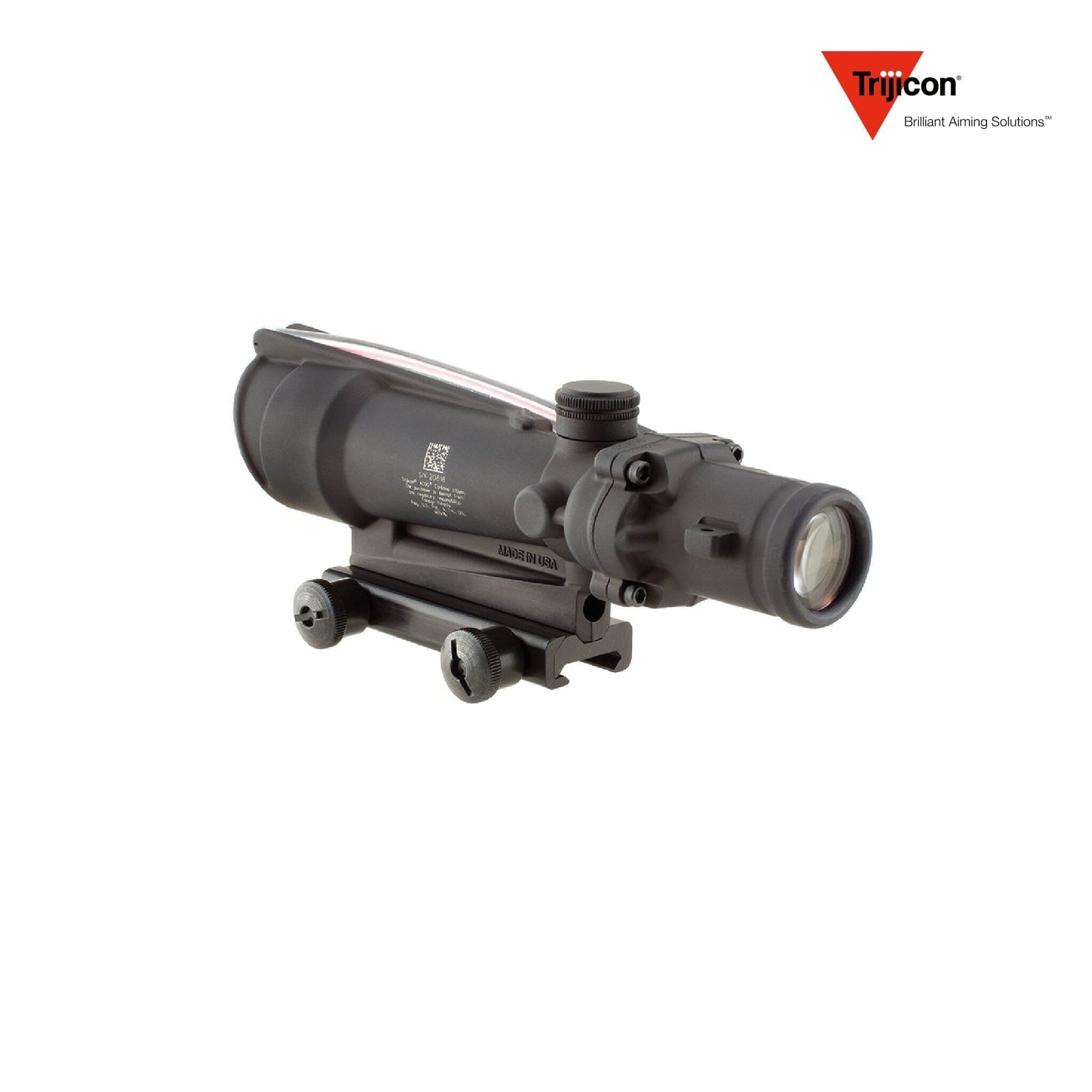

Trijicon ACOG 3.5×35 BAC Riflescope .308/7.62 BDC Red Horseshoe Reticle
Features
- Dual‑Source Illumination: Fiber‑optic gathers ambient light for automatic daytime brightness; tritium provides constant low‑light glow—battery‑free, always‑on, optimized for both‑eyes‑open Bindon Aiming Concept™ acquisition.
- Fixed 3.5× Magnification: Balances rapid close‑quarters target acquisition with mid‑range precision.

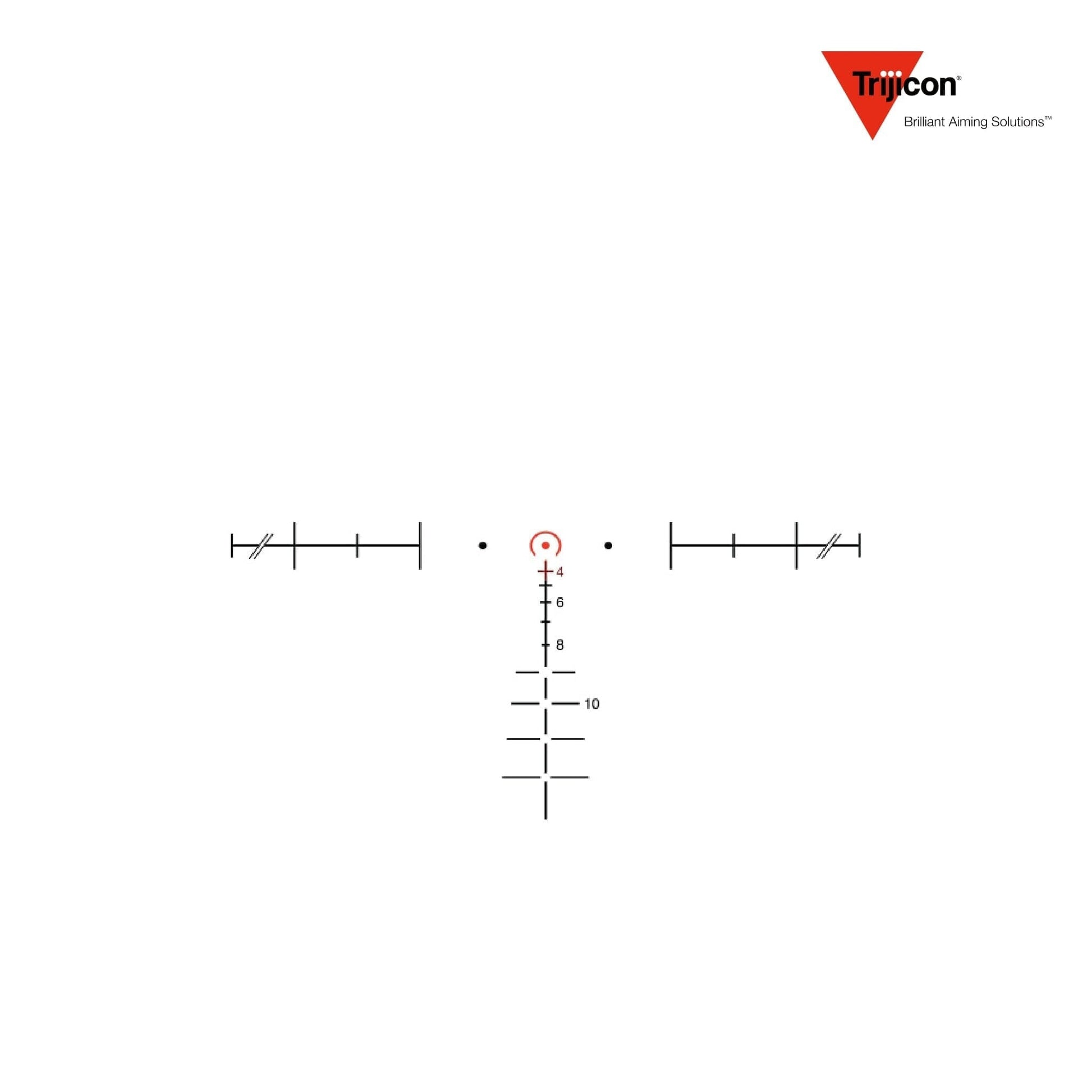

- .308/7.62 NATO BDC Red Horseshoe Reticle: Illuminated horseshoe calibrated for hold‑over out to 1,200 m; zero the horseshoe at 100 m for intuitive range estimation.
- TA51™ Flat‑Top Quick‑Detach Mount: “Rock‑touch” lever for rapid attachment/removal with repeatable zero on MIL‑STD‑1913 rails.
- Rugged Construction: CNC‑machined 30 mm main tube of 6061‑T6 aluminum; matte‑black hard‑coat anodize; nitrogen‑purged; waterproof/fog‑proof; shock‑rated for .22 LR through .50 BMG.
- Fixed Parallax: Optimized at 100 m—no external adjustment required.
- Compact & Lightweight: 8.0″ overall length; 14 oz weight for minimal bulk on AR‑pattern rifles.
- Made in USA & No‑Fault® Lifetime Warranty
Technical Specifications for Trijicon ACOG 3.5×35 BAC Riflescope .308/7.62 BDC Red Horseshoe Reticle
Specification |
Details |
Manufacturer |
Trijicon |
Model / MPN |
TA11H‑308 / 100154 |
SKU |
TA11H‑308 |
UPC |
719307302570 |
Country of Origin |
USA |
Magnification |
3.5× |
Objective Lens Diameter |
35 mm |
Main Tube Diameter |
30 mm |
Reticle |
.308/7.62 BDC red horseshoe (FFP) |
Illumination Source |
Fiber‑optic (day) + tritium (night) |
Parallax Focus |
Fixed @ 100 m |
Eye Relief |
2.39″ (61 mm) |
Field of View |
28.9 ft @ 100 yd |
Exit Pupil |
10 mm |
Turret Adjustment |
3 clicks/inch @ 100 yd |
Length |
8.0″ (203 mm) |
Weight |
14 oz (397 g) |
Finish |
Matte‑black hard‑coat anodize |
Waterproof / Fog‑Proof |
Yes (IPX7 to 10 ft) |
Shock‑Proof |
Yes (tested .22 LR–.50 BMG) |
Included Accessories
- TA51™ flat‑top quick‑detach mount
- Flip‑up objective & ocular lens covers
- LensPen® cleaning tool
- Trijicon logo sticker
- User manual & warranty card
