Trijicon

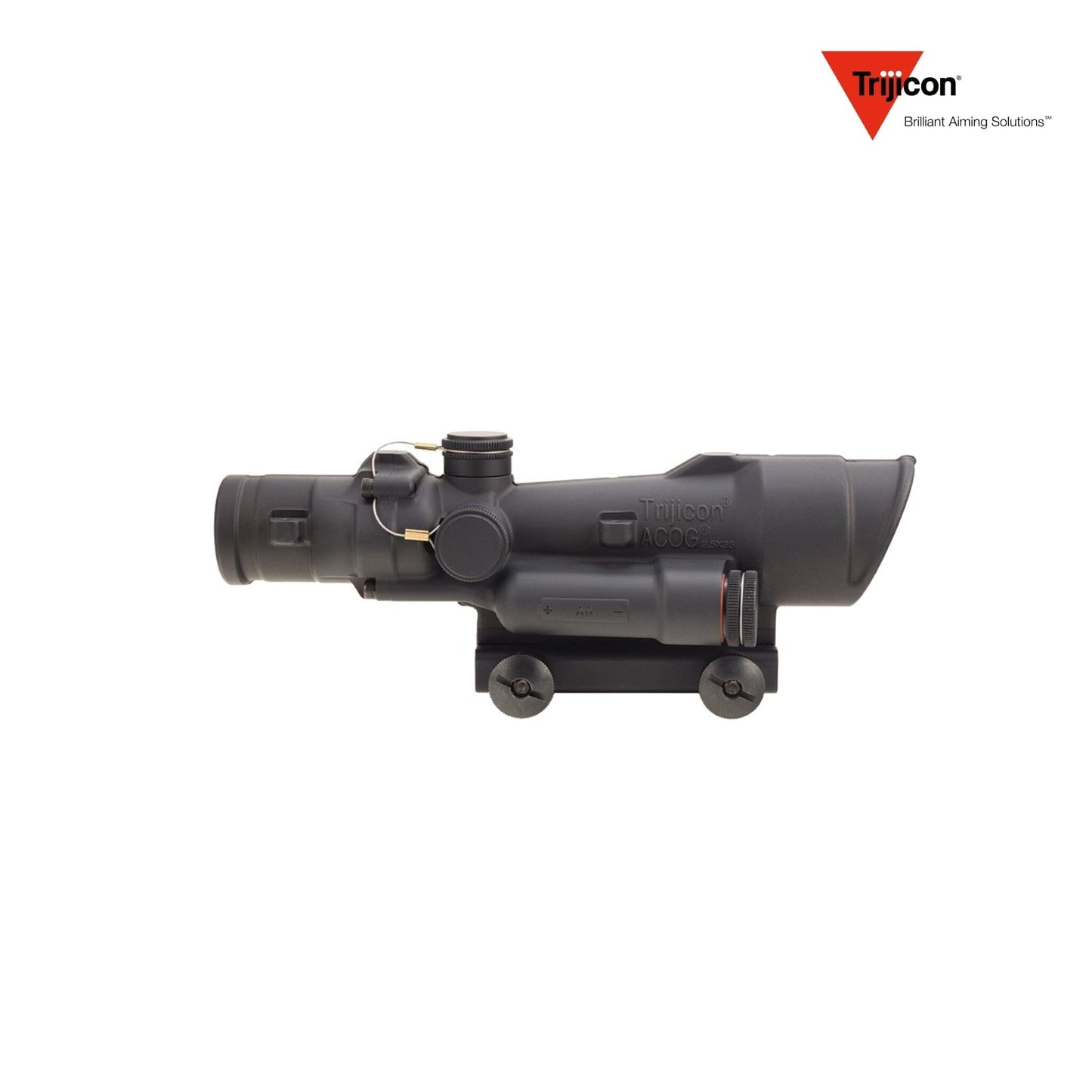

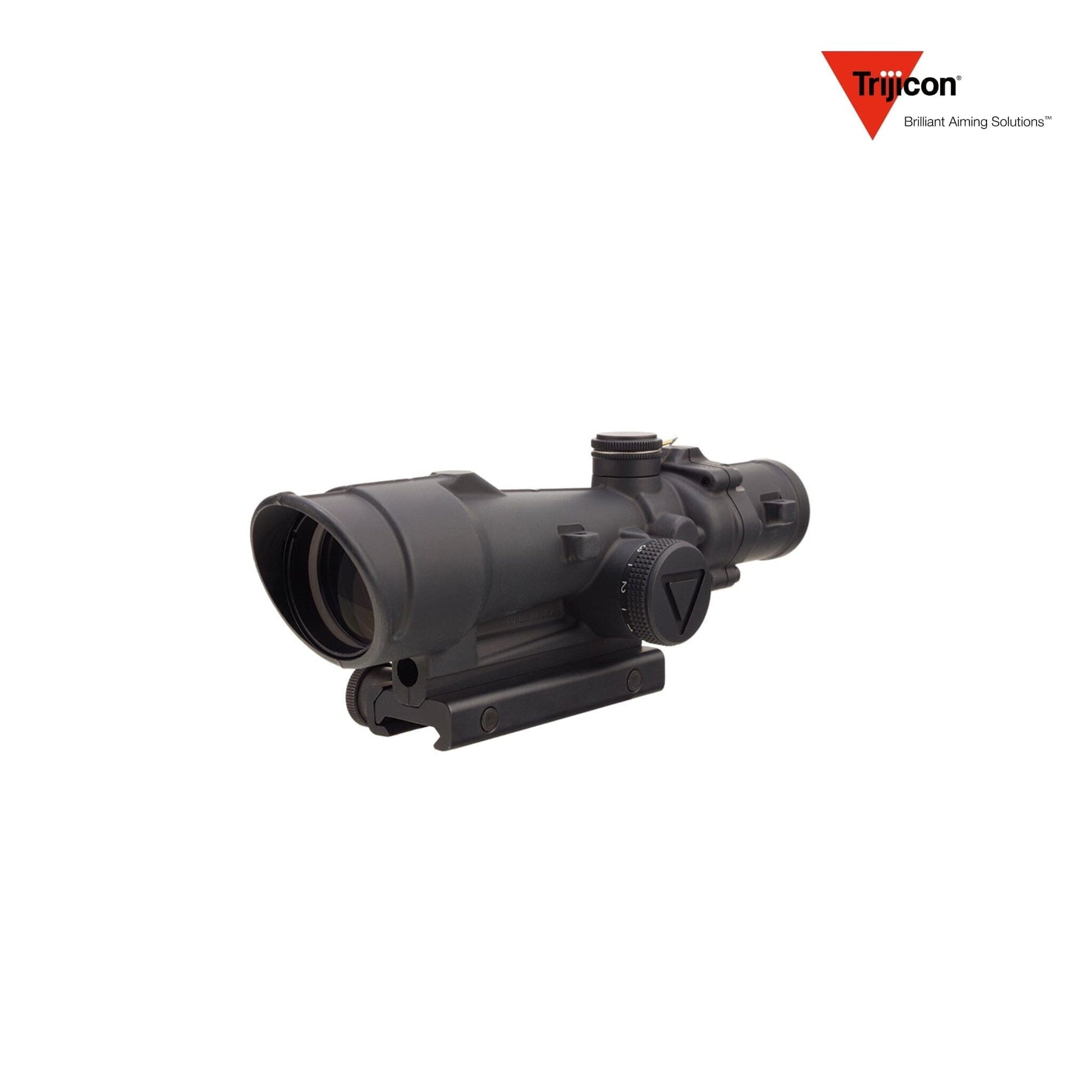

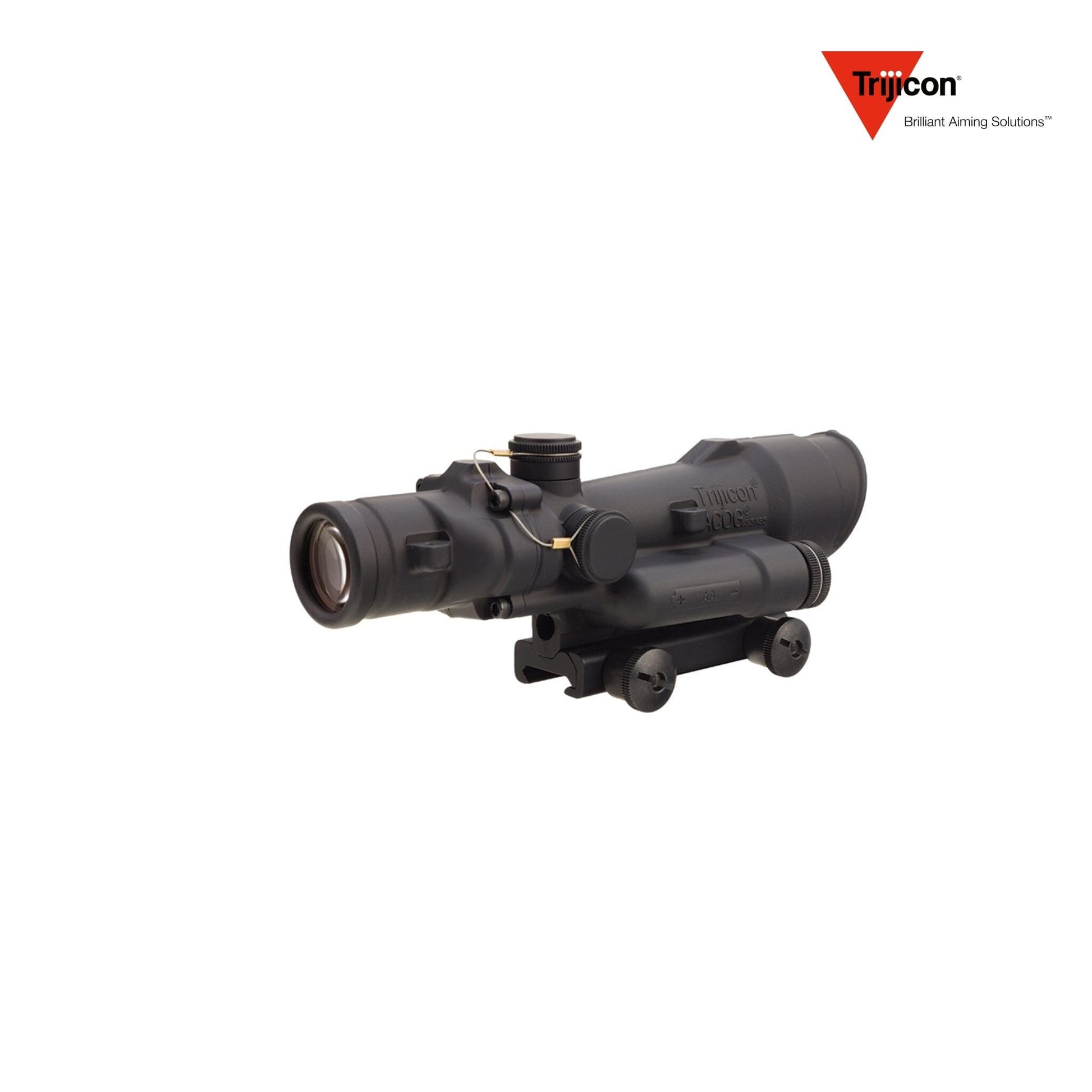

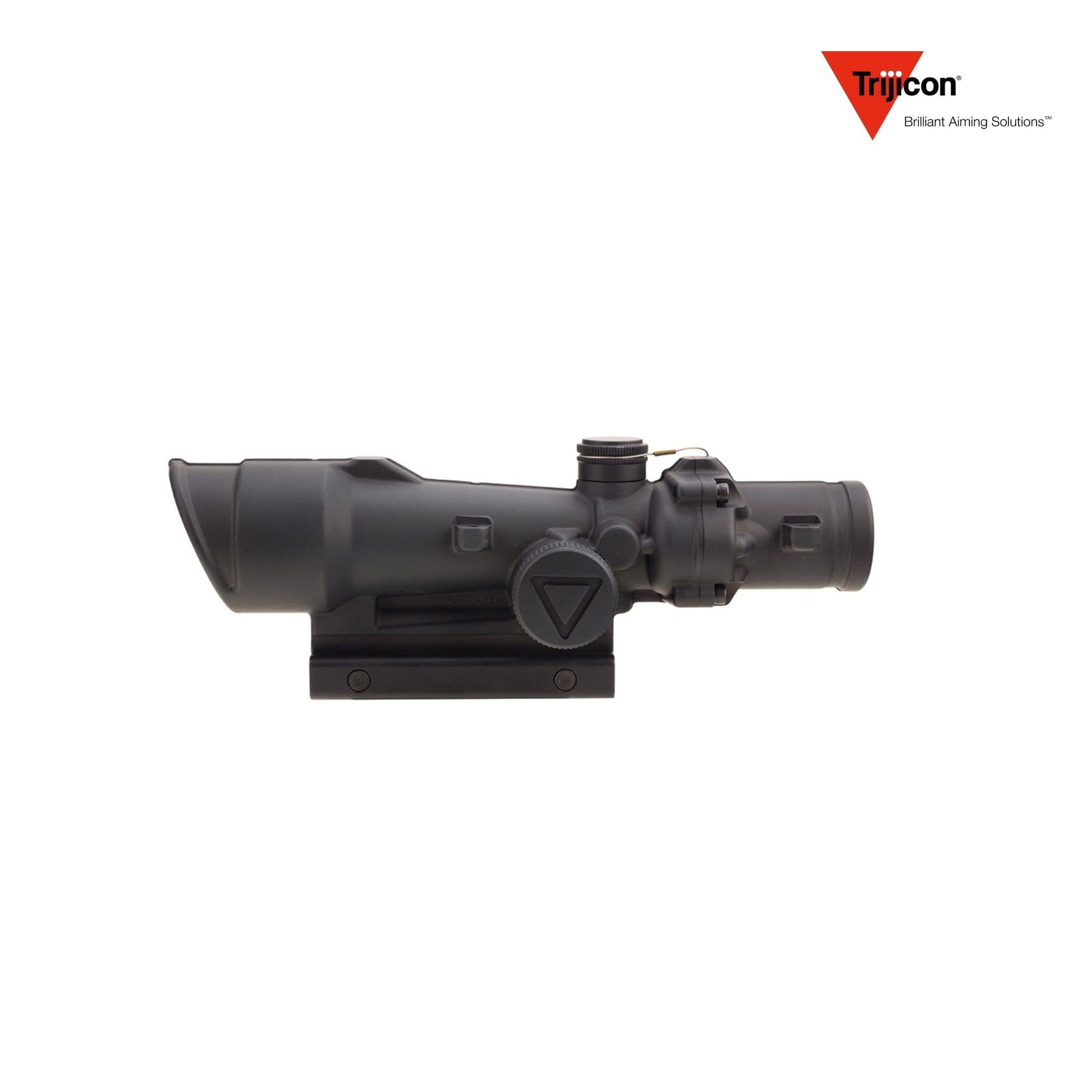

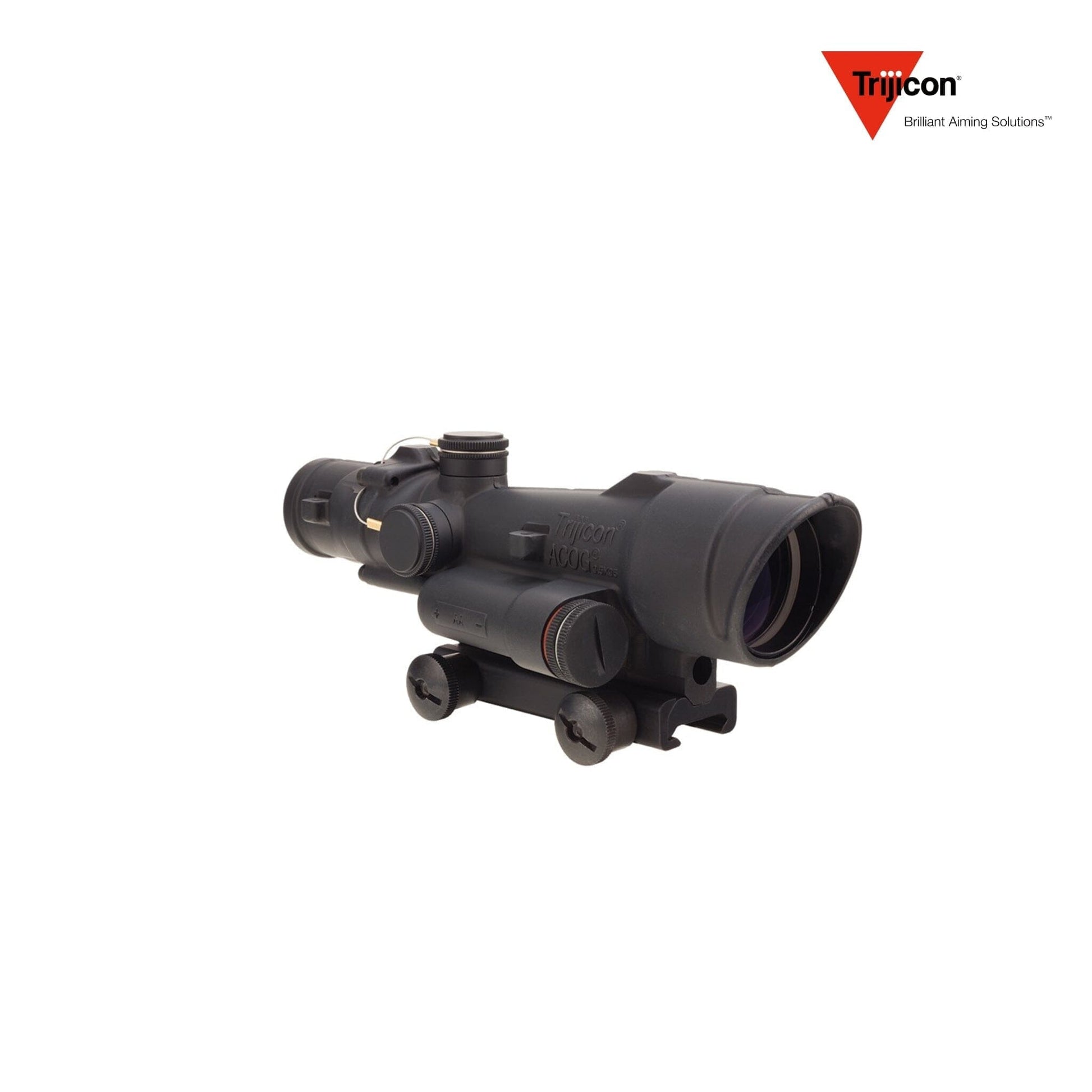

Trijicon ACOG 3.5x35 LED Riflescope .223/5.56 BDC Green Chevron Reticle

Trijicon ACOG 3.5x35 LED Riflescope .223/5.56 BDC Green Chevron Reticle

$1,229.99 USD
$1,229.99 USD
Sale Sold out
Shipping calculated at checkout.

Trijicon ACOG 3.5×35 LED Riflescope .223/5.56 BDC Green Chevron Reticle

Features

  • User‑Selectable LED Illumination: Six brightness levels with an “off” position between each; powered by a single AA (alkaline or lithium) battery delivering 12,000+ continuous hours at a mid setting (~#4, 21 °C).
  • Fixed 3.5× Combat Optic: Excellent balance of speed and reach—fast target acquisition with usable precision to extended distances on AR‑15 / 5.56 platforms.

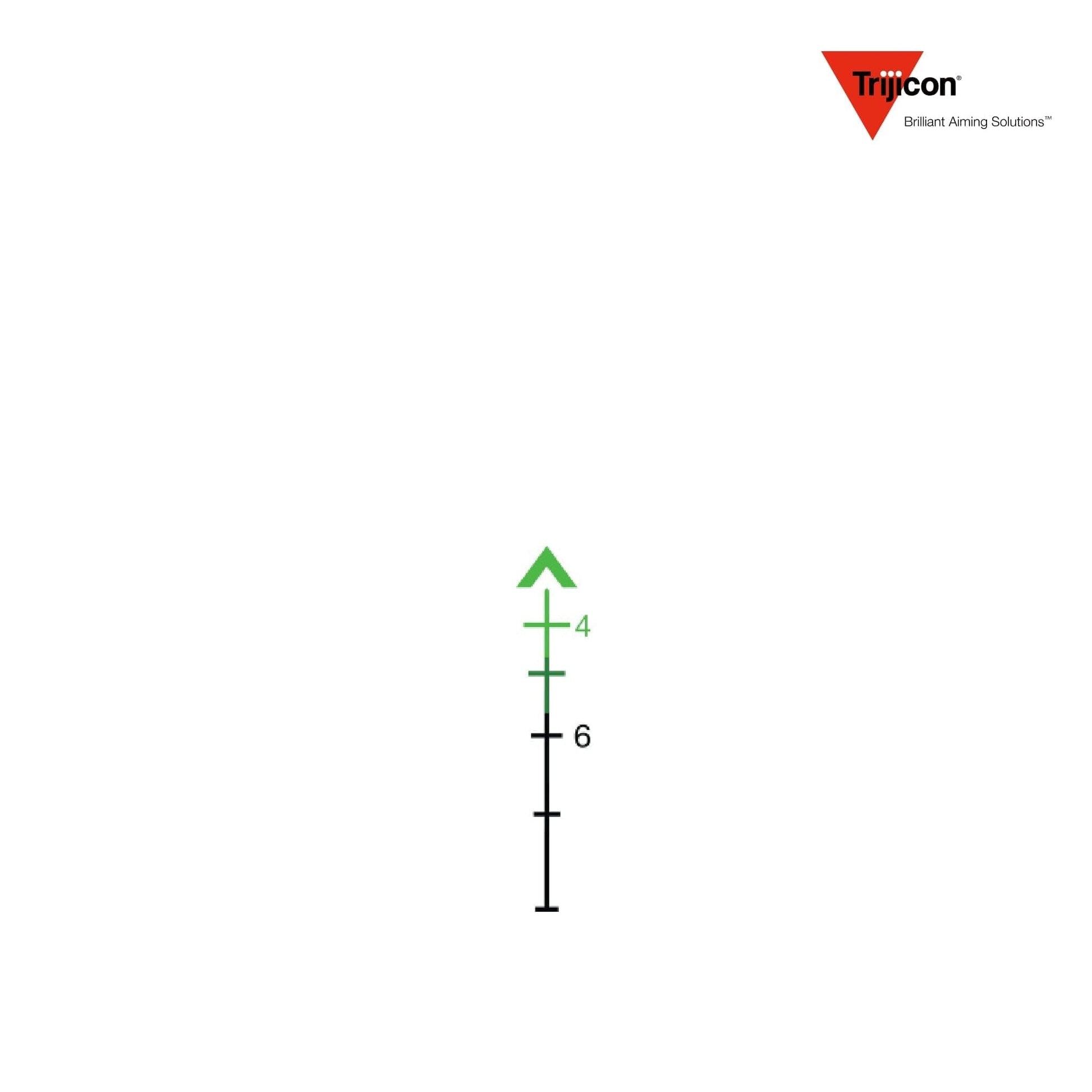

  • .223/5.56 BDC Green Chevron Reticle: Bright LED‑driven chevron aiming point with ballistic stadia calibrated for 5.56/.223; 100 m zero for intuitive hold‑overs.
  • Rugged Forged Housing: 7075‑T6 aircraft‑grade aluminum body; sealed, fog‑proof, shock‑resistant, and submersible to 66 ft (20 m).
  • Improved Ergonomics vs. Fiber/Tritium ACOGs: Integrated battery compartment and protective shroud; front/rear bosses accept piggyback reflex sights and accessories.
  • Precise Adjustments: 1/2 MOA impact correction per click; 40 MOA windage & elevation range.
  • Generous Eye Relief: 2.4″ (61 mm)—longer than many compact optics for more flexible mounting.
  • Complete Mount Kit Included: Ships with TA51 Picatinny thumbscrew / flattop adapter, battery, and caps.
  • Made in USA & Backed by Trijicon Warranty.

Technical Specifications for Trijicon ACOG 3.5×35 LED Riflescope .223/5.56 BDC Green Chevron Reticle

Specification

Details

Manufacturer

Trijicon

Model / MPN

TA110‑C‑100492 / 100492

SKU

TA110‑C‑100492

UPC

719307320963

Country of Origin

USA

Magnification

3.5× fixed

Objective Lens Diameter

35 mm

Reticle

Green .223/5.56 Chevron BDC (LED illuminated)

Illumination Settings

6 user‑selectable brightness levels with off positions; AA powered; 12,000+ hr at mid setting

Eye Relief

2.4″ (61 mm)

Field of View @ 100 yd

28.9 ft (5.5°)

Exit Pupil

10 mm

Adjustment Increment

1/2 MOA per click

Total Adjustment Range

40 MOA windage & elevation

Parallax

Fixed (no user adjustment)

Length

8.0″ (203 mm)

Width / Height

~3.0″ W × 2.6″ H (optic only, w/out mount)

Weight

16.8 oz optic‑only (approx. 20.8 oz w/ mount & battery)

Housing Material / Finish

Forged 7075‑T6 aluminum; matte black hard anodize

Waterproof / Fog‑Proof

Sealed; submersible to 66 ft (20 m); nitrogen‑purged

Shock Resistance

Rated to withstand heavy recoil (.22 LR – .50 BMG)

Mount Interface

TA51 Picatinny thumbscrew / flattop adapter (included)

Included Accessories

  • TA51 Picatinny thumbscrew / flattop mount
  • AA battery (alkaline or lithium, as packaged)
  • Tethered battery & adjustment caps
  • LensPen® cleaning tool
  • Owner’s manual & warranty card
