Trijicon

Trijicon ACOG 3.5x35 LED Riflescope .223/5.56 BDC Green Crosshair Reticle

Trijicon ACOG 3.5x35 LED Riflescope .223/5.56 BDC Green Crosshair Reticle

$1,229.99 USD
$1,229.99 USD
Sale Sold out
Shipping calculated at checkout.

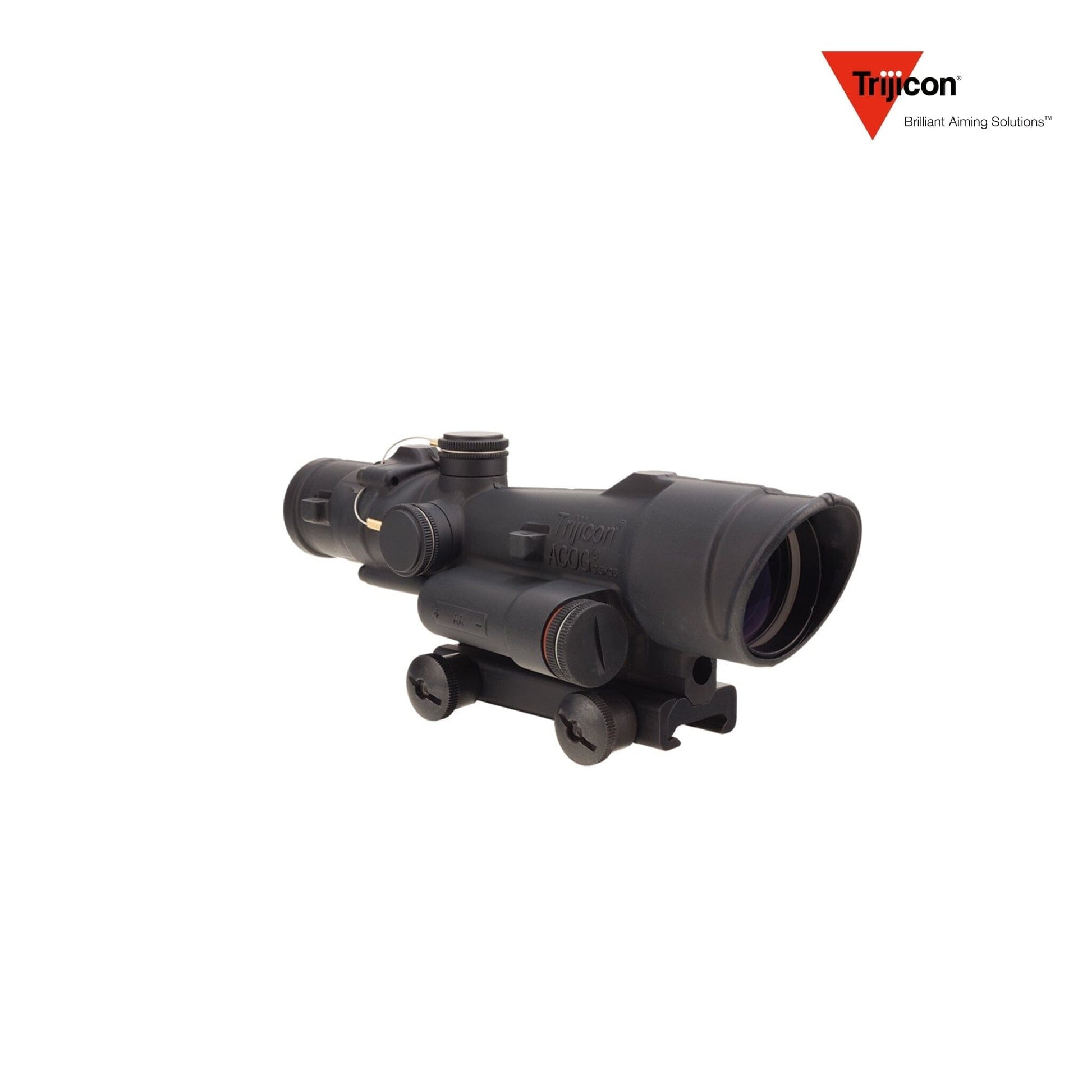

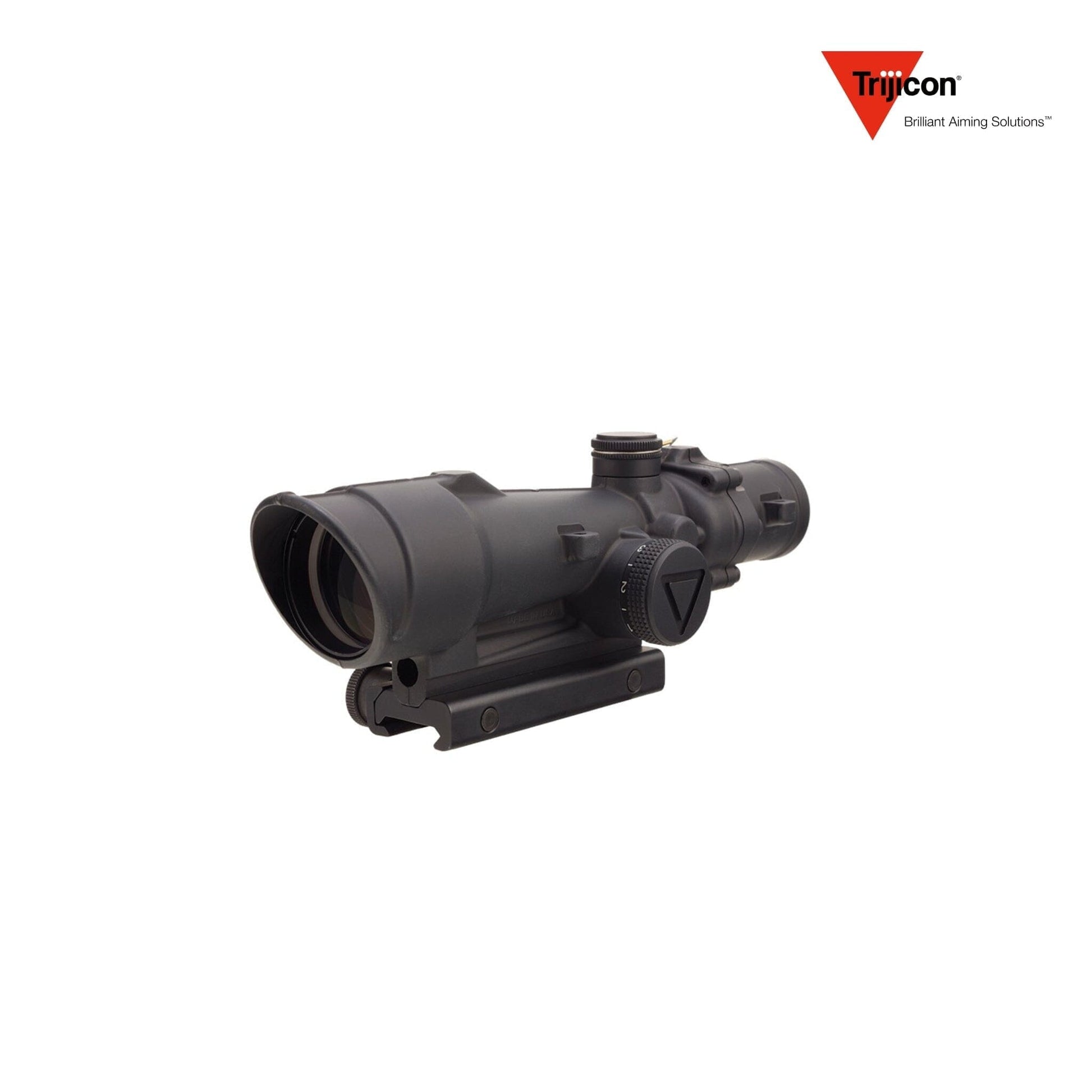

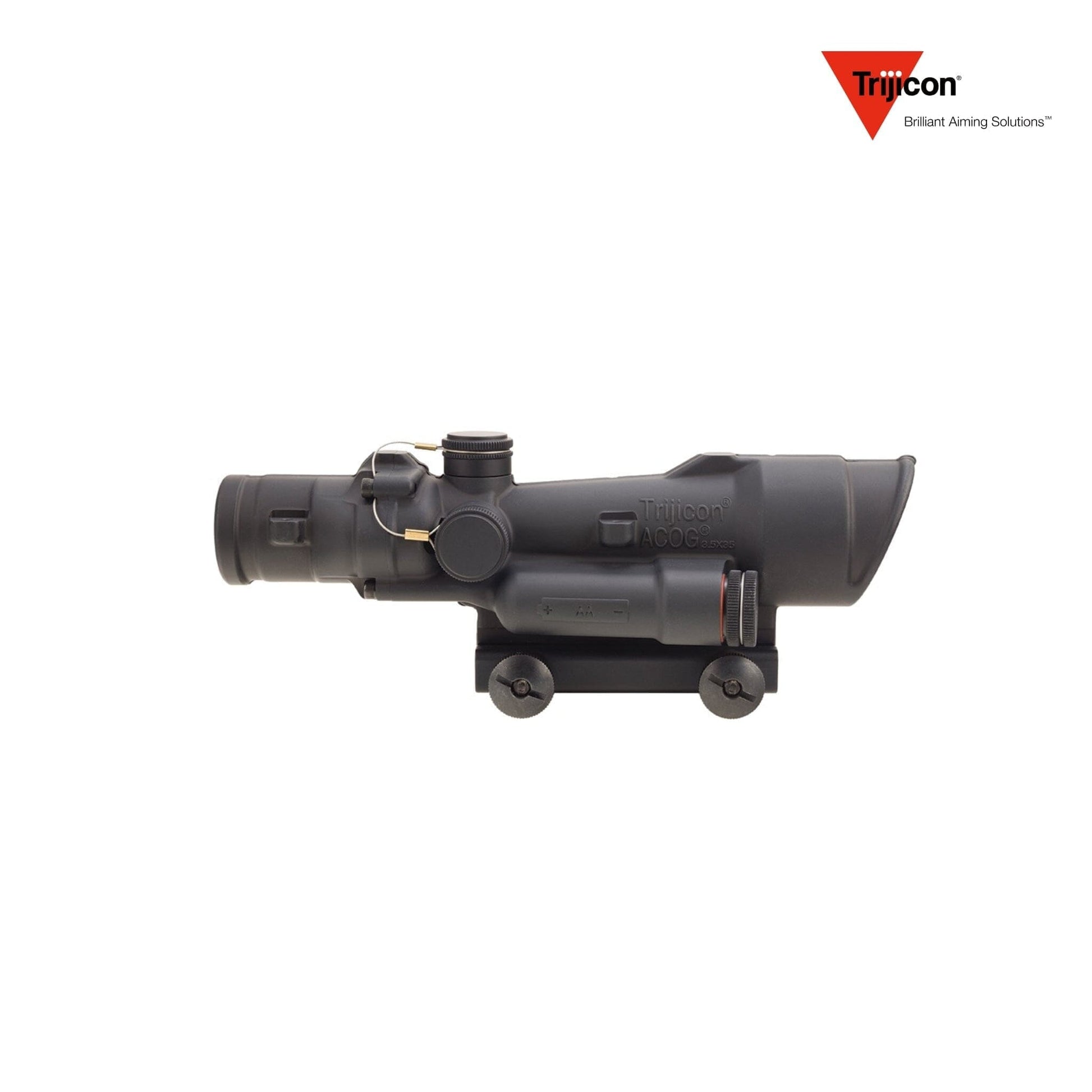

Trijicon ACOG 3.5×35 LED Riflescope .223/5.56 BDC Green Crosshair Reticle

Features

  • User‑Selectable LED Illumination: Six brightness levels with an “off” detent between each; powered by a single AA (alkaline or lithium) battery. Approx. 12,000+ continuous hours at a mid setting (~#4, 21 °C).
  • Fixed 3.5× Combat Optic: Fast, clear sight picture with enough magnification for confident hits at extended carbine distances on 5.56/.223 platforms.

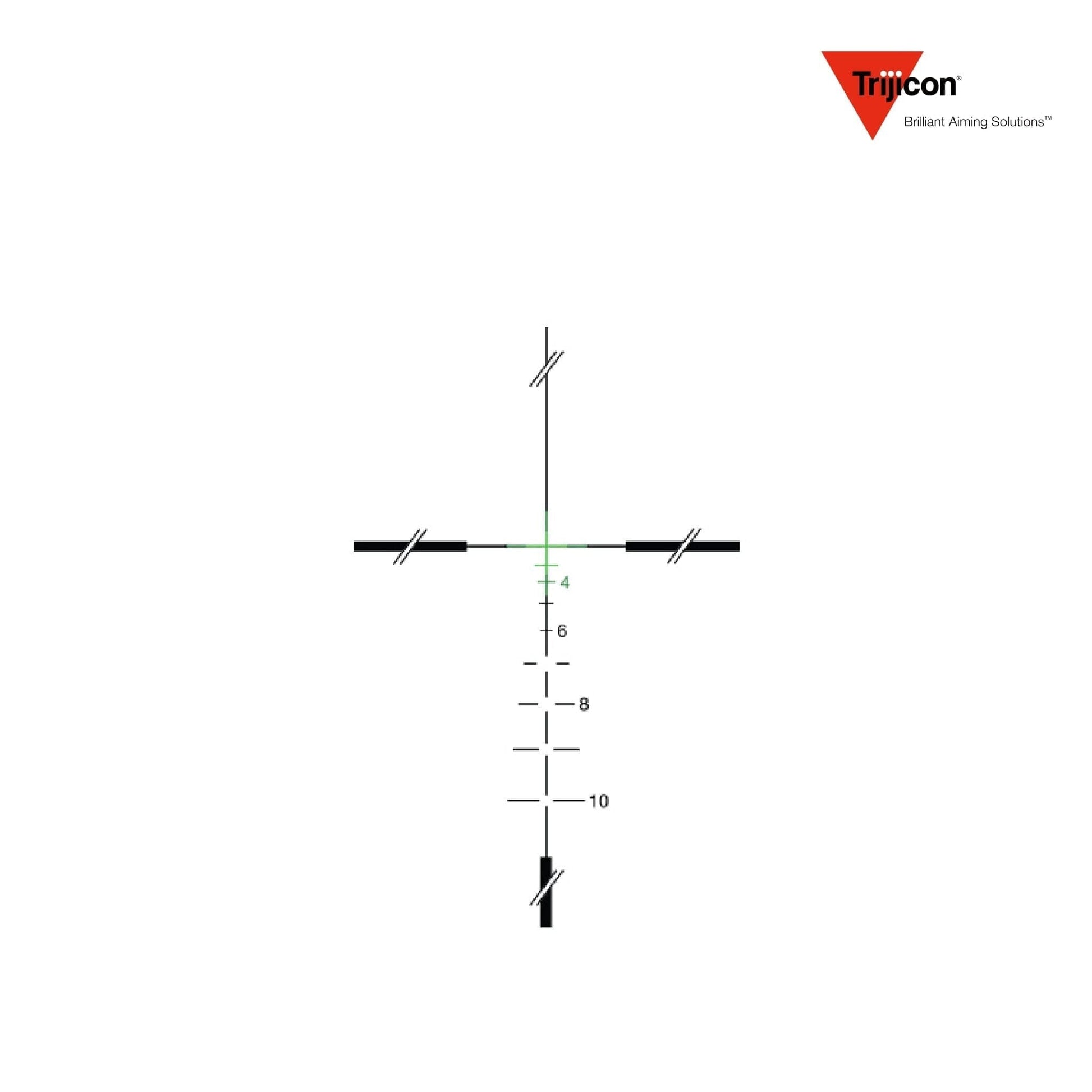

  • .223/5.56 BDC Green Crosshair Reticle: Bright LED‑driven center crosshair with ballistic stadia matched to common 5.56/.223 trajectories when zeroed at 100 m; uncluttered for quick holds.
  • Rugged Forged Housing: 7075‑T6 aircraft‑grade aluminum ACOG body; sealed, fog‑proof, shock‑resistant, and submersible to 66 ft (20 m).
  • Accessory‑Ready: Integrated battery compartment shroud and top/bottom accessory bosses for piggyback miniature reflex sights or other mission add‑ons.
  • Precise Adjustments: 1/2 MOA impact correction per click; 40 MOA total windage & elevation travel.
  • Generous Eye Relief: 2.4″ (61 mm) for flexible mounting and reduced scope shadow.
  • TA51 Picatinny Mount Included: Ready to install on flattop rails out of the box.
  • Made in USA & Backed by Trijicon Warranty.

Technical Specifications for Trijicon ACOG 3.5×35 LED Riflescope .223/5.56 BDC Green Crosshair Reticle

Specification

Details

Manufacturer

Trijicon

Model / MPN

TA110‑D‑100496 / 100496

SKU

TA110‑D‑100496

UPC

719307321007

Country of Origin

USA

Magnification

3.5× fixed

Objective Lens Diameter

35 mm

Reticle

Green .223/5.56 BDC Crosshair (LED illuminated)

Illumination Settings

6 brightness levels w/ off between; AA powered; ~12,000+ hr at mid setting

Eye Relief

2.4″ (61 mm)

Field of View @ 100 yd

28.9 ft (5.5°)

Exit Pupil

10 mm

Adjustment Increment

1/2 MOA per click

Total Adjustment Range

40 MOA windage & elevation

Parallax

Fixed (no user adjustment)

Length

8.0″ (203 mm)

Width / Height

~3.0″ W × 2.6″ H (optic only)

Weight

16.8 oz optic‑only (approx. 20.8 oz w/ TA51 mount & battery)

Housing Material / Finish

Forged 7075‑T6 aluminum; matte black hard anodize

Waterproof / Fog‑Proof

Sealed; submersible to 66 ft (20 m); nitrogen‑purged

Shock Resistance

Rated to withstand heavy recoil (.22 LR – .50 BMG)

Mount Interface

TA51 Picatinny thumbscrew / flattop adapter (included)

Included Accessories

  • TA51 Picatinny thumbscrew / flattop mount
  • AA battery (alkaline or lithium, as packaged)
  • Tethered battery & adjustment caps
  • LensPen® cleaning tool
  • Owner’s manual & warranty card

SEO Keywords
Trijicon ACOG TA110‑D‑100496, 3.5×35 LED ACOG Green Crosshair, .223/5.56 BDC battery‑powered ACOG, adjustable LED combat optic.
