Trijicon

Trijicon ACOG 3.5x35 LED Riflescope .223/5.56 BDC Red Crosshair Reticle

Trijicon ACOG 3.5x35 LED Riflescope .223/5.56 BDC Red Crosshair Reticle

$1,229.99 USD
$1,229.99 USD
Sale Sold out
Shipping calculated at checkout.

Trijicon ACOG 3.5×35 LED Riflescope .223/5.56 BDC Red Crosshair Reticle

Features

  • Battery‑Powered LED Illumination: Six brightness levels with “off” detents between each; single AA (alkaline or lithium) battery provides 12,000+ hrs at a mid setting (~#4, 21 °C).
  • Fixed 3.5× Combat Optic: Rapid target acquisition with enough magnification for confident hits at extended carbine distances on 5.56/.223 platforms.

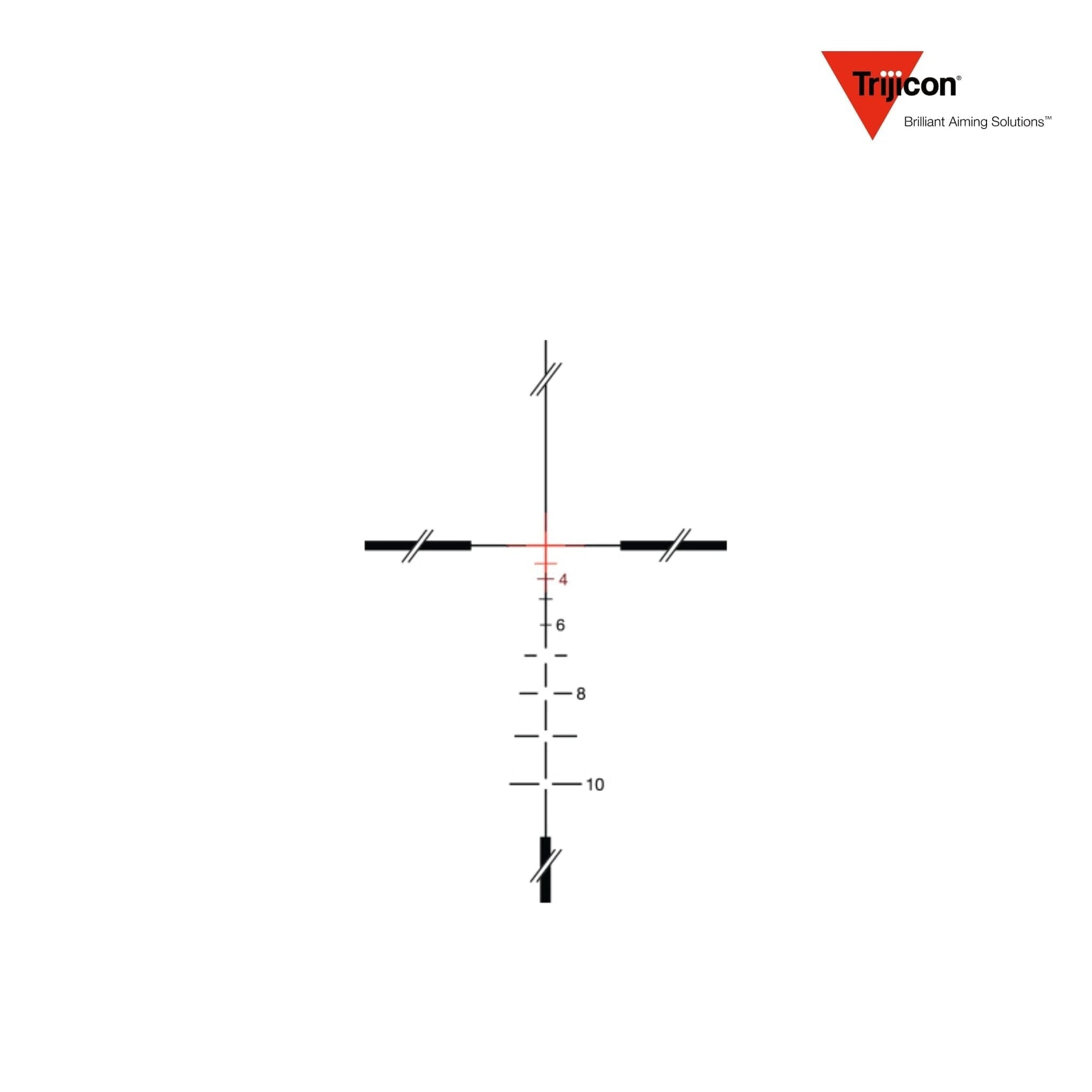

  • .223/5.56 BDC Red Crosshair Reticle: LED‑bright central crosshair with ballistic stadia matched to common 5.56 loads (100 m zero) for quick, uncluttered hold‑overs.
  • Parallax‑Free Operation: Factory fixed parallax at 100 m (~109 yd)—no user adjustment needed.
  • Rugged Forged Housing: 7075‑T6 aluminum ACOG chassis; sealed, fog‑proof, shock‑resistant, submersible to 66 ft (20 m).
  • Precise Adjustments: 1/2 MOA impact correction per click; 40 MOA total windage & elevation range.
  • Generous Eye Relief: 2.4″ (61 mm) for flexible mounting behind BUIS, magnifiers, or NV gear.
  • Accessory‑Ready Body: Battery compartment shroud plus accessory bosses for piggyback miniature optics.
  • TA51 Picatinny Mount Included: Ready to install on MIL‑STD‑1913 / flattop rails.
  • Made in USA & Backed by Trijicon Warranty.

Technical Specifications for Trijicon ACOG 3.5×35 LED Riflescope .223/5.56 BDC Red Crosshair Reticle

Specification

Details

Manufacturer

Trijicon

Model / MPN

TA110‑D‑100495 / 100495

SKU

TA110‑D‑100495

UPC

719307321014

Country of Origin

USA

Magnification

3.5× fixed

Objective Lens Diameter

35 mm

Reticle

Red .223/5.56 BDC Crosshair (LED illuminated)

Illumination Settings

6 levels w/ off between; AA powered; 12k+ hr at mid setting

Eye Relief

2.4″ (61 mm)

Field of View @ 100 yd

28.9 ft (5.5°)

Exit Pupil

10 mm

Adjustment Increment

1/2 MOA per click

Total Adjustment Range

40 MOA windage & elevation

Parallax Focus

Fixed at 100 m (≈109 yd)

Length

8.0″ (203 mm)

Width / Height

~3.0″ W × 2.6″ H (optic only)

Weight

~17 oz optic‑only (approx. 21 oz w/ TA51 mount & battery)

Housing Material / Finish

Forged 7075‑T6 aluminum; matte black hard anodize

Waterproof / Fog‑Proof

Sealed; submersible to 66 ft (20 m); nitrogen‑purged

Shock Resistance

Rated for heavy recoil (.22 LR – .50 BMG)

Mount Interface

TA51 Picatinny thumbscrew / flattop adapter (included)

Included Accessories

  • TA51 Picatinny thumbscrew / flattop mount
  • AA battery (alkaline or lithium, as packaged)
  • Tethered battery & adjustment caps
  • LensPen® cleaning tool
  • Owner’s manual & warranty card
