Trijicon ACOG 4×32 BAC ECOS Riflescope 5.56 BDC Green Crosshair Reticle
Trijicon ACOG 4×32 BAC ECOS Riflescope 5.56 BDC Green Crosshair Reticle
Couldn't load pickup availability
Trijicon ACOG 4×32 BAC ECOS Riflescope 5.56 BDC Green Crosshair Reticle
Features
- Dual‑Illuminated, Battery‑Free ACOG: Fiber optics automatically regulate reticle brightness in daylight; tritium lamp provides a glow in low/no light—no batteries required in the ACOG body.

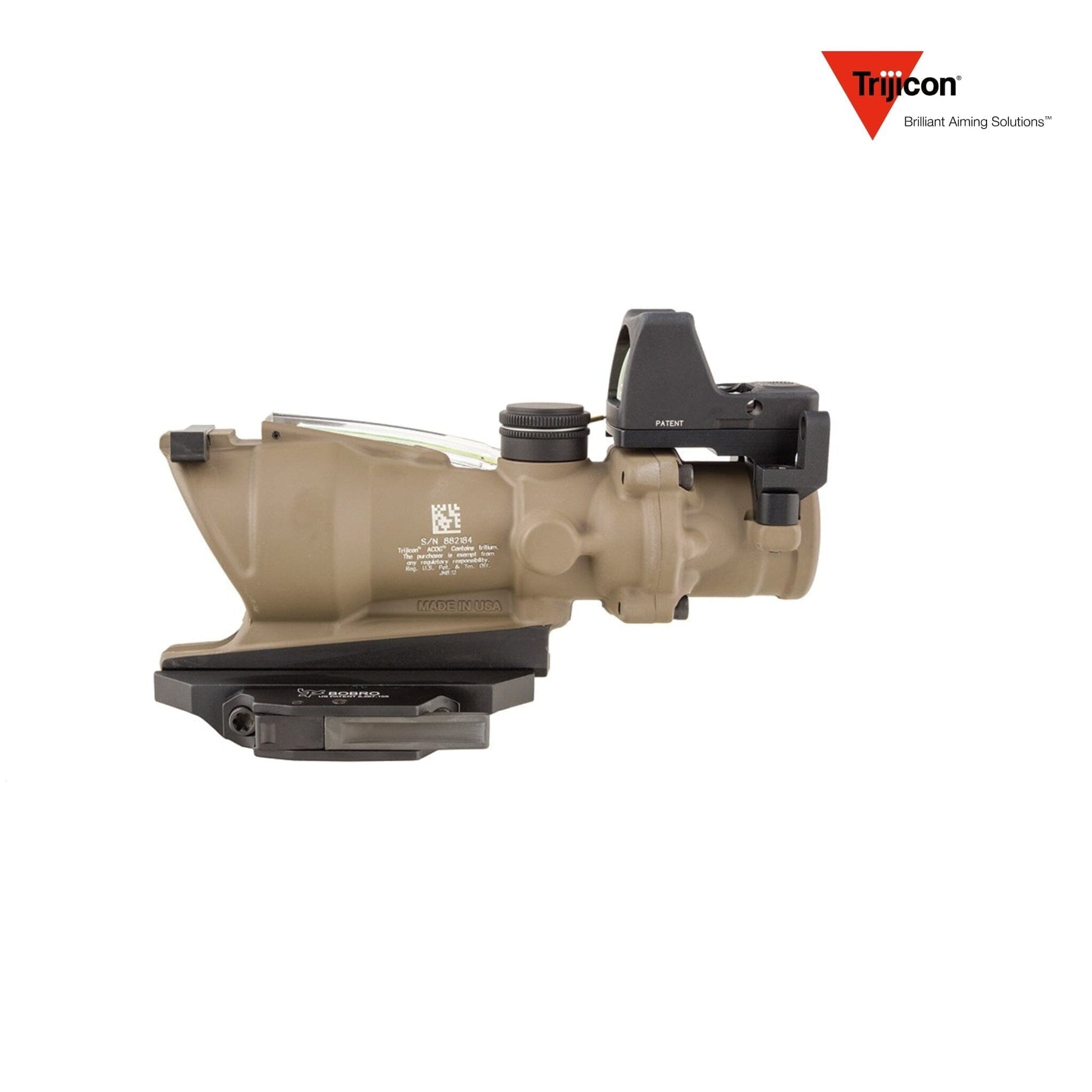

- ECOS Dual‑Sighting System: Factory‑mated Trijicon RMR® Type 2 LED Red Dot (3.25 MOA) mounted atop the ACOG for instant, heads‑up CQB transitions without changing cheek weld.

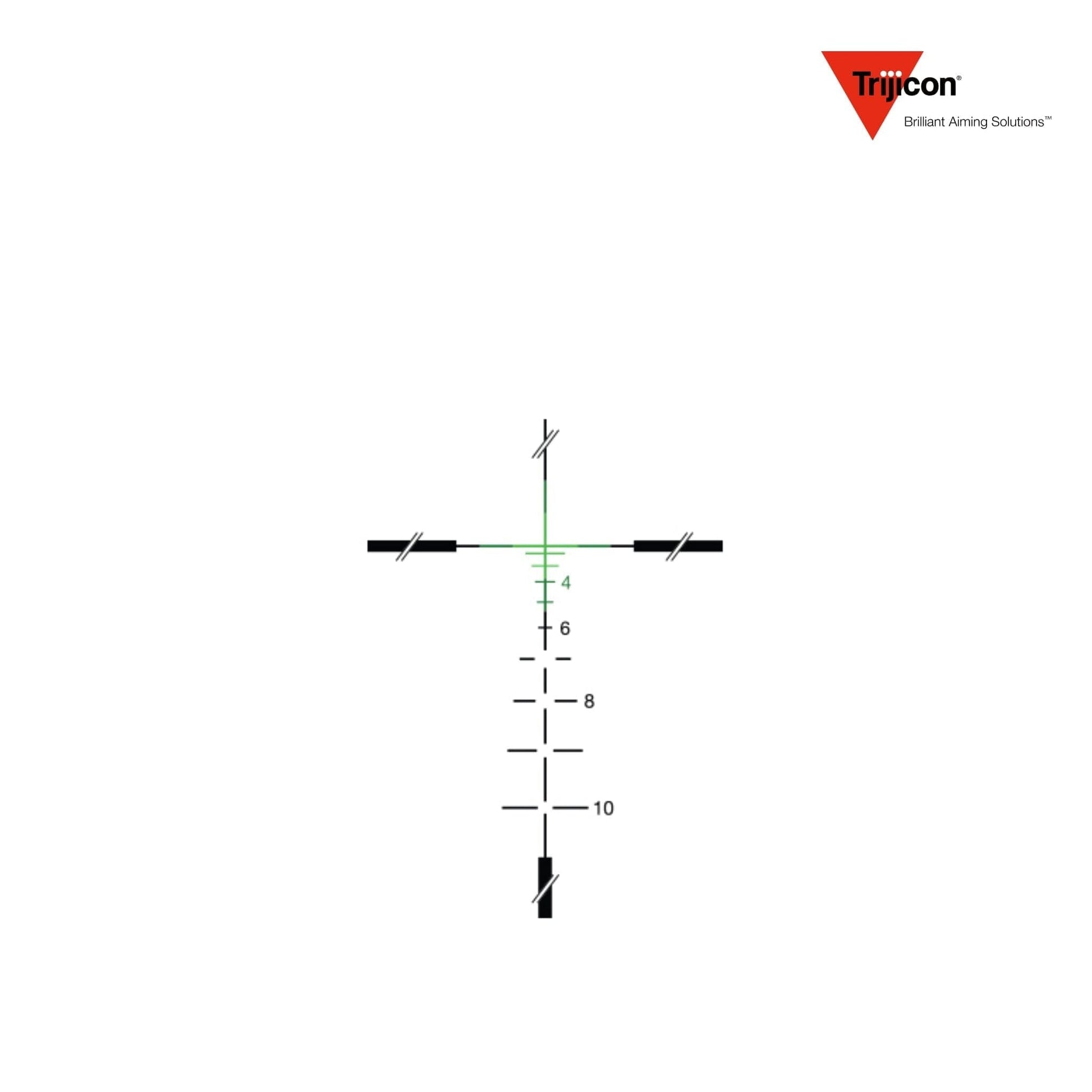

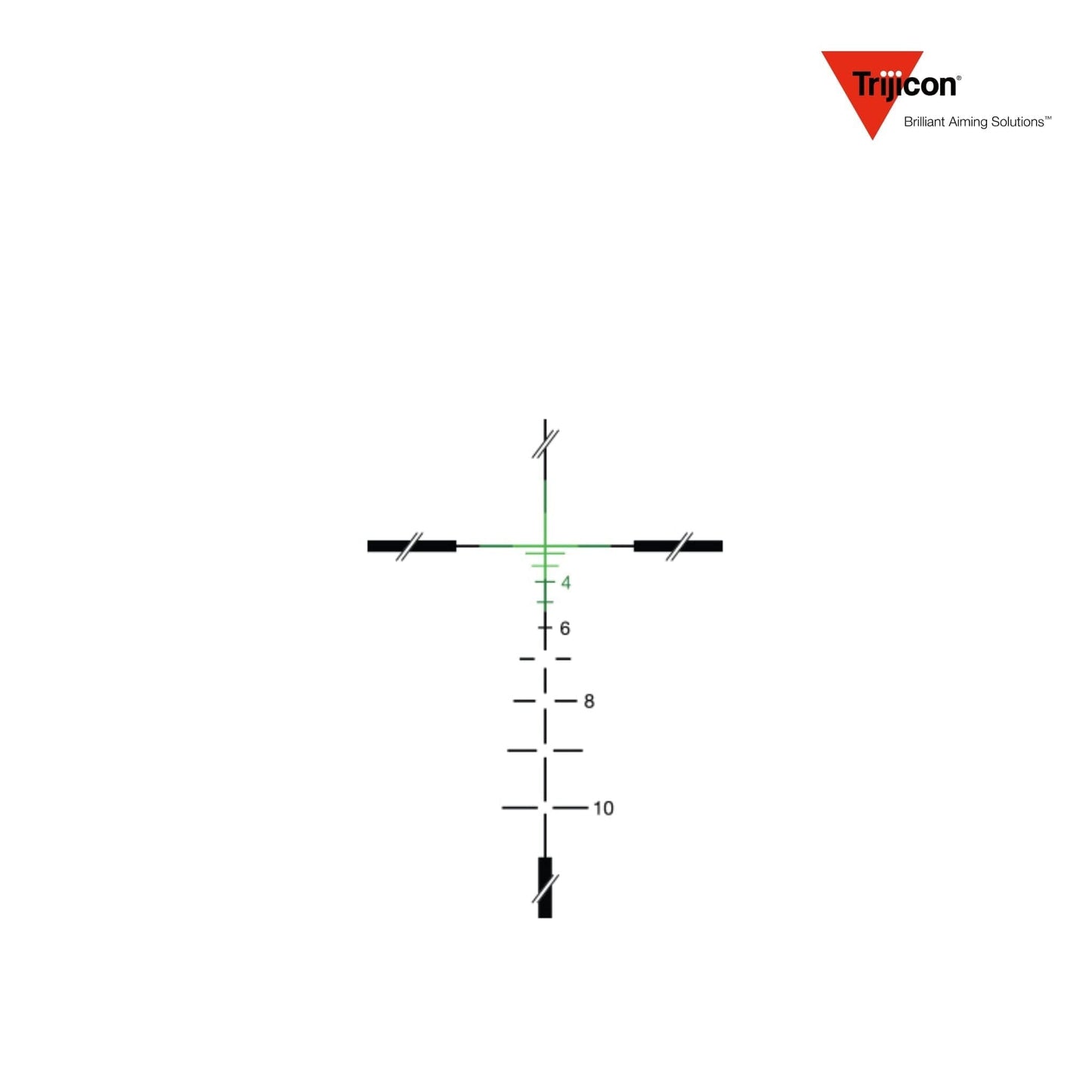

- 5.56 BDC Green Crosshair Reticle: Highly visible green crosshair with ballistic drop stadia scaled for 5.56 NATO / .223 trajectories (100 m zero) for rapid holds to extended distance.
- Backup Iron Sights & Quick‑Release Mount: Integrated mini iron sights on the included Trijicon QD Picatinny mount provide a tertiary aiming option; fast on/off with repeatable zero.
- Bindon Aiming Concept™ Speed: True both‑eyes‑open shooting at 4× magnification—maintain situational awareness while driving the crosshair on target.
- Battle‑Proven Durability: Forged aluminum housing, Cerakote® Flat Dark Earth finish, shock‑resistant, waterproof, fog‑proof—built for combat environments.
- External Tool‑Less Adjusters: 1/2 MOA windage & elevation clicks; no turret caps needed.
- Compact, Lightweight Deployment Kit: Designed for carbines where height, balance, and weight matter.
- Made in USA & Backed by Trijicon Warranty.
Technical Specifications for Trijicon ACOG 4×32 BAC ECOS Riflescope 5.56 BDC Green Crosshair Reticle
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
TA31‑D‑100554 / 100554 |
|
SKU |
TA31‑D‑100554 |
|
UPC |
719307311824 |
|
Country of Origin |
USA |
|
Magnification |
4× fixed |
|
Objective Lens Diameter |
32 mm |
|
Optical Design |
Fixed‑power prism sight (no maintube) |
|
Reticle |
Green Crosshair 5.56 BDC (dual‑illuminated fiber optic / tritium) |
|
Illumination (ACOG) |
Auto fiber (day) / tritium (night); battery‑free |
|
Piggyback Optic |
Trijicon RMR® Type 2 LED Red Dot, 3.25 MOA (battery powered, CR2032) |
|
Eye Relief |
1.5″ (38 mm) |
|
Field of View @ 100 yd |
36.8 ft (7°) |
|
Exit Pupil |
8.1 mm |
|
Adjustment Click Value |
1/2 MOA per click |
|
Total Adjustment Range |
~40 MOA windage & elevation |
|
Parallax Focus |
Fixed at 100 m (≈109 yd) |
|
Overall Length |
~7.3″ assembled ECOS kit (approx. 5.8–6.2″ ACOG optic body) |
|
Weight |
~15.1 oz ACOG optic; ~20 oz class complete ECOS kit (ACOG + RMR + mount/irons) |
|
Finish / Color |
Cerakote® Flat Dark Earth (FDE) |
|
Waterproof / Fog‑Proof |
Sealed; nitrogen‑purged; service‑rated waterproof |
|
Shock Resistance |
Combat‑rated (duty calibers) |
|
Mount Interface |
Trijicon Quick‑Release Picatinny mount w/ integrated backup iron sights (included) |
Included Accessories (ECOS Kit Contents)
- 4×32 ACOG (dual‑illum Green Crosshair 5.56 BDC)
- Trijicon RMR® Type 2 3.25 MOA Red LED (factory mounted)
- Trijicon QD Picatinny mount w/ integrated backup iron sights
- Lens cleaning tool
- Adjustment / hardware kit
- Trijicon logo sticker
- Owner’s manual & warranty documentation
