Trijicon ACOG 4x32 BAC Riflescope .223/5.56 BDC Red Chevron Reticle

Trijicon ACOG 4x32 BAC Riflescope .223/5.56 BDC Red Chevron Reticle

$1,229.99 USD
$1,229.99 USD
Sale Sold out
Shipping calculated at checkout.

Trijicon ACOG 4×32 BAC Riflescope .223/5.56 BDC Red Chevron Reticle

Features

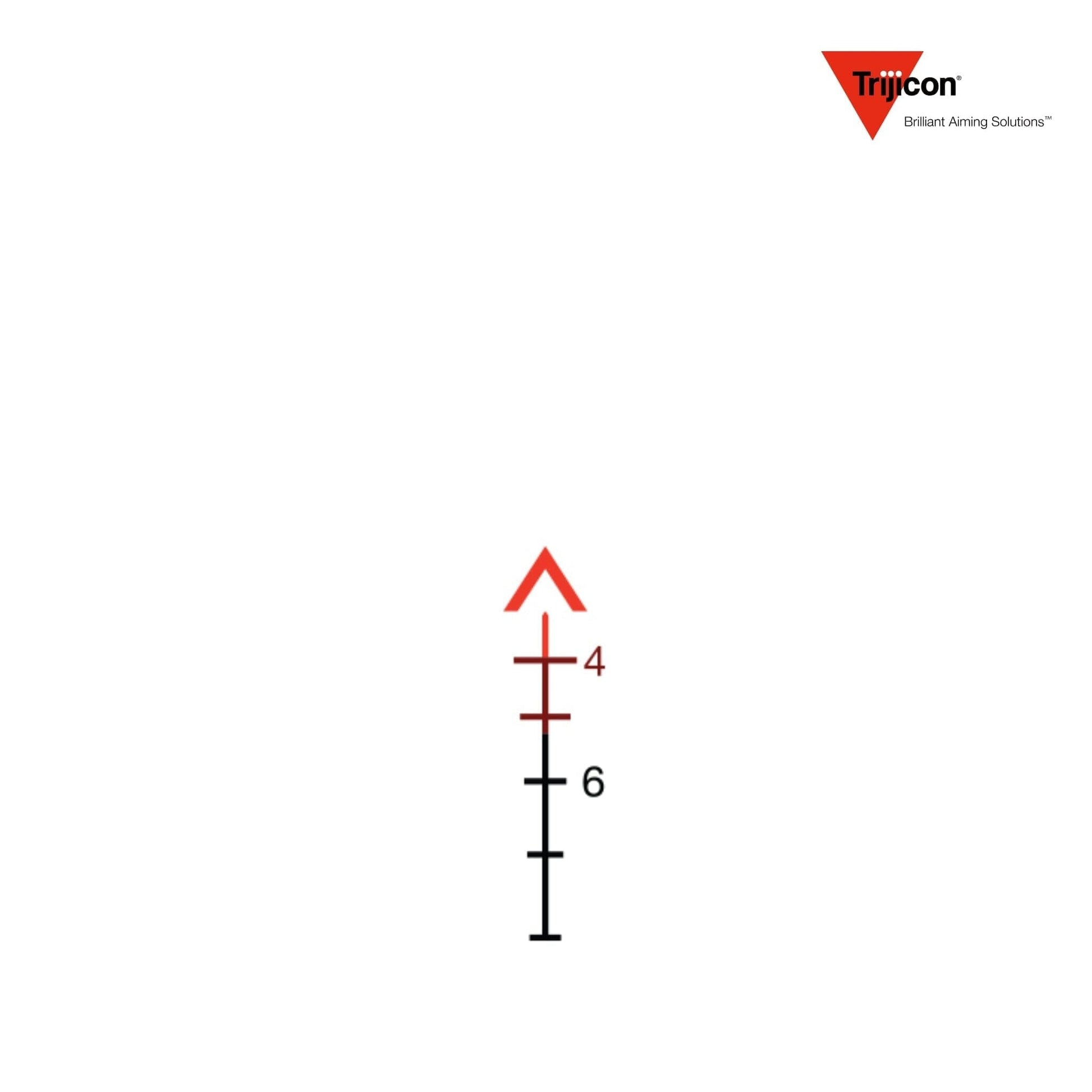

  • Dual-Illuminated Red Chevron BAC Reticle: Fiber-optic daylight illumination with tritium night-vision glow—always-on aiming without batteries. The chevron tip zeroes at 100 m and the 5.53 MOA base spans 19 in at 300 m for range estimation.
  • Bullet-Drop Compensator (BDC): Calibrated for .223/5.56 × 45 mm flat-top rifles out to 800 m, allowing instant hold-over without turret adjustments.
  • Fixed 4× Magnification: Prismatic design provides a bright, distortion-free 1.5″ eye relief and unlimited eye-box for rapid target acquisition.
  • Compact, Rugged Construction: One-piece 32 mm tube of 6061-T6 aluminum, matte-black hard-coat anodized, O-ring/nitrogen-sealed to IPX7 (submersible to 11 m) and fog-proof.
  • Low-Profile Flattop Mount Included: TA51 flattop adapter for direct mounting to MIL-STD-1913 rails; maintains a 1/3-co-witness with backup iron sights.

Technical Specifications for Trijicon ACOG 4×32 BAC Riflescope .223/5.56 BDC Red Chevron Reticle

Specification

Details

Product Title

Trijicon ACOG 4×32 BAC Rifle Scope (.223/5.56 BDC Red Chevron Reticle)

Model / MPN

TA31F / 100215

SKU

TA31F

UPC

719307300095

Magnification

Fixed 4×

Objective Lens Diameter

32 mm

Tube Diameter

32 mm

Reticle

Red Chevron “.223/5.56 BDC” (5.53 MOA base; chevron tip zero at 100 m)

Illumination

Fiber-optic + tritium dual illumination

Eye Relief

1.5 in (38 mm)

Field of View @ 100 yd

36.8 ft (7°)

Exit Pupil

8.1 mm

Adjustment Graduation

0.5 MOA per click (2 clicks / inch @ 100 yd)

Parallax

Fixed @ 100 yd

Tube Material / Finish

6061-T6 aluminum, matte-black hard-coat anodized

Waterproof Rating

IPX7 (submersible to 11 m)

Fog- & Shock-Resistant

Nitrogen-purged, military-grade shock testing

Length

5.8 in (147 mm)

Weight

15.1 oz (428 g)

Mount Interface

TA51 flattop adapter for 1″ Weaver/MIL-STD-1913 rail

Country of Origin

USA

Warranty

Unconditional lifetime warranty (Trijicon)

SEO Keywords
Trijicon ACOG 4×32 BAC, TA31F Red Chevron reticle, .223/5.56 BDC riflescope, dual-illuminated ACOG.
