Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Green Chevron Reticle
Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Green Chevron Reticle
Couldn't load pickup availability

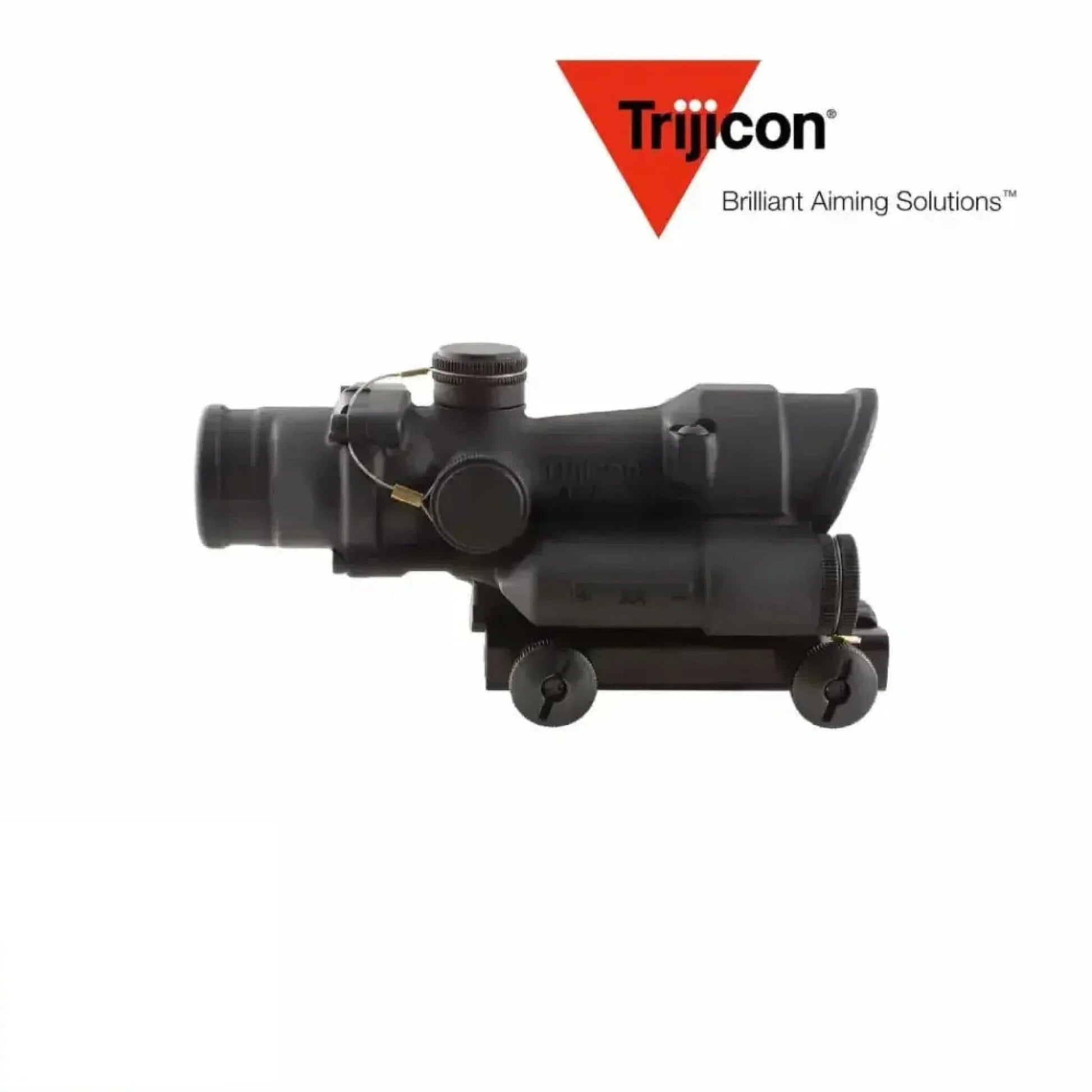

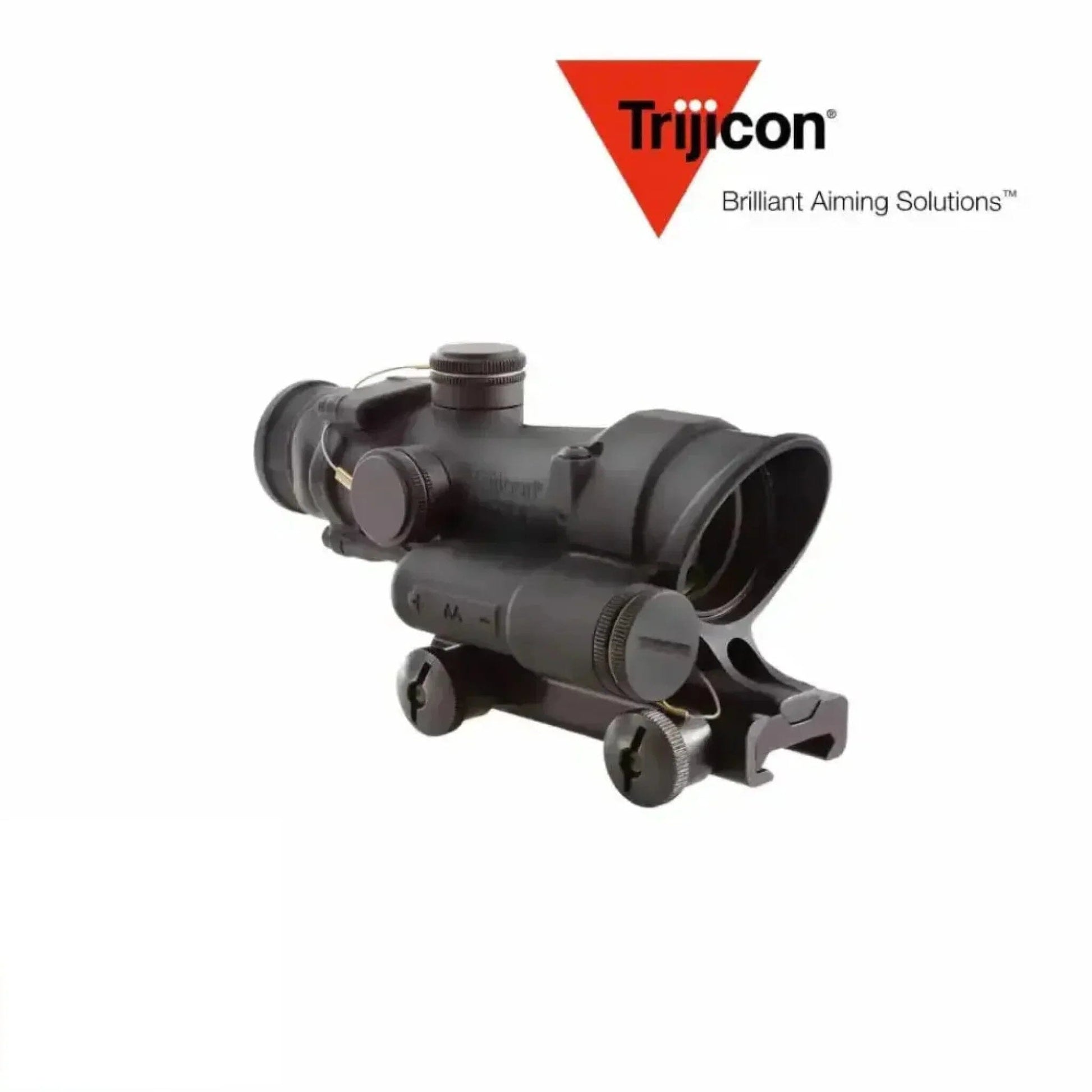

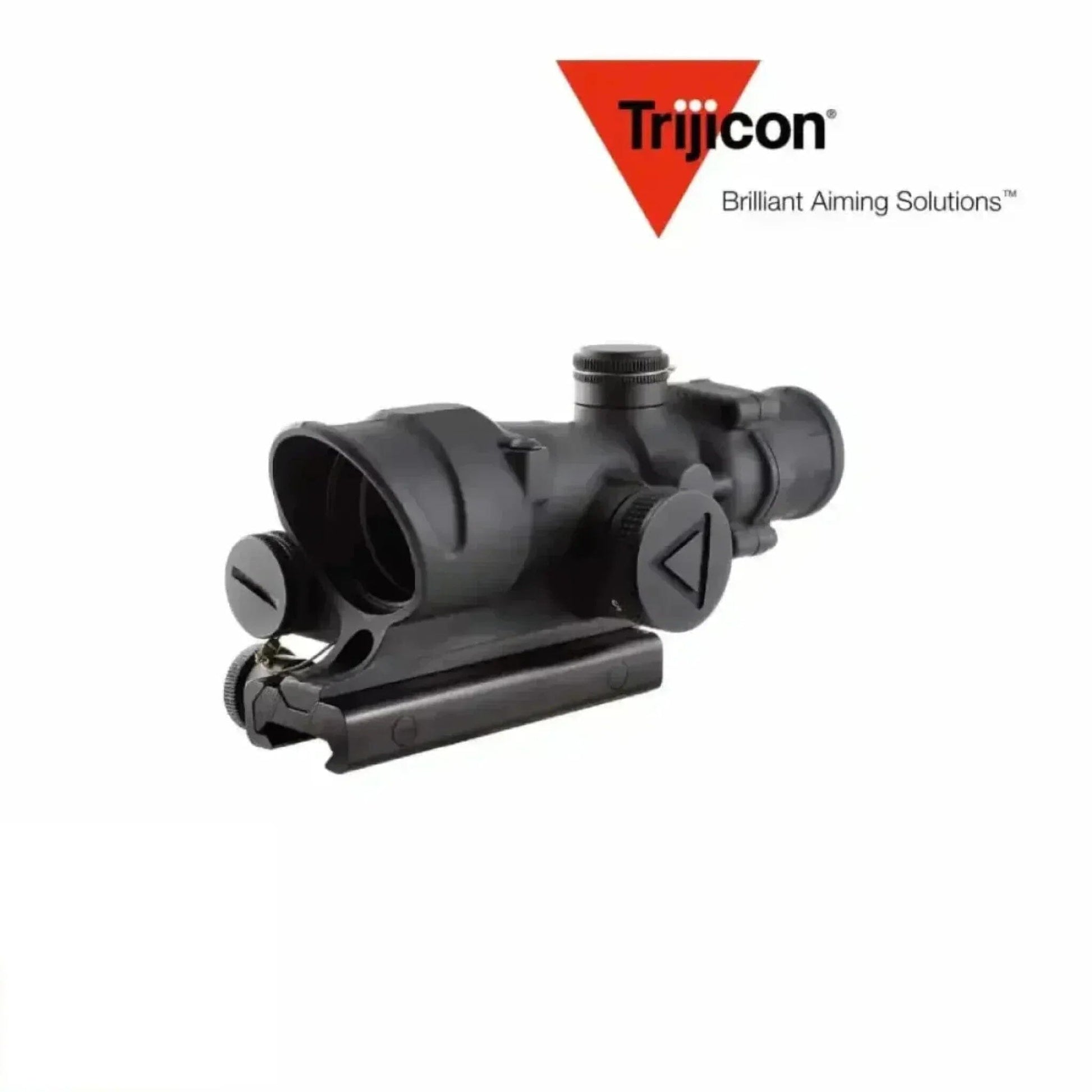

Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Green Chevron Reticle
Features
- User‑Selectable LED Illumination (Battery Powered): Six brightness levels with an “off” detent between each setting let you dial exactly the reticle intensity you want for any light condition; powered by a single AA (alkaline or lithium) battery.
- Extended Battery Life: Runs 12,000+ continuous hours on setting #4 at ~21 °C (70 °F); choose lithium cells for maximum runtime range performance.
- NVD‑Friendly Low Settings: Lower brightness levels are compatible with image‑intensified night‑vision devices without excessive bloom.
- 4× Fixed ACOG Optical System: Proven prism design delivers fast target acquisition and rugged, repeatable 4× magnification for 5.56/.223 carbines from CQB snap shots to distance holds.

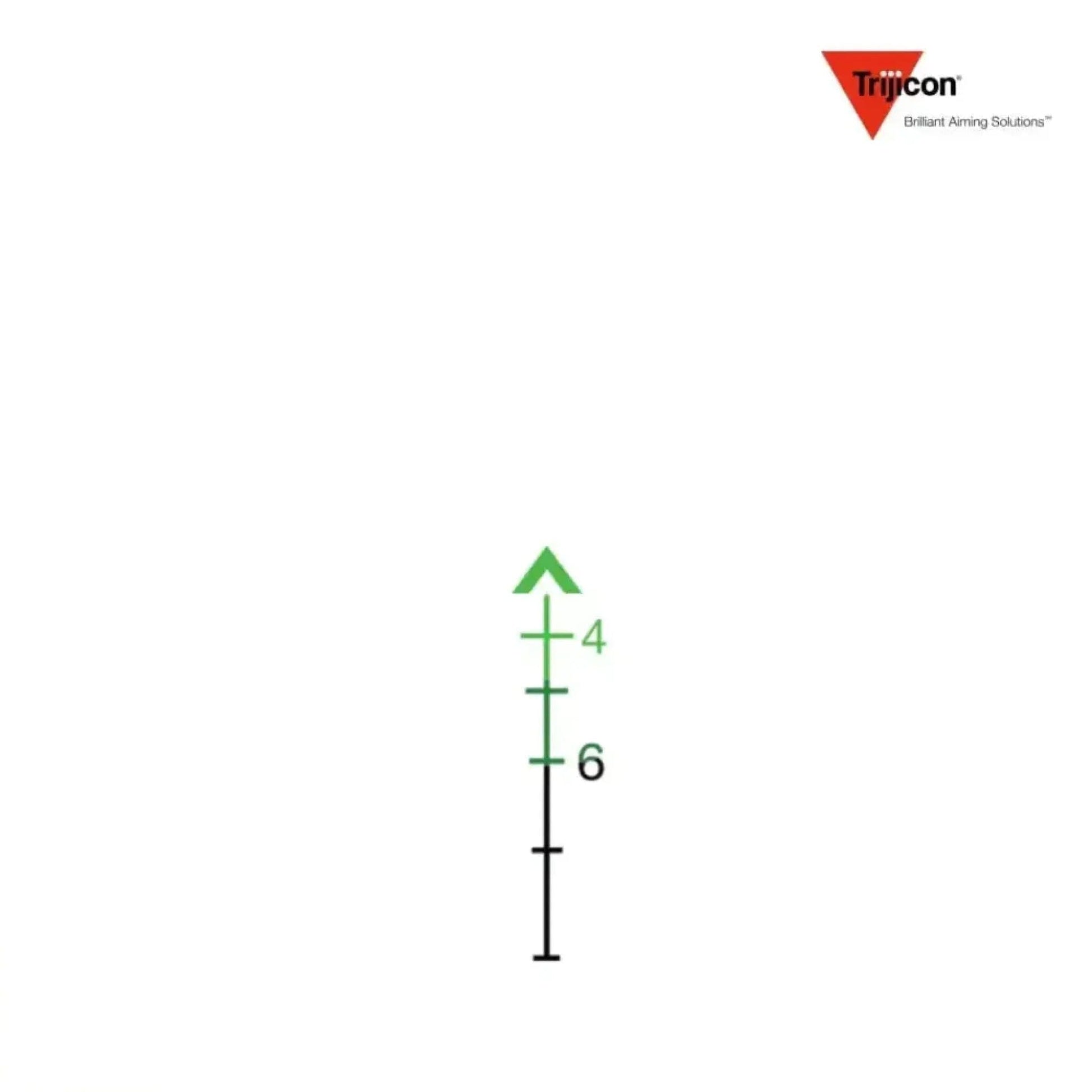

- .223/5.56 BDC Green Chevron Reticle: Zero the illuminated chevron tip at 100 m; descending stadia provide calibrated bullet‑drop references for common 5.56 loads—fast center‑chevron for close work, precise holds to extended range.
- Optimized Housing for Top Optics: Extended “battery saddle” design moves the accessory boss forward to better accommodate piggyback reflex optics (e.g., RMR) if added later.
- Forged 7075‑T6 Aluminum Construction: Near‑indestructible ACOG chassis survives recoil from .22 LR through .50 BMG and harsh field abuse.
- ½ MOA External Adjusters: Positive, tactile clicks (2 clicks/inch @100 yd) simplify zeroing; ample elevation/windage travel for duty carbines.
- Weather & Duty Ready: Waterproof, fog‑proof (nitrogen‑purged), shock‑resistant; tested across extreme temperature and immersion conditions.
- TA51 Flattop Picatinny Mount Included: Out‑of‑box compatibility with MIL‑STD‑1913 / AR‑15 flattop uppers.
- Made in USA & Backed by Trijicon Warranty.
Technical Specifications for Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Green Chevron Reticle
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
TA02‑D‑100391 / 100391 |
|
SKU |
TA02‑D‑100391 |
|
UPC |
719307308190 |
|
Country of Origin |
USA |
|
Magnification |
4× fixed |
|
Objective Lens Diameter |
32 mm |
|
Optical Design |
Fixed‑power prism (integral ACOG housing) |
|
Reticle |
Green Chevron .223/5.56 BDC (LED illuminated) |
|
Illumination Settings |
6 LED brightness levels, “off” between each; AA powered; NVD‑compatible low settings |
|
Battery Life |
12,000+ hrs continuous on setting #4 @ ~21 °C (alkaline); longer w/ lithium |
|
Eye Relief |
1.5″ (38 mm) |
|
Field of View @ 100 yd |
36.8 ft (7°) |
|
Exit Pupil |
8.1 mm |
|
Adjustment Click Value |
½ MOA (≈2 clicks/inch @100 yd) |
|
Total Adjustment Range |
~40 MOA windage & elevation |
|
Parallax Focus |
Fixed at 100 m (≈109 yd) |
|
Overall Length |
6.0″ (152 mm) |
|
Weight |
18.1 oz (513 g) optic w/ battery; ~21 oz class w/ TA51 mount installed (approx.) |
|
Housing Material / Finish |
Forged 7075‑T6 aluminum; matte black hard anodize |
|
Optical Coatings |
Fully multi‑coated, broadband‑treated glass |
|
Waterproof / Fog‑Proof |
Sealed; nitrogen‑purged; immersion‑tested (duty waterproof) |
|
Shock Resistance |
Rated from .22 LR through .50 BMG recoil; MIL drop‑test proven |
|
Mount Interface |
TA51 flattop Picatinny thumbscrew adapter (included) |
Included Accessories
- TA51 flattop Picatinny thumbscrew mount
- AA battery (alkaline, factory supplied; lithium recommended for extreme temps)
- Lanyard assembly for adjuster caps
- Lanyard assembly for battery cap
- Lens cleaning tool (LensPen® style)
- Trijicon logo sticker
- ACOG manual
- Warranty card / registration info
