Trijicon

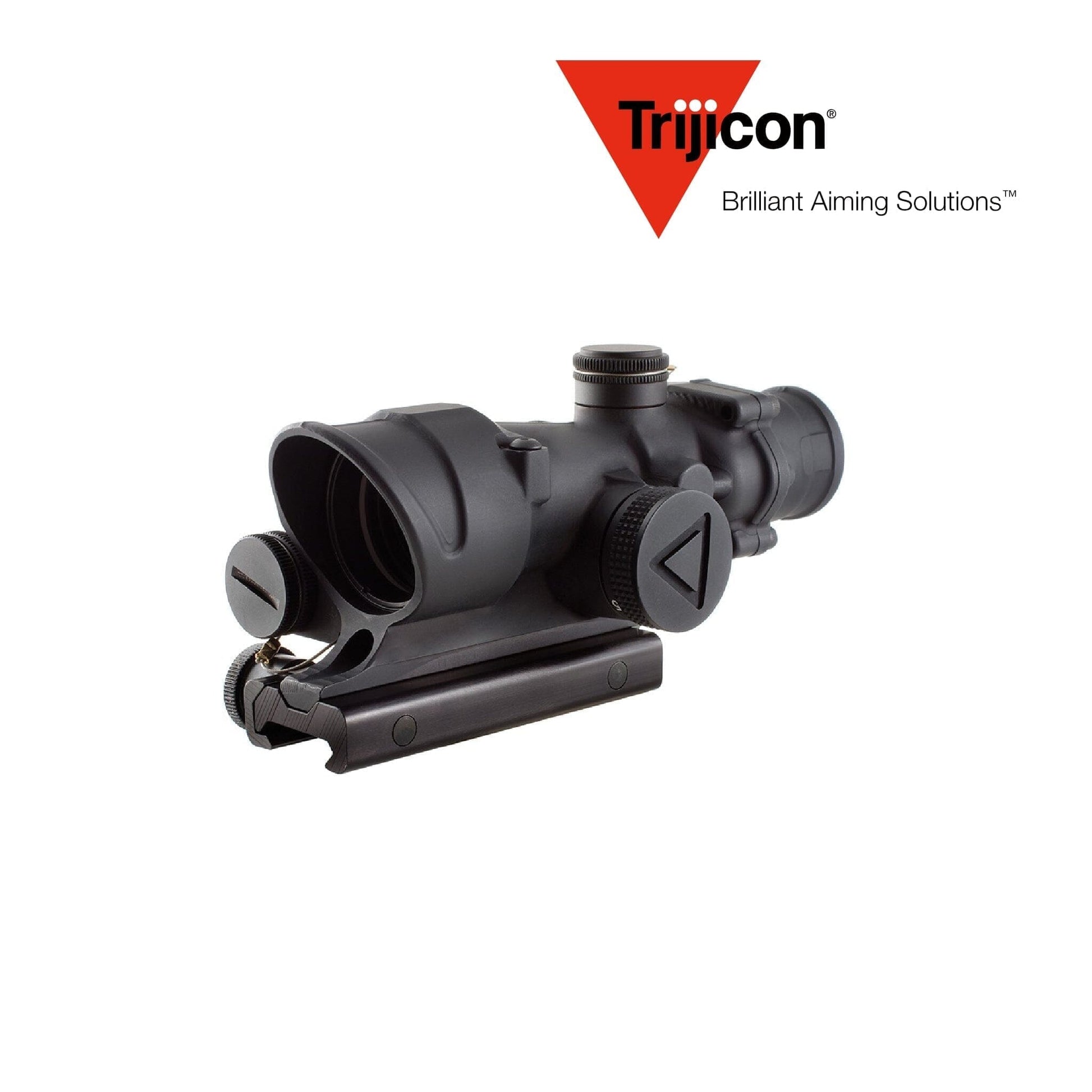

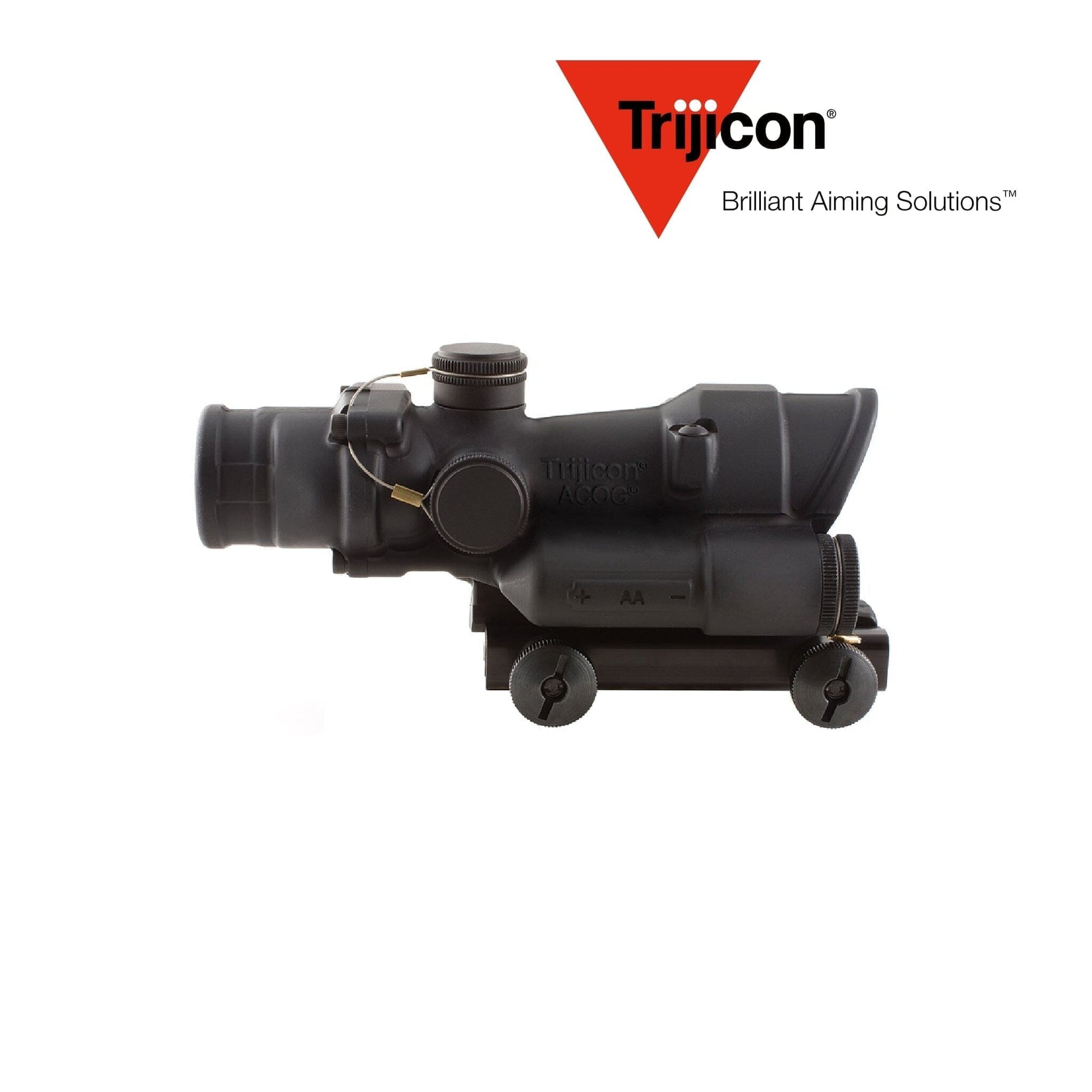

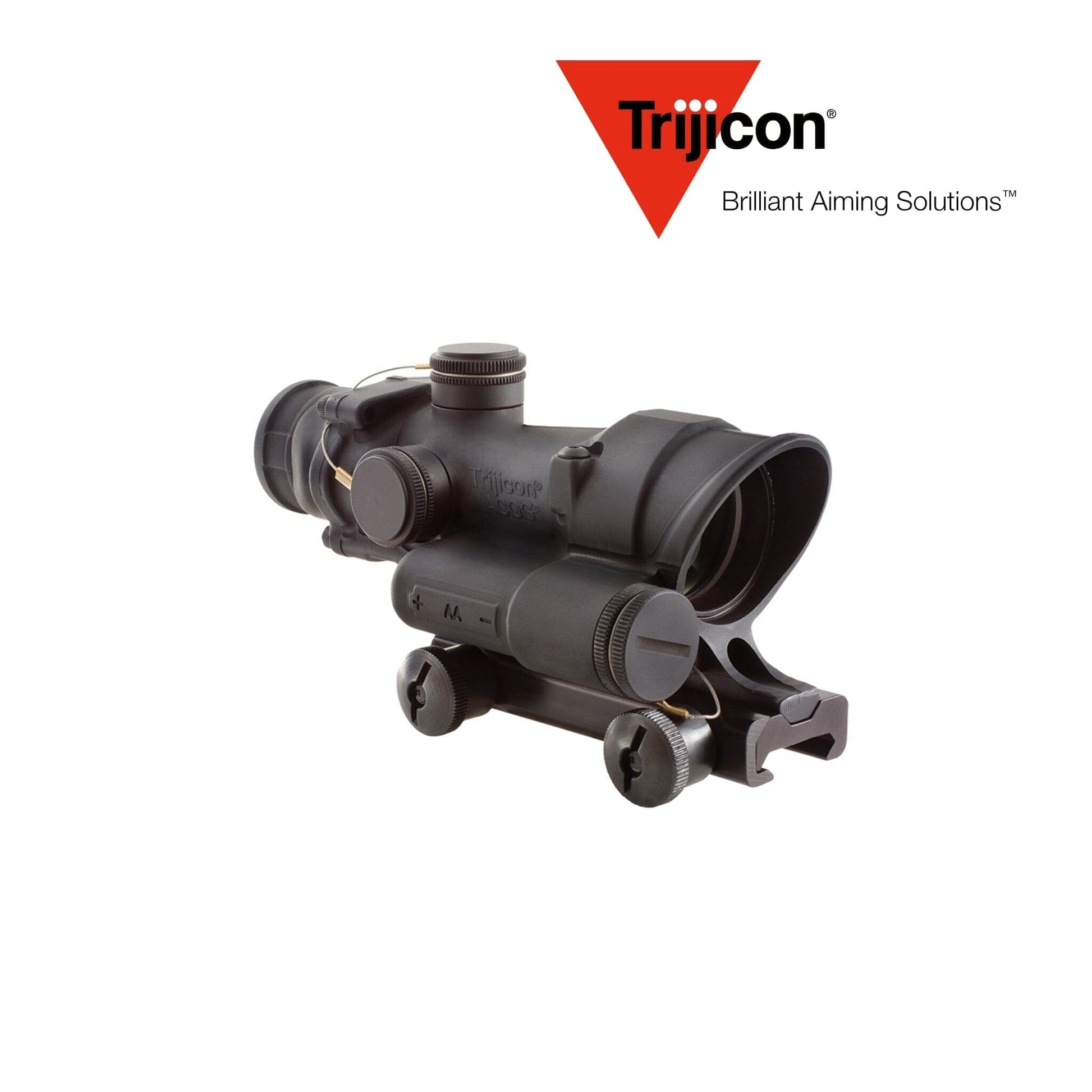

Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Green Crosshair Reticle
Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Green Crosshair Reticle
Couldn't load pickup availability
Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Green Crosshair Reticle
Features
- User‑Selectable LED Illumination (AA Powered): Six brightness settings with “off” detents between each let you set exactly the reticle intensity you need; runs on a widely available AA battery (alkaline or lithium).
- Long Runtime: 12,000+ continuous hours on a mid (#4) brightness at ~21 °C with quality cells; lithium recommended for extreme temperatures and maximum endurance.
- Night‑Vision Friendly Lows: Lower settings are compatible with image‑intensified NV devices, reducing bloom when passively aiming.
- 4× Fixed ACOG Optical System: Rugged prism design gives a bright, flat, parallax‑stable image for rapid carbine work from CQB to the far edge of typical 5.56 engagement ranges.

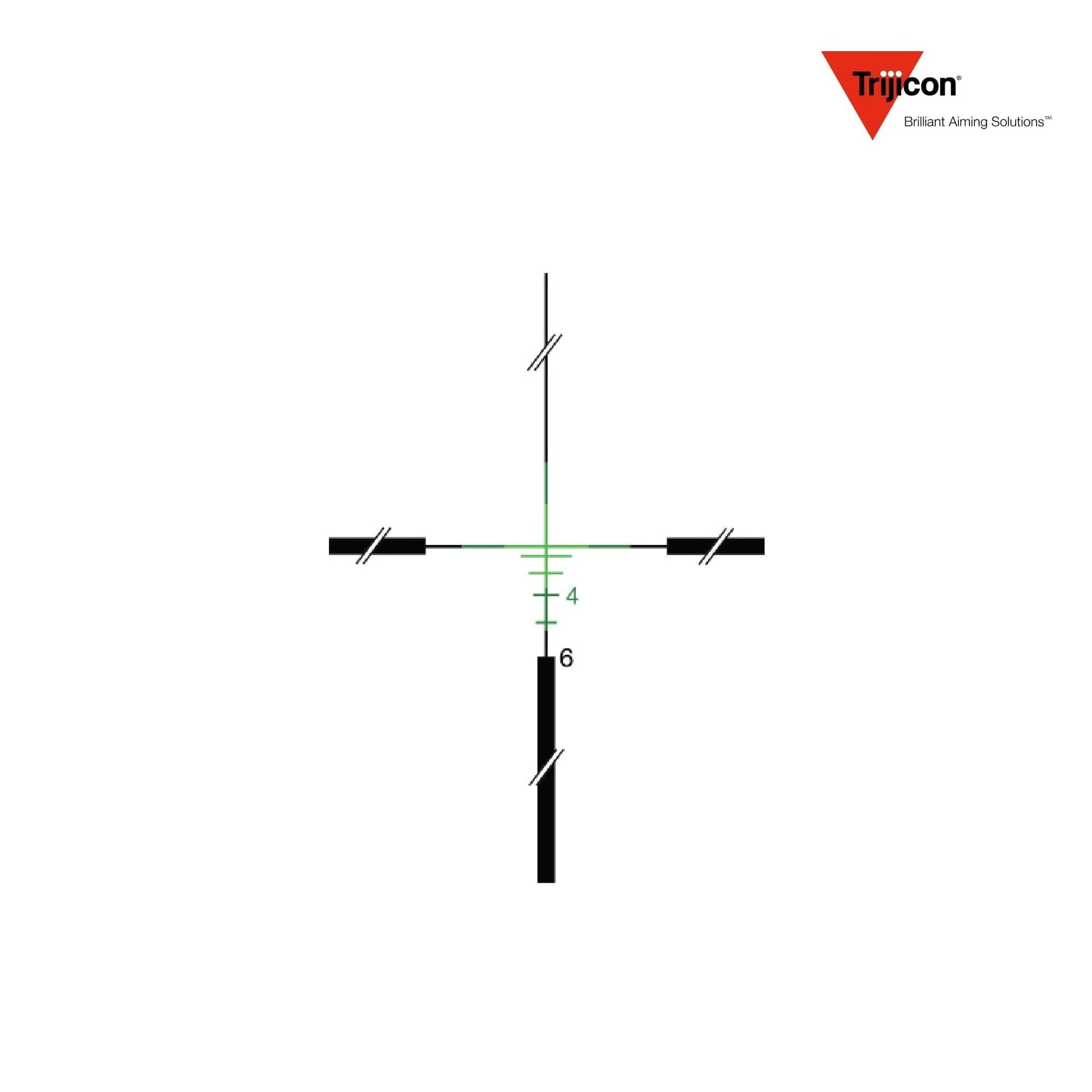

- .223/5.56 BDC Green Crosshair Reticle: Fine illuminated crosshair with vertical ballistic stadia scaled for common 5.56 NATO loads when primary intersection is zeroed at 100 m; green illumination remains visible in bright or mixed backgrounds.
- LED Battery Saddle Housing: Enlarged side battery compartment improves ergonomics and leaves room to add a piggyback reflex optic (e.g., RMR) if desired.
- Forged 7075‑T6 Aluminum Construction: Legendary ACOG durability—shock and recoil rated from .22 LR through .50 BMG; sealed against the elements.
- ½ MOA External Adjusters: Positive tactile clicks (≈2 clicks/inch @100 yd) simplify zero and in‑field corrections.
- Duty Weather Performance: Waterproof, fog‑proof (nitrogen‑purged), and temperature‑tested for harsh environments.
- TA51 Flattop Picatinny Mount Included: Ready to install on MIL‑STD‑1913 / AR‑15 flattop receivers out of the box.
- Made in USA & Backed by Trijicon Warranty.
Technical Specifications for Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Green Crosshair Reticle
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
TA02‑C‑100390 / 100390 |
|
SKU |
TA02‑C‑100390 |
|
UPC |
719307308183 |
|
Country of Origin |
USA |
|
Magnification |
4× fixed |
|
Objective Lens Diameter |
32 mm |
|
Optical Design |
Fixed‑power prism (integral ACOG housing) |
|
Reticle |
Green Crosshair .223/5.56 BDC (LED illuminated) |
|
Illumination Settings |
6 user‑selectable LED brightness levels, “off” between each; NV‑compatible lows; AA powered |
|
Battery Life |
12,000+ hrs continuous on setting #4 @ ~21 °C (alkaline); extended w/ lithium |
|
Eye Relief |
1.5″ (38 mm) |
|
Field of View @ 100 yd |
36.8 ft (7°) |
|
Exit Pupil |
8.1 mm |
|
Adjustment Click Value |
½ MOA (≈2 clicks/inch @100 yd) |
|
Total Adjustment Range |
~40 MOA windage & elevation |
|
Parallax Focus |
Fixed at 100 m (≈109 yd) |
|
Overall Length |
6.0″ (152 mm) battery‑saddle housing |
|
Weight |
18.1 oz (513 g) optic w/ battery; ~21 oz class w/ TA51 mount (approx.) |
|
Housing Material / Finish |
Forged 7075‑T6 aluminum; matte black hard anodize |
|
Optical Coatings |
Fully multi‑coated |
|
Waterproof / Fog‑Proof |
Sealed; nitrogen‑purged; duty waterproof |
|
Shock Resistance |
Rated from .22 LR through .50 BMG recoil; MIL drop‑tested |
|
Mount Interface |
TA51 flattop Picatinny thumbscrew adapter (included) |
Included Accessories
- TA51 flattop Picatinny thumbscrew mount
- AA battery (factory supplied; lithium recommended for extreme conditions)
- Battery cap & adjuster cap tether assemblies
- Lens cleaning tool (LensPen® style)
- Trijicon logo sticker
- Owner’s manual & warranty documentation
