Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Green Horseshoe/Dot Reticle
Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Green Horseshoe/Dot Reticle
Couldn't load pickup availability
Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Green Horseshoe/Dot Reticle
Features
- User‑Selectable LED Illumination (AA Powered): Six brightness levels with “off” detents between each for instant return to preferred setting; runs on a widely available AA battery (alkaline or lithium).
- Extended Battery Life: 12,000+ continuous hours on mid (#4) setting at ~21 °C; choose lithium cells for colder climates and maximum runtime.
- NV‑Compatible Low Settings: Dim levels work with image‑intensified night‑vision gear while minimizing bloom.
- 4× Fixed ACOG Optical System: Rugged prism delivers bright, flat, repeatable 4× magnification for rapid carbine work from CQB to extended 5.56 distances.

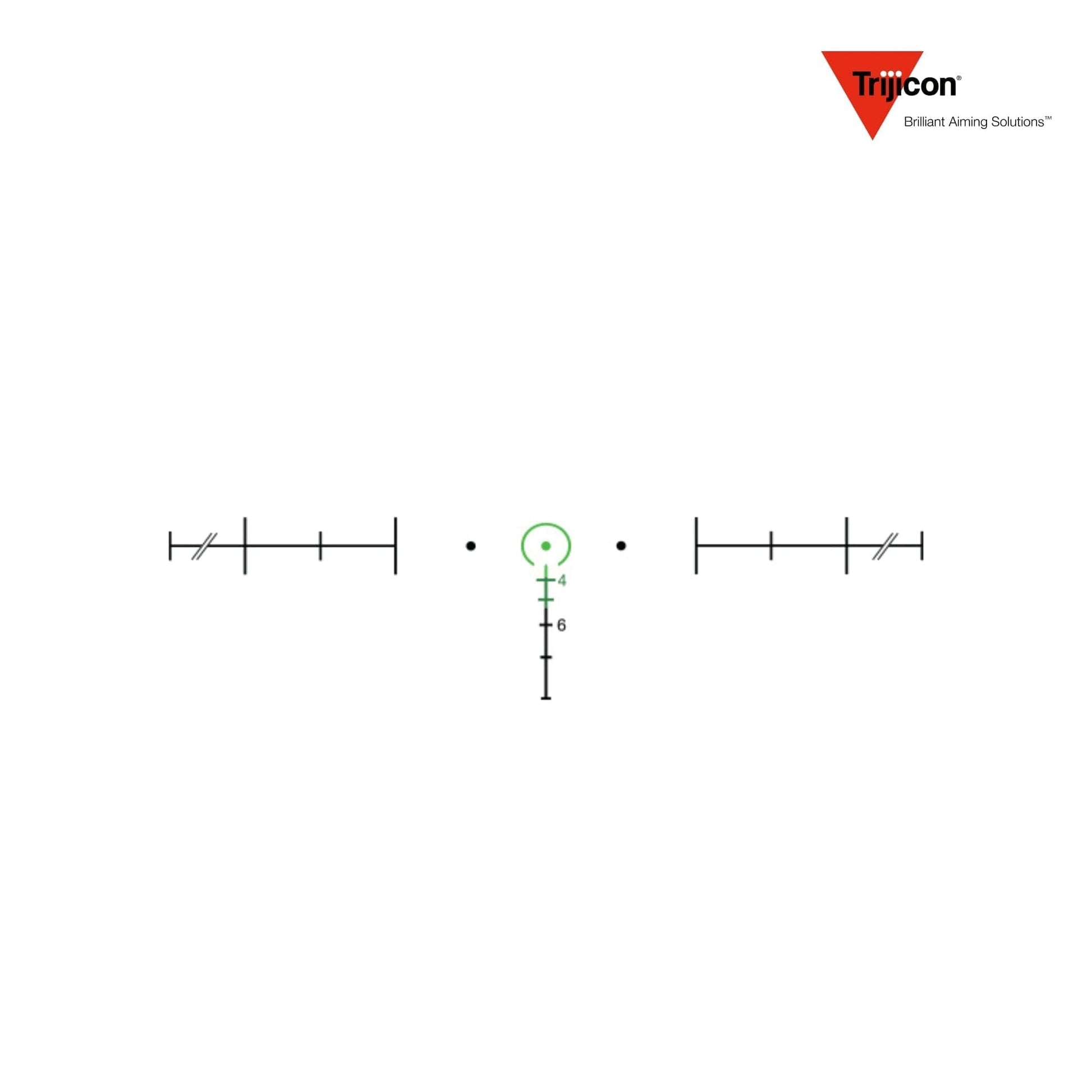

- .223/5.56 BDC Green Horseshoe/Dot Reticle: Fast illuminated horseshoe encircles a fine dot; descending ballistic stadia calibrated for common 5.56 NATO loads (100 m zero) enable rapid hold‑overs without dialing.
- LED Battery Saddle Housing: Side battery compartment improves ergonomics and leaves clearance for optional piggyback reflex optics (e.g., RMR).
- Forged 7075‑T6 Aluminum Construction: Near‑indestructible duty body—shock, recoil, and harsh‑environment resistant.
- ½ MOA External Adjusters: Positive tactile clicks (≈2 clicks/inch @100 yd) simplify zeroing and in‑field corrections.
- Weather & Duty Ready: Waterproof, fog‑proof (nitrogen‑purged), and temperature‑tested for service use.
- TA51 Flattop Picatinny Mount Included: Ready for MIL‑STD‑1913 / AR‑15 flattops out of the box.
- Made in USA & Backed by Trijicon Warranty.
Technical Specifications for Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Green Horseshoe/Dot Reticle
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
TA02‑D‑100392 / 100392 |
|
SKU |
TA02‑D‑100392 |
|
UPC |
719307308206 |
|
Country of Origin |
USA |
|
Magnification |
4× fixed |
|
Objective Lens Diameter |
32 mm |
|
Optical Design |
Fixed‑power prism (integral ACOG housing) |
|
Reticle |
Green Horseshoe/Dot .223/5.56 BDC (LED illuminated) |
|
Illumination Settings |
6 user‑selectable LED brightness levels w/ “off” between each; NV‑friendly lows; AA powered |
|
Battery Life |
12,000+ hrs continuous on setting #4 (~21 °C) w/ quality cell; longer w/ lithium |
|
Eye Relief |
1.5″ (38 mm) |
|
Field of View @ 100 yd |
36.8 ft (7°) |
|
Exit Pupil |
8.1 mm |
|
Adjustment Click Value |
½ MOA (≈2 clicks/inch @100 yd) |
|
Total Adjustment Range |
~40 MOA windage & elevation |
|
Parallax Focus |
Fixed at 100 m (≈109 yd) |
|
Overall Length |
6.0″ (152 mm) battery‑saddle housing |
|
Weight |
18.1 oz (513 g) optic w/ battery; ~21 oz class w/ TA51 mount installed (approx.) |
|
Housing Material / Finish |
Forged 7075‑T6 aluminum; matte black hard anodize |
|
Optical Coatings |
Fully multi‑coated, broadband treated |
|
Waterproof / Fog‑Proof |
Sealed; nitrogen‑purged; duty waterproof |
|
Shock Resistance |
Rated from .22 LR through .50 BMG recoil; field‑hard |
|
Mount Interface |
TA51 flattop Picatinny thumbscrew adapter (included) |
Included Accessories
- TA51 flattop Picatinny thumbscrew mount
- AA battery (factory supplied; lithium recommended for extreme conditions)
- Lanyard assembly for adjuster caps
- Lanyard assembly for battery cap
- Lens cleaning tool (LensPen® style)
- Trijicon logo sticker
- Owner’s manual
- Warranty card / registration info
