Trijicon
Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Red Crosshair Reticle
Trijicon ACOG 4x32 LED Riflescope .223/5.56 BDC Red Crosshair Reticle
Couldn't load pickup availability
Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Red Crosshair Reticle
Features
- User‑Selectable LED Illumination (AA Powered): 6 brightness settings with an “off” detent between each for fast return to preferred intensity; uses a standard AA battery (alkaline or lithium).
- Extended Battery Life: 12,000+ continuous hours on the mid (#4) setting at ~21 °C; lithium cells improve cold‑weather reliability and runtime.
- Night‑Vision Friendly Low Settings: Lower output levels are suitable for use in front of image‑intensified NV devices to reduce reticle bloom.
- 4× Fixed ACOG Optical System: Rugged prism design provides a bright, flat image and rapid target acquisition from CQB distances out to the effective range of 5.56 carbines.

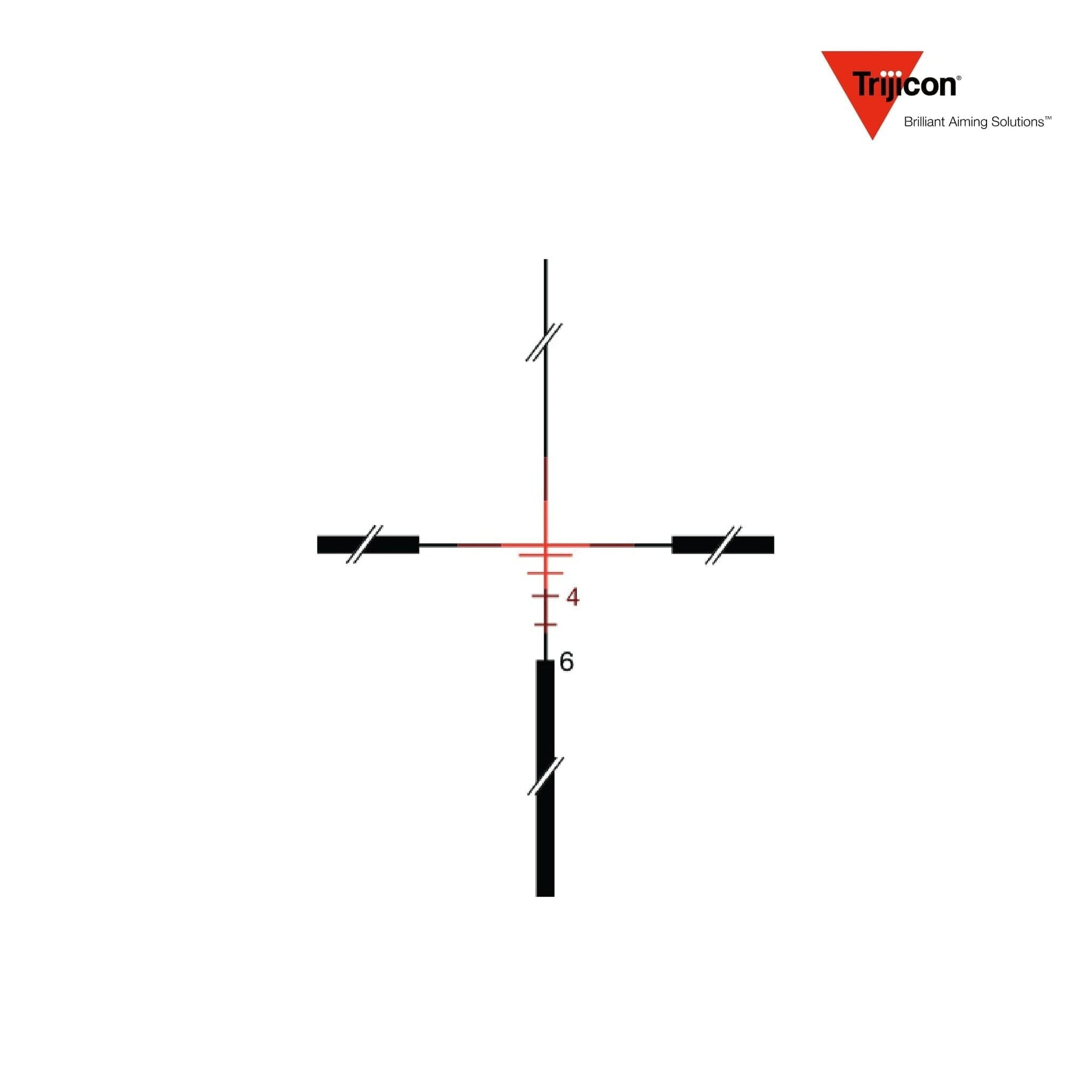

- .223/5.56 BDC Red Crosshair Reticle: Zero the crosshair intersection at 100 m; descending stadia deliver calibrated bullet‑drop references for common 5.56/.223 loads—clean, uncluttered aiming to distance.
- LED Battery Saddle Housing: Side‑mounted battery compartment improves handling and leaves clearance to add a piggyback reflex optic (e.g., RMR®) if desired.
- Forged 7075‑T6 Aluminum Construction: Field‑hard duty body is shock, recoil, and environment resistant.
- ½ MOA External Adjusters: Positive tactile clicks (≈2 clicks/inch @100 yd) simplify zeroing and in‑field corrections.
- Weather & Duty Ready: Sealed, nitrogen‑purged, waterproof, and fog‑resistant for harsh environments.
- TA51 Flattop Picatinny Mount Included: Out‑of‑box compatibility with MIL‑STD‑1913 / AR‑15 flattop receivers.
- Made in USA & Backed by Trijicon Warranty.
Technical Specifications for Trijicon ACOG 4×32 LED Riflescope .223/5.56 BDC Red Crosshair Reticle
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
TA02 / 100190 |
|
SKU |
TA02 |
|
UPC |
719307304833 |
|
Country of Origin |
USA |
|
Magnification |
4× fixed |
|
Objective Lens Diameter |
32 mm |
|
Optical Design |
Fixed‑power prism (integral ACOG housing) |
|
Reticle |
Red Crosshair .223/5.56 BDC (LED illuminated) |
|
Illumination Settings |
6 user‑selectable LED brightness levels w/ “off” between each; NV‑friendly lows; AA powered |
|
Battery Life |
12,000+ hrs continuous on setting #4 @ ~21 °C (alkaline); longer w/ lithium |
|
Eye Relief |
1.5″ (38 mm) |
|
Field of View @ 100 yd |
36.8 ft (7°) |
|
Exit Pupil |
8.1 mm |
|
Adjustment Click Value |
½ MOA (≈2 clicks/inch @100 yd) |
|
Total Adjustment Range |
~40 MOA windage & elevation |
|
Parallax Focus |
Fixed at 100 m (≈109 yd) |
|
Overall Length |
6.0″ (152 mm) battery‑saddle housing (5.98″ factory spec rounded) |
|
Width / Height |
~2.0″ W × 2.3″ H (optic body) |
|
Weight |
18.1 oz (513 g) optic w/ battery; ~21 oz class w/ TA51 mount installed (approx.) |
|
Housing Material / Finish |
Forged 7075‑T6 aluminum; matte black hard anodize |
|
Optical Coatings |
Fully multi‑coated |
|
Waterproof / Fog‑Proof |
Sealed; nitrogen‑purged; duty waterproof |
|
Shock Resistance |
Rated from .22 LR through .50 BMG recoil; field‑hard construction |
|
Mount Interface |
TA51 flattop Picatinny thumbscrew adapter (included) |
Included Accessories
- TA51 flattop Picatinny thumbscrew mount
- AA battery (factory supplied; lithium recommended for extreme conditions)
- Battery cap lanyard assembly
- Adjuster cap lanyard assembly
- Lens cleaning tool (LensPen® style)
- Trijicon logo sticker
- Owner’s manual
- Warranty card / registration info
