Trijicon
Trijicon ACOG 5.5x50 BAC Riflescope .223/5.56 BDC Red Chevron Reticle
Trijicon ACOG 5.5x50 BAC Riflescope .223/5.56 BDC Red Chevron Reticle
Couldn't load pickup availability

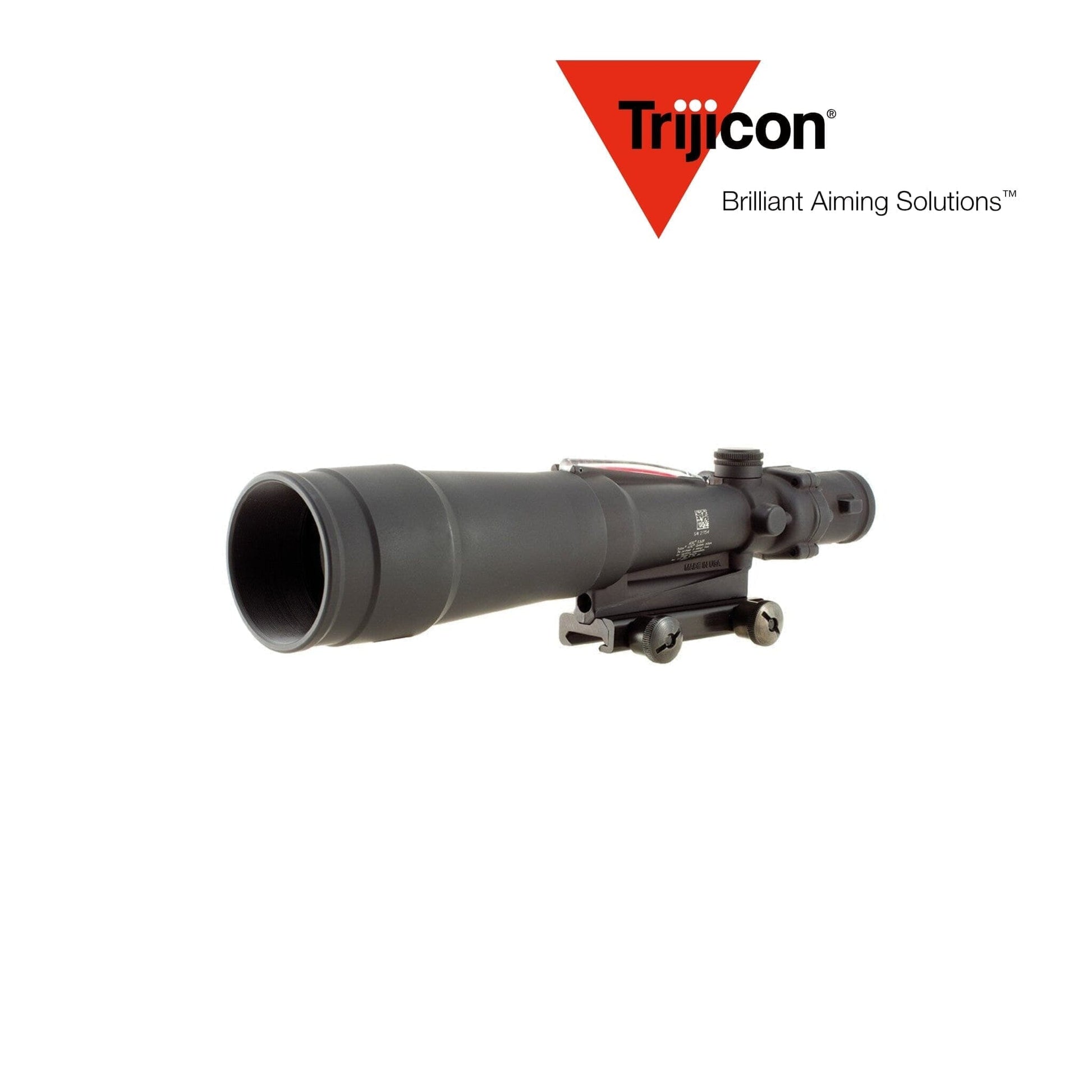

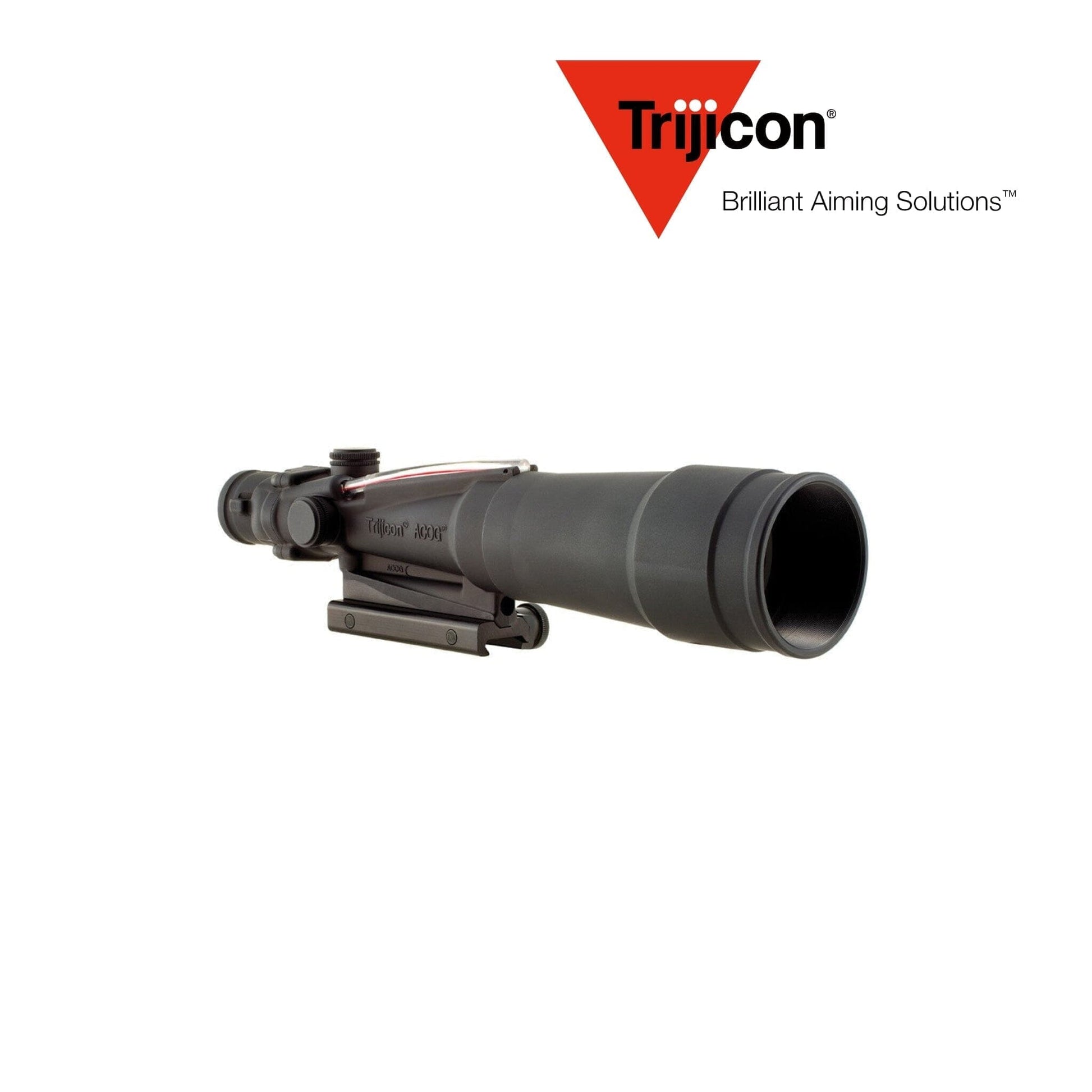

Trijicon ACOG 5.5×50 BAC Riflescope .223/5.56 BDC Red Chevron Reticle
Features
- Big‑Objective, Long‑Range ACOG: 5.5× fixed magnification paired with a large 50 mm objective delivers excellent light transmission and target definition at extended distances.
- Dual‑Illuminated, Battery‑Free: Fiber optics automatically adjust reticle brightness in daylight; tritium lamp glows in low/no light—always on, no batteries to manage.

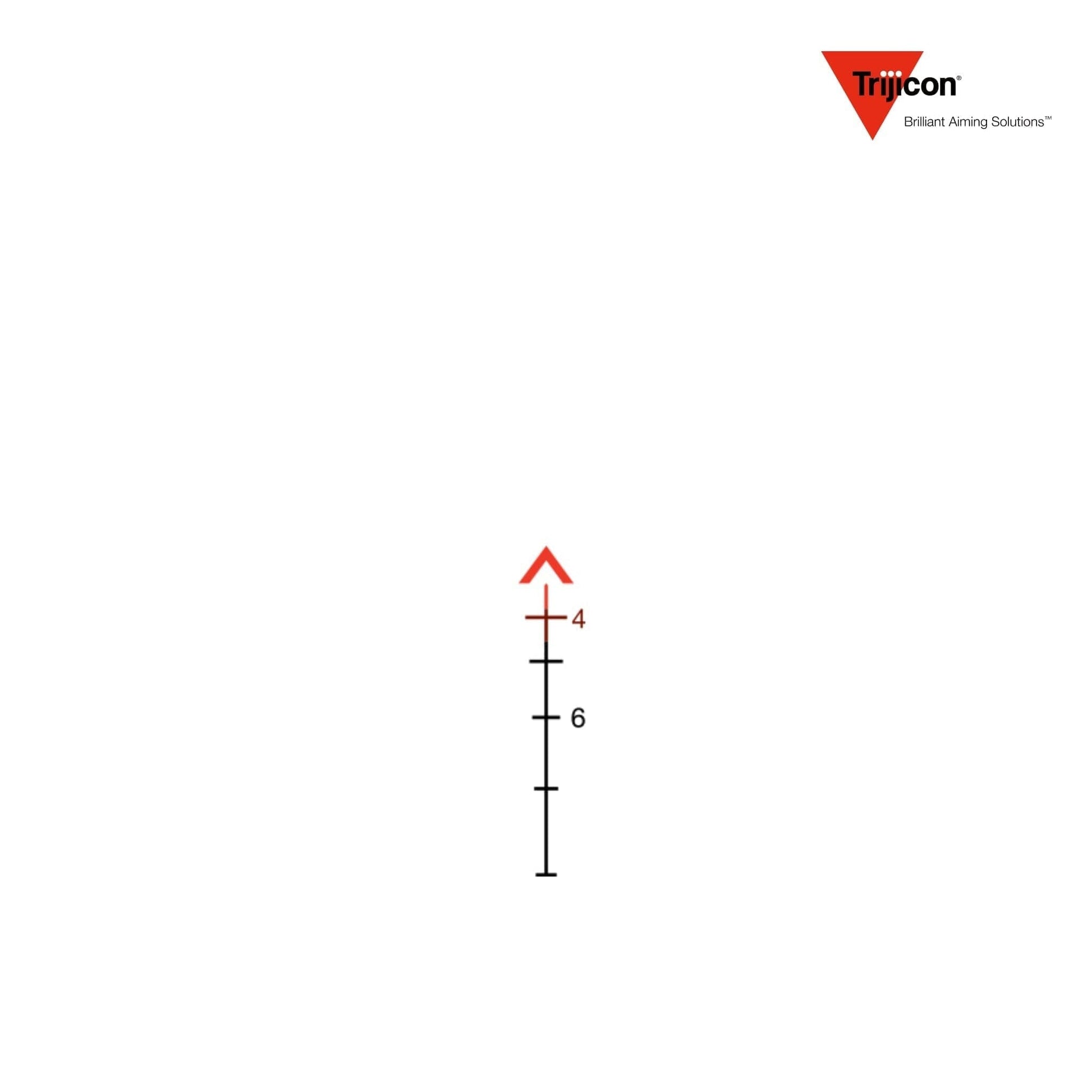

- Red Chevron .223/5.56 BDC Reticle: Zero the chevron tip at 100 m; descending stadia give holds for typical 5.56 NATO trajectories. Chevron base subtension (~5.5 MOA ≈ 19" @300 m) aids rapid range estimation on silhouette targets.
- Bindon Aiming Concept™ Capable: Bright, illuminated reticle supports both‑eyes‑open speed for closer shots while retaining 5.5× precision at distance.
- Forged 7075‑T6 Aluminum Housing: Monolithic, combat‑proven ACOG chassis built to survive heavy recoil, impact, and harsh environments.
- Fine External Adjusters: Approx. 0.2 MOA per click (~5 clicks/inch @100 yd) for more precise zeroing than standard 4× models.
- Deep‑Water Sealed & Nitrogen‑Purged: Waterproof well beyond typical field exposure; resistant to internal fogging.
- TA51 Flattop Picatinny Mount Included: Ready for AR‑pattern / MIL‑STD‑1913 upper receivers out of the box.
- Made in USA & Backed by Trijicon Warranty.
Technical Specifications for Trijicon ACOG 5.5×50 BAC Riflescope .223/5.56 BDC Red Chevron Reticle
Specification |
Details |
Manufacturer |
Trijicon |
Model / MPN |
TA55 / 100173 |
SKU |
TA55 |
UPC |
719307302020 |
Country of Origin |
USA |
Magnification |
5.5× fixed |
Objective Lens Diameter |
50 mm |
Optical Design |
Fixed‑power prism (integral ACOG housing) |
Reticle |
Red Chevron .223/5.56 BDC (dual‑illum fiber optic / tritium) |
Illumination |
Fiber (auto daylight) / tritium (night); battery‑free |
Eye Relief |
2.2″ (56 mm) |
Field of View @ 100 yd |
18.4 ft (3.5°) |
Exit Pupil |
9.1 mm |
Adjustment Click Value |
~0.2 MOA per click (≈5 clicks/inch @100 yd) |
Total Adjustment Range |
~40 MOA windage & elevation |
Parallax Focus |
Fixed ~100 m |
Overall Length |
12.0″ (305 mm) |
Weight |
25.6 oz (725 g) optic; ~28 oz class w/ TA51 mount installed (approx.) |
Housing Material / Finish |
Forged aluminum; matte black hard anodize |
Optical Coatings |
Fully multi‑coated, high‑light‑transmission glass |
Waterproof / Fog‑Proof |
Sealed; dry‑nitrogen filled; deep‑water rated |
Shock Resistance |
Duty / combat rated |
Mount Interface |
TA51 flattop Picatinny thumbscrew adapter (included) |
Included Accessories
- TA55 5.5×50 ACOG optic (Red Chevron .223/5.56 BDC)
- TA51 flattop Picatinny thumbscrew mount
- Scopecoat protective cover (package dependent)
- Lens cleaning tool (LensPen® style)
- Adjuster cap lanyard / hardware kit
- Trijicon logo sticker
- Owner’s manual & warranty documentation
