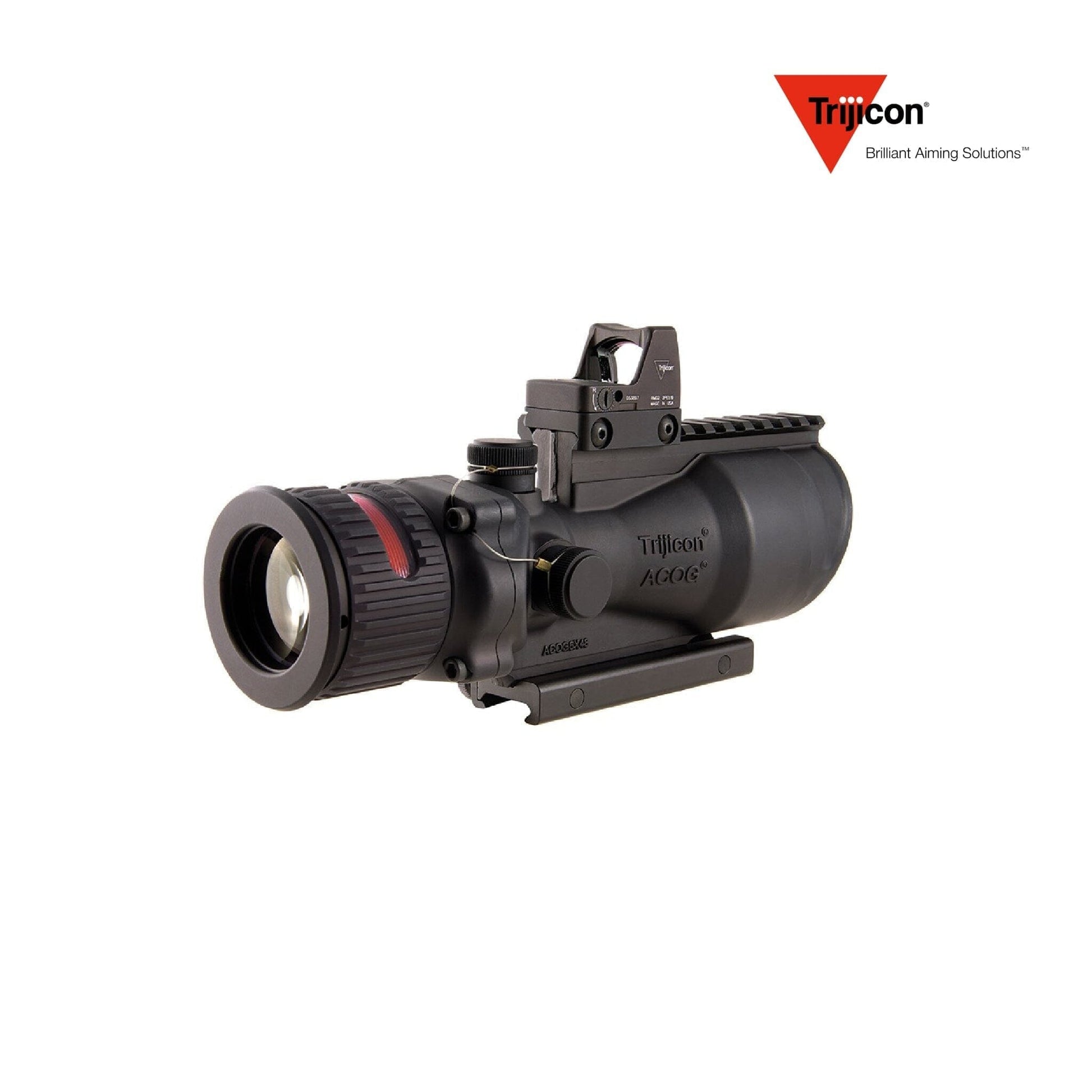

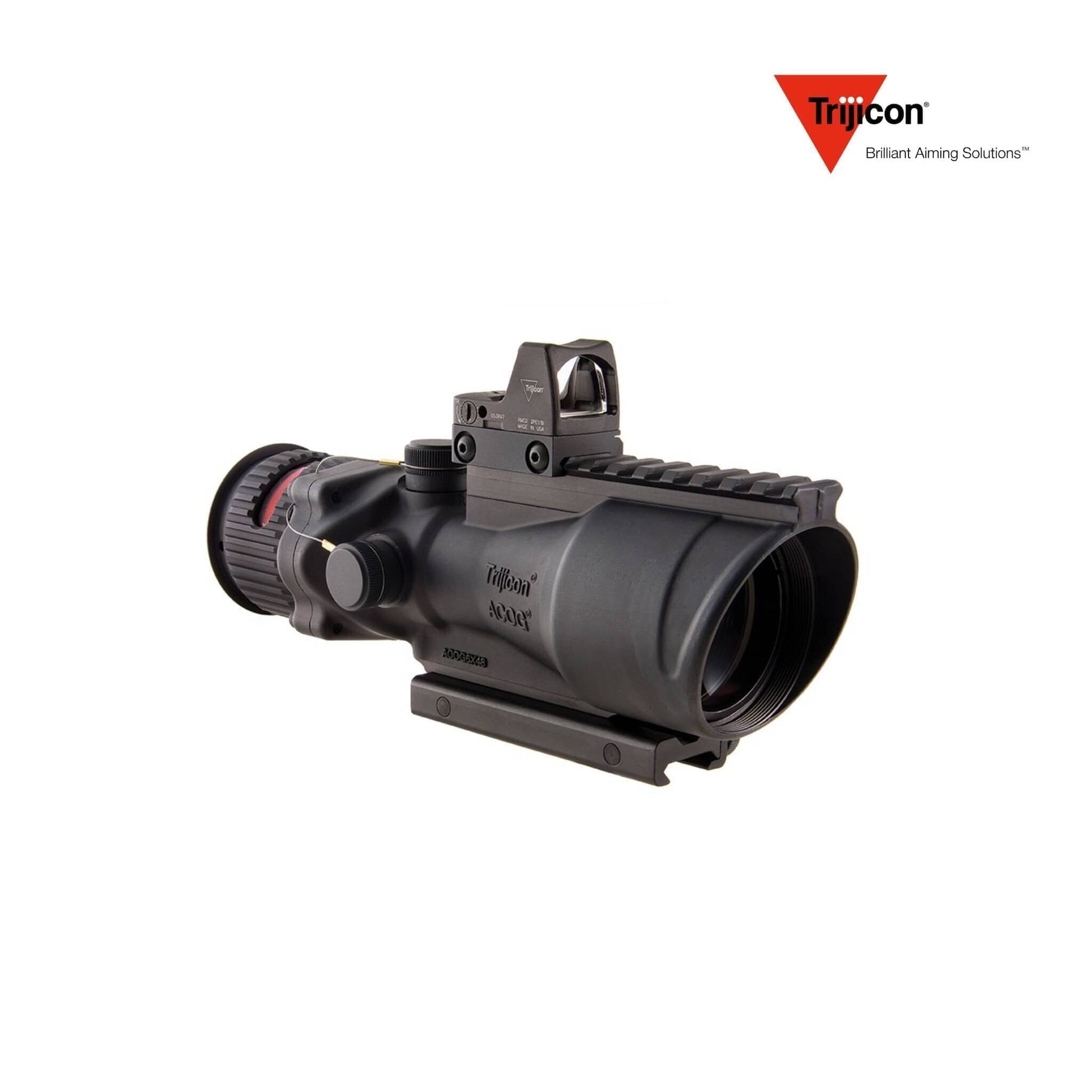

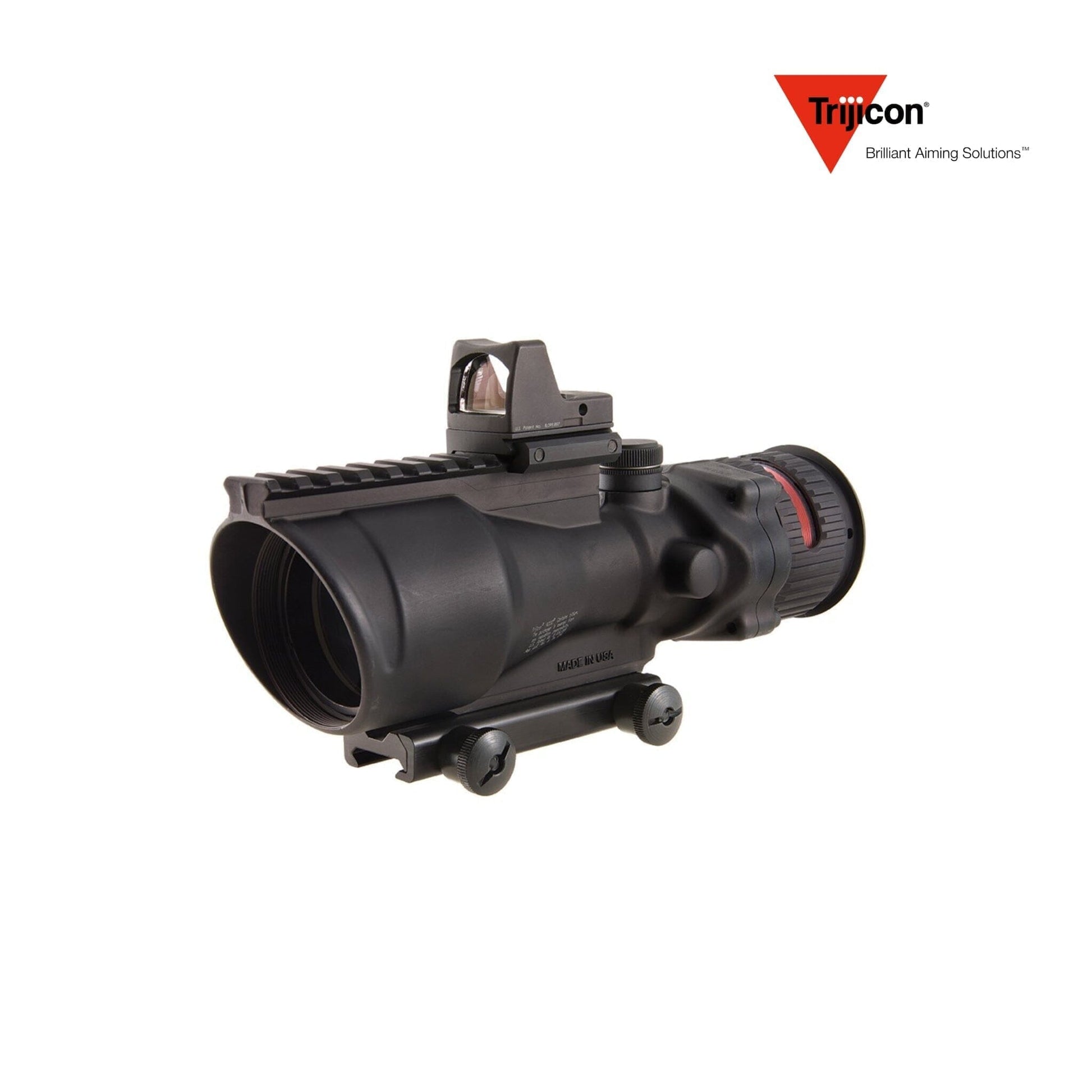

Trijicon ACOG 6×48 BAC Riflescope .308 BDC Red Chevron Reticle with RMR
Trijicon ACOG 6×48 BAC Riflescope .308 BDC Red Chevron Reticle with RMR
Couldn't load pickup availability
Trijicon ACOG 6×48 BAC Riflescope .308 BDC Red Chevron Reticle with RMR
Features
- Dual‑Sight System (ACOG + RMR): Use the magnified 6× ACOG for PID and distance shots; transition instantly to the piggyback Trijicon RMR® Type 2 6.5 MOA Red Dot for CQB without changing head position.
- Dual‑Illuminated, Battery‑Free ACOG Body: Fiber optics handle daylight auto‑brightness; tritium glows in low/no light—no batteries in the ACOG itself.

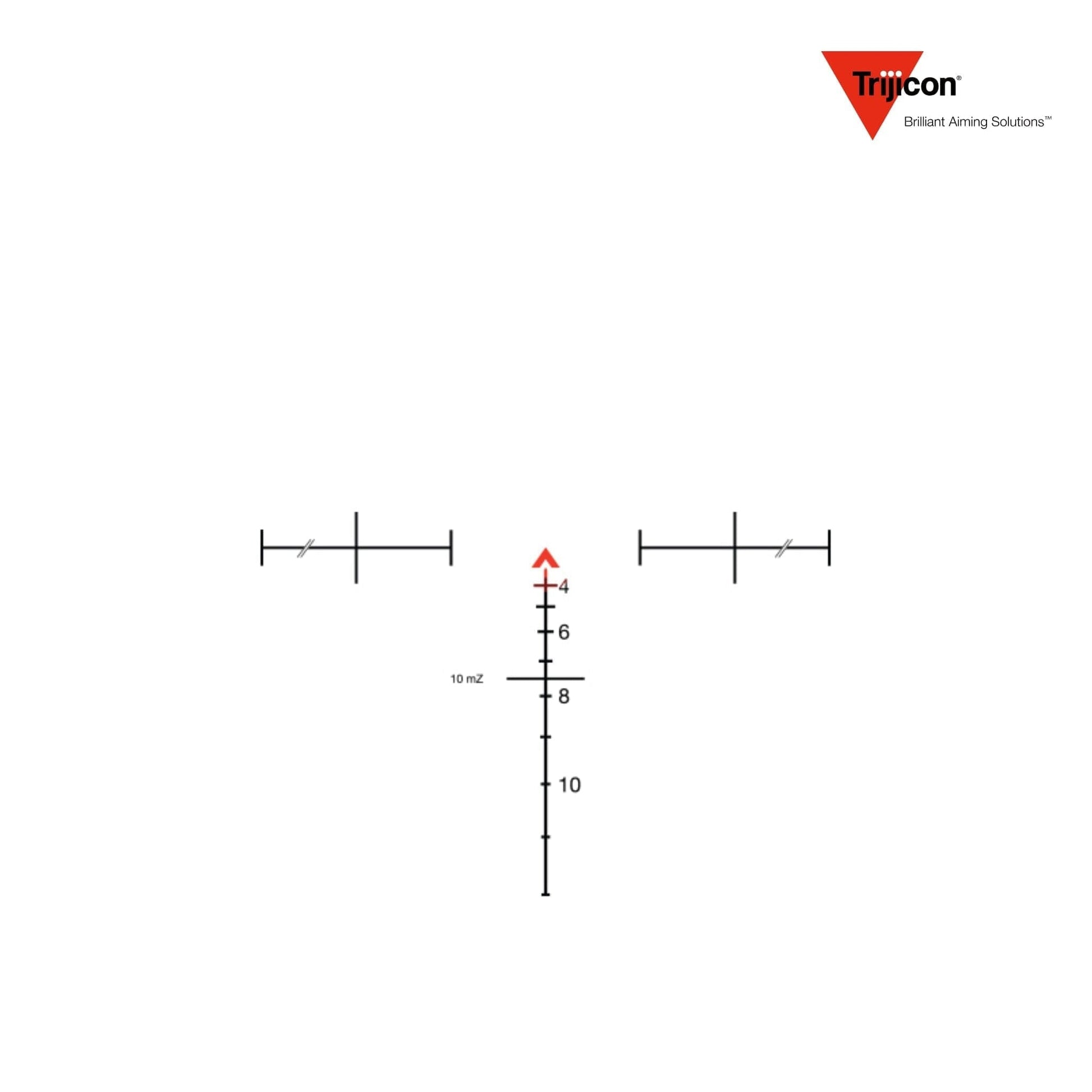

- .308/7.62 BDC Red Chevron Reticle: Zero tip at 100 m; descending stadia provide holds for common 7.62×51/.308 trajectories to extended range. Chevron geometry also supports quick range estimation on silhouettes.
- 6× / 48 mm Long‑Range Glass: Large objective and fixed 6× magnification deliver strong low‑light performance and enhanced target definition for heavier battle rifles and support weapons.
- Bindon Aiming Concept™ Capable: Bright reticle supports both‑eyes‑open speed up close while preserving 6× precision at distance.
- Integral Top MIL‑STD‑1913 Rail: Factory rail segment atop the optic secures the included RMR and can host other small accessories.
- Heavy‑Duty Combat Housing: Forged 7075‑T6 aluminum engineered for sustained‑fire / machine‑gun recoil environments; deep‑immersion sealed & nitrogen‑purged.
- ¼‑MOA External Adjusters: Fine 4 clicks/inch @100 yd (~0.25 MOA) windage/elevation under protective caps for precise zeroing.
- Robust TA75 Flattop Mount Included: Extra‑duty Picatinny thumbscrew adapter sized for the 6×48 footprint; repeatable and secure.
- Made in USA & Backed by Trijicon Warranty.
Technical Specifications for Trijicon ACOG 6×48 BAC Riflescope .308 BDC Red Chevron Reticle with RMR
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
TA648‑D‑100560 / 100560 |
|
SKU |
TA648‑D‑100560 |
|
UPC |
719307311909 |
|
Country of Origin |
USA |
|
Magnification |
6× fixed |
|
Objective Lens Diameter |
48 mm |
|
Optical Design |
Fixed‑power prism (integral ACOG housing) |
|
Reticle |
Red Chevron .308/7.62 BDC (dual‑illum fiber optic / tritium) |
|
Illumination (ACOG) |
Fiber (day) / tritium (night); battery‑free |
|
Piggyback Optic |
Trijicon RMR® Type 2 LED, 6.5 MOA Red Dot (CR2032 battery) |
|
Eye Relief |
2.7″ (68 mm) |
|
Field of View @ 100 yd |
17 ft (3.3°) |
|
Exit Pupil |
8.0–8.1 mm (class spec) |
|
Adjustment Click Value |
¼ MOA (≈4 clicks/inch @100 yd) |
|
Total Adjustment Range |
~40 MOA windage & elevation |
|
Parallax Focus |
Fixed (optimized ~100 m) |
|
Overall Length |
9.0″ (229 mm) |
|
Width × Height |
~2.9″ W × 3.4″ H (optic body w/ rail) |
|
Weight |
39.3 oz complete kit (ACOG + RMR + TA75 mount); ~36–37 oz optic/mount before RMR battery variance |
|
Housing Material / Finish |
Forged aluminum; matte black hard anodize |
|
Optical Coatings |
Fully multi‑coated, high‑transmission glass |
|
Waterproof / Fog‑Proof |
Deep‑immersion sealed (ACOG line 100 m+ class); nitrogen‑purged |
|
Shock Resistance |
Built for heavy‑recoil / sustained‑fire weapon systems |
|
Mount Interface |
TA75 heavy‑duty flattop Picatinny thumbscrew adapter (included) |
|
Top Accessory Rail |
Integral short MIL‑STD‑1913 rail section (RMR installed) |
Included Accessories
- TA648 6×48 ACOG (.308 BDC Red Chevron) optic body
- Factory‑mounted Trijicon RMR® Type 2 6.5 MOA Red LED (battery included)
- TA75 heavy‑duty flattop Picatinny thumbscrew mount
- Adjuster cap & rail hardware kit
- Lens cleaning tool (LensPen® style)
- Trijicon logo sticker
- Owner’s manuals (ACOG + RMR) & warranty documentation
