Trijicon ACOG 6x48 BAC Riflescope .308/7.62 BDC Green Chevron Reticle
Trijicon ACOG 6x48 BAC Riflescope .308/7.62 BDC Green Chevron Reticle
Couldn't load pickup availability

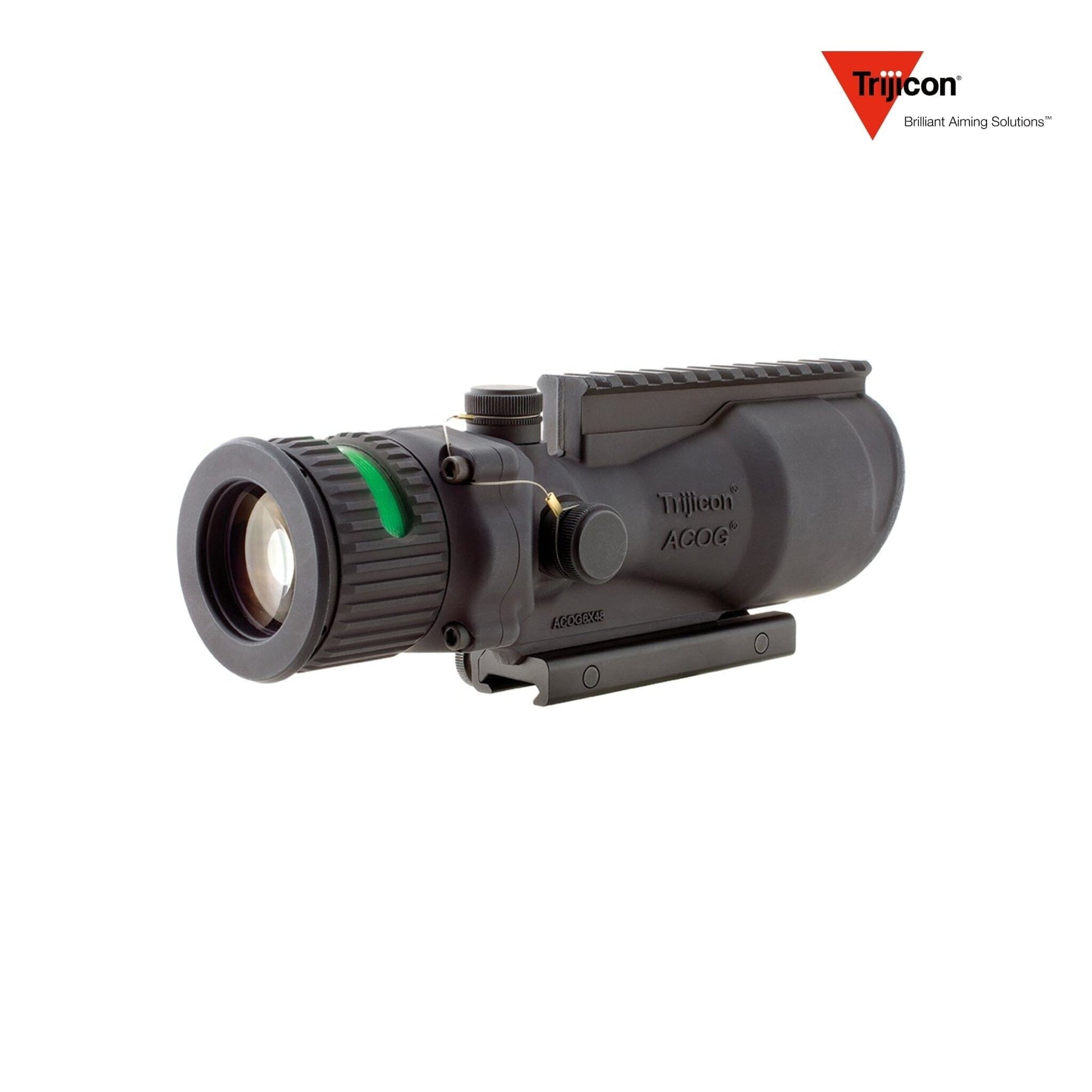

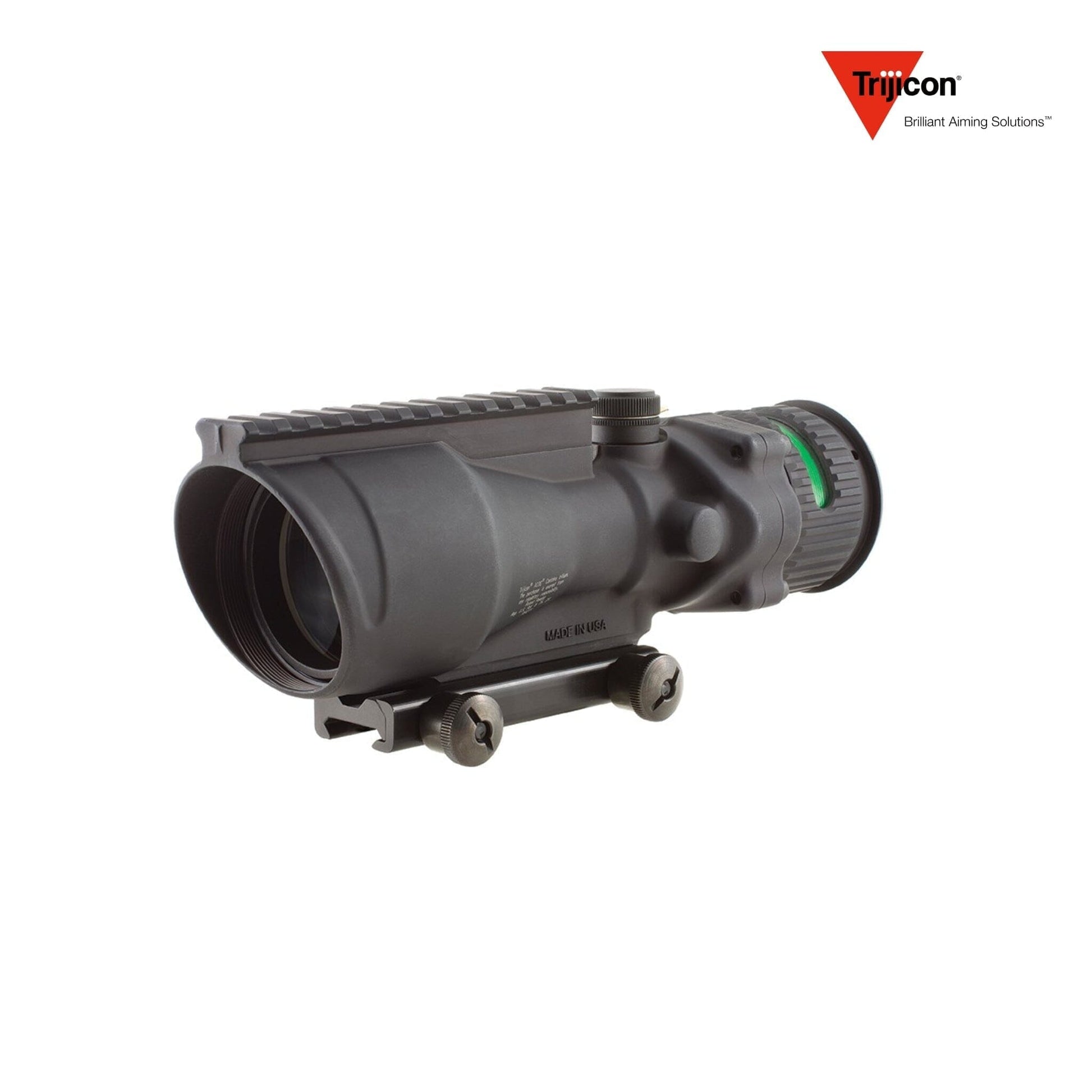

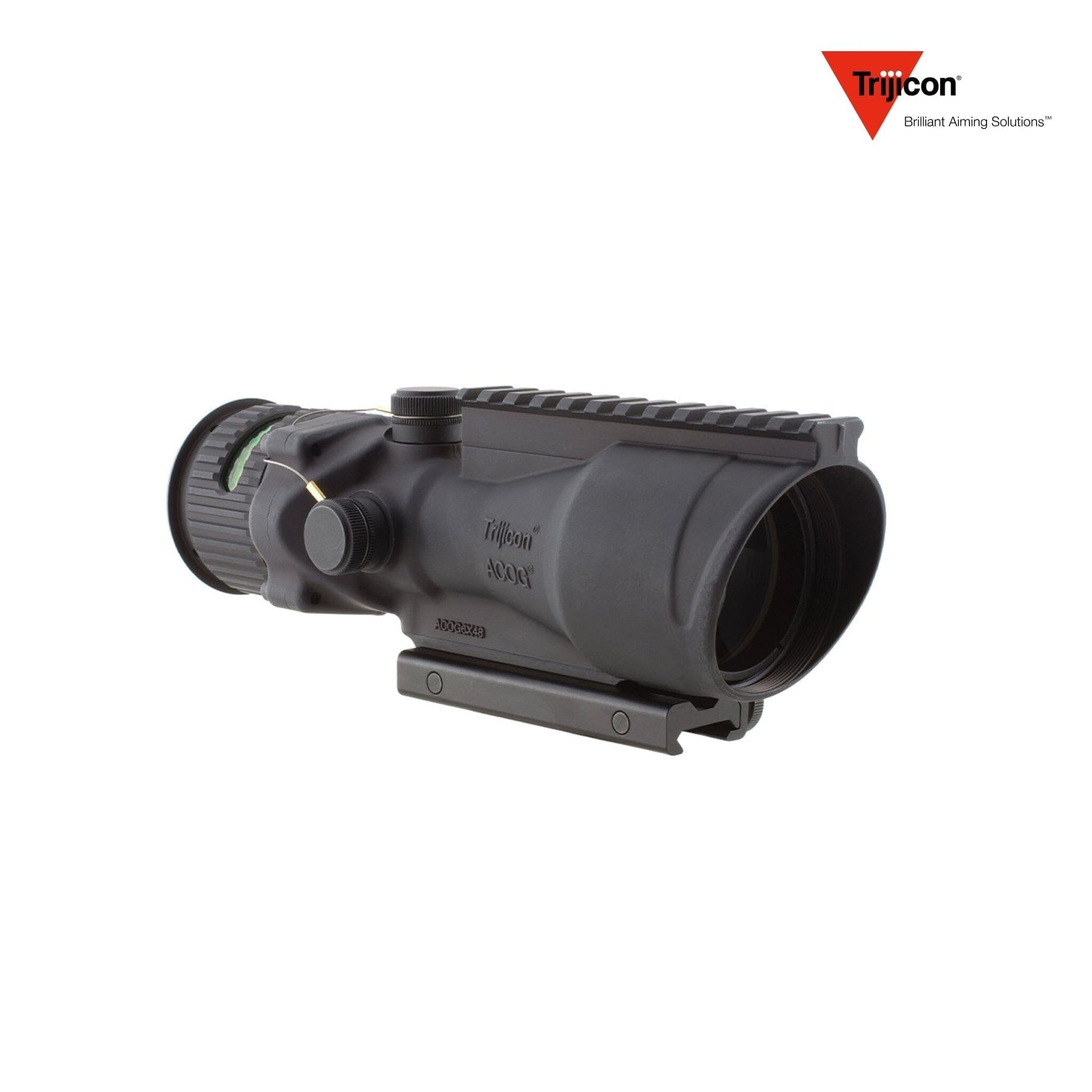

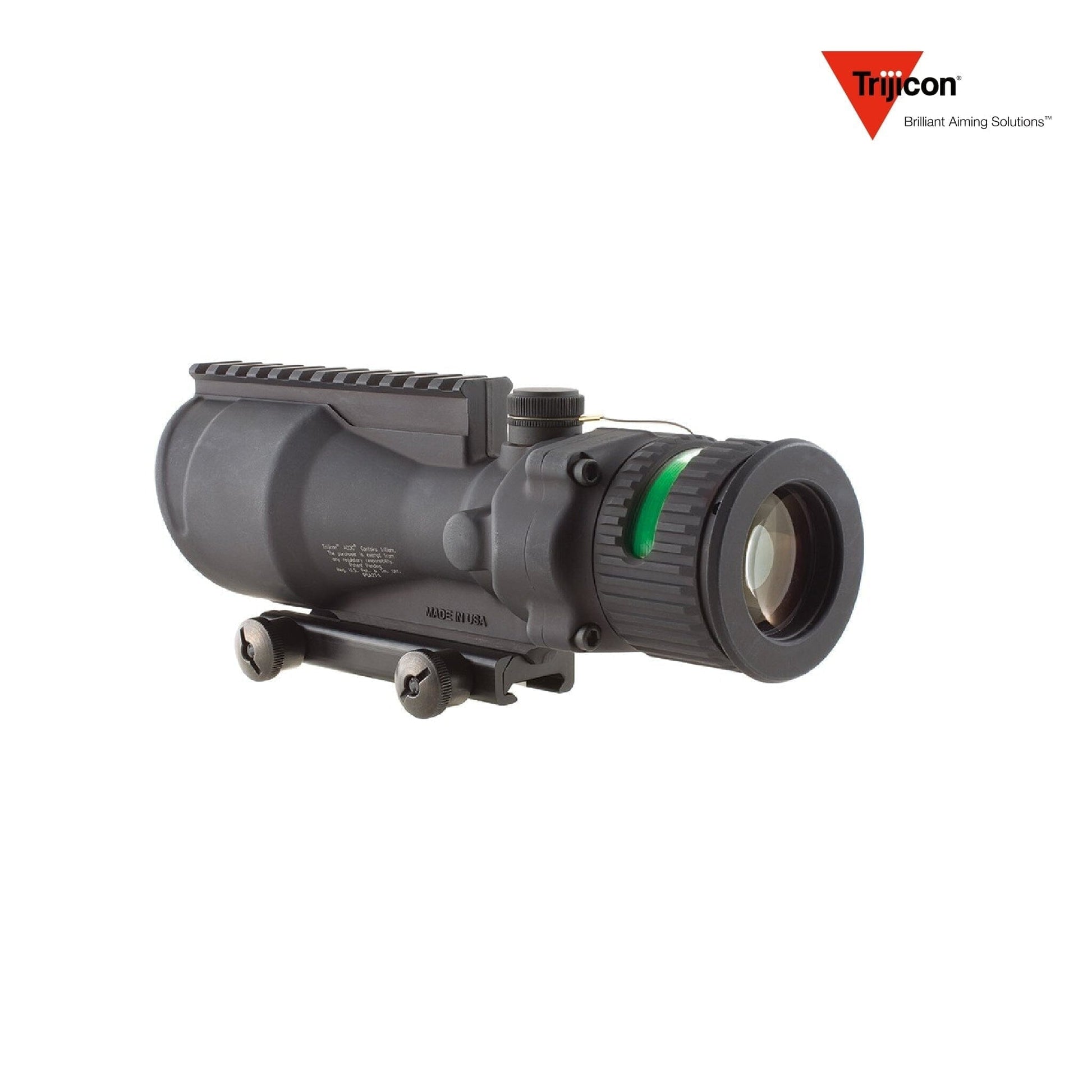

Trijicon ACOG 6×48 BAC Riflescope .308/7.62 BDC Green Chevron Reticle
Features
- Heavy‑Hitting 6×/48 mm ACOG: Big objective and fixed 6× magnification deliver excellent low‑light brightness and long‑range target definition for .308/7.62 battle rifles, DMRs, and medium‑range machine‑gun roles.
- Dual‑Illuminated, Battery‑Free: Fiber optics automatically regulate daytime reticle brightness; tritium provides a self‑glowing aiming point in low/no light—no batteries required in the optic.

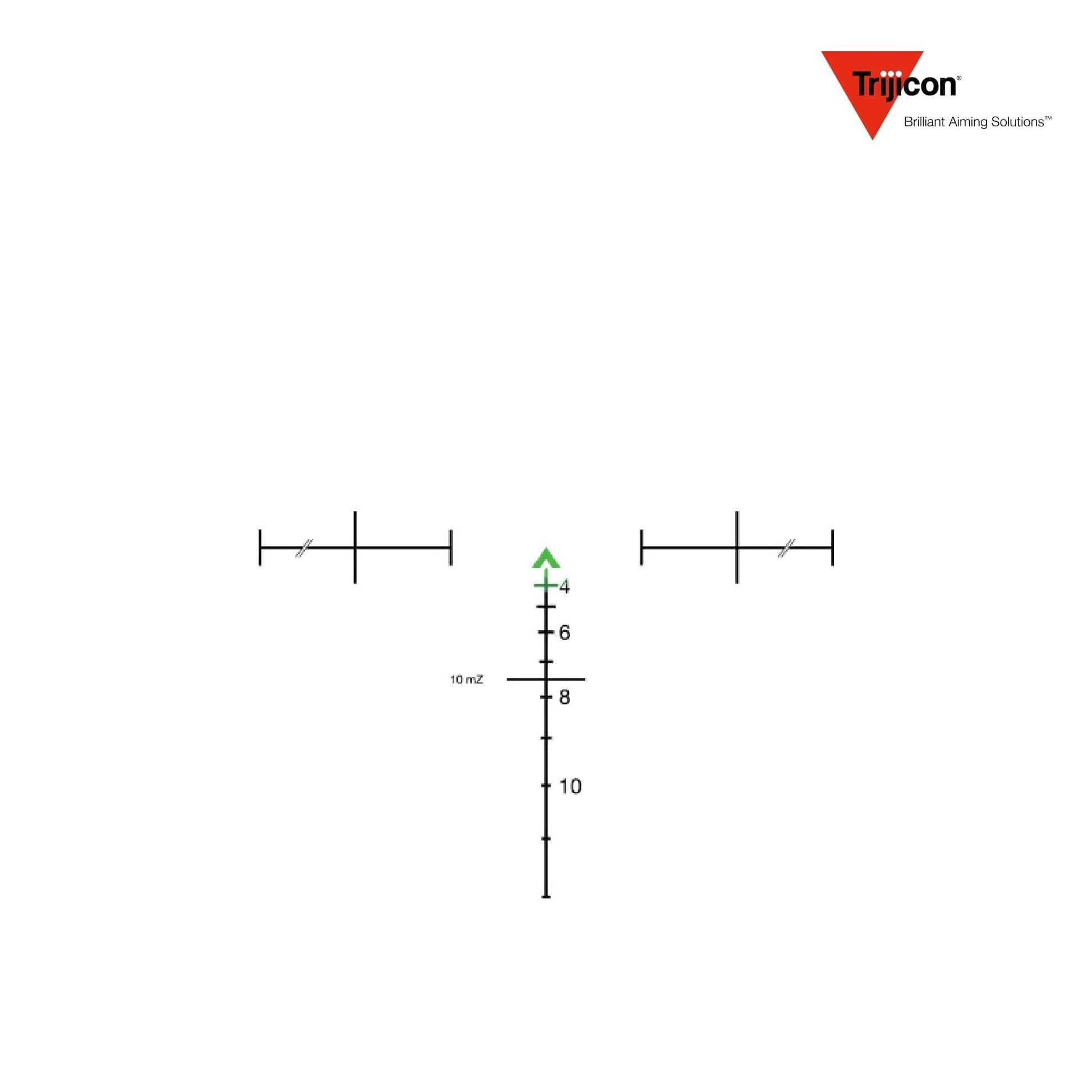

- Green Chevron .308/7.62 BDC Reticle: Zero the chevron tip at 100 m; descending stadia give holds matched to common 7.62×51/.308 ballistics out to extended distance. High‑visibility green stands out in varied terrain and lighting.
- Bindon Aiming Concept™ Capable: Bright, always‑on illumination supports both‑eyes‑open speed for closer engagements while retaining 6× precision for distance shots.
- Integral Top Picatinny Rail: Factory short MIL‑STD‑1913 rail segment atop the housing accepts a mini reflex sight (e.g., RMR) or other accessories without extra adapters.
- Forged 7075‑T6 Aluminum Combat Housing: Engineered for sustained‑fire / heavy‑recoil weapon systems; shock, impact, and harsh‑environment resistant.
- ¼‑MOA External Adjusters: Fine 4 clicks/inch @100 yd allow precise zeroing—finer than standard ½‑MOA 4× ACOGs.
- Deep‑Immersion Waterproofing: Sealed and nitrogen‑purged; rated to 500 ft (152 m) submersion—far beyond typical field exposure.
- TA75 Heavy‑Duty Flattop Mount Included: Purpose‑built adapter secures the large 6×48 footprint to MIL‑STD‑1913 rails with repeatable return‑to‑zero.
- Made in USA & Backed by Trijicon Warranty.
Technical Specifications for Trijicon ACOG 6×48 BAC Riflescope .308/7.62 BDC Green Chevron Reticle
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
TA648‑308G / 100004 |
|
SKU |
TA648‑308G |
|
UPC |
719307303515 |
|
Country of Origin |
USA |
|
Magnification |
6× fixed |
|
Objective Lens Diameter |
48 mm |
|
Optical Design |
Fixed‑power prism (integral ACOG housing) |
|
Reticle |
Green Chevron .308/7.62 BDC (dual‑illum fiber optic / tritium) |
|
Illumination |
Fiber (day) / tritium (night); battery‑free |
|
Eye Relief |
2.7″ (69 mm class) |
|
Field of View @ 100 yd |
17 ft (3.3°) |
|
Exit Pupil |
8.1 mm (approx.; large, bright exit pupil for low light) |
|
Adjustment Click Value |
¼ MOA (≈4 clicks/inch @100 yd) |
|
Total Adjustment Range |
40 MOA windage & elevation (approx.) |
|
Parallax Focus |
Fixed ~100 m |
|
Overall Length |
9.0″ (229 mm) |
|
Width × Height |
~2.9″ W × 3.4″ H |
|
Weight |
36.9 oz (1,046 g) complete w/ TA75 mount |
|
Housing Material / Finish |
Forged aluminum; matte black hard anodize |
|
Optical Coatings |
Fully multi‑coated, high‑transmission glass |
|
Waterproof / Fog‑Proof |
Waterproof to 500 ft (152 m); nitrogen‑purged |
|
Shock Resistance |
Built for heavy‑recoil / sustained‑fire weapon systems |
|
Mount Interface |
TA75 heavy‑duty flattop Picatinny thumbscrew adapter (included) |
|
Top Accessory Rail |
Integral short MIL‑STD‑1913 section for piggyback optics |
Included Accessories
- TA648‑308G 6×48 ACOG (.308/7.62 BDC Green Chevron) optic
- TA75 heavy‑duty flattop Picatinny rail adapter / mount
- LensPen® (TA56)
- Lanyard assembly for adjuster caps (TA107)
- Trijicon logo sticker (PR15)
- ACOG manual
- Warranty card / registration documents
