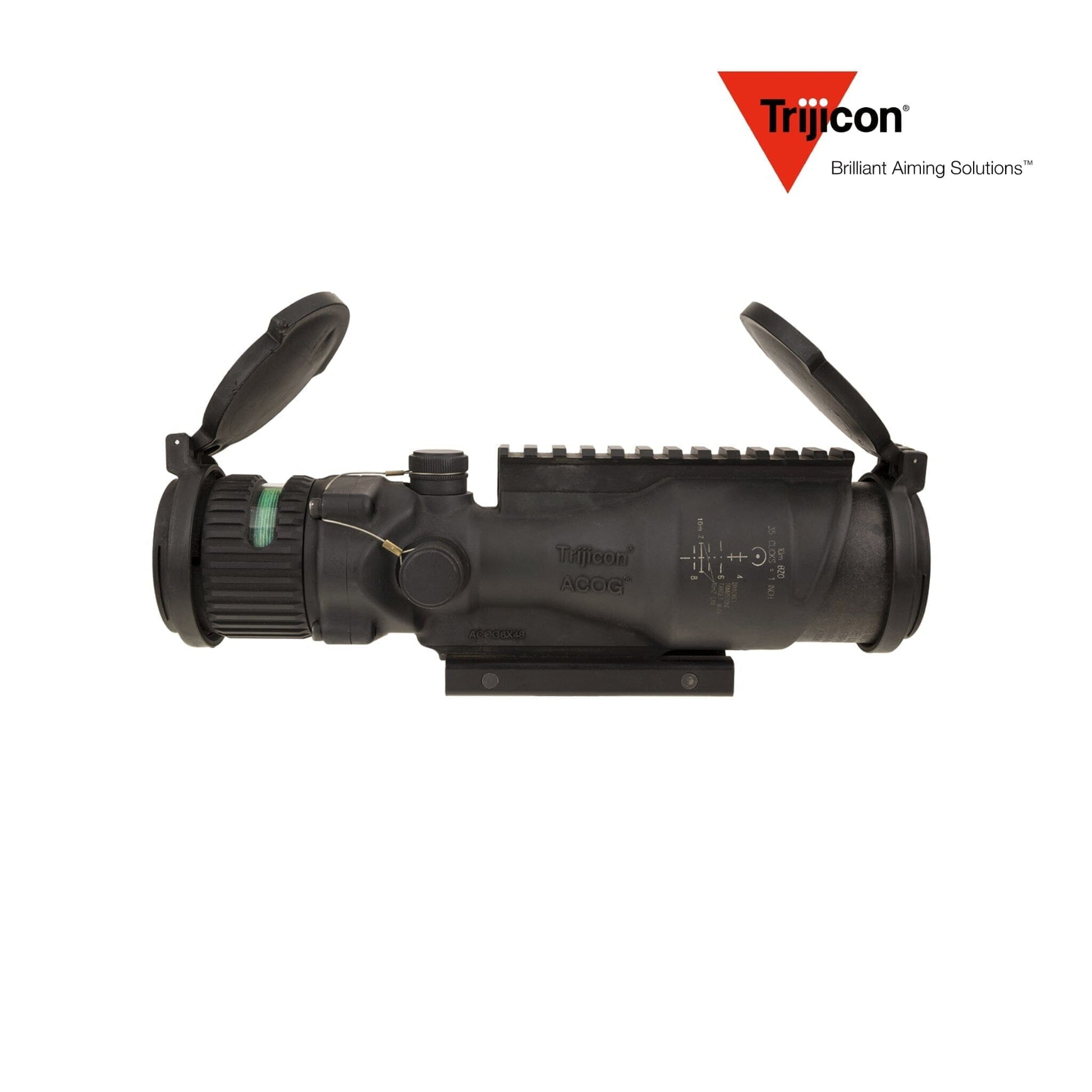

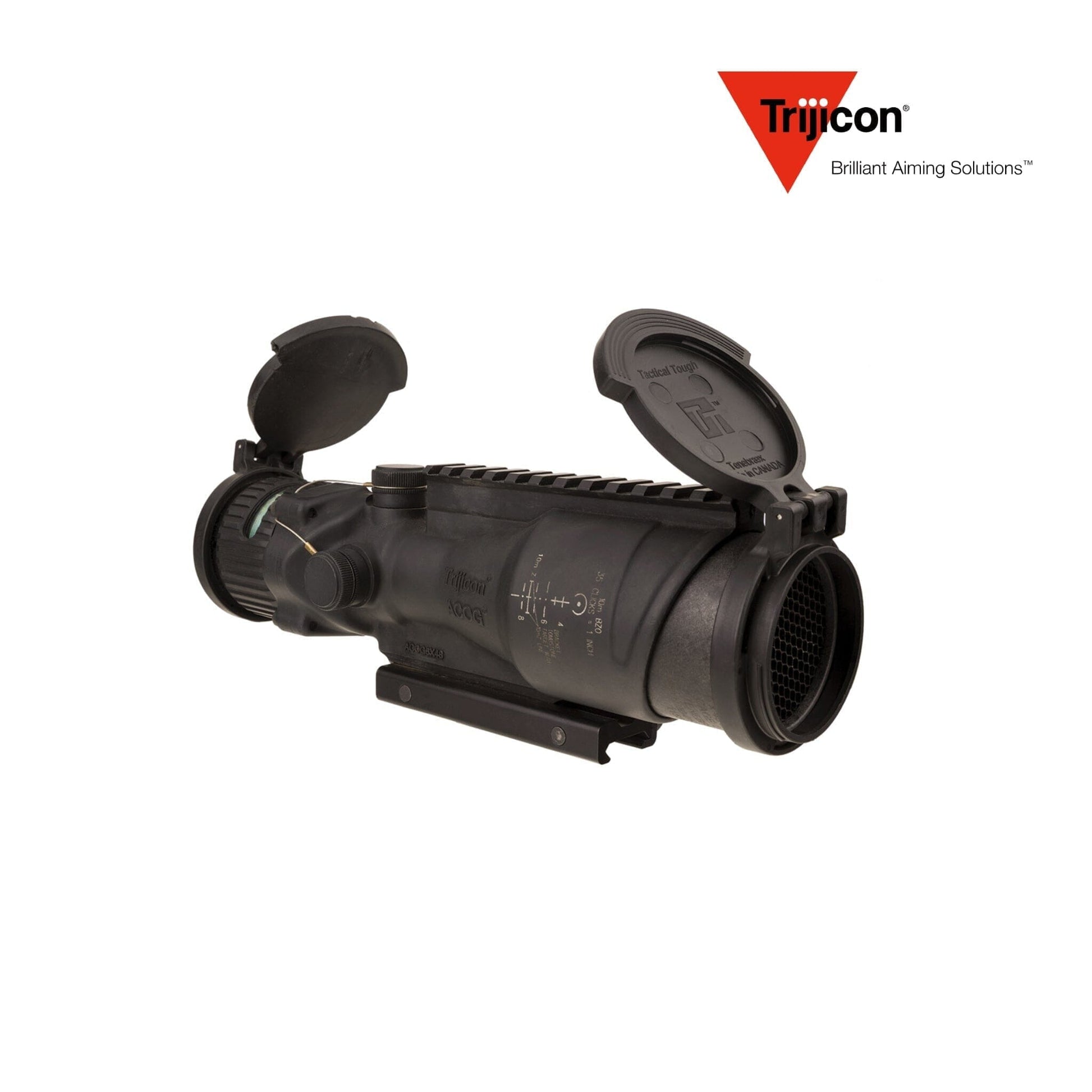

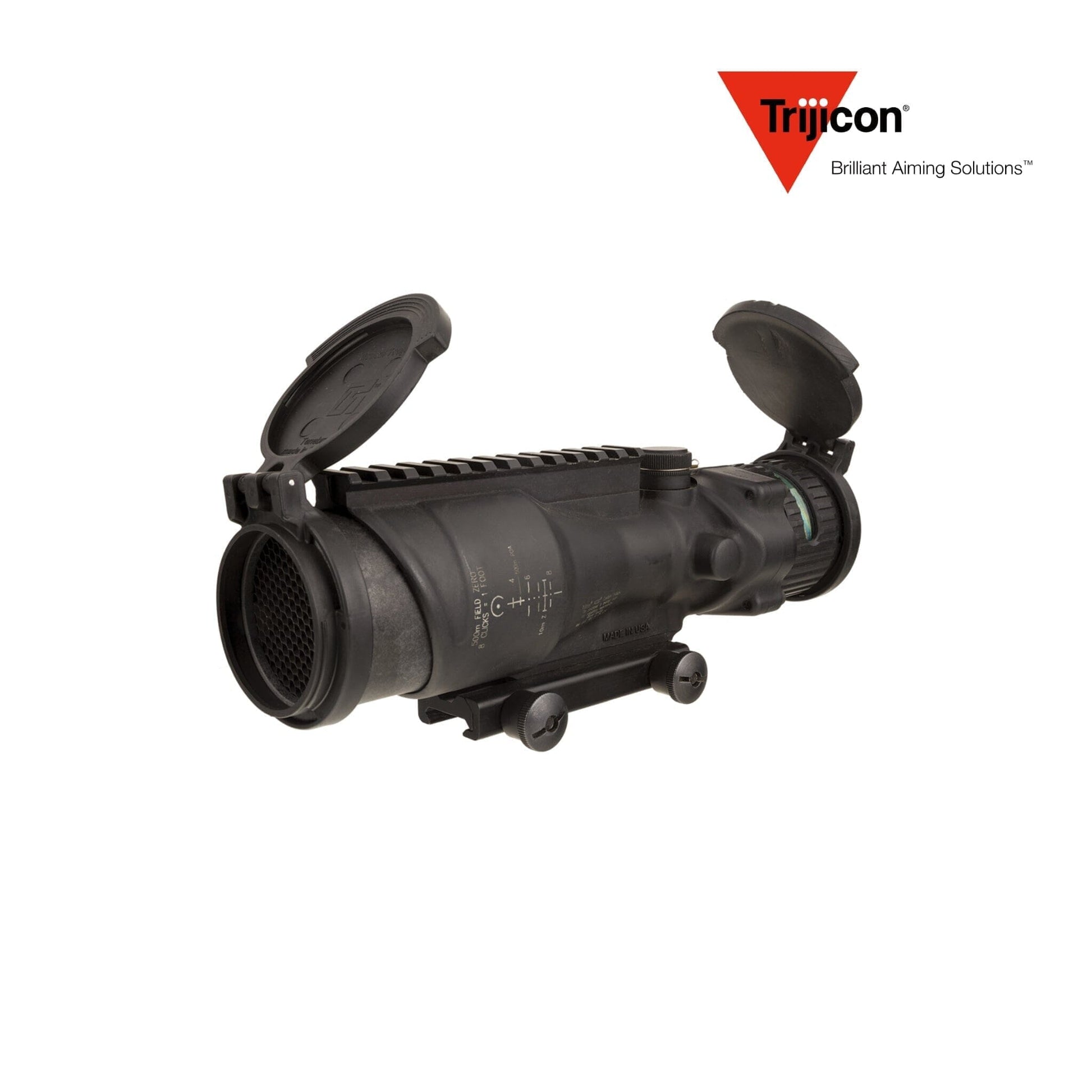

Trijicon ACOG 6×48 BAC Riflescope Green Horseshoe/Dot Reticle – TA648MGO‑M240
Features
- M240-Optimized Machine‑Gun Optic (MGO): Purpose-built for the M240 medium machine gun, with calibrated ballistics for extended-range engagements and superior clarity.
- 6× / 48 mm Fixed Magnification: Large objective lens and fixed power deliver bright, sharp image resolution even in low-light conditions.

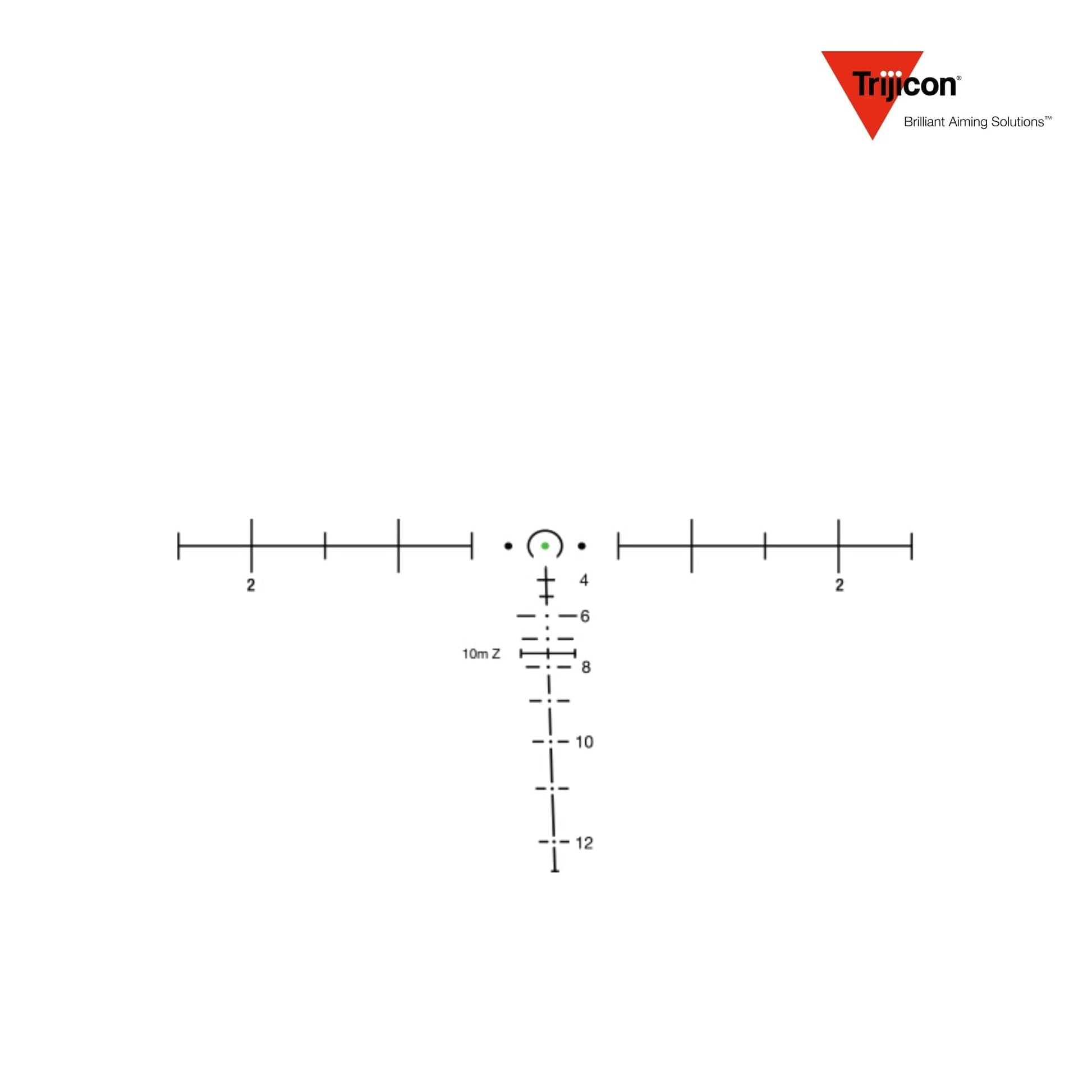

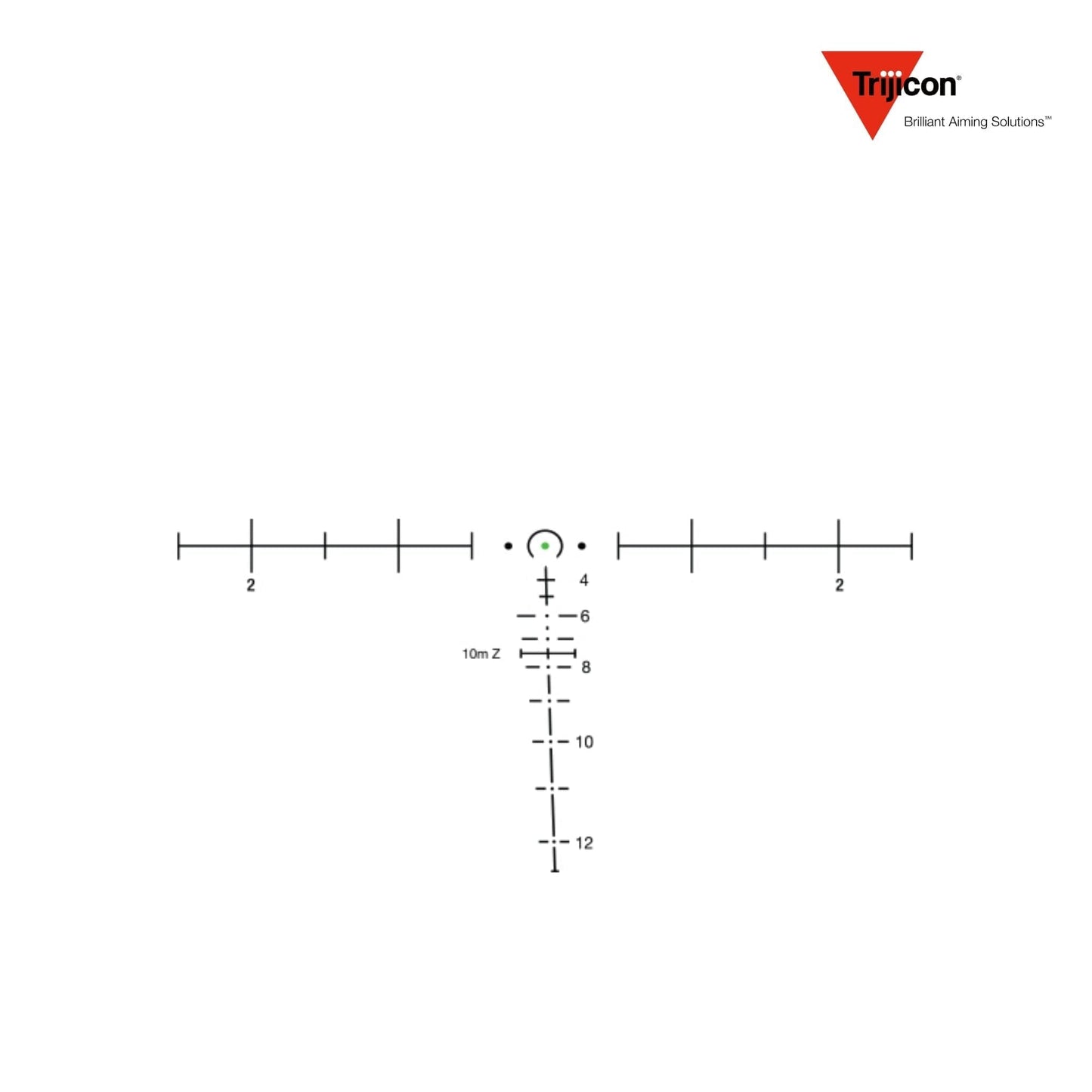

- Dual‑Illuminated Green Horseshoe/Dot Reticle: Center dot and horseshoe design promote rapid target acquisition, with BDC marks for 7.62 NATO trajectories—illuminated by ambient light and tritium.
- Battery-Free Illumination: Daylight fiber optics and night-time tritium eliminate the need for batteries.
- BAC for Close & Long-Range: The Bindon Aiming Concept enables both-eyes-open aiming at close range with precision at distance.
- Top MIL‑STD‑1913 Rail: Integrated short Picatinny rail allows attachment of a mini red dot sight or accessories.
- 7075‑T6 Forged Aluminum Housing: Rugged, combat-grade construction resists recoil, impacts, and harsh environments.
- ¼‑MOA Click Adjusters: Precision windage and elevation turrets for reliable zeroing and shot correction.
- Deep‑Waterproof & Fog‑Proof: Fully sealed and nitrogen-purged; waterproof to approx. 100 m (328 ft).
- TA75 Heavy‑Duty Mount Included: Compatible with flattop Picatinny platforms like the M240, SR‑25, or AR‑10.
- Made in USA & Backed by Trijicon Warranty
Technical Specifications for Trijicon ACOG 6×48 BAC Riflescope Green Horseshoe/Dot Reticle
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
TA648MGO‑M240 / 100016 |
|
SKU |
TA648MGO‑M240 |
|
UPC |
719307304505 |
|
Country of Origin |
USA |
|
Magnification |
6× fixed |
|
Objective Lens Diameter |
48 mm |
|
Optical Design |
Fixed‑power prism (integral ACOG housing) |
|
Reticle |
Green Horseshoe/Dot .308 M240 BDC (dual‑illum fiber optic / tritium) |
|
Illumination |
Fiber (day) / tritium (night); battery‑free |
|
Eye Relief |
2.7″ (≈69 mm) |
|
Field of View @ 100 yd |
17 ft (3.3°) |
|
Exit Pupil |
~8–9 mm |
|
Adjustment Click Value |
¼ MOA (≈4 clicks/inch @100 yd) |
|
Total Adjustment Range |
Approx. 40 MOA windage & elevation |
|
Parallax Focus |
Fixed (~100 m) |
|
Overall Length |
~10.5″ (266.7 mm) |
|
Width × Height |
~3.2″ × 3.5″ |
|
Weight |
~44.3 oz (1,255 g) |
|
Housing Material / Finish |
Forged aluminum; matte black hard anodized |
|
Optical Coatings |
Fully multi‑coated, high‑transmission glass |
|
Waterproof / Fog‑Proof |
Waterproof to ~100 m; nitrogen‑purged |
|
Shock Resistance |
Rated for machine gun / heavy-recoil weapon systems |
|
Mount Interface |
TA75 heavy-duty flattop Picatinny adapter (included) |
|
Top Accessory Rail |
Integral short MIL‑STD‑1913 rail |
Included Accessories
- TA648MGO‑M240 6×48 ACOG Green Horseshoe/Dot optic
- TA75 heavy‑duty flattop Picatinny rail adapter
- TA97 objective flip cap with killFlash
- Eyepiece flip cap
- Brown soft carry pouch
- Lens cleaning tool (LensPen® TA56)
- Adjuster cap lanyard kit (TA107)
- Trijicon logo sticker
- ACOG manual & warranty card
